XZU330L-TKMSWR3 (2002)
Toyota Dyna

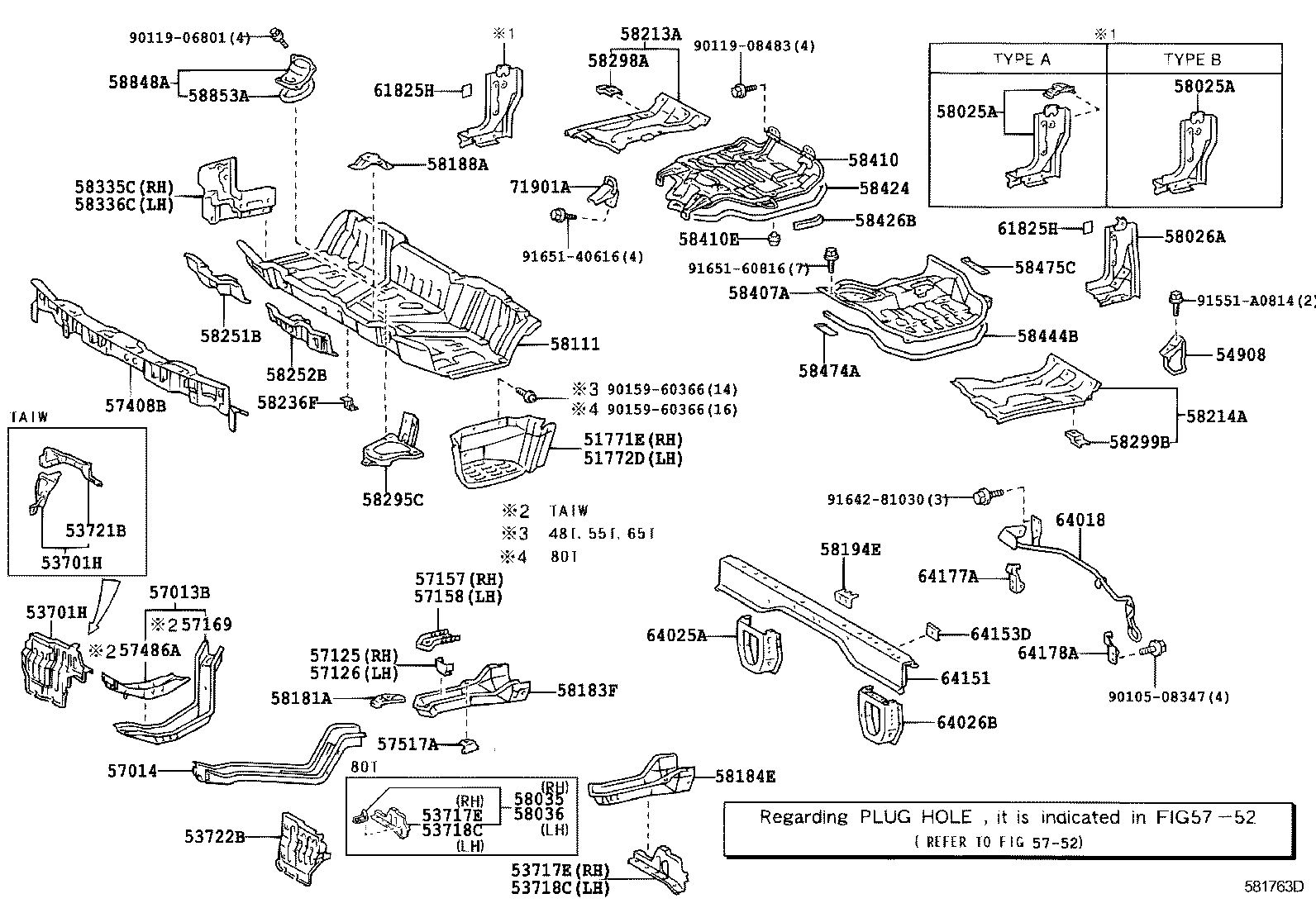

ILLUST NO. 1 OF 2(0212-0610)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51083-37021 |
XZU330,340..80T |
1 | ||
| 51083-37022 |
XZU330,340..80T |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51084-37021 |
XZU330,340..80T |
1 | ||
| 51084-37020 |
XZU330,340..80T |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37022 |
XZU300,320,330,340 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37022 |
XZU300,320,330,340 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37130 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37130 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37052 |
XZU30#,320,330,340,345 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53702-37031 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37240 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57013-37150 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37070 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57125-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57126-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57158-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37080 |
BU300,340,XZU300,320,330,340 |
1 | ||
| 57169-37081 |
XZU30#,320,330,340,345 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37271 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 57408-37272 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37050 |
XZU30#,320,330,340,345 |
1 | ||
| 57486-37011 |
BU300,340,XZU300,320,330,340 |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37020 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 57517-37021 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-37080 |
BU303,343,WU300,340,XZU300,320,330,340..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 58043-37060 |
BU303,343..RHD..GEN;XZU30#,320,330,340,345 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-37080 |
BU303,343,WU300,340,XZU300,320,330,340..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 58043-37060 |
BU303,343..RHD..GEN;XZU30#,320,330,340,345 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37070 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58035 - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58035-37030 |
XZU330,340..80T |
1 | ||
| 58036 - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58036-37030 |
XZU330,340..80T |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37262 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58111-37264 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58111-37263 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37050 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37061 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37073 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58194E - RETAINER, ENGINE COVER HINGE | ||||
| 58194-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-37100 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37080 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37090 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37060 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58252-37061 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37070 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37031 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37111 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58407-37110 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-37171 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90541-09046 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
4 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-37020 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58424-37021 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37030 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-37030 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37020 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37080 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 64018-37081 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37011 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37090 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-37221 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 64153D - REINFORCEMENT, BACK FRAME | ||||
| 52123-32040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 64177-37031 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 64178-37031 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-37010 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
2 | ||
| Common parts | ||||
| 90105-08347 | ||||
| 90119-06801 | ||||
| 90119-08483 | ||||
| 90159-60366 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 5752 | ||||

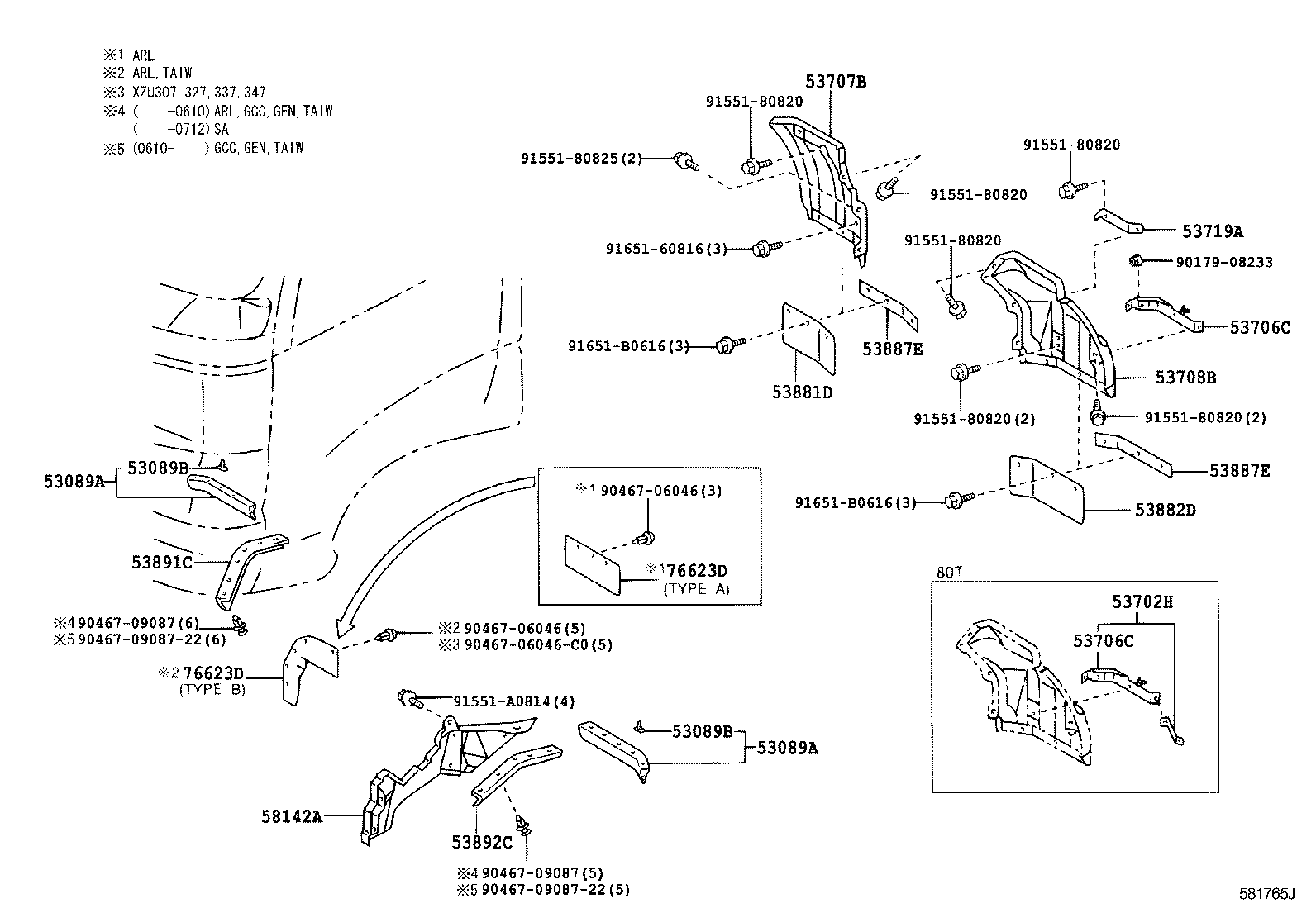

ILLUST NO. 2 OF 2(0212- )ARL,GCC,GEN,SA,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53736-37020 |
XZU330,340..80T RH |
1 | ||
| 53737-37020 |
XZU330,340..80T LH |
1 | ||
| 53736-37021 |
XZU330,340..80T RH |
1 | ||
| 53737-37021 |
XZU330,340..80T LH |
1 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53736-37020 |
XZU330,340..80T RH |
1 | ||
| 53737-37020 |
XZU330,340..80T LH |
1 | ||
| 53736-37021 |
XZU330,340..80T RH |
1 | ||
| 53737-37021 |
XZU330,340..80T LH |
1 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
XZU330,340..80T |
12 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
XZU330,340..80T |
12 | ||
| 53702H - APRON SUB-ASSY, FENDER, LH | ||||
| 53702-37020 |
XZU330,340..80T |
1 | ||
| 53706C - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-37030 |
XZU330,340..80T |
1 | ||
| 53706C - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-37030 |
XZU330,340..80T |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37170 |
XZU330,340..80T |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37191 |
XZU330,340..80T |
1 | ||
| 53716-37190 |
XZU330,340..80T |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37110 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37060 |
XZU330,340..80T |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37060 |
XZU330,340..80T |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37040 |
XZU330,340..80T |
2 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37040 |
XZU330,340..80T |
2 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37030 |
BU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 53891-37031 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 58142-37011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 76623D - MUDGUARD, FRONT FENDER, FRONT RH | ||||
| 76623-37061 |
XZU300,320,330,340 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 76623D - MUDGUARD, FRONT FENDER, FRONT RH | ||||
| 76623-37061 |
XZU300,320,330,340 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 90467-06046 | ||||
| 90467-06046C0 | ||||
| 90467-09087 | ||||
| 90467-0908722 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-A0814 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
