XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

Click highlighted areas on diagram

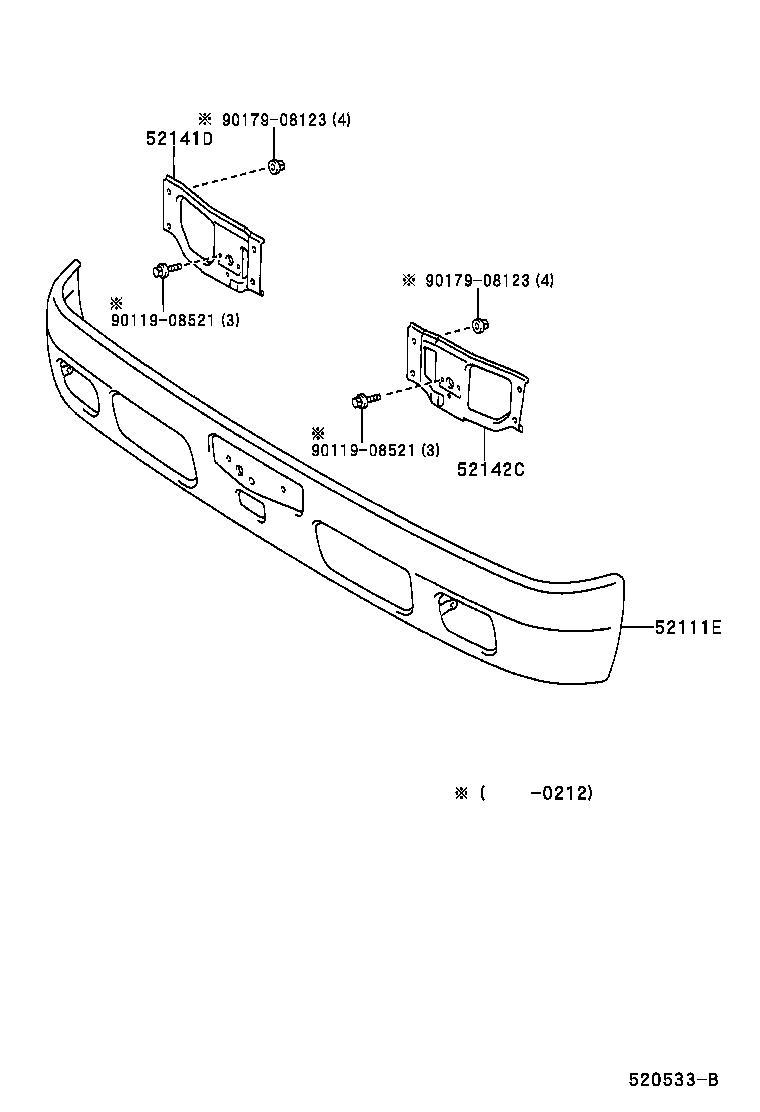

diagram 52111E 52141D 52142C 9011908521 9011908521 9017908123 9017908123
Part # Description Qty Price
Common parts
90119-08521
90179-08123

(0212- )ARL,GCC,GEN,SA,TAIW

Click highlighted areas on diagram

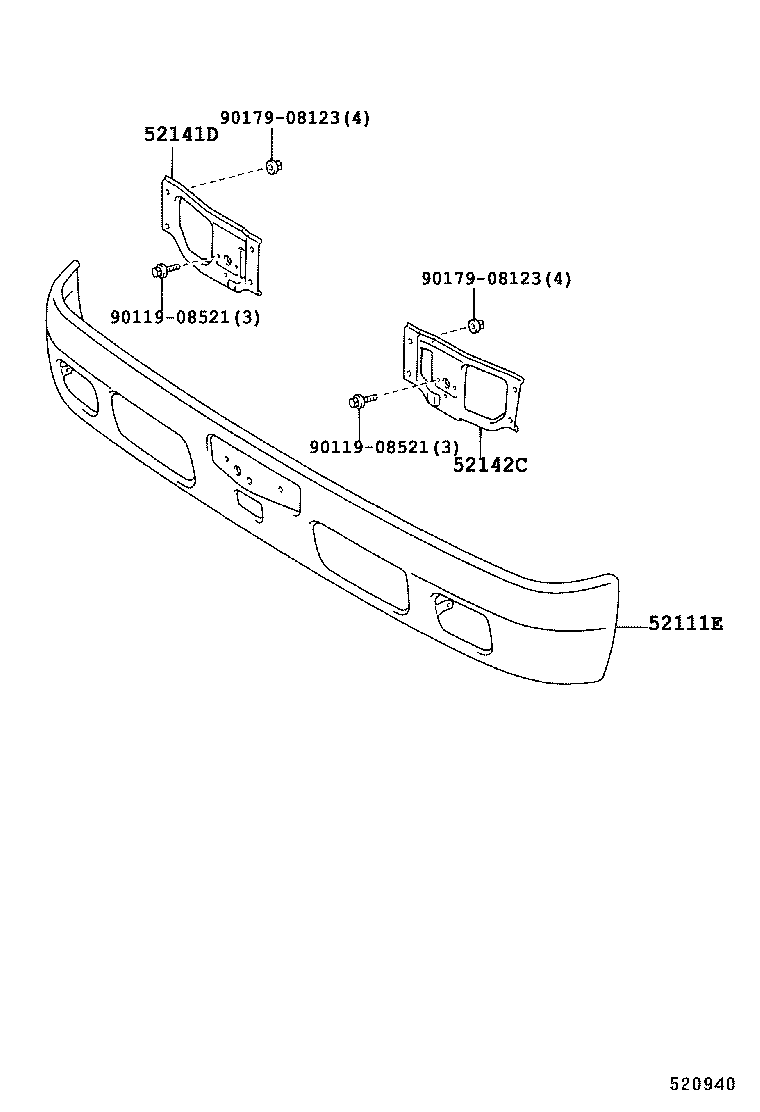

STEEL TYPE

diagram 52111E 52141D 52142C 9011908521 9011908521 9017908123 9017908123
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37541

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO PAINT REQ.,STEEL TYPE (GRAY PAINTED)

 1
52101-37540

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW

NO PAINT REQ.,STEEL TYPE (GRAY PAINTED)

 1
52111-37300

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO PAINT REQ.,RESIN TYPE

 1
52141D - STAY, FRONT BUMPER, RH
52141-37120

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

MARK = R3

 1
52142C - STAY, FRONT BUMPER, LH
52142-37100

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

MARK = L3

 1
Common parts
90119-08521
90179-08123

(0212- )ARL,GCC,GEN,SA,TAIW

Click highlighted areas on diagram

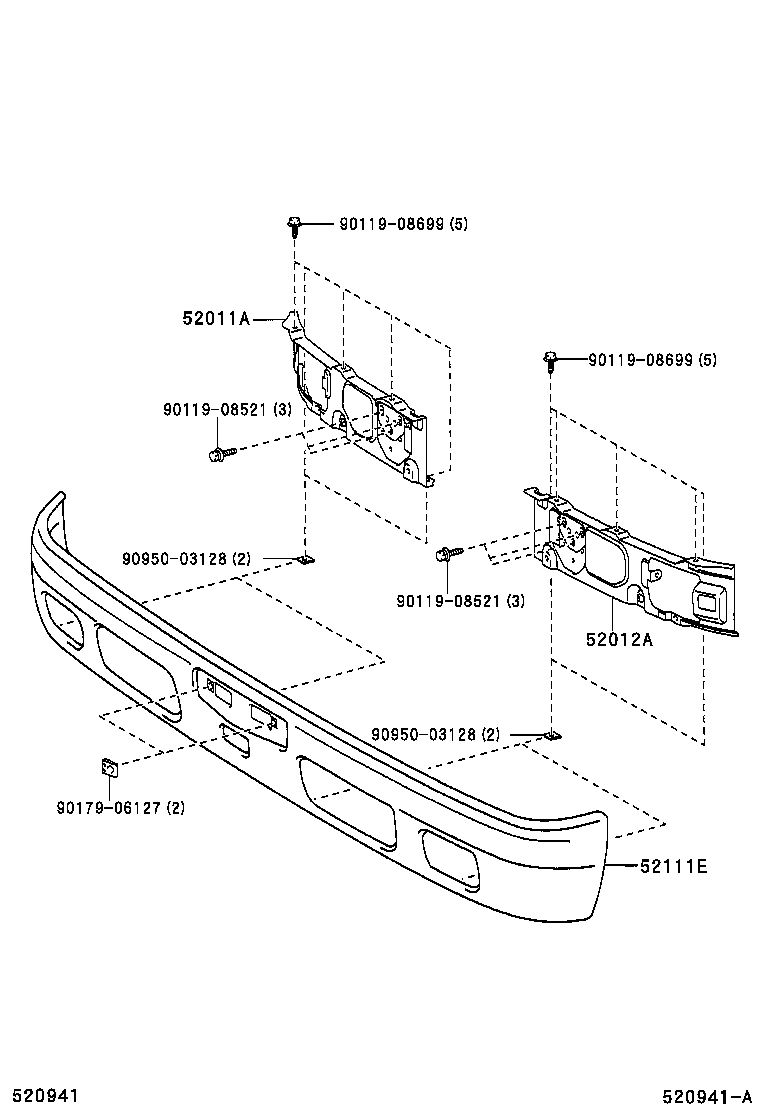

RESIN TYPE

diagram 52011A 52012A 52111E 9011908521 9011908521 9011908699 9011908699 9017906127 9095003128 9095003128
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-37033

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

MARK = RB

 1
52011-37032

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

MARK = RB

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-37031

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

MARK = LB

 1
52012-37032

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

MARK = LB

 1
52111E - BAR, FRONT BUMPER
52101-37541

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO PAINT REQ.,STEEL TYPE (GRAY PAINTED)

 1
52101-37540

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW

NO PAINT REQ.,STEEL TYPE (GRAY PAINTED)

 1
52111-37300

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO PAINT REQ.,RESIN TYPE

 1
Common parts
90119-08521
90119-08699
90179-06127
90950-03128

(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 52105 52105 52105 52106 52106 52106 52111 52111 52119 53934A 53934A 53935A 53935A 9011210008 9011210046 9017910016 9046707050 9046707050 9161141020 9161141020 9165140616 9165140820 9165140820 9411041000 9451101000 9461111001
Part # Description Qty Price
Common parts
90112-10008
90112-10046
90179-10016
90467-07050
91611-41020
91651-40616
91651-40820
94110-41000
94511-01000
94611-11001
