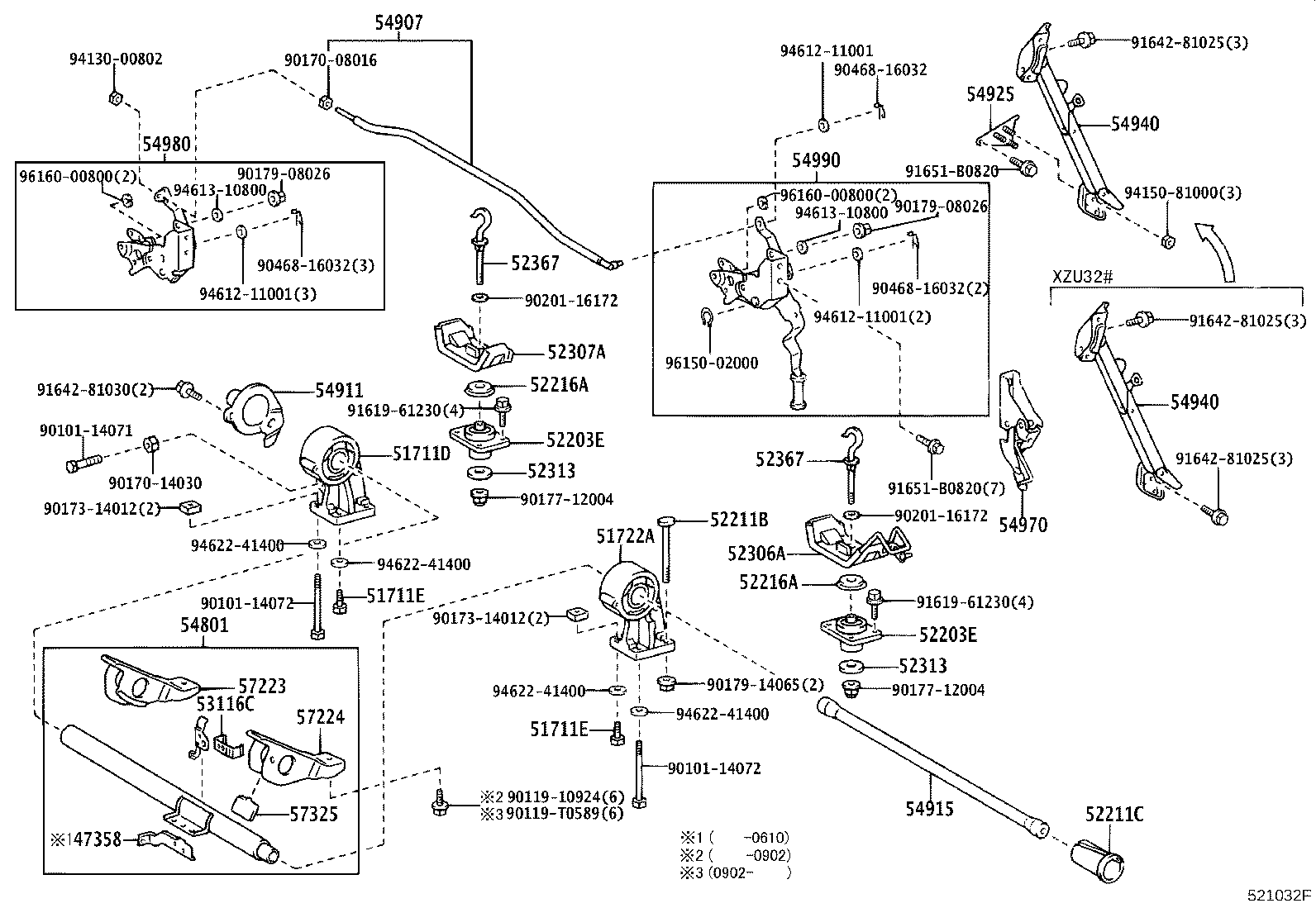

XZU330L-TKMSWR3 (2002)
Toyota Dyna
(0212- )XZU300,307,32#,33#,340,347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37161 |
XZU300,320,330,340 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37161 |
XZU300,320,330,340 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37030 |
XZU300,320,330,340 |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37030 |
XZU300,320,330,340 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-37030 |
XZU300,320,330,340 |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-37030 |
XZU300,320,330,340 |
2 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-37022 |
XZU30#,320,330,340,345 |
1 | ||
| 52306-37021 |
XZU300,320,330,340 |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 52313 - STOPPER, CAB REAR MOUNTING REBOUND | ||||
| 52313-37030 |
XZU300,320,330,340 |
2 | ||
| 52313 - STOPPER, CAB REAR MOUNTING REBOUND | ||||
| 52313-37030 |
XZU300,320,330,340 |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37020 |
XZU300,320,330,340 |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37020 |
XZU300,320,330,340 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37053 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 54911 - ARM, TILT CAB SPRING SUPPORT, NO.1 | ||||
| 54911-37040 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37100 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 54925 - RETAINER, TILT CAB SPRING | ||||
| 54925-37030 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37051 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37051 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37013 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37011 |
XZU30#,320,330,340,345 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37022 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37011 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| Common parts | ||||
| 90101-14071 | ||||
| 90101-14072 | ||||
| 90119-10924 | ||||
| 90119-T0589 | ||||
| 90170-08016 | ||||
| 90170-14030 | ||||
| 90173-14012 | ||||
| 90177-12004 | ||||
| 90179-08026 | ||||
| 90179-14065 | ||||
| 90201-16172 | ||||
| 90468-16032 | ||||
| 91619-61230 | ||||
| 91642-81025 | ||||
| 91642-81030 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 94150-81000 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00800 | ||||
(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12002 | ||||
| 90119-10065 | ||||
| 90201-12002 | ||||
| 90201-15005 | ||||
| 90240-10009 | ||||
| 90468-16012 | ||||
| 91112-51460 | ||||
| 91161-71230 | ||||
| 94115-51200 | ||||
| 94512-01400 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 5151 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10149 | ||||
| 90201-10159 | ||||
| 90201-10287 | ||||
| 90201-16172 | ||||
| 90467-07050 | ||||
| 91111-71025 | ||||
| 91111-71030 | ||||
| 91161-51230 | ||||
| 91161-71230 | ||||
| 91161-71235 | ||||
| 91611-40612 | ||||
| 91651-60825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94115-51200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94612-11200 | ||||
| 94613-11200 | ||||
