XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9907- )

Click highlighted areas on diagram

diagram 51961C 51962 51963B 51963E 51964B 9017814007 9111281460 9111281460 9413001402 9462241400 9462241400
Part # Description Qty Price
Common parts
90178-14007
91112-81460
94130-01402
94622-41400

ILLUST NO. 2 OF 2(0212- )BU30#,34#,WU30#,34#,XZU30#,327,33#,340,345,347..ARL,GCC,GEN,SA,TAIW

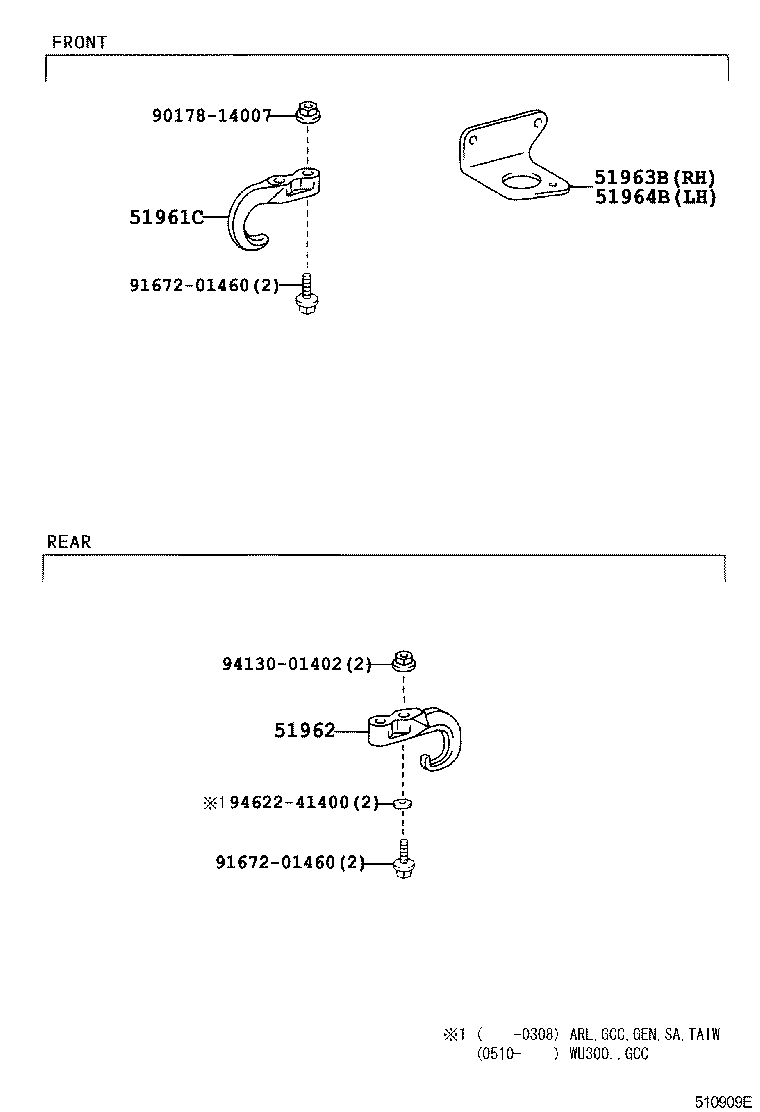

Click highlighted areas on diagram

diagram 51961C 51962 51963B 51964B 9017814007 9167201460 9167201460 9413001402 9462241400
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37060

BU303,343,WU300,340,XZU300,330,340..LHD

 1
51962 - HOOK, NO.2
51961-36040

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 1
Common parts
90178-14007
91672-01460
94130-01402
94622-41400

ILLUST NO. 1 OF 2(0212-0506)XZU300,330,340 ; (0212-0610)BU30#,34#,WU300,340..ARL,GCC,GEN,SA

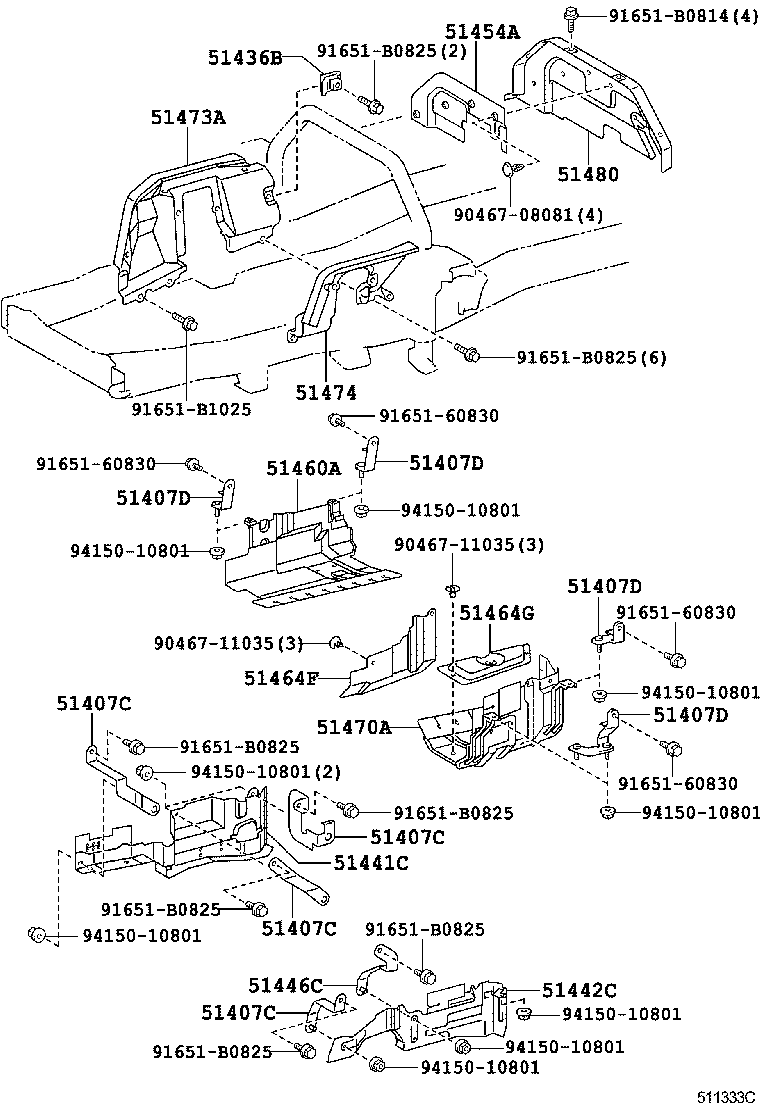

Click highlighted areas on diagram

diagram 51407D 51407D 51436B 51464D 51464D 51470 51473A 51474 9165160830 9165160830 91651B0825 91651B0825 91651B0825 9415010801 9415010801
Part # Description Qty Price
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37251

XZU300,330,340

NO.2

 1
51407-37070

XZU300,330,340

NO.1

 1
51407-37250

XZU300,330,340

NO.2

 1
51407-37370

XZU300,330,340

RH FRONT

 1
51407-37251

XZU300,330,340

LH FRONT

 1
51407-37070

XZU300,330,340

LH,REAR

 1
51407-37400

XZU300,330,340

RH REAR

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37251

XZU300,330,340

NO.2

 1
51407-37070

XZU300,330,340

NO.1

 1
51407-37250

XZU300,330,340

NO.2

 1
51407-37370

XZU300,330,340

RH FRONT

 1
51407-37251

XZU300,330,340

LH FRONT

 1
51407-37070

XZU300,330,340

LH,REAR

 1
51407-37400

XZU300,330,340

RH REAR

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
51464D - SILENCER, TRANSMISSION UNDER
51464-37120

XZU300,330,340

NO.1

 1
51464-37140

XZU300,330,340

NO.2

 1
51464D - SILENCER, TRANSMISSION UNDER
51464-37120

XZU300,330,340

NO.1

 1
51464-37140

XZU300,330,340

NO.2

 1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37290

XZU300,330,340

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37120

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
51473-37121

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37131

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
51474-37130

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
Common parts
91651-60830
91651-B0825
94150-10801

ILLUST NO. 1 OF 2(0506-0610)XZU300,330,340

Click highlighted areas on diagram

diagram 51407C 51407C 51407C 51407C 51407D 51407D 51407D 51407D 51436B 51441C 51442C 51446C 51454A 51460A 51464F 51464G 51470A 51473A 51474 51480 9046708081 9046711035 9046711035 9165160830 9165160830 9165160830 9165160830 91651B0814 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B1025 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801 9415010801
Part # Description Qty Price
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190

XZU300,320,330,340

RH FRONT

 1
51407-37220

XZU300,320,330,340

LH FRONT

 1
51407-37320

XZU300,330,340

RH REAR

 1
51407-37200

XZU300,320,330,340

RH CENTER

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190

XZU300,320,330,340

RH FRONT

 1
51407-37220

XZU300,320,330,340

LH FRONT

 1
51407-37320

XZU300,330,340

RH REAR

 1
51407-37200

XZU300,320,330,340

RH CENTER

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190

XZU300,320,330,340

RH FRONT

 1
51407-37220

XZU300,320,330,340

LH FRONT

 1
51407-37320

XZU300,330,340

RH REAR

 1
51407-37200

XZU300,320,330,340

RH CENTER

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37190

XZU300,320,330,340

RH FRONT

 1
51407-37220

XZU300,320,330,340

LH FRONT

 1
51407-37320

XZU300,330,340

RH REAR

 1
51407-37200

XZU300,320,330,340

RH CENTER

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37251

XZU300,330,340

NO.2

 1
51407-37070

XZU300,330,340

NO.1

 1
51407-37250

XZU300,330,340

NO.2

 1
51407-37370

XZU300,330,340

RH FRONT

 1
51407-37251

XZU300,330,340

LH FRONT

 1
51407-37070

XZU300,330,340

LH,REAR

 1
51407-37400

XZU300,330,340

RH REAR

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37251

XZU300,330,340

NO.2

 1
51407-37070

XZU300,330,340

NO.1

 1
51407-37250

XZU300,330,340

NO.2

 1
51407-37370

XZU300,330,340

RH FRONT

 1
51407-37251

XZU300,330,340

LH FRONT

 1
51407-37070

XZU300,330,340

LH,REAR

 1
51407-37400

XZU300,330,340

RH REAR

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37251

XZU300,330,340

NO.2

 1
51407-37070

XZU300,330,340

NO.1

 1
51407-37250

XZU300,330,340

NO.2

 1
51407-37370

XZU300,330,340

RH FRONT

 1
51407-37251

XZU300,330,340

LH FRONT

 1
51407-37070

XZU300,330,340

LH,REAR

 1
51407-37400

XZU300,330,340

RH REAR

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37251

XZU300,330,340

NO.2

 1
51407-37070

XZU300,330,340

NO.1

 1
51407-37250

XZU300,330,340

NO.2

 1
51407-37370

XZU300,330,340

RH FRONT

 1
51407-37251

XZU300,330,340

LH FRONT

 1
51407-37070

XZU300,330,340

LH,REAR

 1
51407-37400

XZU300,330,340

RH REAR

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
51441C - COVER, ENGINE UNDER, RH
51440-37370

XZU300,320,330,340

 1
51442C - COVER, ENGINE UNDER, LH
51440-37390

XZU300,320,330,340

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-37220

XZU300,320,330,340

 1
51454A - SILENCER, ENGINE REAR COVER
51454-37170

XZU300,320,330,340

 1
51460A - COVER ASSY, TRANSMISSION UNDER, RH
51460-37021

XZU300,320,330,340

 1
51464F - SILENCER, TRANSMISSION UNDER
51464-37120

XZU300,330,340

 1
51464G - SILENCER, TRANSMISSION UNDER
51464-37140

XZU300,330,340

 1
51470A - COVER ASSY, TRANSMISSION UNDER, LH
51470-37170

XZU300,330,340

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37120

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
51473-37121

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37131

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
51474-37130

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37061

XZU300,320,330,340

 1
Common parts
90467-08081
90467-11035
91651-60830
91651-B0814
91651-B0825
91651-B1025
94150-10801

(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 51171 51171 51171 51441 51442 51456 51456 51457 51457 51459 51459 51961 51961 51961 51961 51961 51963 51963 9111271455 9111271455 9111271460 9111271460 9116271250 9165140816 9165140816 9165140820 9165140820 9359056014 9359056014 9411551200 9411551400 9411551400 9411551400 9411551400 9451201200 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
Common parts
91112-71455
91112-71460
91162-71250
91651-40816
91651-40820
93590-56014
94115-51200
94115-51400
94512-01200
94512-01400
