XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

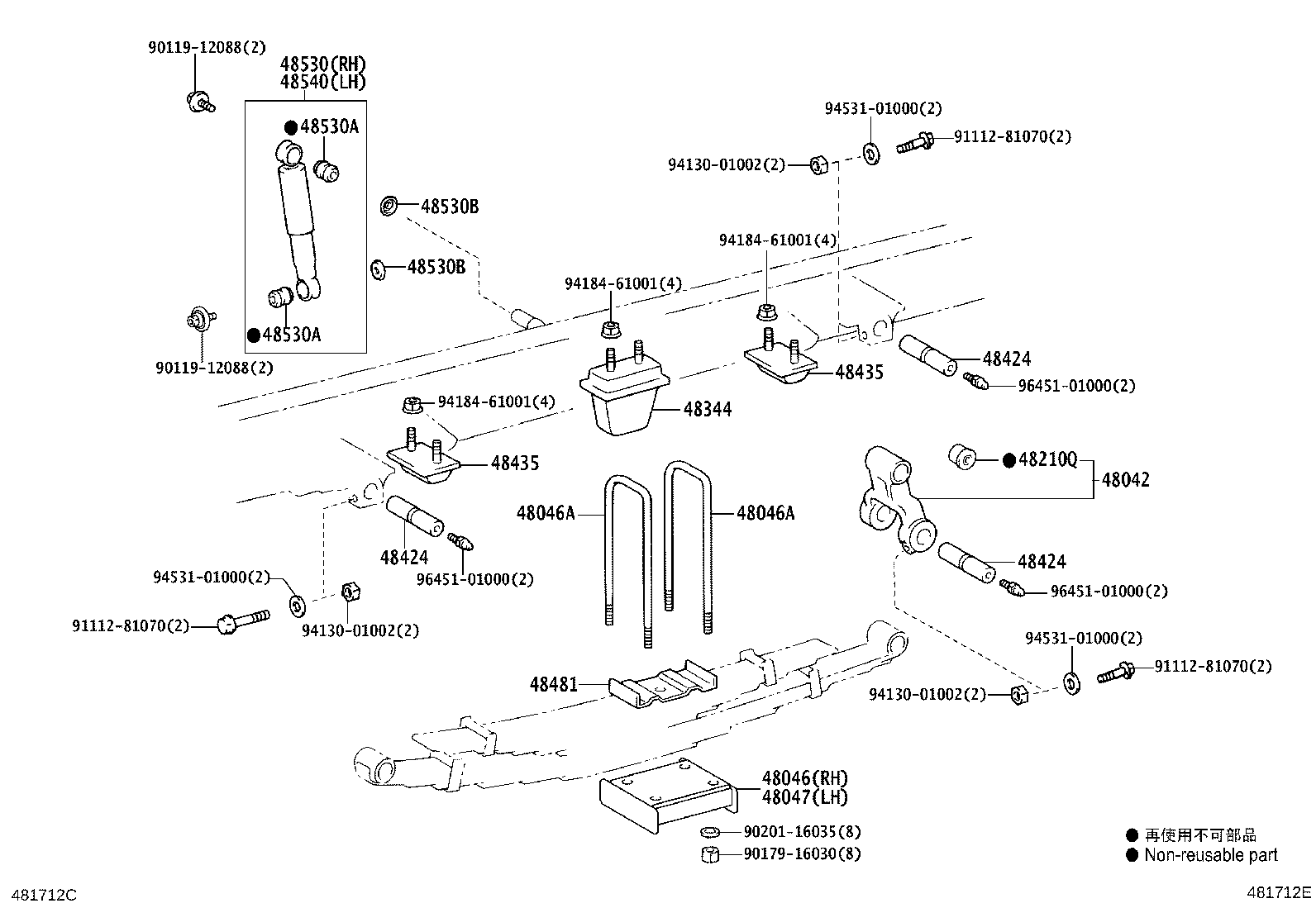

ILLUST NO. 1 OF 2(0212- )80T

Click highlighted areas on diagram

diagram 48042 48046 48046A 48046A 48047 48210Q 48344 48424 48424 48424 48435 48435 48481 48530 48530A 48530A 48530B 48530B 48540 9011912088 9011912088 9017916030 9020116035 9111281070 9111281070 9111281070 9413001002 9413001002 9413001002 9418461001 9418461001 9418461001 9453101000 9453101000 9453101000 9645101000 9645101000 9645101000
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37041

XZU330,340..80T

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37180

BU343..65T..GEN;XZU30#,330,340,345

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16057

XZU330,340..80T

L=345

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16057

XZU330,340..80T

L=345

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37180

BU343..65T..GEN;XZU30#,330,340,345

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90384-28009

XZU330,340..80T

 2
48344 - STOPPER, BUMPER, REAR
48344-37140

XZU330,340..80T

 2
48424 - PIN, SPRING BRACKET, NO.2
48424-37020

XZU330,340..80T

 6
48424 - PIN, SPRING BRACKET, NO.2
48424-37020

XZU330,340..80T

 6
48424 - PIN, SPRING BRACKET, NO.2
48424-37020

XZU330,340..80T

 6
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-36050

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-36050

BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
48481 - SEAT, REAR SPRING, UPPER
48481-37081

BU343..65T..GEN;XZU30#,330,340,345

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80675

XZU330,340..80T

MARK 48531-37060

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80675

XZU330,340..80T

MARK 48531-37060

 1
Common parts
90119-12088
90179-16030
90201-16035
91112-81070
94130-01002
94184-61001
94531-01000
96451-01000

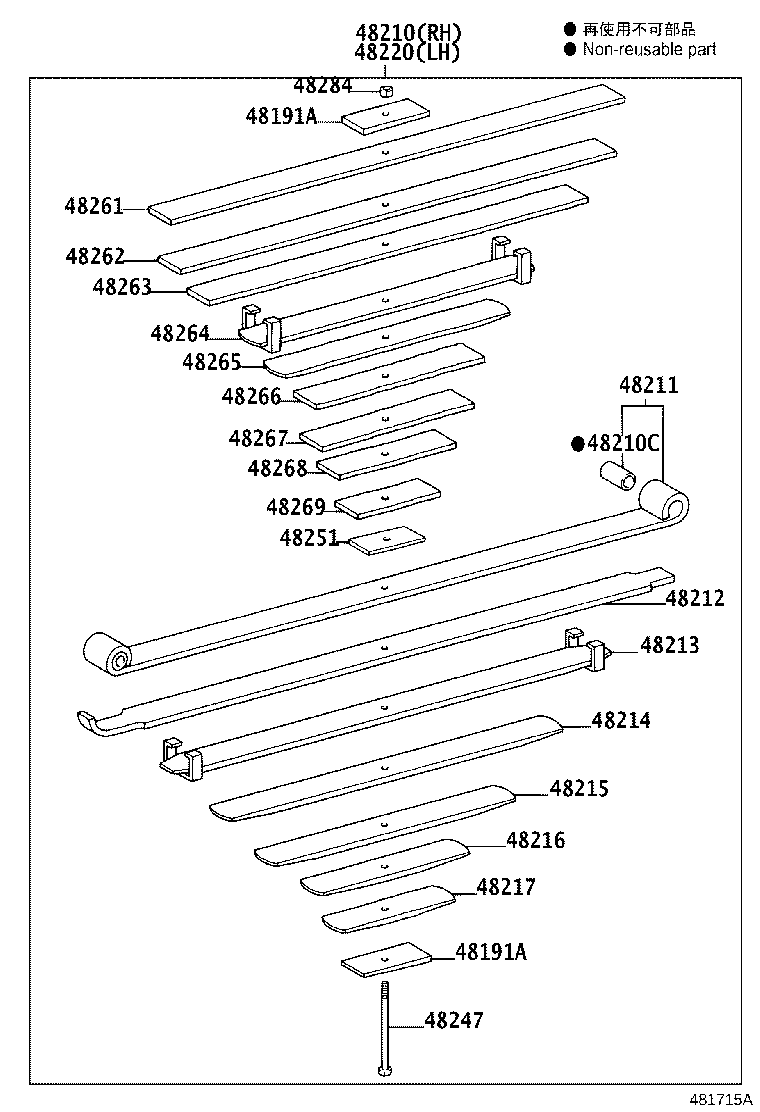

ILLUST NO. 2 OF 2(0212- )80T

Click highlighted areas on diagram

MAIN 7+HELPER 9-LEAF

diagram 48191A 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48261 48262 48263 48264 48265 48266 48267 48268 48269 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37070

BU303,WU300,XZU330,340..(48T,80T)..(GCC,GEN,TAIW)

 4
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37070

BU303,WU300,XZU330,340..(48T,80T)..(GCC,GEN,TAIW)

 4
48210 - SPRING ASSY, REAR RH
48210-37551

XZU330,340..80T

MAIN 7+HELPER 9-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90384-28009

XZU330,340..80T

 4
48211 - LEAF, REAR SPRING, NO.1
48201-37551

XZU330,340..80T

 2
48212 - LEAF, REAR SPRING, NO.2
48212-37550

XZU330,340..80T

 2
48213 - LEAF, REAR SPRING, NO.3
48204-37550

XZU330,340..80T

 2
48214 - LEAF, REAR SPRING, NO.4
48214-37550

XZU330,340..80T

 2
48215 - LEAF, REAR SPRING, NO.5
48215-37550

XZU330,340..80T

 2
48216 - LEAF, REAR SPRING, NO.6
48216-37550

XZU330,340..80T

 2
48217 - LEAF, REAR SPRING, NO.7
48217-37550

XZU330,340..80T

 2
48220 - SPRING ASSY, REAR LH
48210-37551

XZU330,340..80T

MAIN 7+HELPER 9-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-37550

XZU330,340..80T

 2
48251 - SPACER, REAR SPRING LEAF
48268-37560

BU303,343,WU300,340,XZU330,340..WT..(GCC,GEN,TAIW)

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-37550

XZU330,340..80T

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48262-37550

XZU330,340..80T

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48263-37550

XZU330,340..80T

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48207-37550

XZU330,340..80T

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48265-37550

XZU330,340..80T

 2
48266 - LEAF, REAR HELPER SPRING, NO.6
48266-37550

XZU330,340..80T

 2
48267 - LEAF, REAR HELPER SPRING, NO.7
48267-37550

XZU330,340..80T

 2
48268 - LEAF, REAR HELPER SPRING, NO.8
48268-37550

XZU330,340..80T

 2
48269 - LEAF, REAR HELPER SPRING, NO.9
48269-37550

XZU330,340..80T

 2
48284 - NUT, REAR SPRING CENTER BOLT
48155-3B470

BU303,343,WU300,340,XZU330,340..WT..(GCC,GEN,TAIW)

 2

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48220 48220 48220 48241 48241 48241 48242 48242 48242 48247 48247 48247 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48281 48281 48281 9411041000 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100818 9511100822 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48216 48217 48220 48220 48241 48241 48242 48242 48247 48247 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 48266 48266 48267 48267 48281 48281 9411041000 9411041000 9511100816 9511100816 9511100818 9511100818 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822
