XZU330L-TKMSWR3 (2002)
Toyota Dyna

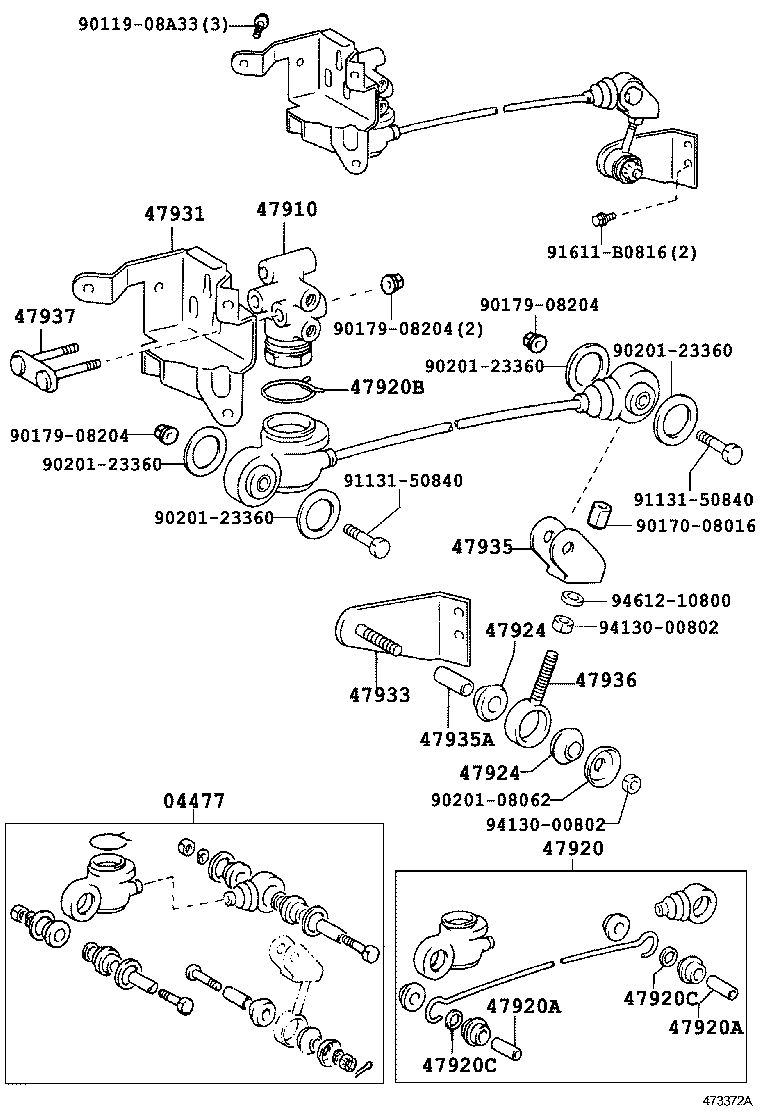

ILLUST NO. 4 OF 4(0212- )BU30#,34#,WU30#,34#,XZU30#,33#,340,345,347..ARL,GCC,GEN,TAIW
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-37010 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37090 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-37070 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-37060 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||

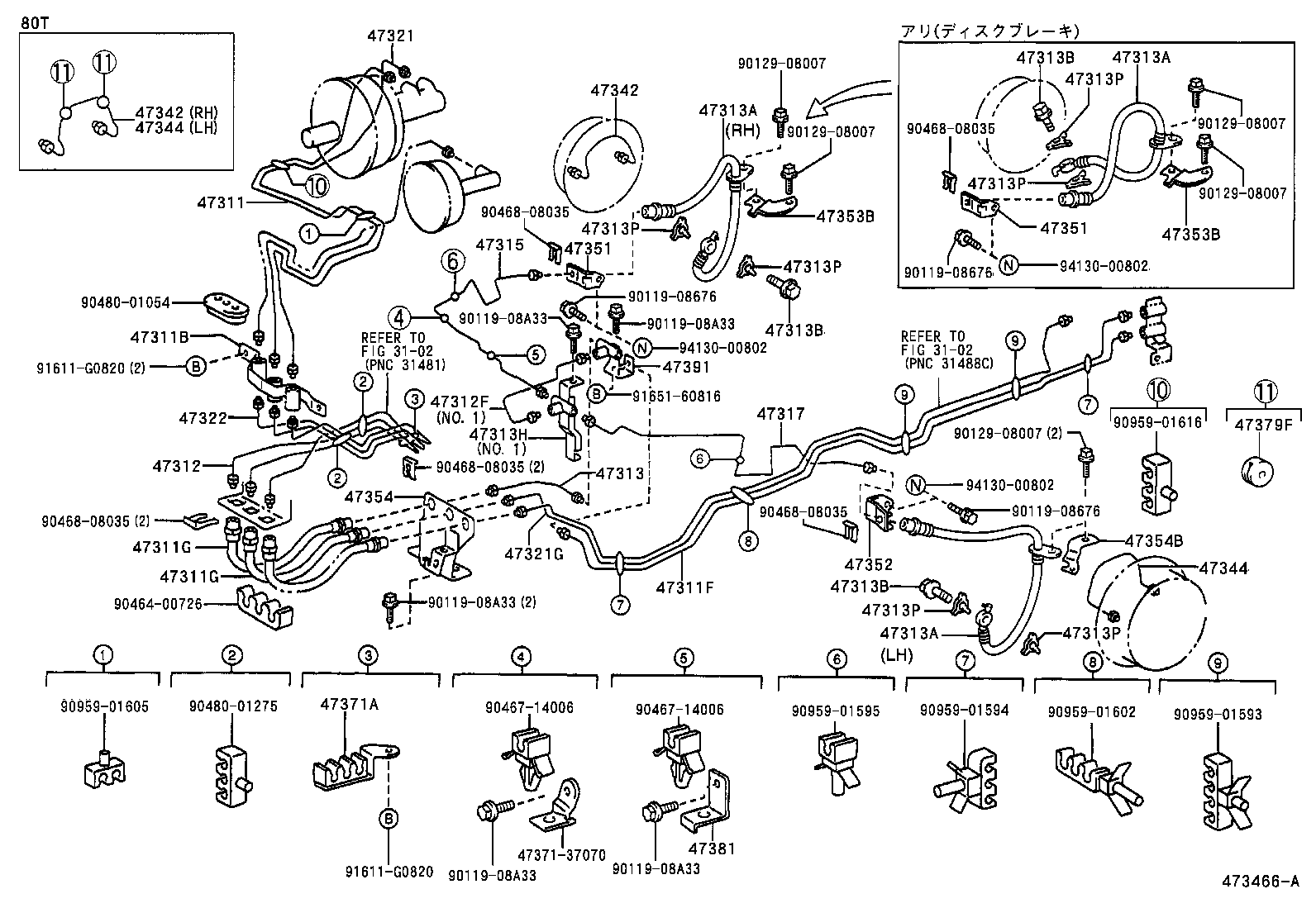

ILLUST NO. 1 OF 4(0212-0610)BU303,343,WU300,340,XZU300,330,340..LHD
W(LSPV) & W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37171 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37210 |
BU303,343,WU300,340,XZU300,330,340..LHD |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37070 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU330 NO.2 |
1 | ||
| 47312-37220 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37250 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A71 |
XZU330,340..80T LH |
1 | ||
| 90947-02A70 |
XZU330,340..80T RH |
1 | ||
| 90947-02D99 |
XZU330,340..80T RH |
1 | ||
| 90947-02E00 |
XZU330,340..80T LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A71 |
XZU330,340..80T LH |
1 | ||
| 90947-02A70 |
XZU330,340..80T RH |
1 | ||
| 90947-02D99 |
XZU330,340..80T RH |
1 | ||
| 90947-02E00 |
XZU330,340..80T LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A71 |
XZU330,340..80T LH |
1 | ||
| 90947-02A70 |
XZU330,340..80T RH |
1 | ||
| 90947-02D99 |
XZU330,340..80T RH |
1 | ||
| 90947-02E00 |
XZU330,340..80T LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.2 |
1 | ||
| 90904-13053 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37251 |
XZU330,340..80T |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37311 |
XZU330,340..80T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37172 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37210 |
BU303,343,WU300,340,XZU300,330,340..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37210 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU330,340..80T |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU330,340..80T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU330,340..80T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU330,340..80T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37230 |
XZU330,340..80T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37230 |
XZU330,340..80T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37140 |
XZU330,340..80T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37010 |
XZU330,340..80T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37010 |
XZU330,340..80T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47351-37260 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37050 |
XZU330,340..80T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37020 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
XZU330,340..80T |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37200 |
BU303,343,WU300,340,XZU300,320,330,340..LHD |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 90413-12007 |
XZU300,320,330,340 |
1 | ||
| Common parts | ||||
| 47371-37070 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 91651-60816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||

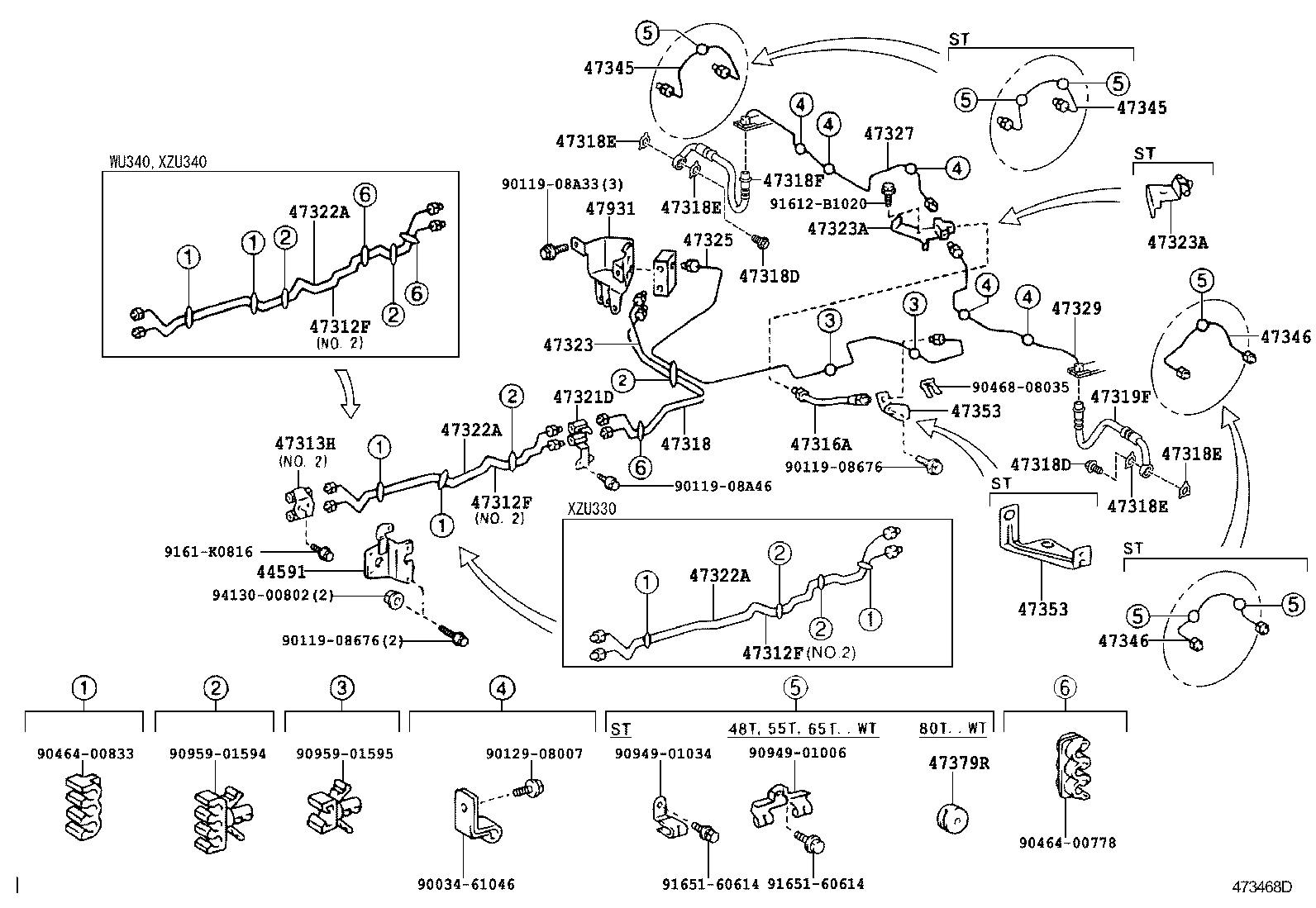

ILLUST NO. 2 OF 4(0212-0610)BU30#,34#,WU300,340,XZU300,330,340..ARL,GCC,GEN,TAIW
W(LSPV) & W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44501-37010 |
BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU330 NO.2 |
1 | ||
| 47312-37220 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU330 NO.2 |
1 | ||
| 47312-37220 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37130 |
XZU330 NO.2 |
1 | ||
| 47312-37220 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW NO.2 |
1 | ||
| 90904-13053 |
BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37180 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU330,340..80T |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU330,340..80T |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU330,340..80T |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU330,340..80T |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU330,340..80T |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU330,340..80T |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D84 |
XZU330,340..80T |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D85 |
XZU330,340..80T |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37180 |
XZU330 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37180 |
XZU330 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37180 |
XZU330 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37200 |
XZU30#,330,340,345 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90904-13052 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90904-13052 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37210 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37470 |
XZU330,340..80T |
1 | ||
| 47327-37471 |
XZU330,340..80T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37330 |
XZU330,340..80T |
1 | ||
| 47329-37510 |
XZU330,340..80T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU330,340..80T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU330,340..80T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU330,340..80T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU330,340..80T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37240 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37240 |
BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU330,340..80T |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90949-01034 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
(7708- )RU20,30..WT ; (7708- )BU2#,30,31,32,HU30,RU25..WT..ARL,GEN,GHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-01054 | ||||
| 91611-40820 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06009 | ||||
| 90461-06487 | ||||
| 90461-08058 | ||||
| 90461-10076 | ||||
| 90461-10625 | ||||
| 90461-12124 | ||||
| 90462-10033 | ||||
| 90480-01047 | ||||
| 90480-08343 | ||||
| 90949-01006 | ||||
| 90949-01019 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-60614 | ||||
| 91615-41040 | ||||
| 91616-40820 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91661-40614 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
| 96224-20966 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
