XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0410- )80T

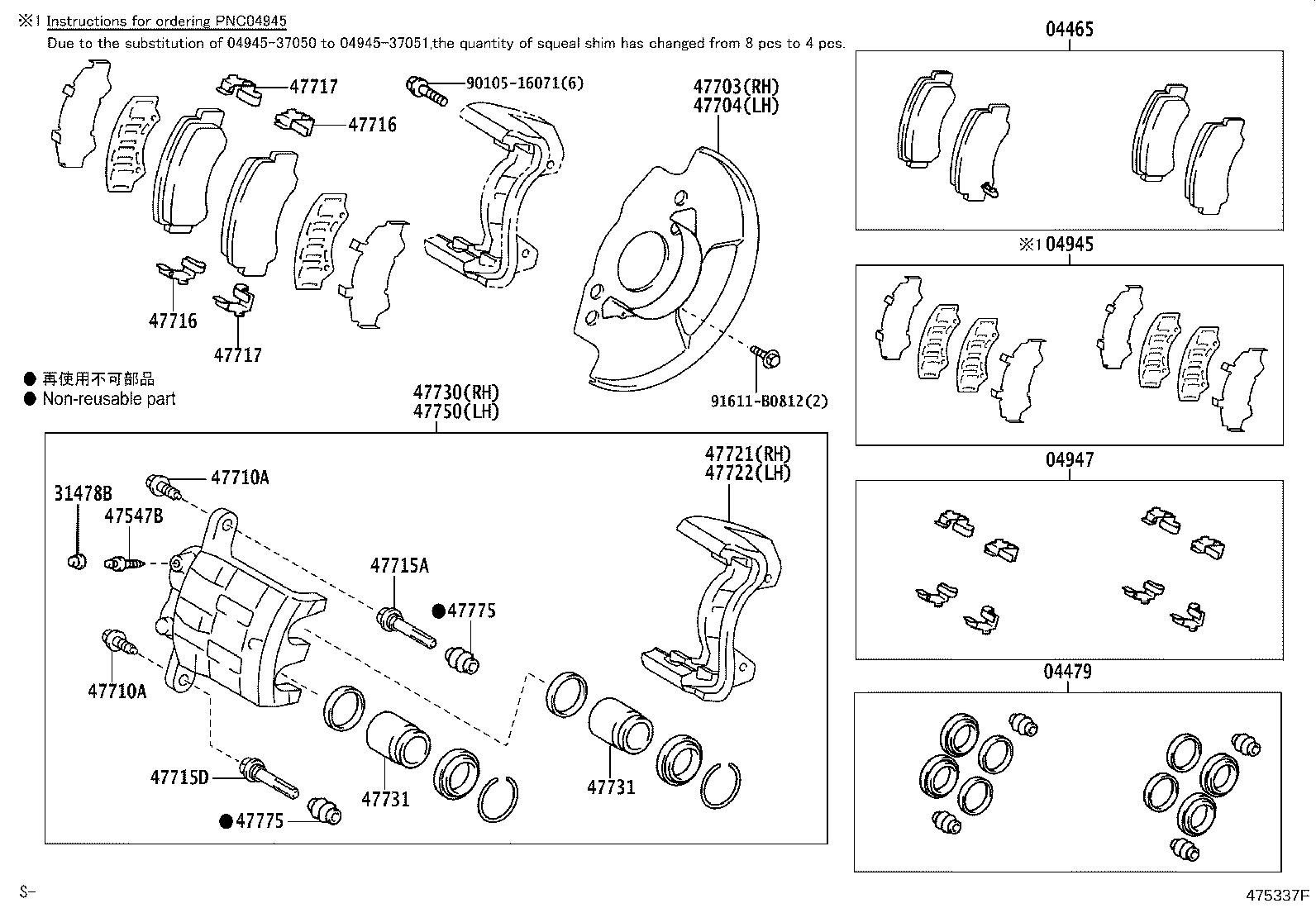

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47710A 47715A 47715D 47716 47716 47717 47717 47721 47722 47730 47731 47731 47750 47775 47775 9010516071 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37090

XZU330,340..80T

MARK NS174

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-37020

XZU330,340..80T

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37050

XZU330,340..80T

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04948-37010

XZU330,340..80T

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-37030

XZU330,340..80T

 2
31478-37040

XZU330,340..80T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-37120

XZU330,340..80T

 2
47847-37030

XZU330,340..80T

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37070

XZU330,340..80T

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37070

XZU330,340..80T

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-37120

XZU330,340..80T

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-37120

XZU330,340..80T

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-37120

XZU330,340..80T

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-37120

XZU330,340..80T

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37160

XZU330,340..80T

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37160

XZU330,340..80T

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37160

XZU330,340..80T

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37120

XZU330,340..80T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37120

XZU330,340..80T

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37160

XZU330,340..80T

 1
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-37120

XZU330,340..80T

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-37120

XZU330,340..80T

 4
Common parts
90105-16071
91611-B0812
