XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0209-0410)80T ; (0209- )75T..DCRTJ,DSL ; (0912-1703)85T

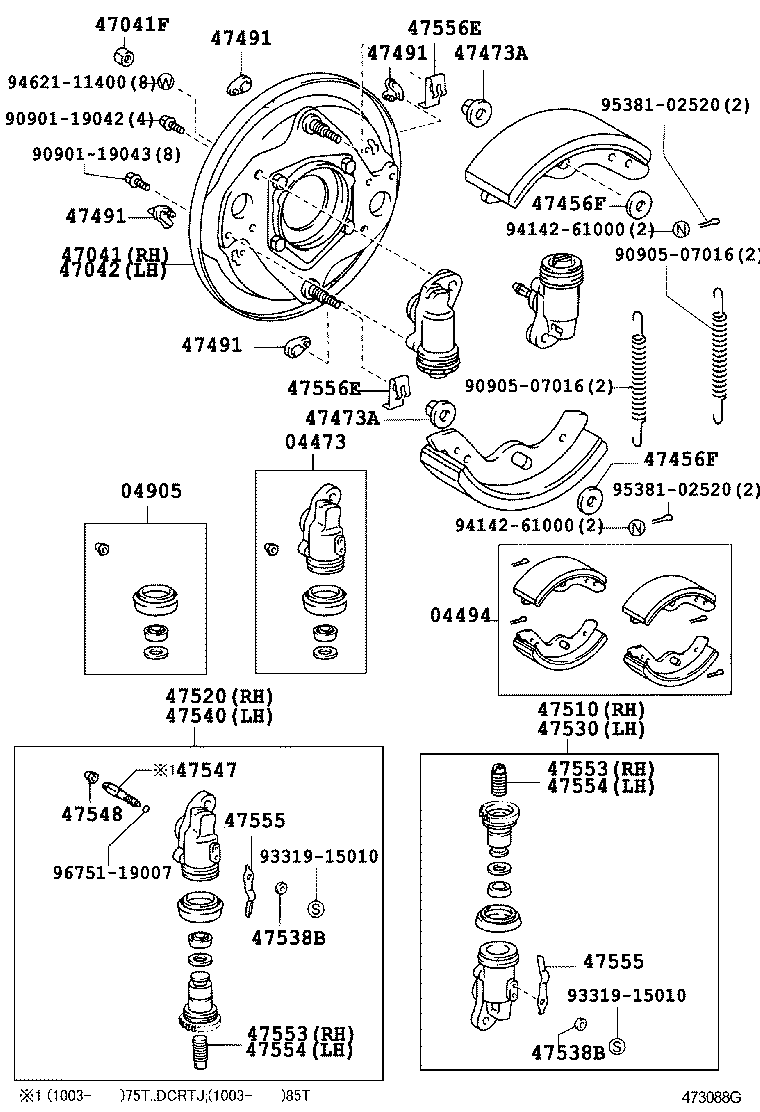

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-37080 |
XZU330,340..80T LH |
2 | ||
| 04473-37070 |
XZU330,340..80T RH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-37021 |
XZU330,340..80T MARK NBK D2167 |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-37080 |
XZU330,340..80T |
4 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37111 |
XZU330,340..80T |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
XZU300,320,330,340 |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37111 |
XZU330,340..80T |
1 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
XZU330,340..80T |
4 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
XZU330,340..80T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
XZU330,340..80T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
XZU330,340..80T |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
XZU330,340..80T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
XZU330,340..80T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
XZU330,340..80T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
XZU330,340..80T |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-37080 |
XZU330,340..80T |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-37100 |
XZU330,340..80T |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-37080 |
XZU330,340..80T |
1 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
XZU330,340..80T |
4 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
XZU330,340..80T |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-37100 |
XZU330,340..80T |
1 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
XZU300,320,330,340 |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
XZU330,340..80T |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
XZU330,340..80T |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU330,340..80T |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU330,340..80T |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-37070 |
XZU330,340..80T |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-37070 |
XZU330,340..80T |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
XZU330,340..80T |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
XZU330,340..80T |
4 | ||
| Common parts | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 90905-07016 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-08014 | ||||
| 90101-08081 | ||||
| 90101-10027 | ||||
| 90101-10127 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 90201-12452 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
