XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9907- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 44610 44621V 44730 44730 44730B 44754G 44763B 44763B 44768 44772 44776 44776A 44778D 44799 4702 4737137040 9011908103 9011908676 9017908038 9046716013 9048022022 91641H0820 9165160816 9413000802 9413000802 9613341500 9613341500 9613341500
Part # Description Qty Price
Common parts
47371-37040
90119-08103
90119-08676
90179-08038
90467-16013
90480-22022
91641-H0820
91651-60816
94130-00802
96133-41500
Linked diagrams
4702

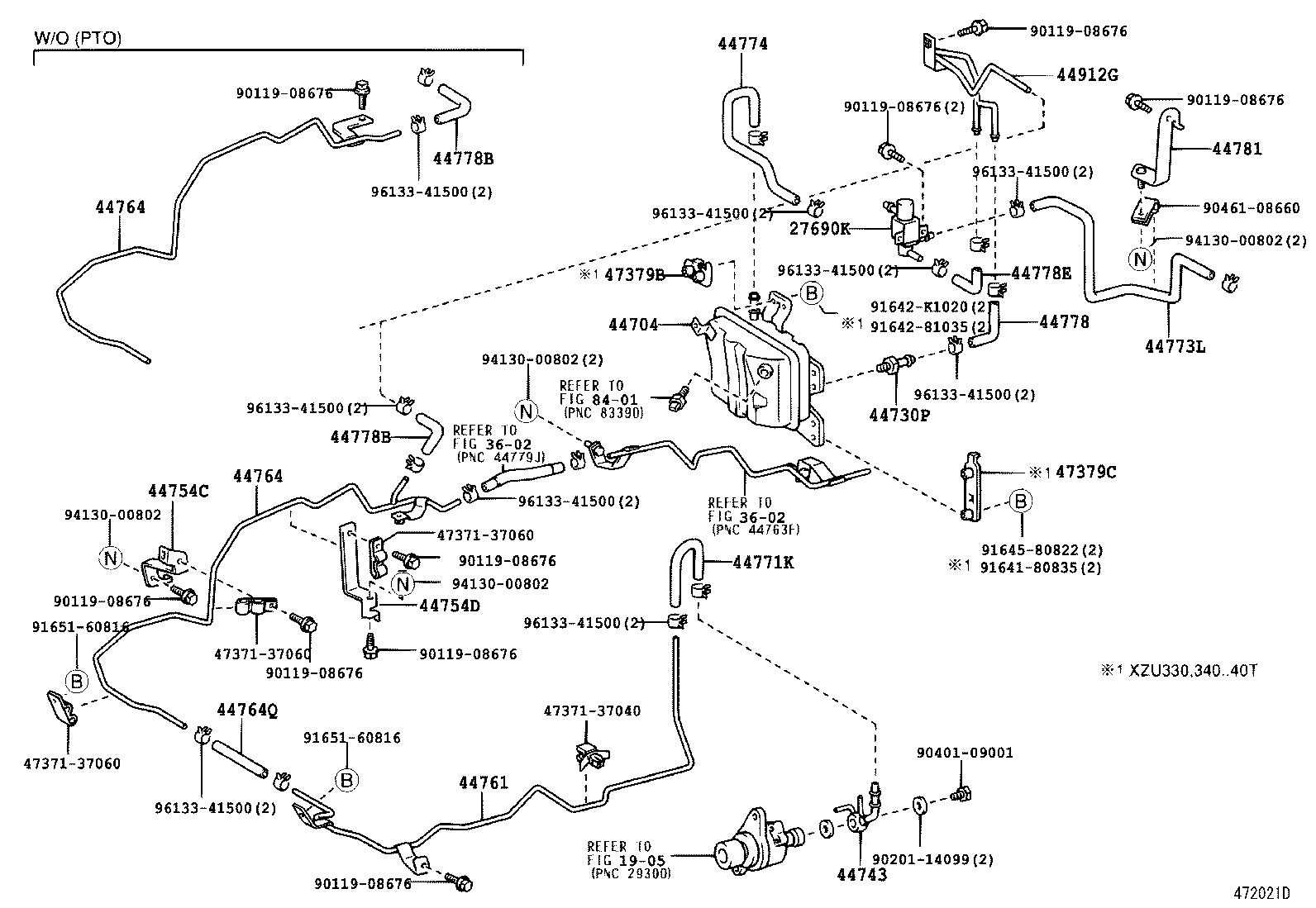

ILLUST NO. 2 OF 2(9907- )XZU300,330,340

Click highlighted areas on diagram

diagram 1905 27690K 3602 3602 44704 44730P 44743 44754C 44754D 44761 44764 44764 44764Q 44771K 44773L 44774 44778 44778B 44778B 44778E 44781 44912G 4737137040 4737137060 4737137060 4737137060 47379B 47379C 8401 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9020114099 9040109001 9046108660 9164180835 9164281035 91642K1020 9164580822 9165160816 9165160816 9413000802 9413000802 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
Common parts
47371-37040
47371-37060
90119-08676
90201-14099
90401-09001
90461-08660
91641-80835
91642-81035
91642-K1020
91645-80822
91651-60816
94130-00802
96133-41500
Linked diagrams
1905
3602
8401

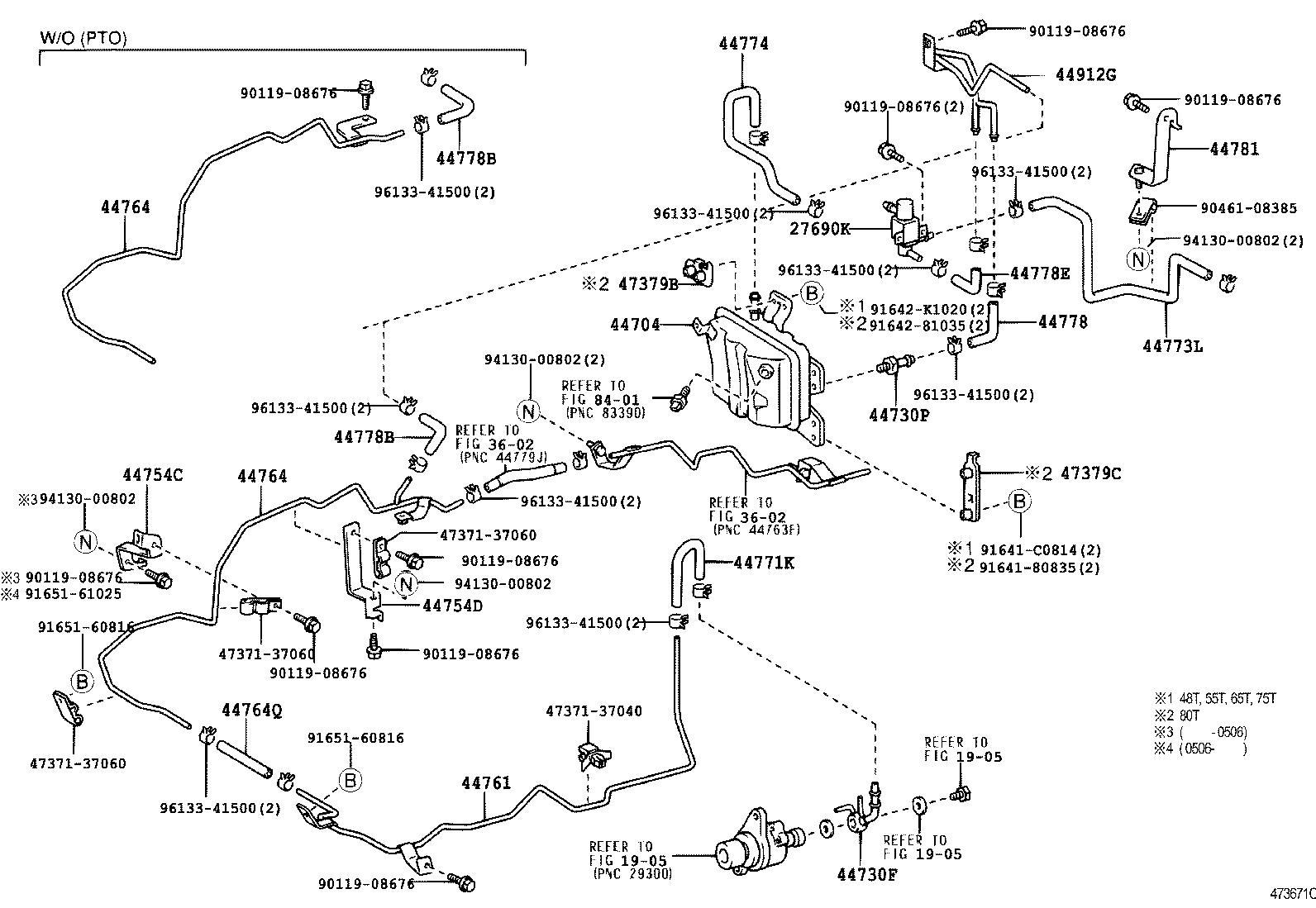

ILLUST NO. 2 OF 2(0212-0610)XZU300,330,340

Click highlighted areas on diagram

diagram 1905 1905 1905 27690K 3602 3602 44704 44730F 44730P 44754C 44754D 44761 44764 44764 44764Q 44771K 44773L 44774 44778 44778B 44778B 44778E 44781 44912G 4737137040 4737137060 4737137060 4737137060 47379B 47379C 8401 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9046108385 9164180835 91641C0814 9164281035 91642K1020 9165160816 9165160816 9165161025 9413000802 9413000802 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78023

N04C,S05C,W04D,14B,15BFTE..BU303,343,WU300,340,XZU30#,320,330,34#

 1
27690-78022

S05C,W04D,14B,15BFTE..BU30#,34#,WU300,340,XZU300,320,330,34#

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37070

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW

 1
44704-37071

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09188

XZU300,320,330,340

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-37020

BU303,343,WU300,340,XZU300,330,340..LHD

 1
44754-37210

BU303,343,WU300,340,XZU300,330,340..LHD

 1
44754D - BRACKET, VACUUM TUBE, NO.2
44754-37140

XZU300,330,340

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37130

XZU300,330,340

 1
44764 - TUBE, BOOSTER VACUUM
44764-37220

XZU300,330,340

W/O(PTO)

 1
44764-37290

XZU300,330,340

W(PTO)

 1
44764-37221

XZU300,330,340

 1
44764-37291

XZU300,330,340

W(PTO)

 1
44764 - TUBE, BOOSTER VACUUM
44764-37220

XZU300,330,340

W/O(PTO)

 1
44764-37290

XZU300,330,340

W(PTO)

 1
44764-37221

XZU300,330,340

 1
44764-37291

XZU300,330,340

W(PTO)

 1
44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
95446-09160

XZU300,320,330,340

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37420

XZU300,320,330,340

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37060

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37110

XZU330,340..80T

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44778B - HOSE, WAY TO CHECK VALVE
44778-37060

XZU300,330,340

 1
44778B - HOSE, WAY TO CHECK VALVE
44778-37060

XZU300,330,340

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37060

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
44781 - BRACKET, HOSE
44781-37020

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37770

XZU330,340..80T

 1
47379B - SPACER, BRAKE TUBE, NO.1
47379-37090

XZU330,340..80T

 1
47379C - SPACER, BRAKE TUBE, NO.2
47379-37100

XZU330,340..80T

 1
47379-37101

XZU330,340..80T

 1
Common parts
47371-37040
47371-37060
90119-08676
90461-08385
91641-80835
91641-C0814
91642-81035
91642-K1020
91651-60816
91651-61025
94130-00802
96133-41500
Linked diagrams
1905
3602
8401

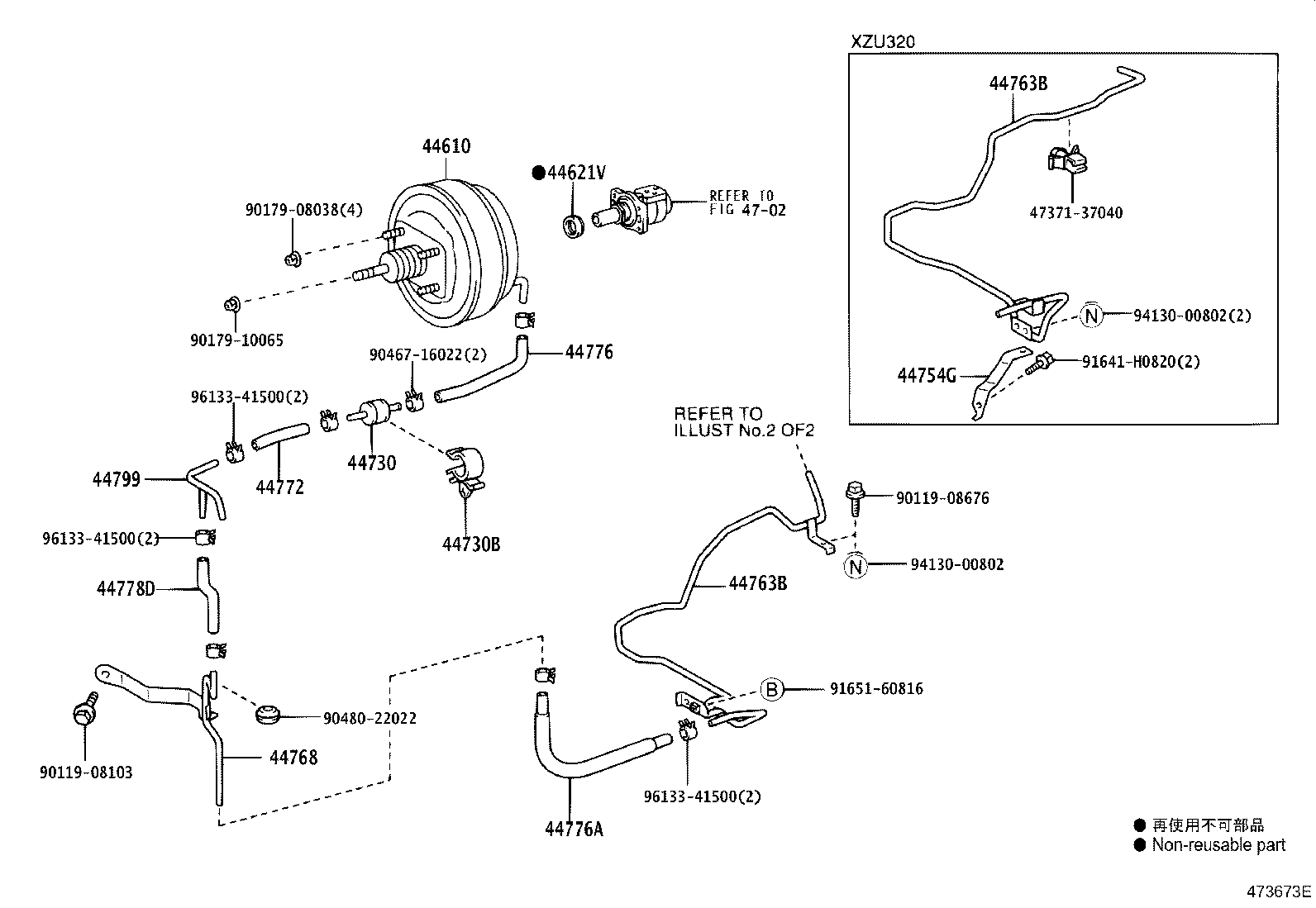

ILLUST NO. 1 OF 2(0212-0610)XZU300,320,330,340

Click highlighted areas on diagram

diagram 44610 44621V 44730 44730B 44754G 44763B 44763B 44768 44772 44776 44776A 44778D 44799 4702 4737137040 9011908103 9011908676 9017908038 9017910065 9046716022 9048022022 91641H0820 9165160816 9413000802 9413000802 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37171

XZU300,320,330,340

W(ABS)

 1
44621V - SEAL, BOOSTER BODY
44621-36050

XZU330,340..80T

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010

XZU300,320,330,340

 1
44730B - CLAMP, VACUUM HOSE
44597-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW

 1
44597-37021

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37180

XZU300,330,340

 1
44764-37181

XZU300,330,340

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37180

XZU300,330,340

 1
44764-37181

XZU300,330,340

 1
44768 - TUBE, BOOSTER VACUUM
44768-37120

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37020

XZU30#,320,330,340,345

 1
44776 - HOSE, BRAKE BOOSTER
44776-37230

XZU30#,320,330,340,345

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37190

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37170

XZU30#,320,330,340,345

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37010

XZU30#,320,330,340,345

 1
Common parts
47371-37040
90119-08103
90119-08676
90179-08038
90179-10065
90467-16022
90480-22022
91641-H0820
91651-60816
94130-00802
96133-41500
Linked diagrams
4702

(7708- )BU2#,3#,40,HU30,40,50,JU20,WU40,50

Click highlighted areas on diagram

diagram 44704 44704 44730 44730 44730A 44730A 44738 44738 44743 44743 44754 44754 44764 44764 44764A 44764A 44764F 44765 44765 44765B 44773 44773 44774 44774 9011908126 9011908126 9011908126 9011908126 9011908126 9011908126 9046108050 9046110376 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140610 9161140820 9161140820 9161140820 9161140820 9165140816 9165140816 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90119-08126
90461-08050
90461-10376
90467-16141
91611-40610
91611-40820
91651-40816
94110-40800

(7708- )BU2#,3#,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44629 44642 44643 44645 44657A 44662 44662A 44662B 44662C 44662E 44662F 44662G 44669 44696 44697 44697A 44730 44758 4702 9017908146 9331914008 9411070600 9412041000
Part # Description Qty Price
Common parts
90179-08146
93319-14008
94110-70600
94120-41000
Linked diagrams
4702
