XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

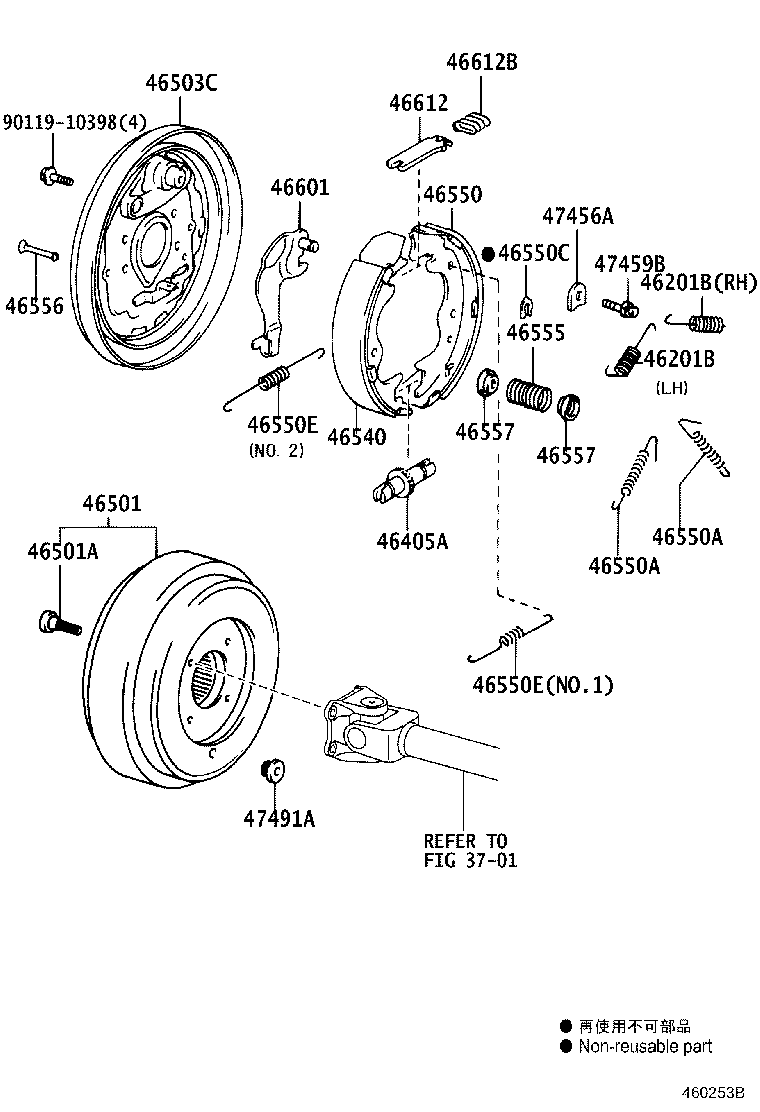

ILLUST NO. 2 OF 2(0212-0610)80T

Click highlighted areas on diagram

diagram 3701 46201B 46201B 46405A 46501 46501A 46503C 46540 46550 46550A 46550A 46550C 46550E 46550E 46555 46556 46557 46557 46601 46612 46612B 47456A 47459B 47491A 9011910398
Part # Description Qty Price
46201B - SPRING, TENSION
90507-20020

XZU330,340..80T

RH

 1
90507-20021

XZU330,340..80T

LH

 1
46201B - SPRING, TENSION
90507-20020

XZU330,340..80T

RH

 1
90507-20021

XZU330,340..80T

LH

 1
46405A - SCREW SET, SHOE ADJUSTING, RH
47405-36010

XZU330,340..80T

 1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-37050

XZU330,340..80T

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90031-01170

XZU30#,320,330,340,345

 4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-36060

XZU330,340..80T

 1
46503-37710

XZU330,340..80T

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-36040

XZU330,340..80T

 1
46540-37040

XZU330,340..80T

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-37040

XZU330,340..80T

 1
46550-36040

XZU330,340..80T

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020

XZU330,340..80T

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020

XZU330,340..80T

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003

XZU305,330,340,345..55T,80T

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-23049

XZU330,340..80T

NO.1

 1
90506-14054

XZU330,340..80T

NO.2

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-23049

XZU330,340..80T

NO.1

 1
90506-14054

XZU330,340..80T

NO.2

 1
46555 - SPRING, BRAKE SHOE HOLD DOWN
90501-16108

XZU330,340..80T

 2
46556 - PIN, SHOE HOLD DOWN SPRING
47447-20030

XZU330,340..80T

 2
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011

XZU305,320,330,340,345

 4
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011

XZU305,320,330,340,345

 4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-36051

XZU330,340..80T

 1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-36050

XZU330,340..80T

 1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-10010

XZU330,340..80T

 1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-20030

XZU330,340..80T

 1
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010

XZU330,340..80T

 1
47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)
47491-22020

XZU330,340..80T

 1
Common parts
90119-10398
Linked diagrams
3701

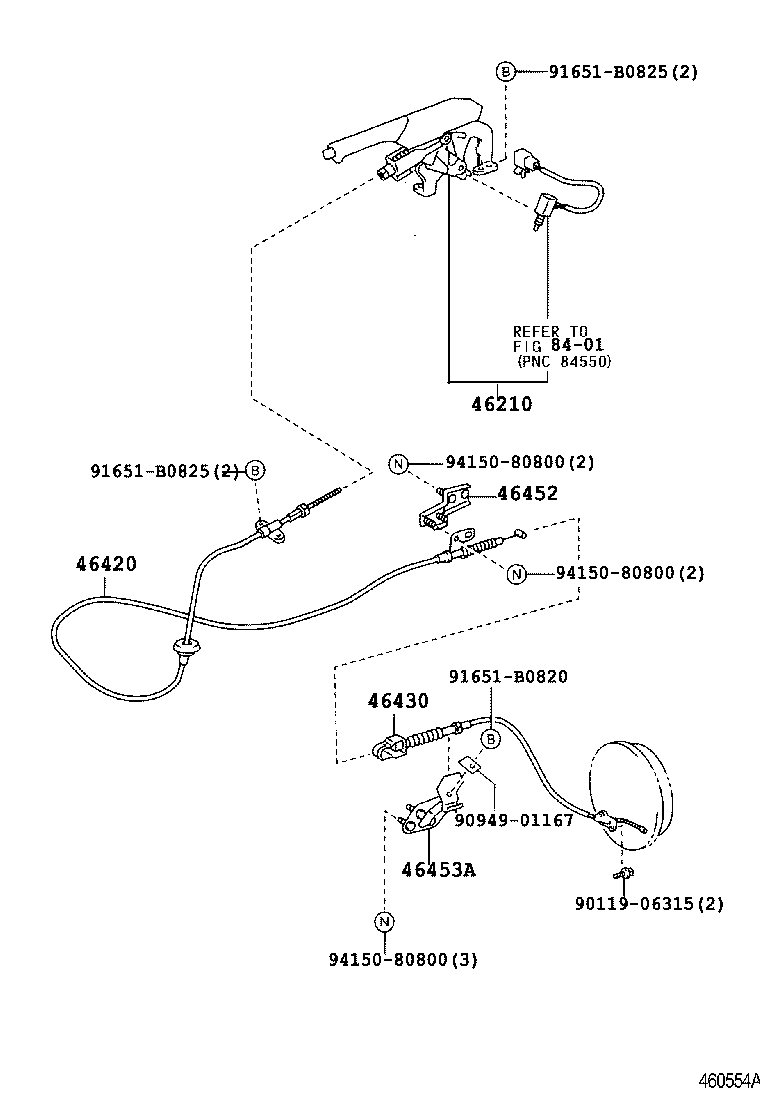

ILLUST NO. 1 OF 2(0212-0610)80T

Click highlighted areas on diagram

diagram 46210 46420 46430 46452 46453A 8401 9011906315 9094901167 91651B0820 91651B0825 91651B0825 9415080800 9415080800 9415080800
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37032B0

BU303,343,WU300,340,XZU300,320,330,340..LHD

DK.CHARCOAL,TRIM1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37181

BU303,343,WU300,340,XZU300,330,340..LHD

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37320

XZU330,340..80T

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37020

BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37070

XZU342;BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW

 1
Common parts
90119-06315
90949-01167
91651-B0820
91651-B0825
94150-80800
Linked diagrams
8401

(7708- )

Click highlighted areas on diagram

diagram 46501 46501A 46506 46520 46550 46550 46550A 46550A 46550C 46550C 46550E 46555 46556 46577 46601 9010110470 9011910338 9453101000 9461311200
Part # Description Qty Price
Common parts
90101-10470
90119-10338
94531-01000
94613-11200

(7708- )

Click highlighted areas on diagram

diagram 46501 46501A 46506 46520 46550 46550 46550A 46550A 46550C 46550E 46550G 46555 46556 46557 46557 46577 46601 46612 46612B 9010110443 9010110470 9011910338 9453101000 9461311200
Part # Description Qty Price
Common parts
90101-10443
90101-10470
90119-10338
94531-01000
94613-11200

(7708- )BU2#,30,31,32,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 46229 46229 9046110083 9046110232 9046110302 9046110932 9046112086 9046116393 9046223215 9046223215 9046223215 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90461-10083
90461-10232
90461-10302
90461-10932
90461-12086
90461-16393
90462-23215
91611-40816
91611-40820
94110-40800
