XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9907- )XZU300,307,320,330,340

Click highlighted areas on diagram

diagram 04445 44110 45411 9010114059 9010514106 9017014012 9017014012 9017030001 9020430040 9462211400 9462211400
Part # Description Qty Price
Common parts
90101-14059
90105-14106
90170-14012
90170-30001
90204-30040
94622-11400

ILLUST NO. 2 OF 3(9907- )XZU300,307,320,330,340

Click highlighted areas on diagram

diagram 44011 44015 44101E 44101E 44101L 44107 44107B 44107E 44107G 44107G 44108C 44108D 44108F 44142 44167 44168 45357 9002901001 9002901001 9002934002 9671135042
Part # Description Qty Price
Common parts
90029-01001
90029-34002
96711-35042

ILLUST NO. 3 OF 3(0212-0610)LHD

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45440B 45440B 45460A 45461 45611 45611D 45611D 45611E 45611E 45612 9017022005 9017022006 9025204005 9025204005 9025204005 9025204005
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-39426

XZU330,340..80T

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-39266

XZU330,340..80T

 1
45440 - LINK ASSY, STEERING DRAG
45440-39186

XZU330,340..80T

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45460A - ROD ASSY, TIE
45460-39526

XZU330,340..80T

 1
45461 - ROD, STEERING TIE
45461-37060

XZU330,340..80T

 1
45611 - ARM, STEERING KNUCKLE, RH
45612-39235

XZU330,340..80T

 1
45611D - NUT(FOR STEERING KNUCKLE ARM)
90178-26002

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45611D - NUT(FOR STEERING KNUCKLE ARM)
90178-26002

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07004

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07004

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 2
45612 - ARM, STEERING KNUCKLE, LH
45611-39115

XZU330,340..80T

 1
Common parts
90170-22005
90170-22006
90252-04005

ILLUST NO. 1 OF 3(0212-0610)LHD

Click highlighted areas on diagram

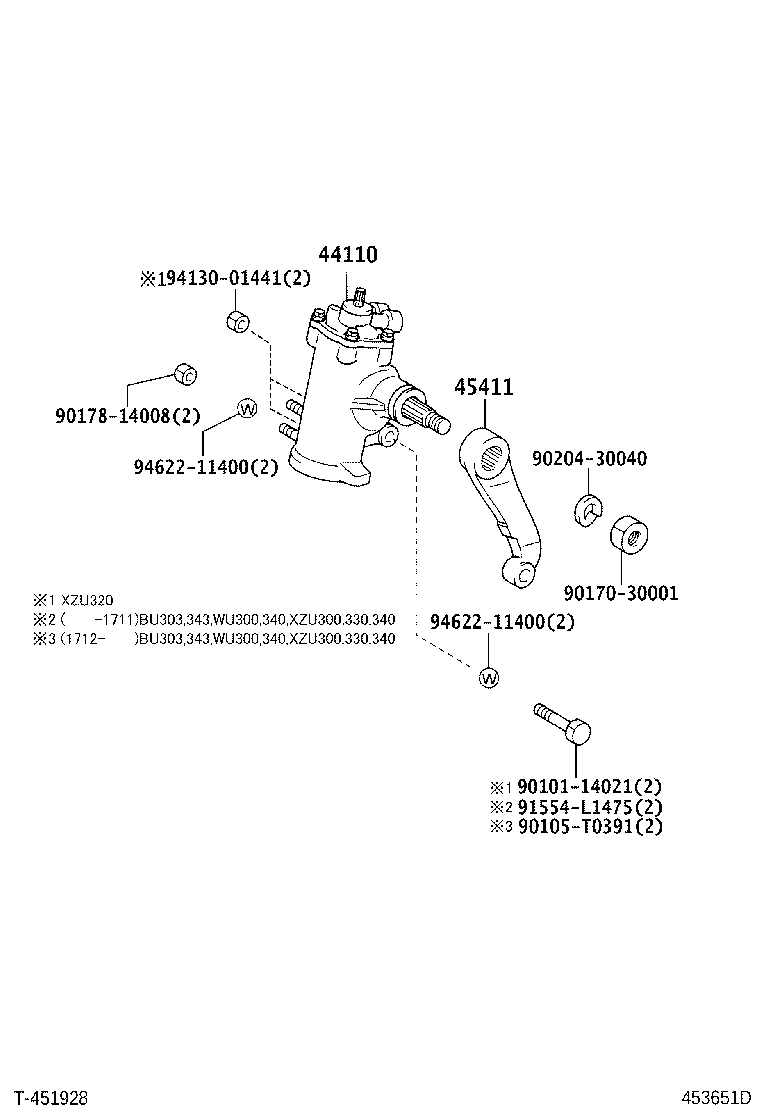

POWER STEERING

diagram 44110 45411 9010114021 90105T0391 9017030001 9017814008 9020430040 91554L1475 9413001441 9462211400 9462211400
Part # Description Qty Price
44110 - GEAR ASSY, POWER STEERING
44110-37130

BU303,343,WU300,340,XZU300,330,340..LHD

 1
45411 - ARM, PITMAN
45411-37120

XZU330,340..80T

 1
Common parts
90101-14021
90105-T0391
90170-30001
90178-14008
90204-30040
91554-L1475
94130-01441
94622-11400

ILLUST NO. 2 OF 3(0212-0610)LHD

Click highlighted areas on diagram

POWER STEERING

diagram 44011 44015 44101E 44101E 44101L 44107 44107B 44107E 44107G 44107G 44108C 44108D 44108F 44142 44167 44168 45357 8911099002 8911099002 9002934002 9671135042
Part # Description Qty Price
44011 - PISTON SUB-ASSY, POWER
44011-37130

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
44015 - SHAFT SUB-ASSY, SECTOR
44015-37110

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44101E - RING, O(FOR STEERING WORM)
90029-20006

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO.2

 1
90029-20047

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO.1

 1
44101E - RING, O(FOR STEERING WORM)
90029-20006

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO.2

 1
90029-20047

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

NO.1

 1
44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY)
90029-20708

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-37130

BU303,343,WU300,340,XZU300,330,340..LHD

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90029-20061

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90029-21023

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01502

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 2
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01502

BU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW

 2
44108C - COVER SUB-ASSY, SECTOR
44108-37110

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44108D - RING, O(FOR SECTOR COVER)
90029-20006

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44108F - SEAL, DUST(FOR SECTOR COVER)
90029-21023

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44142 - NUT, LOCK
44142-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44167 - COVER, SECTOR SHAFT DUST
44167-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44168 - COVER, WORM SHAFT DUST
44168-25010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302

XZU30#,320,330,340,345

 1
Common parts
89110-99002
90029-34002
96711-35042

(7708- )BU2#,3#,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 45046 45046A 45046B 45046C 45047 45440 45440 45447 45447 45460 45461 45466 45466 45473 45473 45473 45473 45475 45475 45475A 45475A 45475B 45475B 45611 45611D 45611D 45611E 45611E 45612 9116151250 9411541200 9451201200 9538103025 9538103045 9538103045 9538104035 9538104035 9645100600 9645600609 9645600609
Part # Description Qty Price
Common parts
91161-51250
94115-41200
94512-01200
95381-03025
95381-03045
95381-04035
96451-00600
96456-00609
