XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU300,320,330,340

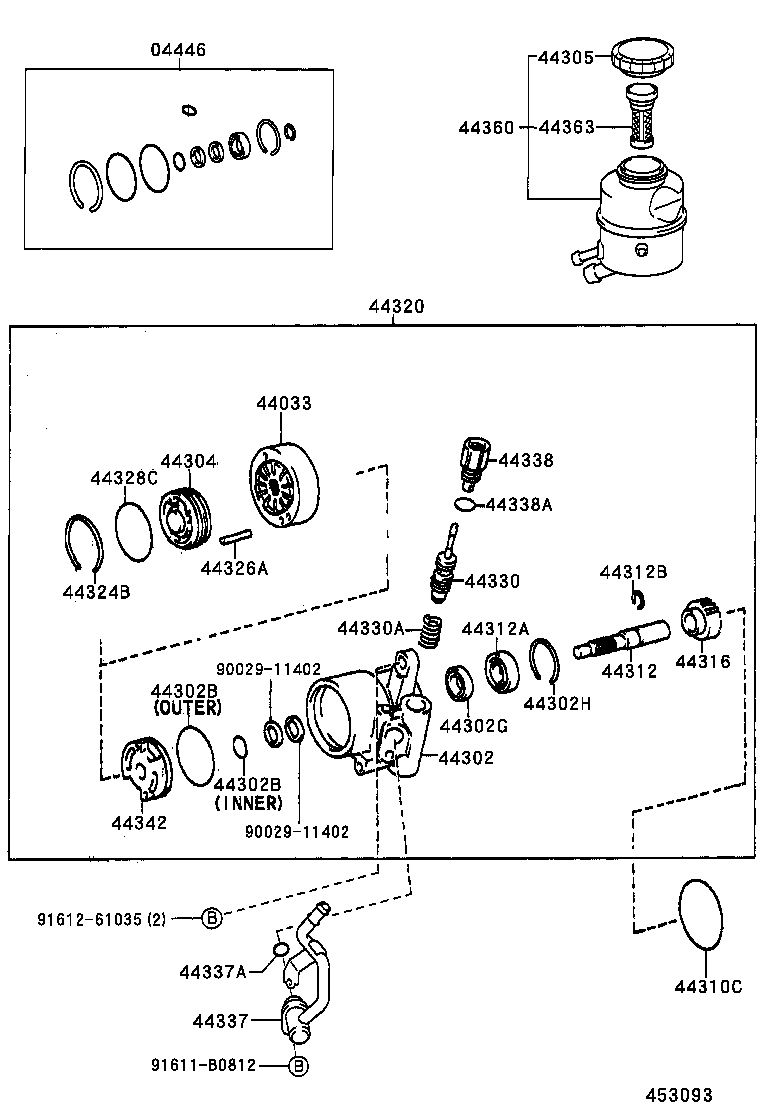

Click highlighted areas on diagram

diagram 04446 44033 44302 44302B 44302B 44302G 44302H 44304 44305 44310C 44312 44312A 44312B 44316 44320 44324B 44326A 44328C 44330 44330A 44337 44337A 44338 44338A 44342 44360 44363 9002911402 9002911402 91611B0812 9161261035
Part # Description Qty Price
Common parts
90029-11402
91611-B0812
91612-61035

(0212-0610)BU300,340,XZU300,320,330,340

Click highlighted areas on diagram

diagram 04446 44033 44302 44302B 44302B 44302G 44302H 44304 44305 44310C 44312 44312A 44312B 44316 44320 44324B 44326A 44328C 44330 44330A 44337 44337A 44338 44338A 44342 44360 44363 9002911402 9002911402 91611B0812 9161261035
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-37040

XZU300,320,330,340

 1
44033 - ROTOR SUB-ASSY, W/CAM & VANE
44033-60010

XZU300,320,330,340

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-36290

XZU300,320,330,340

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20056

XZU300,320,330,340

INNER

 1
90029-20057

XZU300,320,330,340

OUTER

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20056

XZU300,320,330,340

INNER

 1
90029-20057

XZU300,320,330,340

OUTER

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90029-21018

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90029-52011

XZU300,320,330,340

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-60040

XZU300,320,330,340

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44312 - SHAFT, VANE PUMP
44312-60030

XZU300,320,330,340

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90029-36003

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90029-52402

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
44316 - GEAR, VANE PUMP
44316-37020

XZU300,320,330,340

 1
44320 - PUMP ASSY, VANE
44310-37130

XZU330,340..80T

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90029-52010

XZU300,320,330,340

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90029-14205

XZU300,320,330,340

L=25.8

 2
44328C - RING, O(FOR PUMP HOUSING END)
90029-20058

XZU300,320,330,340

 1
44330 - VALVE ASSY, FLOW CONTROL
40430-37090

XZU330,340..80T

MARK A

 1
40420-37090

XZU330,340..80T

MARK B

 1
40410-37090

XZU330,340..80T

MARK C

 1
44330-37090

XZU330,340..80T

MARK D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90029-60013

XZU300,320,330,340

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37050

XZU300,320,330,340

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19016

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
44338 - UNION, PRESSURE PORT
44338-36010

XZU300,320,330,340

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19016

XZU300,320,330,340

OD=19.6,ID=15.8

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-60050

XZU300,320,330,340

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37130

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
Common parts
90029-11402
91611-B0812
91612-61035
