XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9907- )

Click highlighted areas on diagram

diagram 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107
Part # Description Qty Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107

ILLUST NO. 1 OF 3(9907- )

Click highlighted areas on diagram

diagram 42601A 42601A 42601A 42601C 42601C 42601F 42601F 42601F 42601R 42601R 42601R 42611G 42611G 42611J 42611J 42611Q 42613A 42613A 42652 42652A
Part # Description Qty Price

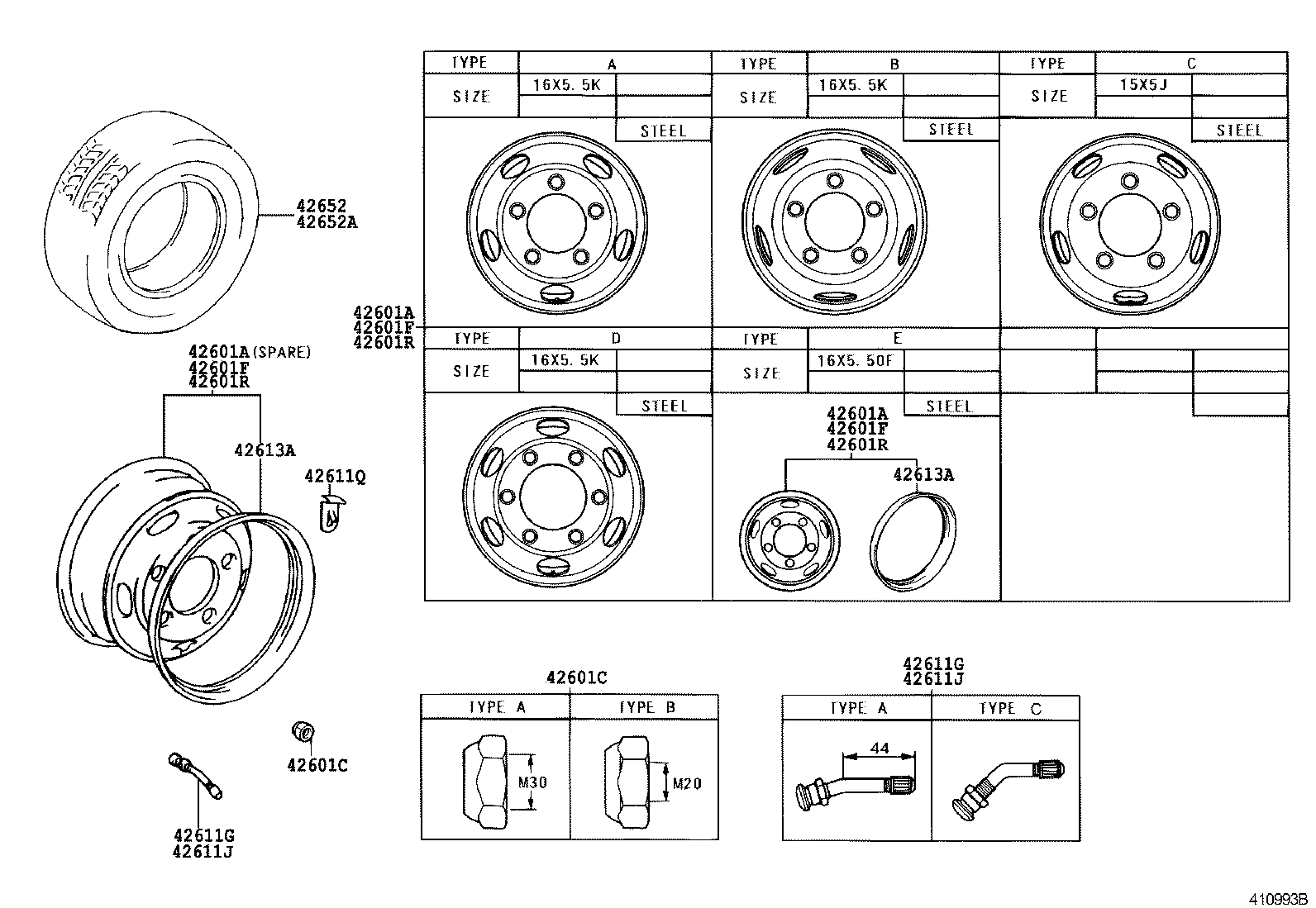

ILLUST NO. 1 OF 2(0209- )

Click highlighted areas on diagram

DISC WHEEL

diagram 42601A 42601A 42601A 42601A 42601C 42601C 42601F 42601F 42601F 42601F 42601R 42601R 42601R 42601R 42611G 42611J 42611Q 42613A 42613A 42613A 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 1
42601A - WHEEL, DISC (FOR SPARE)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 1
42601A - WHEEL, DISC (FOR SPARE)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 1
42601A - WHEEL, DISC (FOR SPARE)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01107

XZU330,340..80T

RH,T/P B:SEE ILLUST

 6
42634-55030

XZU330,340..80T

LH,T/P A:SEE ILLUST

 6
90942-01108

XZU330,340..80T

LH,T/P B:SEE ILLUST

 6
42633-55030

XZU330,340..80T

RH,T/P A:SEE ILLUST

 6
42601C - NUT, HUB (FOR AXLE)
90942-01107

XZU330,340..80T

RH,T/P B:SEE ILLUST

 6
42634-55030

XZU330,340..80T

LH,T/P A:SEE ILLUST

 6
90942-01108

XZU330,340..80T

LH,T/P B:SEE ILLUST

 6
42633-55030

XZU330,340..80T

RH,T/P A:SEE ILLUST

 6
42601F - WHEEL, DISC (FOR FRONT)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 2
42601F - WHEEL, DISC (FOR FRONT)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 2
42601F - WHEEL, DISC (FOR FRONT)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 2
42601F - WHEEL, DISC (FOR FRONT)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 4
42601R - WHEEL, DISC (FOR REAR)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 4
42601R - WHEEL, DISC (FOR REAR)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 4
42601R - WHEEL, DISC (FOR REAR)
42601-37270

XZU330,340..80T

16X5.5K, #,TYPE D:REFER ILLUST.

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05026

XZU305,330,340,345..55T,80T

 6
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05026

XZU305,330,340,345..55T,80T

 1
42652 - TIRE
42652-37101

XZU330,340..80T

205/85R16,*Y/H,YOKOHAMA

 6
42652-37551

XZU330,340..80T

205/85R16,*D/L,DUNLOP

 6
42652A - TIRE (FOR SPARE)
42652-37101

XZU330,340..80T

205/85R16,*Y/H,YOKOHAMA

 1
42652-37551

XZU330,340..80T

205/85R16,*D/L,DUNLOP

 1

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

BALANCE WEIGHT

diagram 9094203067 9094203068 9094203069 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107 9094203134 9094203135 9094203136 9094203137 9094203138 9094203139 9094203140 9094203141 9094203142 9094203143 9094203144 9094203173 9094203174 9094203175 9094203176 9094203177 9094203178 9094203179 9094203180 9094203181 9094203182 9094203183 9094203184 9094203185 9094203186 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225 9094203360 9094203361 9094203362 9094203363 9094203364 9094203365 9094203366 9094203367 9094203368 9094203369
Part # Description Qty Price
Common parts
90942-03067
90942-03068
90942-03069
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107
90942-03134
90942-03135
90942-03136
90942-03137
90942-03138
90942-03139
90942-03140
90942-03141
90942-03142
90942-03143
90942-03144
90942-03173
90942-03174
90942-03175
90942-03176
90942-03177
90942-03178
90942-03179
90942-03180
90942-03181
90942-03182
90942-03183
90942-03184
90942-03185
90942-03186
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

(7708- )

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601F 42601G 42601R 42601R 42601R 42601S 42601S 42601S 42611A 42621 42621 42621 9161140812 9461110800
Part # Description Qty Price
Common parts
91611-40812
94611-10800
