XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

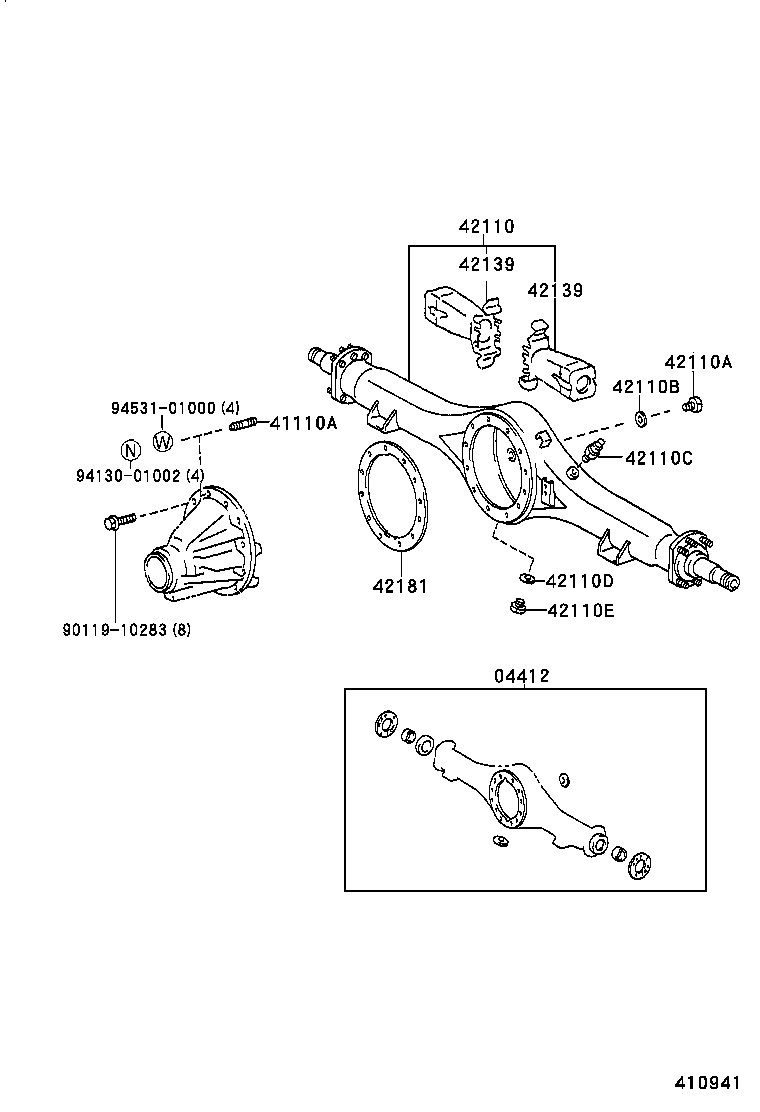

ILLUST NO. 2 OF 2(9907- )

Click highlighted areas on diagram

diagram 04412 41110A 42110 42110A 42110B 42110C 42110D 42110E 42139 42139 42181 9011910283 9413001002 9453101000
Part # Description Qty Price
Common parts
90119-10283
94130-01002
94531-01000

ILLUST NO. 1 OF 2(9907- )XZU300,320,330,34#

Click highlighted areas on diagram

12 INCHES DIFFERENTIAL

diagram 41101 41101B 41110 41114 41151 41153 41162 41162 41201 41201A 41201B 41201C 41201E 41201G 41201H 41204 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41302A 41314 41314 41315 41315 41316 41316 41331 41331 41341 41341 41341 41341 41351 41351 41351 41351 41361 41361 41371 9111281440 9151261240 9161160635 9161160814 9453101400
Part # Description Qty Price
Common parts
91112-81440
91512-61240
91611-60635
91611-60814
94531-01400

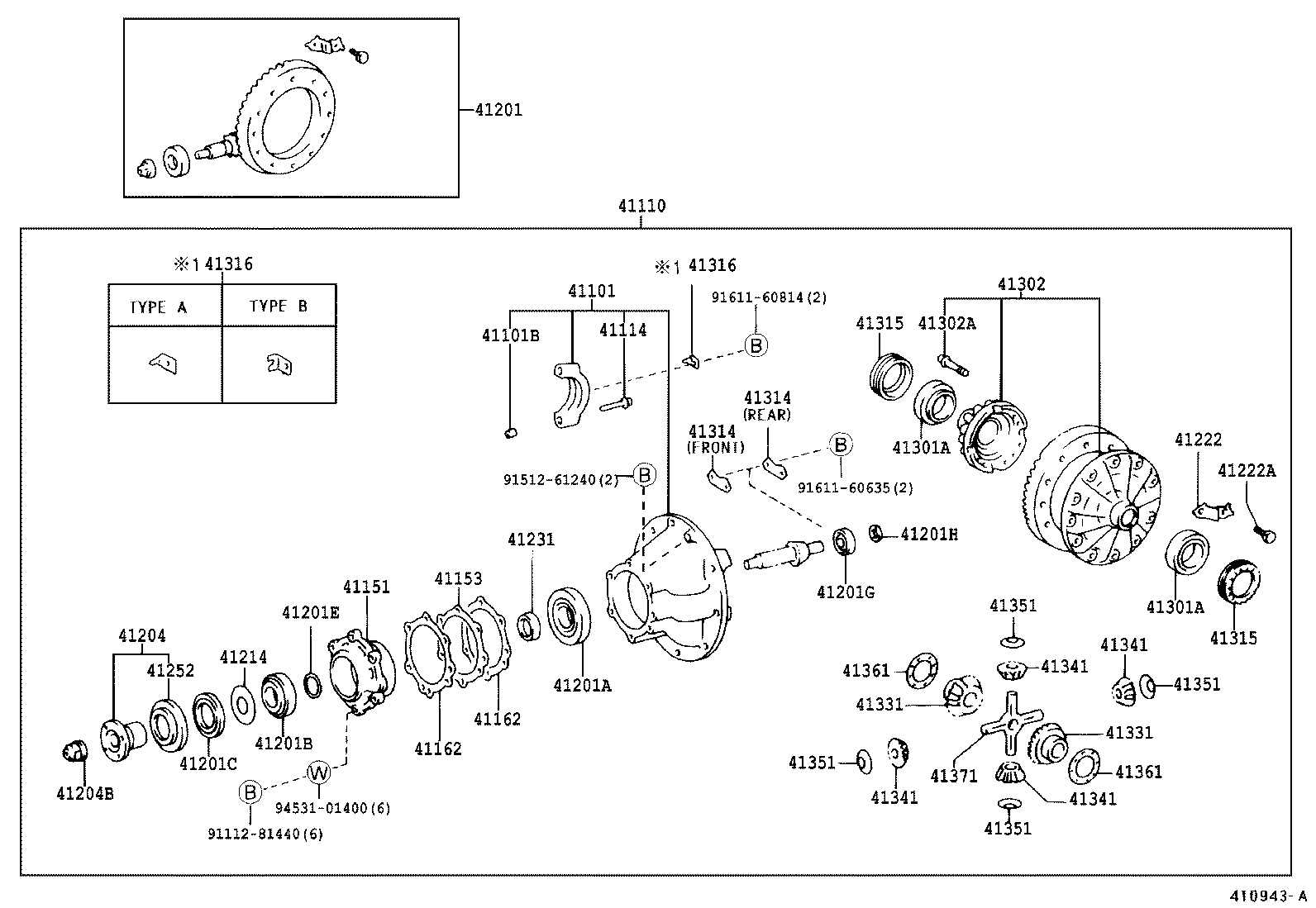

ILLUST NO. 1 OF 2(0312-0610)XZU30#,320,330,34#..55T,65T,80T ; (0610-0612)XZU342..65T

Click highlighted areas on diagram

12 INCHES DIFFERENTIAL

diagram 41101 41110 41114 41151 41153 41201 41201B 41201B 41201B 41201C 41201H 41204 41222A 41231 41252 41301A 41301A 41302 41302A 41315 41315 41316 41331 41331 41341 41341 41341 41341 41351 41351 41351 41351 41361 41361 41371 41991C 41991C 9003101165 9003101192 9003119101 9003119102 9003170110 9003201155 9003201155 9003301069 9017930003
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-37060

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
41101-36040

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-37180

XZU330,340..80T

*FGR=37:6=6.167

 1
41110-37400

XZU330,340..80T

*FGR=37:6=6.167

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90031-05043

BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW)

 4
90105-16009

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING
41151-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
41151-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

 1
41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE
41153-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=0.15

 1
41153-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=0.10

 1
41153-36030

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=0.25

 1
41153-36040

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=0.45

 1
41153-37110

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=0.45

 1
41153-37100

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=0.40

 1
41153-37090

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=0.30

 1
41153-37120

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=0.50

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-45001

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
90033-66038

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.1

 1
90033-66040

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.2

 1
90033-65002

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.3

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-45001

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
90033-66038

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.1

 1
90033-66040

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.2

 1
90033-65002

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.3

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-45001

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
90033-66038

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.1

 1
90033-66040

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.2

 1
90033-65002

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

NO.3

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-58010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
90033-11039

BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW)

 1
41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING
90520-23034

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

 1
90035-20024

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-37030

BU300,340,XZU300,320,330,34#..55T,65T,80T

 1
41204-37080

XZU30#,320,330,340,345

 1
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90031-01193

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 16
90101-16015

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 12
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-36050

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
41231-37480

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.550

 1
41231-37450

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.475

 1
41231-37420

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.400

 1
41231-37430

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.425

 1
41231-37490

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.575

 1
41231-37440

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.450

 1
41231-37460

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.500

 1
41231-37530

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.675

 1
41231-37510

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.625

 1
41231-37500

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.600

 1
41231-37520

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.650

 1
41231-37560

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.750

 1
41231-37540

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.700

 1
41231-37470

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.525

 1
41231-37550

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.725

 1
41231-37590

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.825

 1
41231-37600

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.850

 1
41231-37570

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.775

 1
41231-37610

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.875

 1
41231-37580

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=14.800

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-37030

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
37341-89203

BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW)

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-60001

XZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW

 2
90366-55054

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-60001

XZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW

 2
90366-55054

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41301-36040

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
41301-37040

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
41302A - BOLT(FOR REAR DIFFERENTIAL CASE)
90105-12047

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

 13
90031-05098

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 8
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 2
41315-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 2
41315-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41317-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

TYPE B:REFER ILLUST.

 2
41316-37010

BU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW)

 2
41316-36020

BU30#,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW)

12INCHES DIFFERENTIAL;TYPE A:REFER TO ILLUSTRATION

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-37040

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 2
41331-36031

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-37040

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 2
41331-36031

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 2
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41341-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41341-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41341-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41341-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41351-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41351-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41351-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 4
41351-37020

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 4
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-36030

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.6

 2
41361-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.5

 2
41361-36040

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.7

 2
41361-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.4

 2
41361-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=2.0

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-36030

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.6

 2
41361-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.5

 2
41361-36040

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.7

 2
41361-36010

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

T=1.4

 2
41361-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

T=2.0

 2
41371 - SPIDER, REAR DIFFERENTIAL
41371-37030

BU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
41371-37020

BU303,WU300..T3;BU303,343,WU300,340,XZU30#,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

 1
41371-36020

BU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)

12INCHES DIFFERENTIAL

 1
41991C - CAUTION PLATE, REAR DIFFERENTIAL
41991-37110

XZU330,340..80T

 1
41991C - CAUTION PLATE, REAR DIFFERENTIAL
41991-37110

XZU330,340..80T

 1
Common parts
90031-01165
90031-01192
90031-19101
90031-19102
90031-70110
90032-01155
90033-01069
90179-30003

(7708- )BU2#,3#,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 41101 41101B 41110 41114 41201 41201A 41201B 41201C 41201E 41201F 41204 41204A 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41302A 41302B 41315 41315 41316 41316 41331 41331 41341 41341 41341 41351 41351 41351 41351 41361 41361 41371 9111140814 9451200800 9451201400 9451201600
Part # Description Qty Price
Common parts
91111-40814
94512-00800
94512-01400
94512-01600

(7708- )

Click highlighted areas on diagram

diagram 41110A 42110 42110A 42110B 42110C 42110D 42110E 42110K 42181 9011910227 9011910283 9411051000 9412041000 9451201000
Part # Description Qty Price
Common parts
90119-10227
90119-10283
94110-51000
94120-41000
94512-01000
