Toyota Dyna XZU330 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
GR
DYNA
XZU330L-TKMSWR3 (2002)
3312 - SHIFT LEVER & RETAINER

XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine 15BFTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9907- )XZU300,320,330,340

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10883
90179-08054
90179-08141
90201-10042
90468-14004
90468-14016
90949-01B93
90949-01B94
91611-60816
91611-61020
91651-60816
91651-60830
91651-61025
91651-B0825
94130-60800
94150-80800
94531-00800
94613-10800

ILLUST NO. 1 OF 2(9907- )XZU300,320,330,340

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08190
90387-08159
90389-11006
91111-50840
91111-50860
91611-60614
94130-60800
94512-00800
94612-10601
94613-10601
96151-01500
Linked diagrams
5855

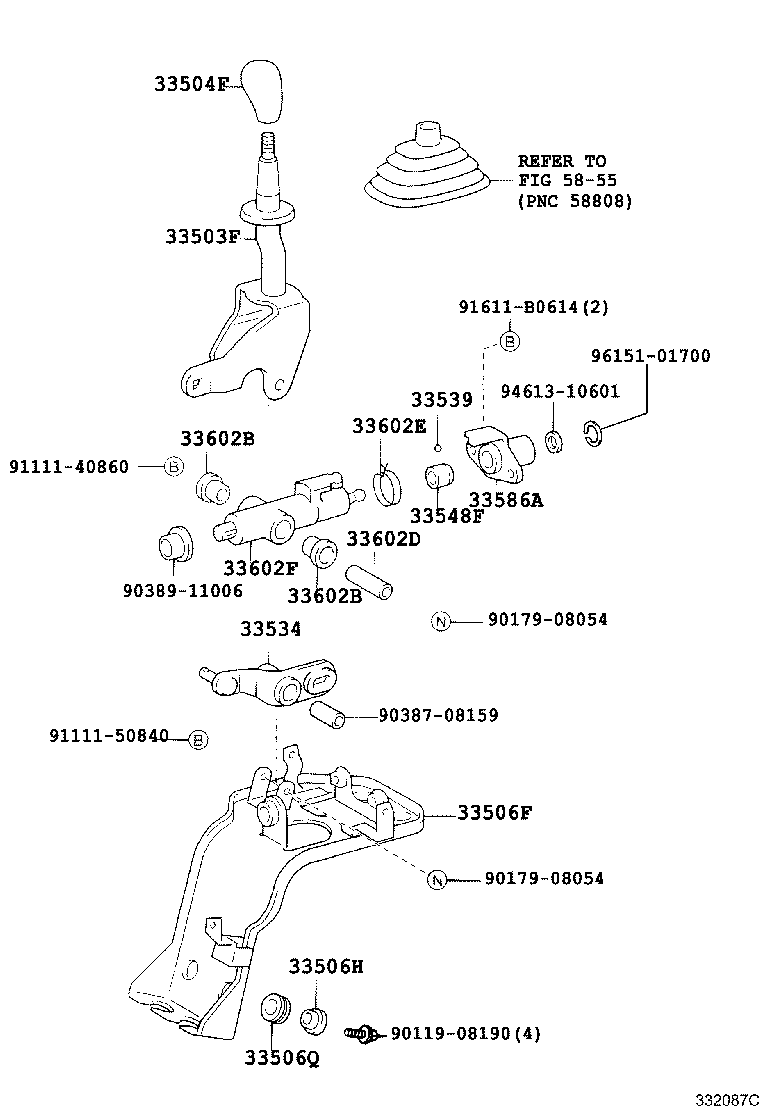

ILLUST NO. 1 OF 2(0212-0610)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-37091	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051B1	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW DK.CHARCOAL,TRIM1#	09/2002 - 10/2006	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-37052	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
90386-12056	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	4
33534 - BELLCRANK, SELECTING
33534-37081	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
33539 - CUSHION, SHIFT LEVER ANTI-RATTLE
33539-12010	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12040	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	1
33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33586-37010	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	2
33602D - COLLAR (FOR SELECT LEVER)
90387-08063	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03034	BU303,343,WU300,340,XZU300,320,330,340..LHD	09/2002 - 10/2006	1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-37030	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
Common parts
90119-08190
90179-08054
90387-08159
90389-11006
91111-40860
91111-50840
91611-B0614
94613-10601
96151-01700
Linked diagrams
5855

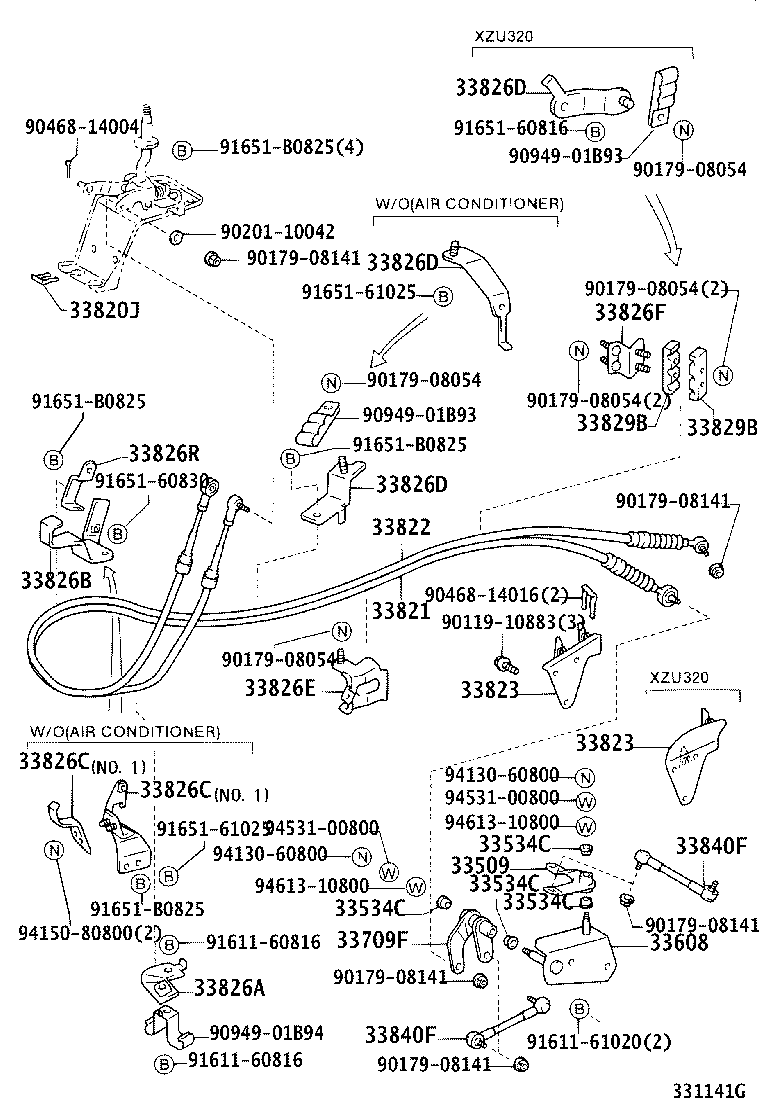

ILLUST NO. 2 OF 2(0212-0610)XZU300,320,330,340

Click highlighted areas on diagram

Part #	Description	Period	Qty
33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1
33509-37020	XZU300,320,330,340	12/2002 - 10/2006	1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007	XZU300,320,330,340	12/2002 - 10/2006	4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007	XZU300,320,330,340	12/2002 - 10/2006	4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007	XZU300,320,330,340	12/2002 - 10/2006	4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007	XZU300,320,330,340	12/2002 - 10/2006	4
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-37020	XZU300,320,330,340	12/2002 - 10/2006	1
33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33709-37030	XZU300,320,330,340	12/2002 - 10/2006	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37682	XZU300,330,340	12/2002 - 11/2003	1
33820-37683	XZU300,330,340	11/2003 - 04/2004	1
33820-37684	XZU300,330,340	05/2004 - 10/2006	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-3V042	XZU300,330,340	12/2002 - 04/2004	1
33820-3V043	XZU300,330,340	05/2004 - 10/2006	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37350	XZU300,330,340	12/2002 - 10/2006	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37350	XZU300,330,340	12/2002 - 10/2006	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37680	XZU300,320,330,340	12/2002 - 10/2006	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37281	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 04/2006	1
33826-37690	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.2	12/2002 - 10/2006	1
33826-37282	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	05/2006 - 10/2006	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37281	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	12/2002 - 04/2006	1
33826-37690	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.2	12/2002 - 10/2006	1
33826-37282	BU303,343,WU300,340,XZU300,320,330,340..LHD NO.1	05/2006 - 10/2006	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33826-37630	XZU300,330,340	12/2002 - 10/2006	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33826-37630	XZU300,330,340	12/2002 - 10/2006	1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33826-37251	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW NO.1	09/2002 - 10/2006	1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33826-37251	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW NO.1	09/2002 - 10/2006	1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33826-37420	XZU300,330,340	09/2002 - 10/2006	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	BU303,343,WU300,340,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37150	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	2
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37150	BU303,343,WU300,340,XZU300,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	2
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-37050	XZU300,320,330,340	12/2002 - 10/2006	2
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-37050	XZU300,320,330,340	12/2002 - 10/2006	2
Common parts
90119-10883
90179-08038
90201-10042
90468-14004
90468-14016
90949-01B93
90949-01B94
91611-B0816
91612-B1020
91651-60816
91651-61025
91651-B0825
94130-01002
94130-60800
94150-80800
94531-00800
