XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

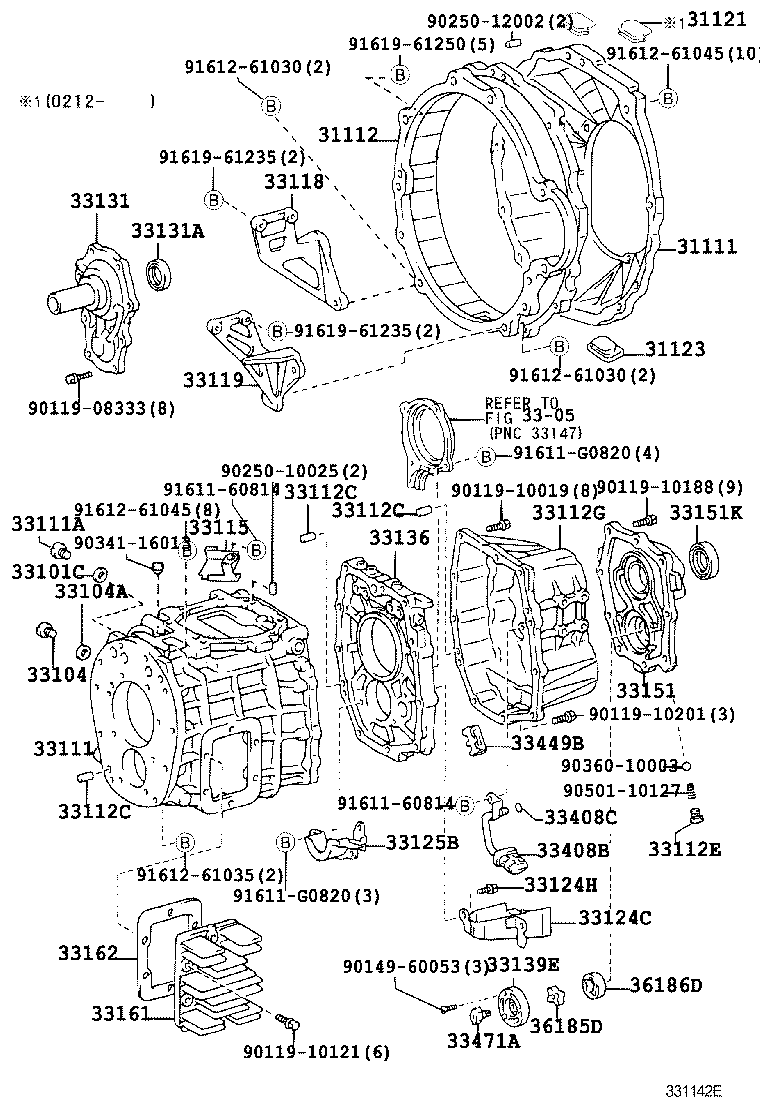

(9907- )XZU300,320,330,340

Click highlighted areas on diagram

H350

diagram 31111 31112 31121 31123 3305 33101C 33104 33104A 33111 33111A 33112C 33112C 33112C 33112E 33112G 33115 33118 33119 33124C 33124H 33125B 33131 33131A 33136 33139E 33151 33151K 33161 33162 33408B 33408C 33449B 33471A 36185D 36186D 9011908333 9011910019 9011910121 9011910188 9011910201 9014960053 9025010025 9025012002 9034116013 9036010003 9050110127 9161160814 9161160814 91611G0820 91611G0820 9161261030 9161261030 9161261035 9161261045 9161261045 9161961235 9161961235 9161961250
Part # Description Qty Price
Common parts
90119-08333
90119-10019
90119-10121
90119-10188
90119-10201
90149-60053
90250-10025
90250-12002
90341-16013
90360-10003
90501-10127
91611-60814
91611-G0820
91612-61030
91612-61035
91612-61045
91619-61235
91619-61250
Linked diagrams
3305

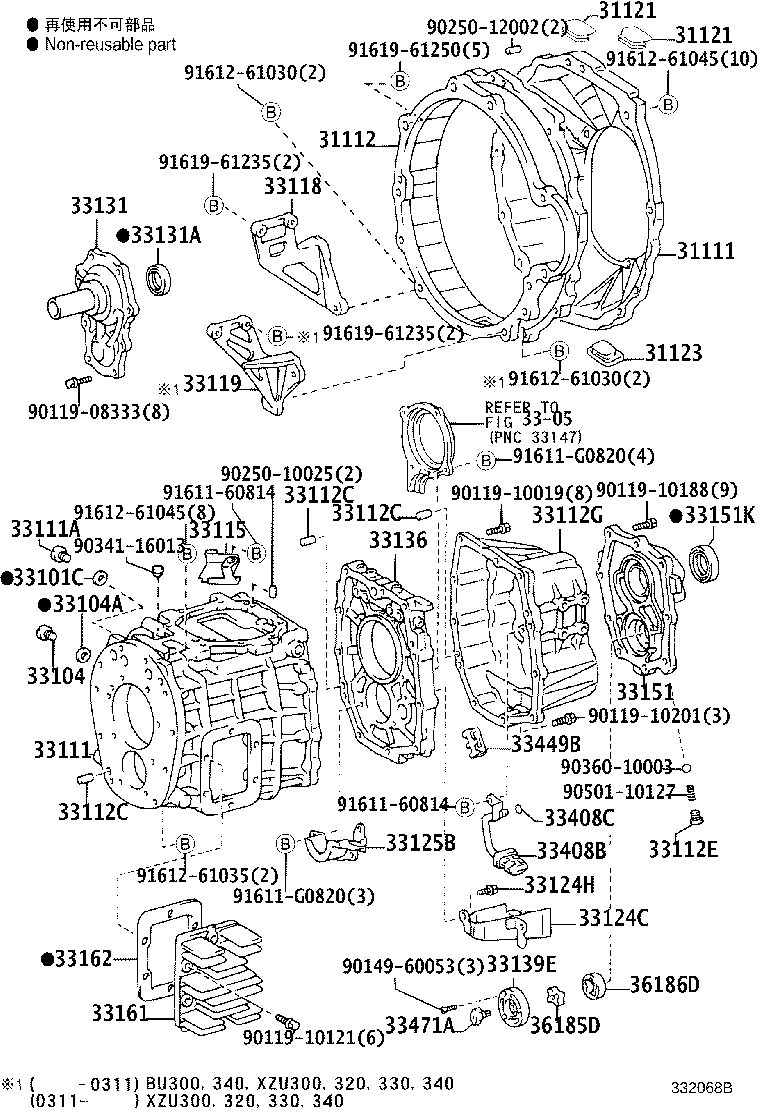

(0212-0610)BU300,340,XZU300,320,330,340

Click highlighted areas on diagram

H350

diagram 31111 31112 31121 31121 31123 3305 33101C 33104 33104A 33111 33111A 33112C 33112C 33112C 33112E 33112G 33115 33118 33119 33124C 33124H 33125B 33131 33131A 33136 33139E 33151 33151K 33161 33162 33408B 33408C 33449B 33471A 36185D 36186D 9011908333 9011910019 9011910121 9011910188 9011910201 9014960053 9025010025 9025012002 9034116013 9036010003 9050110127 9161160814 9161160814 91611G0820 91611G0820 9161261030 9161261030 9161261035 9161261045 9161261045 9161961235 9161961235 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-37050

XZU300,320,330,340

 1
31112 - HOUSING, CLUTCH, FRONT
31112-37040

XZU300,320,330,340

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

BU303,343,XZU300,320,330,340..GEN,TAIW

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

BU303,343,XZU300,320,330,340..GEN,TAIW

 2
31123 - COVER, CLUTCH HOUSING, NO.2
31121-36040

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

XZU30#,320,330,340,345

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
33111 - CASE, MANUAL TRANSMISSION
33111-37041

XZU300,320,330,340

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12002

XZU300,320,330,340

 6
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12002

XZU300,320,330,340

 6
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12002

XZU300,320,330,340

 6
33112E - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
90341-12008

XZU300,320,330,340

 1
33112G - CASE, TRANSMISSION, REAR
33112-37010

XZU300,320,330,340

 1
33115 - PLATE, TRANSMISSION OIL FILTER
33115-37010

XZU300,320,330,340

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-37040

XZU300,320,330,340

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-37020

XZU300,320,330,340

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-37010

XZU300,320,330,340

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60814

XZU300,320,330,340

 2
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-37020

XZU300,320,330,340

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-60070

XZU300,320,330,340

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023

XZU300,320,330,340

 1
33136 - PLATE, TRANSMISSION INTERMEDIATE
33136-37011

XZU300,320,330,340

 1
33139E - COVER, OIL PUMP
33139-36010

XZU300,320,330,340

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-37011

XZU300,320,330,340

 1
33151K - SEAL, TYPE T OIL
90311-48011

XZU300,320,330,340

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
33408B - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL(FOR REAR CAS
33408-37010

XZU300,320,330,340

 1
33408C - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
96721-19009

XZU300,320,330,340

 1
33449B - MAGNET, TRANSMISSION
33449-35010

XZU300,320,330,340

 1
33471A - SHAFT, OIL PUMP DRIVE (FOR COUNTER GEAR)
33471-36010

XZU300,320,330,340

 1
36185D - ROTOR, TRANSFER OIL PUMP DRIVE(FOR COUNTER GEAR REAR)
36185-60030

XZU300,320,330,340

 1
36186D - ROTOR, TRANSFER OIL PUMP DRIVEN (FOR COUNTER GEAR REAR)
36186-60010

XZU300,320,330,340

 1
Common parts
90119-08333
90119-10019
90119-10121
90119-10188
90119-10201
90149-60053
90250-10025
90250-12002
90341-16013
90360-10003
90501-10127
91611-60814
91611-G0820
91612-61030
91612-61035
91612-61045
91619-61235
91619-61250
Linked diagrams
3305

(7708- )BU2#,3#,40,RU2#,30

Click highlighted areas on diagram

diagram 31111 31111 31121 31121 31122 33118 33118 33119 33119 33131 33131 33131A 33131A 33132 33132 9011908092 9011908092 9161161028 9161161028 9161161035 9161161035 9161161045 9161161045 9161161050 9161161050 9161161060 9161961245 9161961255 9161961255 9331116010
Part # Description Qty Price
Common parts
90119-08092
91611-61028
91611-61035
91611-61045
91611-61050
91611-61060
91619-61245
91619-61255
93311-16010

(7708- )

Click highlighted areas on diagram

diagram 33104 33104 33104A 33104A 33111 33111 33111A 33111A 33111J 33111J 33111J 33111J 33111X 33111X 33141 33141A 33141A 33151 33151 33157 33157 33161 33161 33161A 33161A 9010112412 9010112412 9011910121 9011910121 9011912115 9011912169 9161141016 9161141016 9161160825 9161160825 9161961230 9161961245 9161961245 9161961250 9161961255 9451201200
Part # Description Qty Price
Common parts
90101-12412
90119-10121
90119-12115
90119-12169
91611-41016
91611-60825
91619-61230
91619-61245
91619-61250
91619-61255
94512-01200
