XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

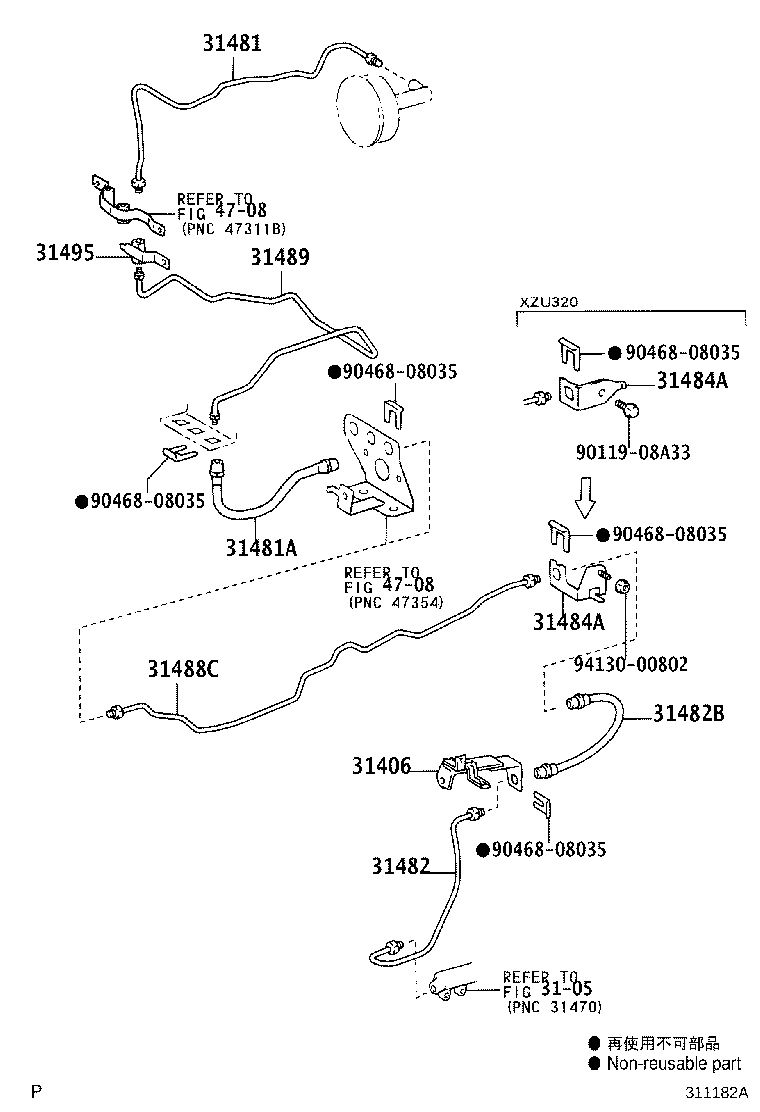

ILLUST NO. 2 OF 2(9907- )XZU300,320,330,340

Click highlighted areas on diagram

diagram 31406 31481 31481A 31482 31482B 31484A 31484A 31488C 31489 31495 9011908A33 9046808035 9046808035 9046808035 9046808035 9413000802
Part # Description Qty Price
Common parts
90119-08A33
90468-08035
94130-00802

ILLUST NO. 1 OF 2(9907- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31321 31323 31324 31324A 31453A 31453B 38979A 8401 8413 9017906204 9046814017 9164180818 9164180818 9413061000 9413061000 9453101000
Part # Description Qty Price
Common parts
90179-06204
90468-14017
91641-80818
94130-61000
94531-01000
Linked diagrams
8401
8413

ILLUST NO. 1 OF 2(0212-0610)XZU300,320,330,340

Click highlighted areas on diagram

diagram 3103 3103 3103 3103 31301 31301A 31301B 31301C 31301C 31321 31324 31324A 31453A 31453B 38979A 8413 8413 9046814017 9164180818 91651B0820 9413061000 9453101000
Part # Description Qty Price

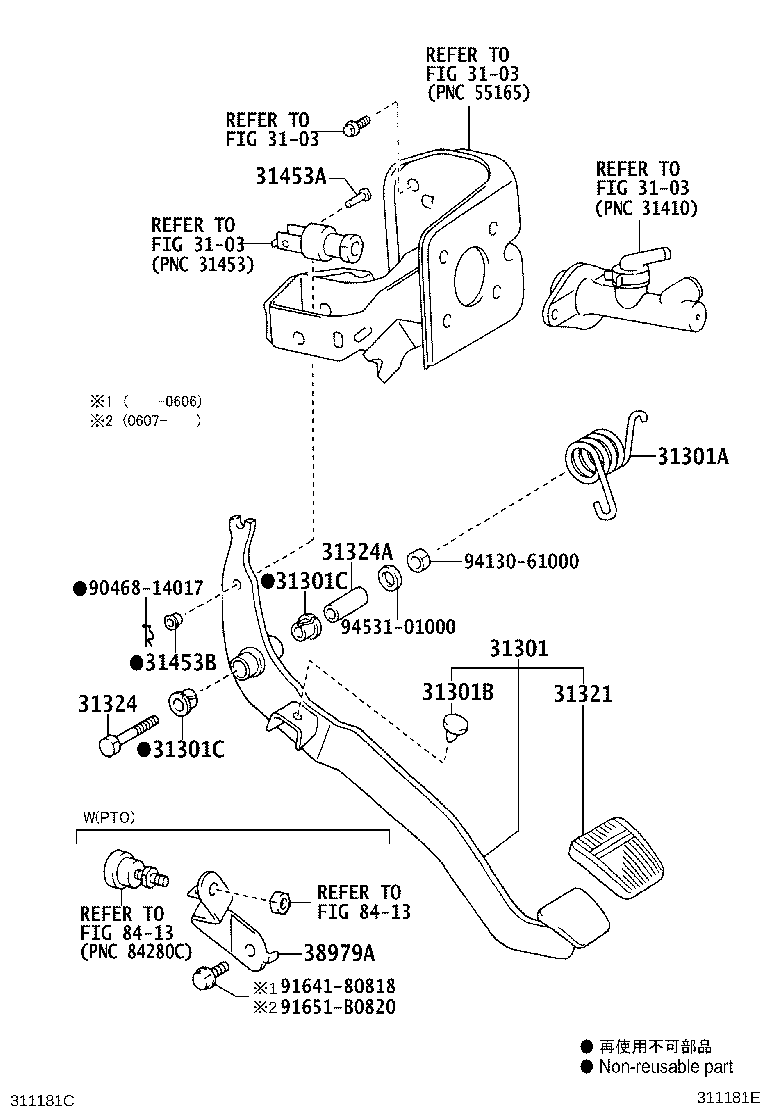

31301 - PEDAL SUB-ASSY, CLUTCH
31301-37190

XZU300,330,340

 1
31301-37181

XZU300,330,340

W(PTO)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03394

XZU30#,320,330,340,345

 1
90959-03344

XZU30#,320,330,340,345

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU303,343..RHD..GEN;XZU30#,320,330,340,345

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU303,343..RHD..GEN;XZU30#,320,330,340,345

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
31324 - SHAFT, CLUTCH PEDAL
91112-61070

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37031

XZU300,320,330,340

 1
Common parts
90468-14017
91641-80818
91651-B0820
94130-61000
94531-01000
Linked diagrams
3103
8413

ILLUST NO. 2 OF 2(0212-0610)XZU300,320,330,340

Click highlighted areas on diagram

diagram 3105 31406 31481 31481A 31482 31482B 31484A 31484A 31488C 31489 31495 4708 4708 9011908A33 9046808035 9046808035 9046808035 9046808035 9046808035 9413000802
Part # Description Qty Price

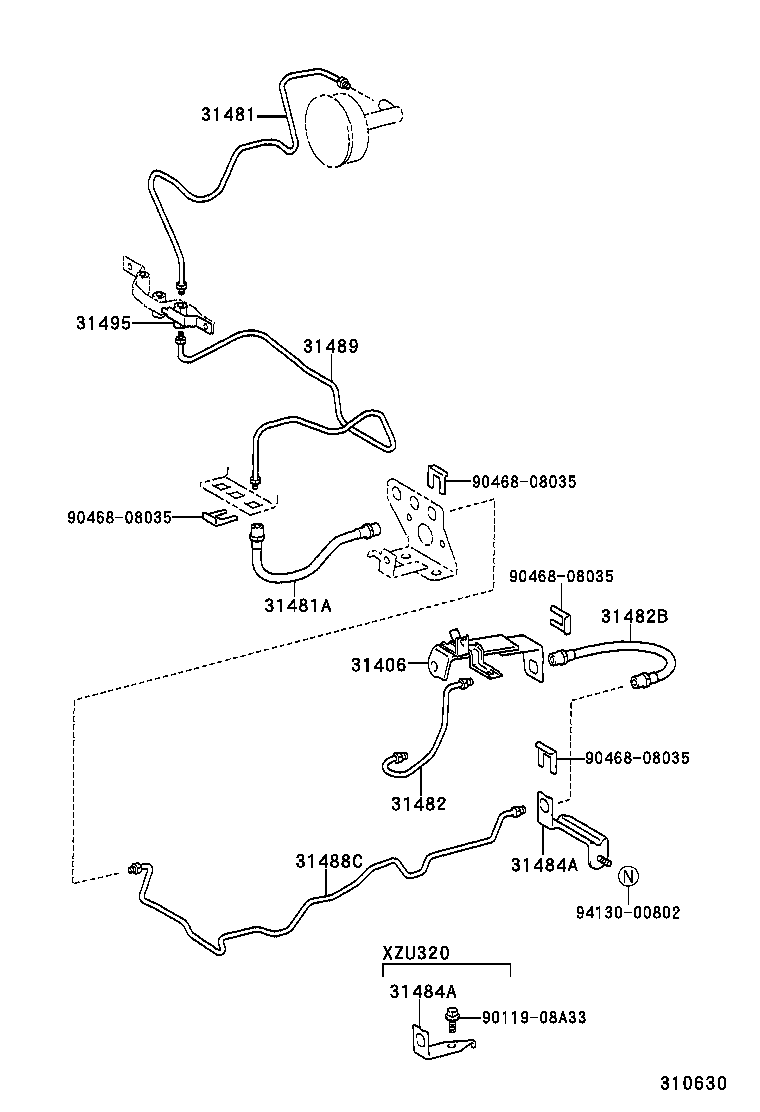

31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-37020

XZU300,320,330,340

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37141

XZU300,320,330,340

 1
31481-37142

XZU300,320,330,340

 1
31481A - HOSE, CLUTCH, NO.1
90931-01143

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37101

XZU300,320,330,340

 1
31482-37100

XZU300,320,330,340

 1
31482B - HOSE, CLUTCH, NO.2
90931-01142

BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37131

BU303,343,WU300,340,XZU300,330,340..LHD

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37131

BU303,343,WU300,340,XZU300,330,340..LHD

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-37250

BU303,343,WU300,340,XZU300,330,340..LHD

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37151

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
31481-37150

BU303,343,WU300,340,XZU300,320,330,340..LHD

 1
31495 - WAY, CLUTCH TUBE
31495-37010

BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW

 1
Common parts
90119-08A33
90468-08035
94130-00802
Linked diagrams
3105
4708

(7708- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31305B 31305C 31321 31324 31324A 31453A 31453B 31481 31481 9046110276 9046816142 9161140816 9161140816 9161140816 9165140816 9411041000 9412040800 9451201000
Part # Description Qty Price
Common parts
90461-10276
90468-16142
91611-40816
91651-40816
94110-41000
94120-40800
94512-01000

(7708- )BU2#,3#,HU30

Click highlighted areas on diagram

diagram 31481A 31481A 31481A 31481A 31482 31482 31485 31485 31487 31487 31488 31488 9046106009 9161140816 9161140816 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9622112080 9622120906 9622220906 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
Common parts
90461-06009
91611-40816
91611-40820
94110-40800
96221-12080
96221-20906
96222-20906
96991-12080
