XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU300,320,330,340

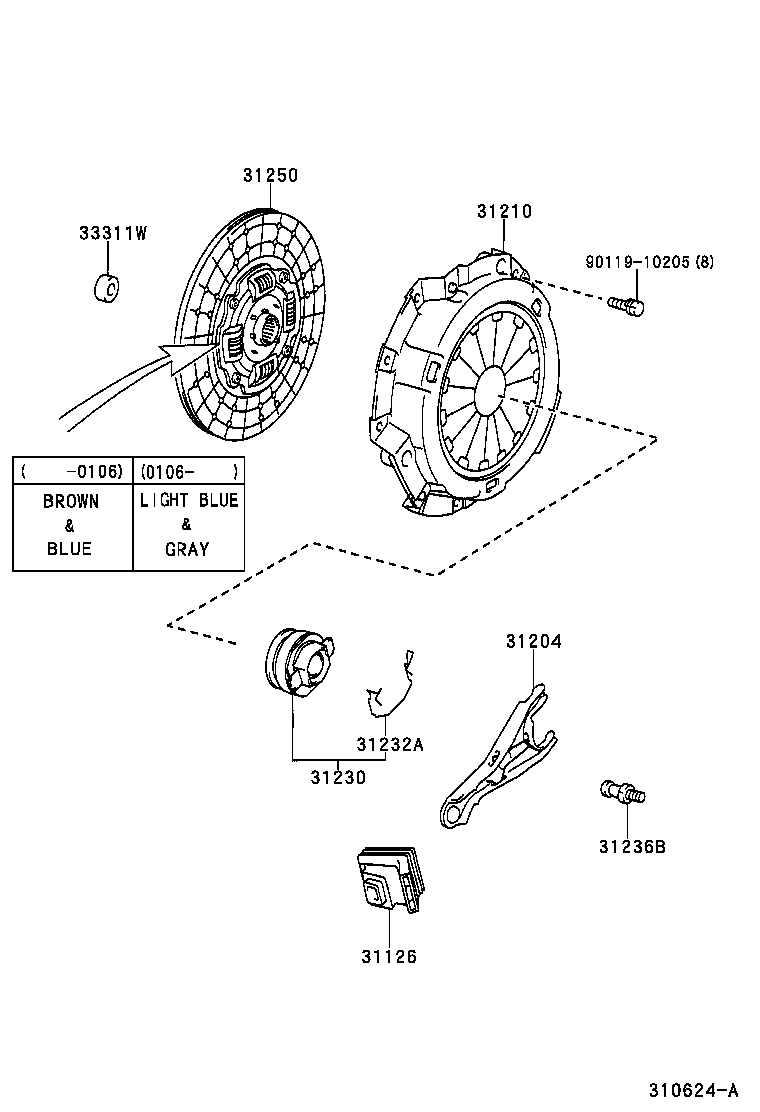

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011910205
Part # Description Qty Price
Common parts
90119-10205

(0209- )

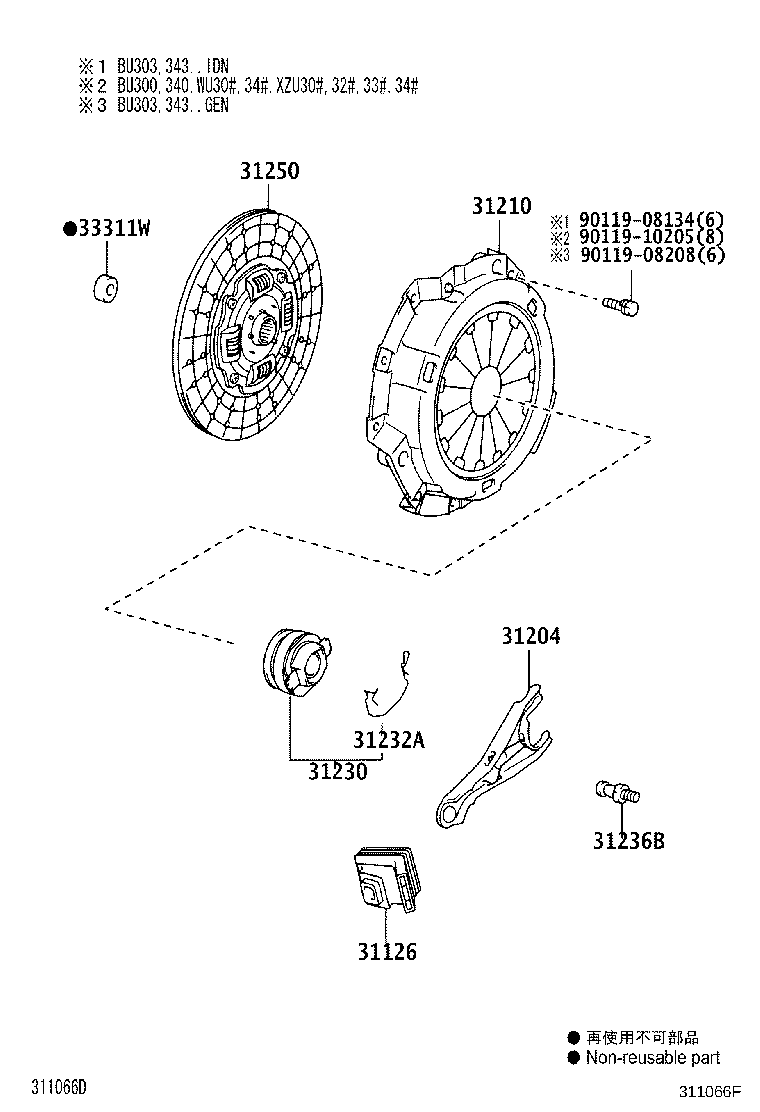

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908134 9011908208 9011910205
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070

WU300,340,XZU30#,320,330,340,345..ARL,GCC,TAIW

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-36142

XZU300,320,330,340

 1
31210 - COVER ASSY, CLUTCH
31210-37120

XZU30#,320,330,340,345

 1
31210-37100

BU300,340,XZU300,320,330,340

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36210

XZU300,320,330,340

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

XZU30#,320,330,340,345

 1
31236B - SUPPORT, RELEASE FORK
31236-36060

WU300,340,XZU30#,320,330,340,345..ARL,GCC,TAIW

 1
31250 - DISC ASSY, CLUTCH
31250-37133

BU300,340,XZU300,320,330,340

 1
31250-37170

XZU300,320,330,340

 1
31250-37134

XZU300,320,330,340

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12018

BU303,343,XZU300,320,330,340..GEN,TAIW

 1
Common parts
90119-08134
90119-08208
90119-10205

(7708- )BU2#,3#,40

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31231B 31232 31236 31240 31240A 31250 33311W 9010908081 9010908081 9011908134 9017008197 9017008197 9020108567 9020108567 9451100800 9451100800
Part # Description Qty Price
Common parts
90109-08081
90119-08134
90170-08197
90201-08567
94511-00800
