XZU330L-TKMSWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

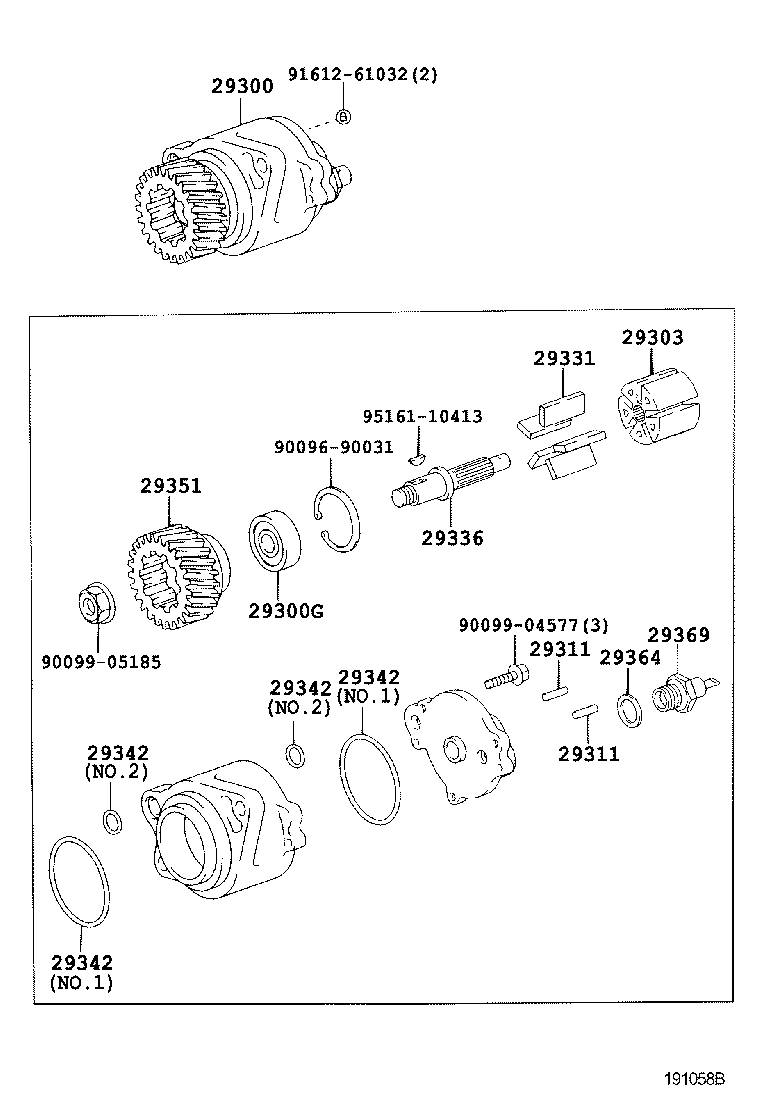

(9907- )15BFTE

Click highlighted areas on diagram

diagram 29300 29300G 29303 29311 29311 29331 29336 29342 29342 29342 29342 29351 29364 29369 9009690031 9009904577 9009905185 9161261032 9516110413
Part # Description Qty Price
Common parts
90096-90031
90099-04577
90099-05185
91612-61032
95161-10413

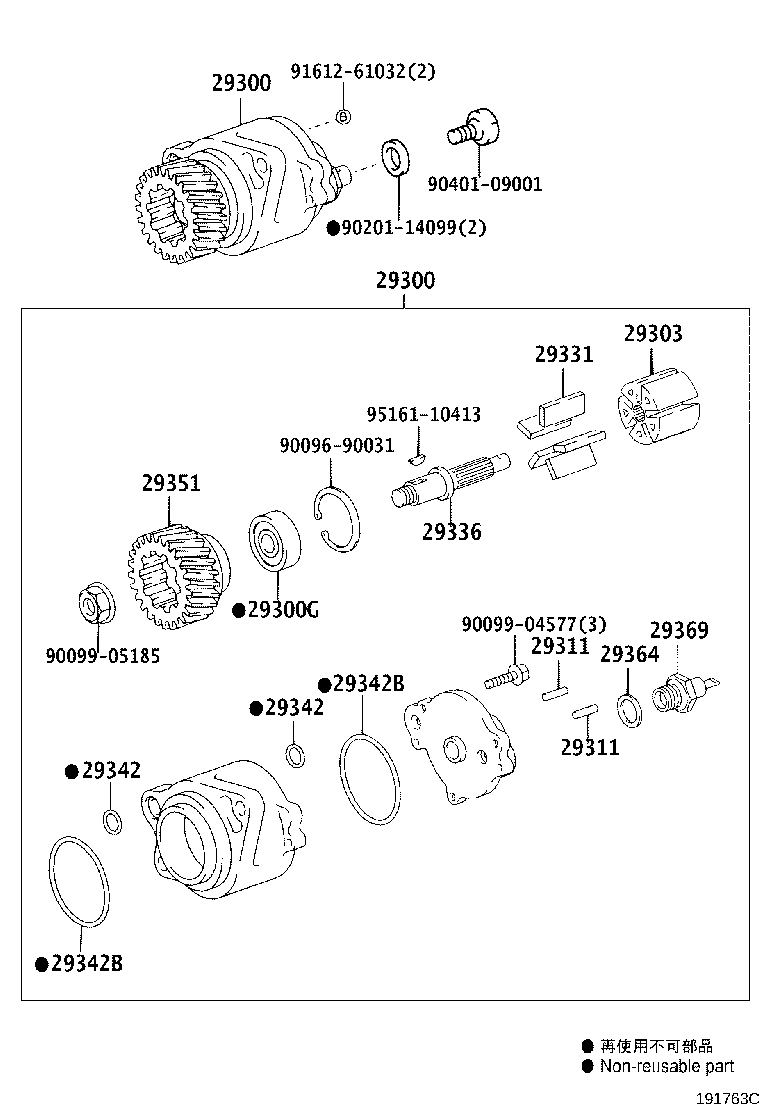

(0209-0612)14B,15BFTE

Click highlighted areas on diagram

diagram 29300 29300 29300G 29303 29311 29311 29331 29336 29342 29342 29342B 29342B 29351 29364 29369 9009690031 9009904577 9009905185 9020114099 9040109001 9161261032 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-58040

15BFTE..BU300,340,XZU300,320,330,340

 1
29300 - PUMP ASSY, VACUUM
29300-58040

15BFTE..BU300,340,XZU300,320,330,340

 1
29300G - BEARING, BALL
90099-10185

N04C,14B,15BFTE..BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29337-58040

15BFTE..XZU300,320,330,340

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

N04C,14B,15BFTE..BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

N04C,14B,15BFTE..BU303,343,XZU30#,320,330,340,345..ARL,GEN,TAIW

 2
29331 - BLADE, VACUUM PUMP, A
29331-27010

14B,15BFTE..BU30#,34#,XZU300,320,330,340

 5
29336 - SHAFT, VACUUM PUMP
29336-58040

14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW

 1
29342 - PACKING, VACUUM PUMP
29342-64010

14B,15BFTE..BU30#,34#,XZU300,320,330,340

 2
29342 - PACKING, VACUUM PUMP
29342-64010

14B,15BFTE..BU30#,34#,XZU300,320,330,340

 2
29342B - RING, O
29342-58010

14B,15BFTE..BU30#,34#,XZU300,320,330,340

 2
29342B - RING, O
29342-58010

14B,15BFTE..BU30#,34#,XZU300,320,330,340

 2
29351 - GEAR, VACUUM PUMP
29351-58050

14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW

 1
29364 - WASHER, VACUUM PUMP
29364-66010

14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

14B,15BFTE..BU30#,34#,XZU300,320,330,340

 1
Common parts
90096-90031
90099-04577
90099-05185
90201-14099
90401-09001
91612-61032
95161-10413
