XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )15BFTE

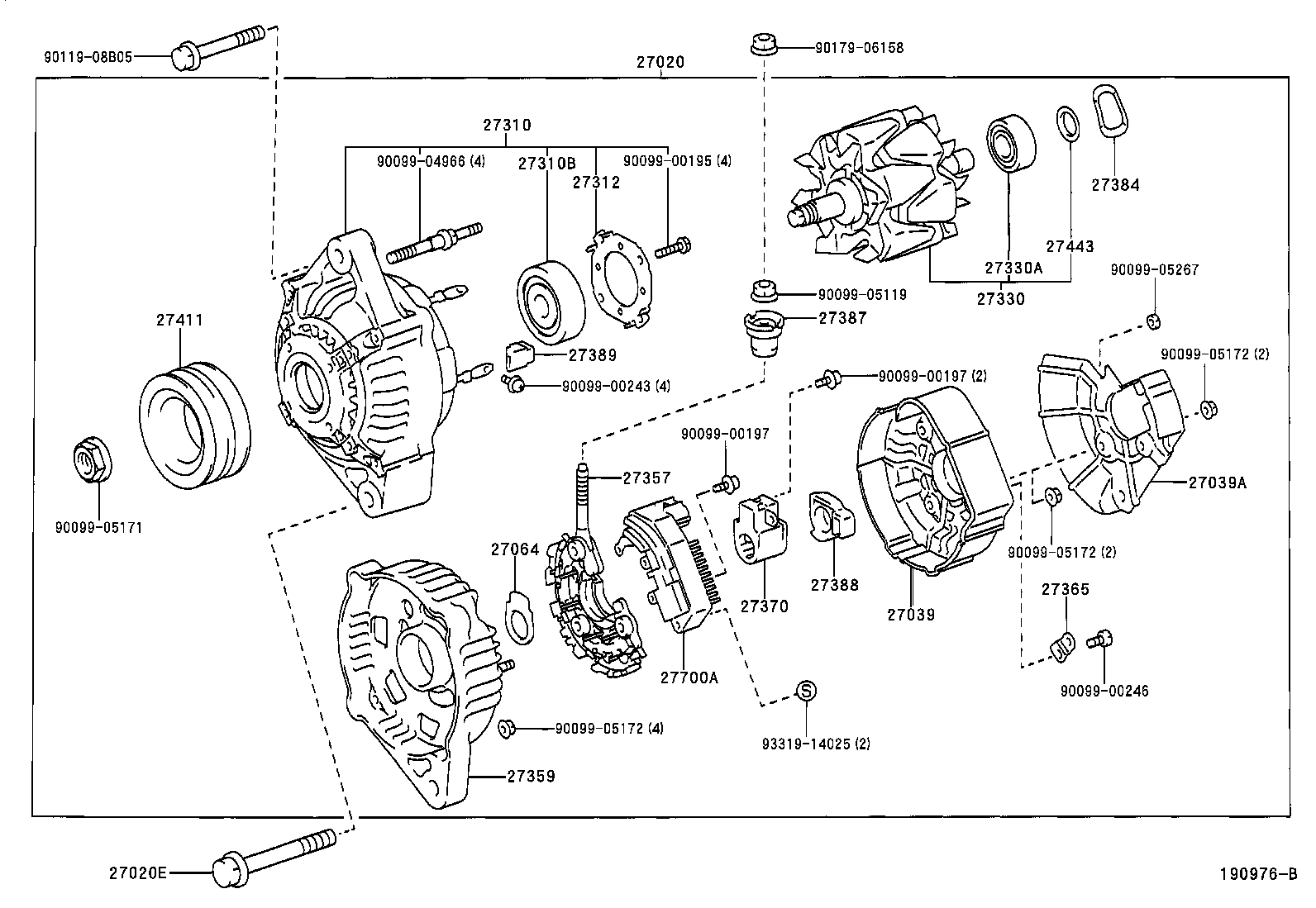

Click highlighted areas on diagram
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90119-08B05 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(0212- )15BFTE
Click highlighted areas on diagram
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58390 |
15BFTE..XZU300,320,330,340 24V 50A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58390 |
15BFTE..XZU300,320,330,340 24V 50A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58050 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58330 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW |
1 | ||
| Common parts | ||||
| 90119-08B05 | ||||
| 90179-06158 | ||||
