XZU330L-TKMSWR3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
15BFTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )

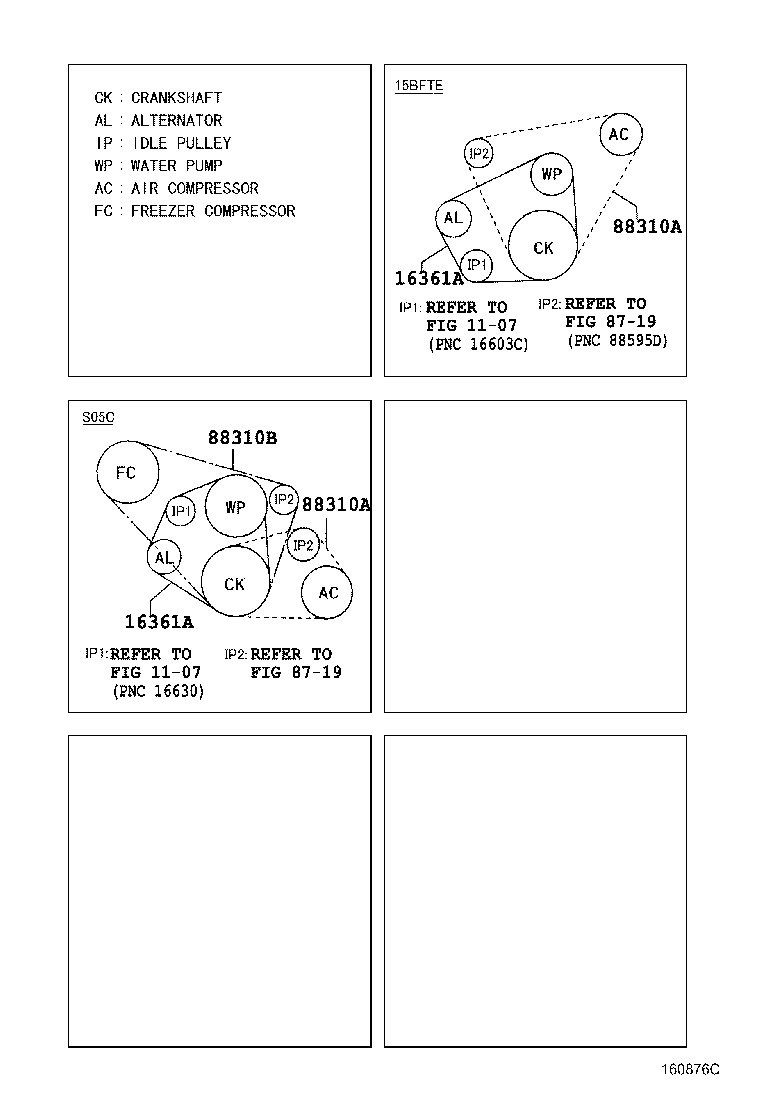

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1107 | ||||
| 8719 | ||||
(0209- )

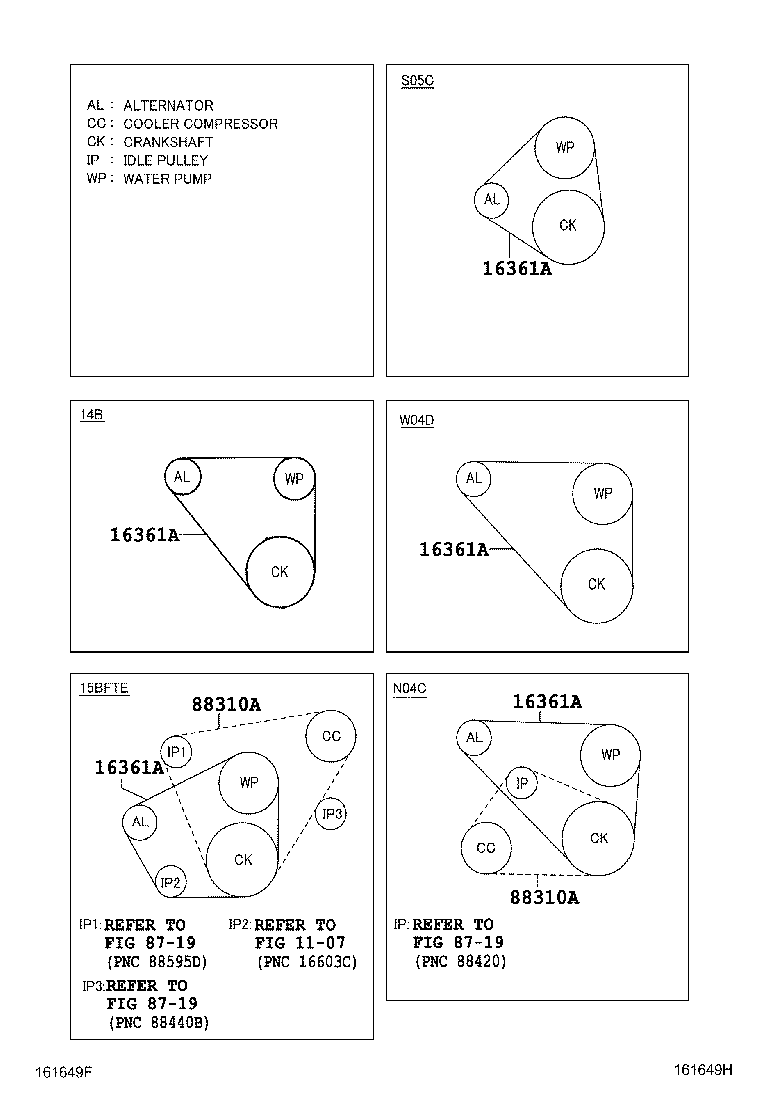

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02497 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02497 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02497 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02497 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02497 |
15BFTE..XZU300,320,330,340 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-11495 |
XZU300,320,330,340 L=1495 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-11495 |
XZU300,320,330,340 L=1495 |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||
| 8719 | ||||
