XZU330L-TKMQWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

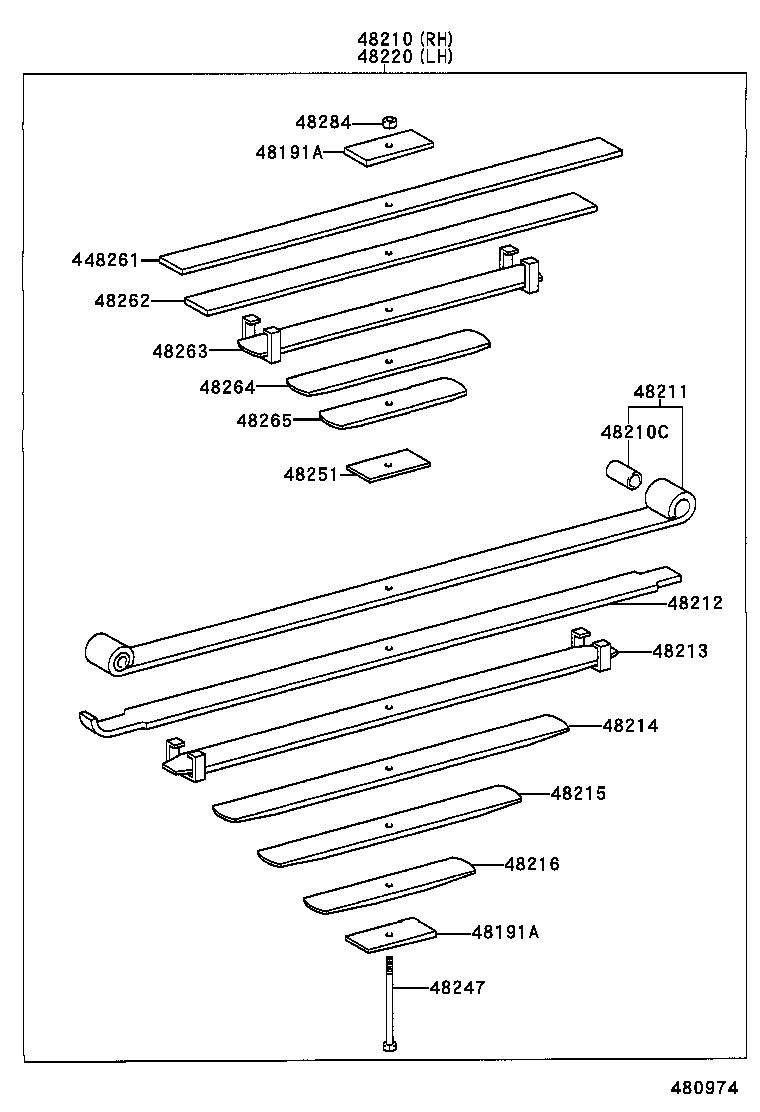

ILLUST NO. 2 OF 2(9907- )XZU330..30T

Click highlighted areas on diagram

MAIN 6 + HELPER 5LEAF

diagram 48191A 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48247 48251 48261 48262 48263 48264 48265 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030

XZU300,330,342..20T,30T

 4
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030

XZU300,330,342..20T,30T

 4
48210 - SPRING ASSY, REAR RH
48210-37540

XZU330..30T

MAIN 6+HELPER 5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU300,330,342..20T,30T

 8
48211 - LEAF, REAR SPRING, NO.1
48201-37540

XZU330..30T

 2
48212 - LEAF, REAR SPRING, NO.2
48212-37540

XZU330..30T

 2
48213 - LEAF, REAR SPRING, NO.3
48204-37540

XZU330..30T

 2
48214 - LEAF, REAR SPRING, NO.4
48214-37540

XZU330..30T

 2
48215 - LEAF, REAR SPRING, NO.5
48215-37540

XZU330..30T

 2
48216 - LEAF, REAR SPRING, NO.6
48216-37540

XZU330..30T

 2
48220 - SPRING ASSY, REAR LH
48210-37540

XZU330..30T

MAIN 6+HELPER 5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-37540

XZU330..30T

 2
48251 - SPACER, REAR SPRING LEAF
48268-37560

XZU330,340

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-37540

XZU330..30T

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48262-37540

XZU330..30T

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48207-37540

XZU330..30T

 2
48264 - LEAF, REAR HELPER SPRING, NO.4
48264-37540

XZU330..30T

 2
48265 - LEAF, REAR HELPER SPRING, NO.5
48265-37540

XZU330..30T

 2
48284 - NUT, REAR SPRING CENTER BOLT
48155-3B470

XZU330,340

 2

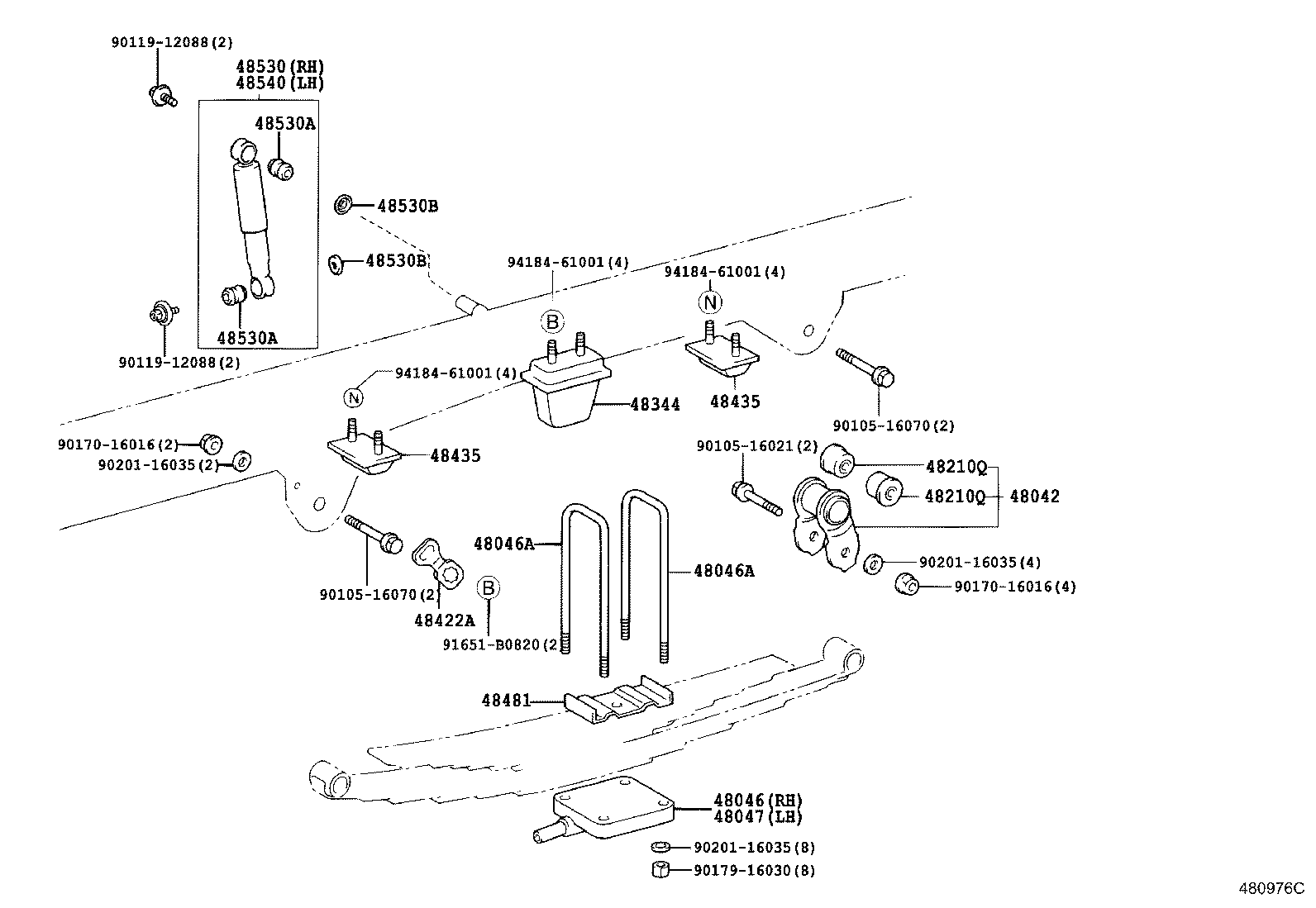

ILLUST NO. 1 OF 2(9907- )XZU300,330,342..20T,30T

Click highlighted areas on diagram

diagram 48042 48046 48046A 48046A 48047 48210Q 48210Q 48344 48422A 48435 48435 48481 48530 48530A 48530A 48530B 48530B 48540 9010516021 9010516070 9010516070 9011912088 9011912088 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 91651B0820 9418461001 9418461001 9418461001
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37020

XZU30#,320,330,342..20T,30T

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37180

XZU300,330,34#

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16040

XZU330..30T

L=320

 4
90117-16024

XZU330..30T

L=310

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16040

XZU330..30T

L=320

 4
90117-16024

XZU330..30T

L=310

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37180

XZU300,330,34#

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

XZU30#,320,330,342..20T,30T

 4
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90389-16026

XZU30#,320,330,342..20T,30T

 4
48344 - STOPPER, BUMPER, REAR
48344-37200

XZU300,330..20T,30T

 2
48422A - SUPPORT, REAR SPRING PIN
48422-37010

XZU300,330,342..20T,30T

 2
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-36050

XZU300,330,34#

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-36050

XZU300,330,34#

 4
48481 - SEAT, REAR SPRING, UPPER
48481-37080

XZU300,330..20T,30T

 2
48481-37080

XZU300,330,34#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80673

XZU300,330,342..20T,30T

MARK 48531-37010

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

XZU30#,320,330,34#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

XZU30#,320,330,34#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU30#,320,330,34#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU30#,320,330,34#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80673

XZU300,330,342..20T,30T

MARK 48531-37010

 1
Common parts
90105-16021
90105-16070
90119-12088
90170-16016
90179-16030
90201-16035
91651-B0820
94184-61001
