XZU327L-TMMQBR3 (2006)

Toyota Dyna

Production Oct 2006 - Jan 2009
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

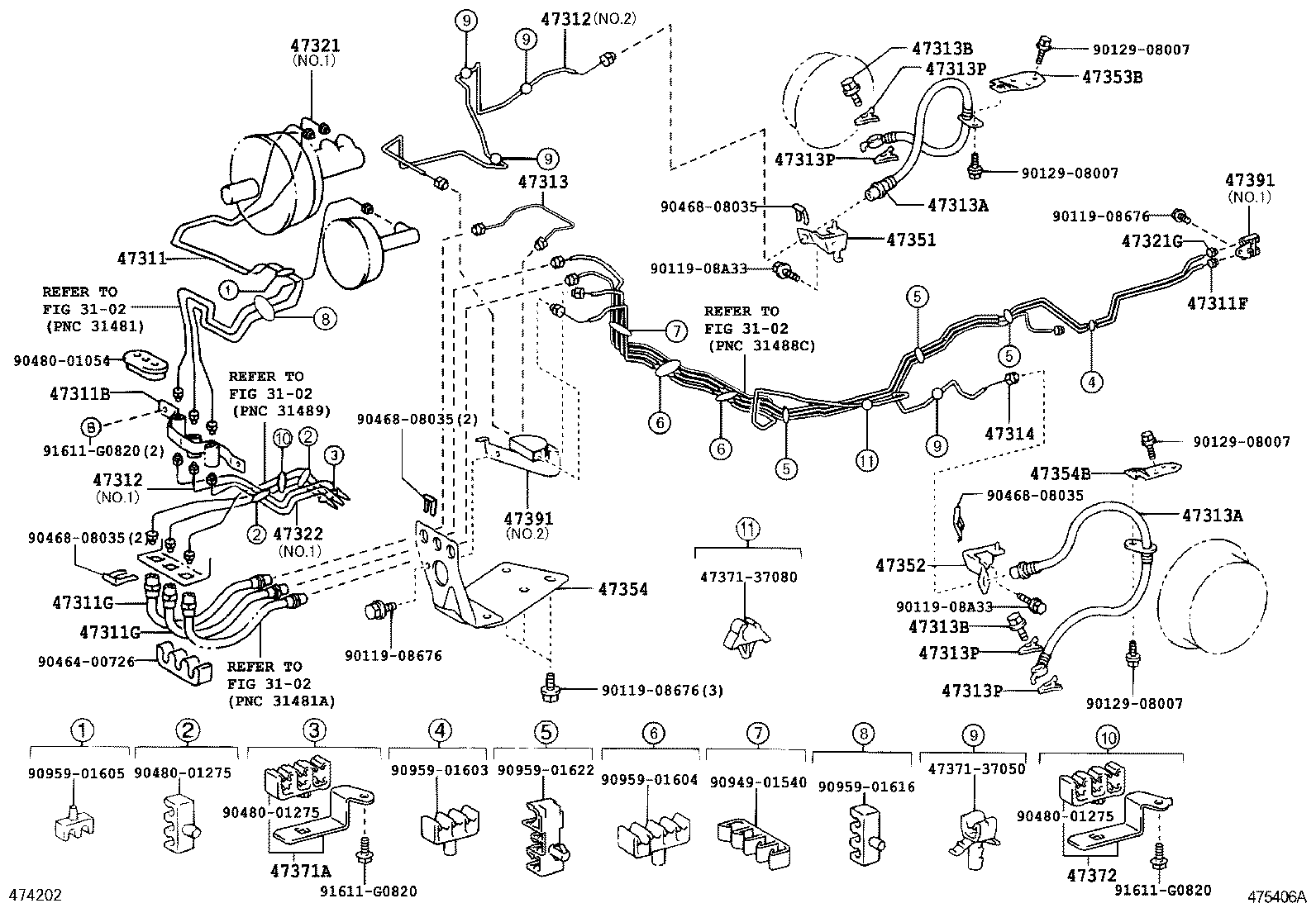

ILLUST NO. 1 OF 4(0610- )XZU327

Click highlighted areas on diagram

W(LSPV) & W/O(ABS)

diagram 3102 3102 3102 3102 47311 47311B 47311F 47311G 47311G 47312 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47321 47321G 47322 47351 47352 47353B 47354 47354B 4737137050 4737137080 47371A 47372 47391 47391 9011908676 9011908676 9011908676 9011908A33 9011908A33 9012908007 9012908007 9012908007 9012908007 9046400726 9046808035 9046808035 9046808035 9046808035 9048001054 9048001275 9048001275 9048001275 9094901540 9095901603 9095901604 9095901605 9095901616 9095901622 91611G0820 91611G0820 91611G0820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-37171

XZU307,327,337,347

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010

XZU307,327,337,347

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37470

XZU327

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02E01

XZU307,327,337,347

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02E01

XZU307,327,337,347

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37740

XZU307,327,337,347

NO.1

 1
47312-37770

XZU307,327,337..55T,65T

W(DISK BRAKE),NO.2

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37740

XZU307,327,337,347

NO.1

 1
47312-37770

XZU307,327,337..55T,65T

W(DISK BRAKE),NO.2

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37480

XZU307,327,337,347

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27

XZU307,327,337..55T,65T

W(DISC BRAKE),LH

 1
90947-02A72

XZU307,327,337..55T,65T

W(DISC BRAKE),RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27

XZU307,327,337..55T,65T

W(DISC BRAKE),LH

 1
90947-02A72

XZU307,327,337..55T,65T

W(DISC BRAKE),RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

XZU307,327,337,347

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

XZU307,327,337,347

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU307,327,337,347

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU307,327,337,347

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU307,327,337,347

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU307,327,337,347

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37610

XZU307,327,337..55T,65T

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-37172

XZU307,327,337,347

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37440

XZU327

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-37770

XZU307,327,337,347

NO.1

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130

XZU307,327,337..55T,65T

W(DISK BRAKE)

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050

XZU307,327,337..55T,65T

W(DISK BRAKE)

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150

XZU307,327,337..55T,65T

W(DISK BRAKE)

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37150

XZU307,327,337,347

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160

XZU307,327,337..55T,65T

W(DISK BRAKE)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37020

XZU307,327,337,347

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-37090

XZU307,327,337,347

 1
47391 - WAY, BRAKE TUBE
47391-37280

XZU327

NO.1

 1
47391-37350

XZU307,327,337,347

W(LSPV),NO.2

 1
47391 - WAY, BRAKE TUBE
47391-37280

XZU327

NO.1

 1
47391-37350

XZU307,327,337,347

W(LSPV),NO.2

 1
Common parts
47371-37050
47371-37080
90119-08676
90119-08A33
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90949-01540
90959-01603
90959-01604
90959-01605
90959-01616
90959-01622
91611-G0820
Linked diagrams
3102
