Toyota Dyna XZU327 EXHAUST PIPE - JDM Part Detective

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78310	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	N04C..XZU307,327,337,347	10/2006 - 01/2009	3
17410B - GASKET, EXHAUST PIPE
90917-06087	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78A10	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78800	N04C..XZU327	10/2006 - 01/2009	1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78050	N04C..XZU327 NO.1	10/2006 - 01/2009	1
17561-78080	N04C..XZU307,327,337,347 NO.2	10/2006 - 01/2009	1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78050	N04C..XZU327 NO.1	10/2006 - 01/2009	1
17561-78080	N04C..XZU307,327,337,347 NO.2	10/2006 - 01/2009	1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010	N04C..XZU307,327,337	10/2006 - 01/2009	2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010	N04C..XZU307,327,337	10/2006 - 01/2009	2
17569C - BOLT, EXHAUST PIPE SUPPORT
17569-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78052	N04C..XZU327	10/2006 - 01/2009	1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78060	N04C..XZU327	10/2006 - 01/2009	1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010	N04C..XZU327 NO.1	10/2006 - 01/2009	1
17573-78060	N04C..XZU327 NO.2	10/2006 - 01/2009	1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010	N04C..XZU327 NO.1	10/2006 - 01/2009	1
17573-78060	N04C..XZU327 NO.2	10/2006 - 01/2009	1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
16721-78010	N04C..XZU307,327,337	10/2006 - 01/2009	1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-78020	N04C..XZU327	10/2006 - 01/2009	1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
16721-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
16721-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17578 - CLAMP, PIPE
17578-78030	N04C..XZU307,327,337 NO.1	10/2006 - 01/2009	1
17578-78040	N04C..XZU307,327,337 NO.2	10/2006 - 01/2009	1
17578 - CLAMP, PIPE
17578-78030	N04C..XZU307,327,337 NO.1	10/2006 - 01/2009	1
17578-78040	N04C..XZU307,327,337 NO.2	10/2006 - 01/2009	1
17578A - CLAMP, MUFFLER
17578-78020	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010	N04C..XZU307,327,337,347	10/2006 - 01/2009	1
Common parts
90031-19100
90119-08B95
91641-80825
91641-H0820
91642-81035
94185-60800
94185-61000

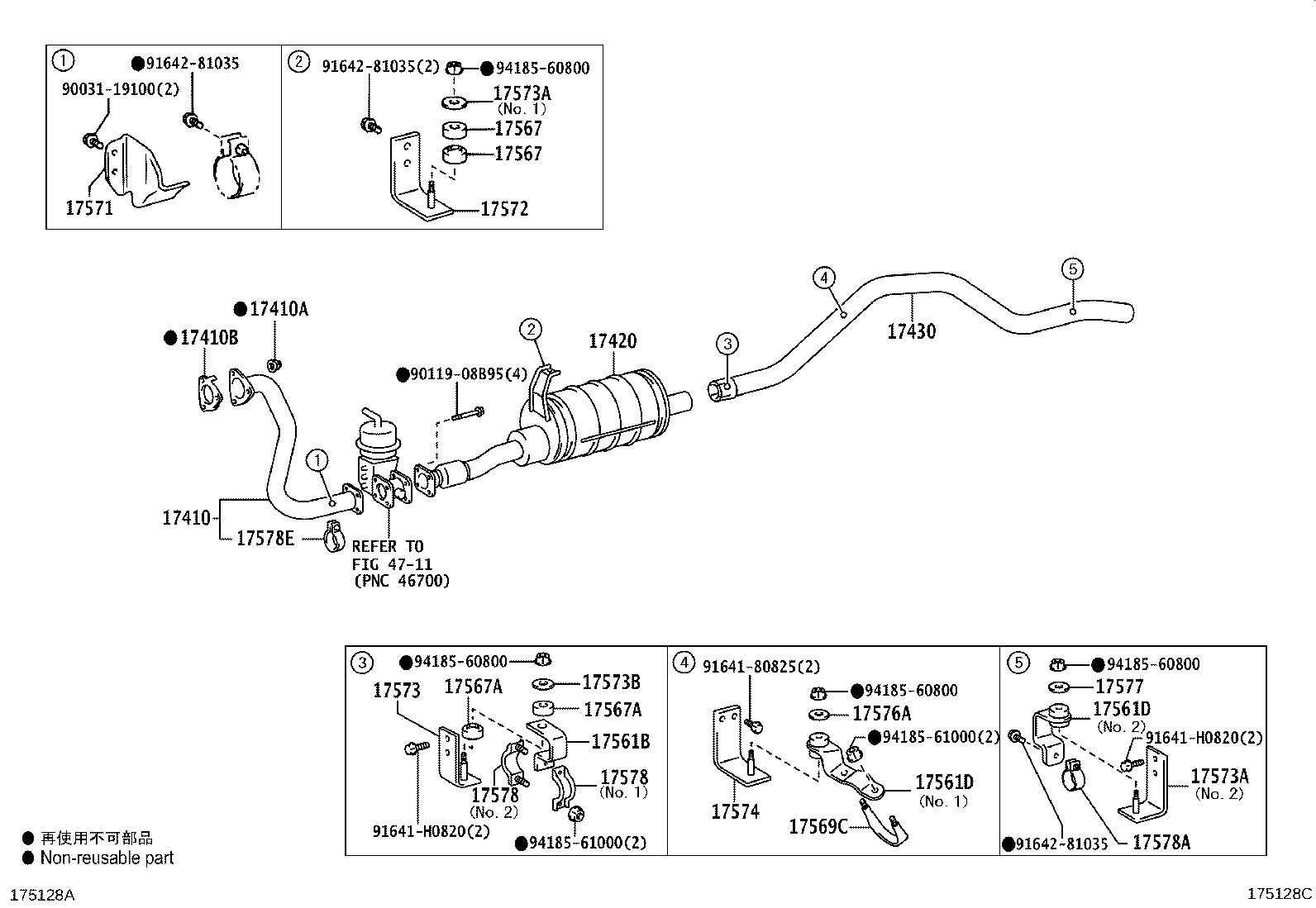

Linked diagrams
4711

XZU327L-TMMQBR3 (2006)

(0610- )N04C..XZU327
