XZU320L-TMMQWR3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

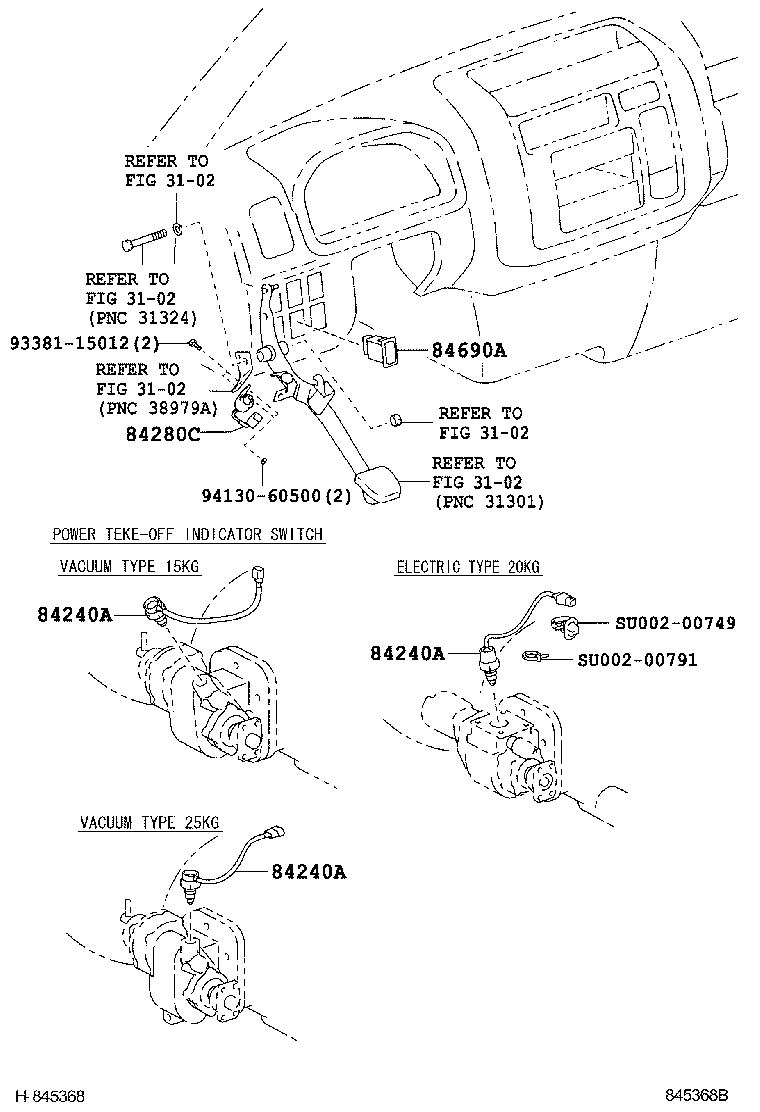

ILLUST NO. 1 OF 2(0212- )WU300..ST..IV3..TS ; (0212- )BU303,WU302..LHD..WT..CBU ; (0212- )B

Click highlighted areas on diagram

diagram 3102 3102 3102 3102 3102 84240A 84240A 84240A 84280C 84690A 9338115012 9413060500 SU00200749 SU00200791
Part # Description Qty Price
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

BU300,340,XZU300,320,330,340

VACUUM TYPE 25KG

 1
84240-37020

BU300,340,XZU300,320,330,340

VACUUM TYPE 25KG

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

BU300,340,XZU300,320,330,340

VACUUM TYPE 25KG

 1
84240-37020

BU300,340,XZU300,320,330,340

VACUUM TYPE 25KG

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

BU300,340,XZU300,320,330,340

VACUUM TYPE 25KG

 1
84240-37020

BU300,340,XZU300,320,330,340

VACUUM TYPE 25KG

 1
84280C - SWITCH ASSY, POWER TAKE-OFF CLUTCH
88280-37010

BU300,340,XZU30#,320,330,340,345

 1
88280-37010

BU300,340,XZU30#,320,330,340,345

 1
84690A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84690-37010

BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
84690-37010

BU303..IV3..TS;WU300..ST..IV3..TS;BU303..LHD..WT..CBU;BU343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)

 1
Common parts
93381-15012
94130-60500
SU002-00749
SU002-00791
Linked diagrams
3102
