XZU320L-TMMQWR3 (2002)
Toyota Dyna

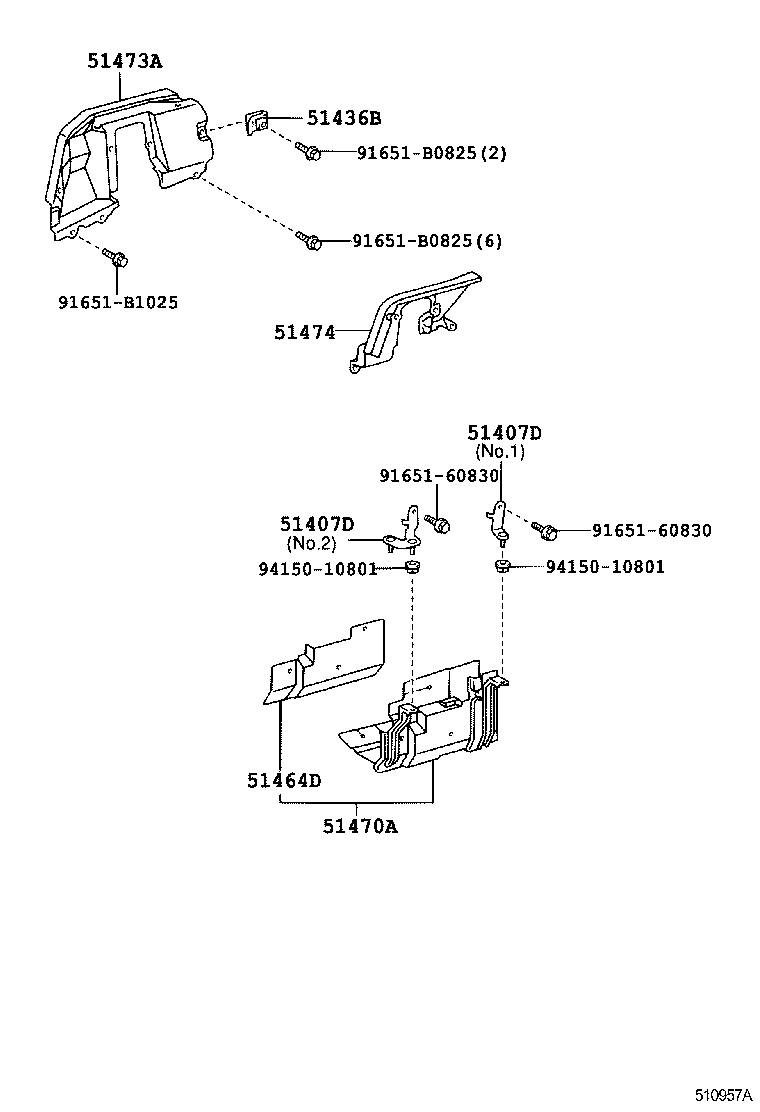

ILLUST NO. 1 OF 2(0212-0506)XZU320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37261 |
XZU320 NO.1 |
1 | ||
| 51407-37261 |
XZU320 FR LH |
1 | ||
| 51407-37260 |
XZU320 NO.1 |
1 | ||
| 51407-37340 |
XZU320 RR LH |
1 | ||
| 51407-37340 |
XZU320 NO.2 |
1 | ||
| 51407-37420 |
XZU320 RR RH |
1 | ||
| 51407-37410 |
XZU320 FR RH |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37261 |
XZU320 NO.1 |
1 | ||
| 51407-37261 |
XZU320 FR LH |
1 | ||
| 51407-37260 |
XZU320 NO.1 |
1 | ||
| 51407-37340 |
XZU320 RR LH |
1 | ||
| 51407-37340 |
XZU320 NO.2 |
1 | ||
| 51407-37420 |
XZU320 RR RH |
1 | ||
| 51407-37410 |
XZU320 FR RH |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37130 |
XZU320 |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37220 |
XZU320 |
1 | ||
| 51470-37280 |
XZU320 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37120 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| 51473-37121 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37131 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 51474-37130 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| Common parts | ||||
| 91651-60830 | ||||
| 91651-B0825 | ||||
| 91651-B1025 | ||||
| 94150-10801 | ||||

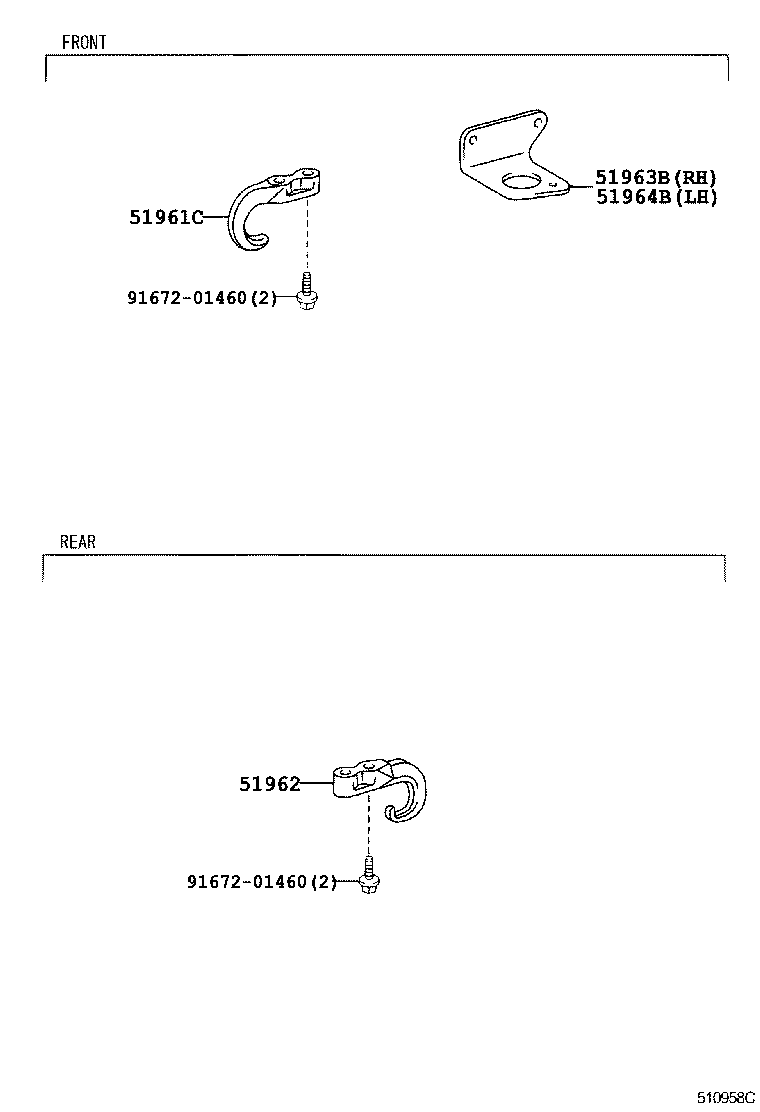

ILLUST NO. 2 OF 2(0212-0610)XZU320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961C - HOOK, FRONT | ||||
| 51961-37060 |
XZU320 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-37030 |
XZU320 |
1 | ||
| 51964B - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-37040 |
XZU320 |
1 | ||
| Common parts | ||||
| 91672-01460 | ||||

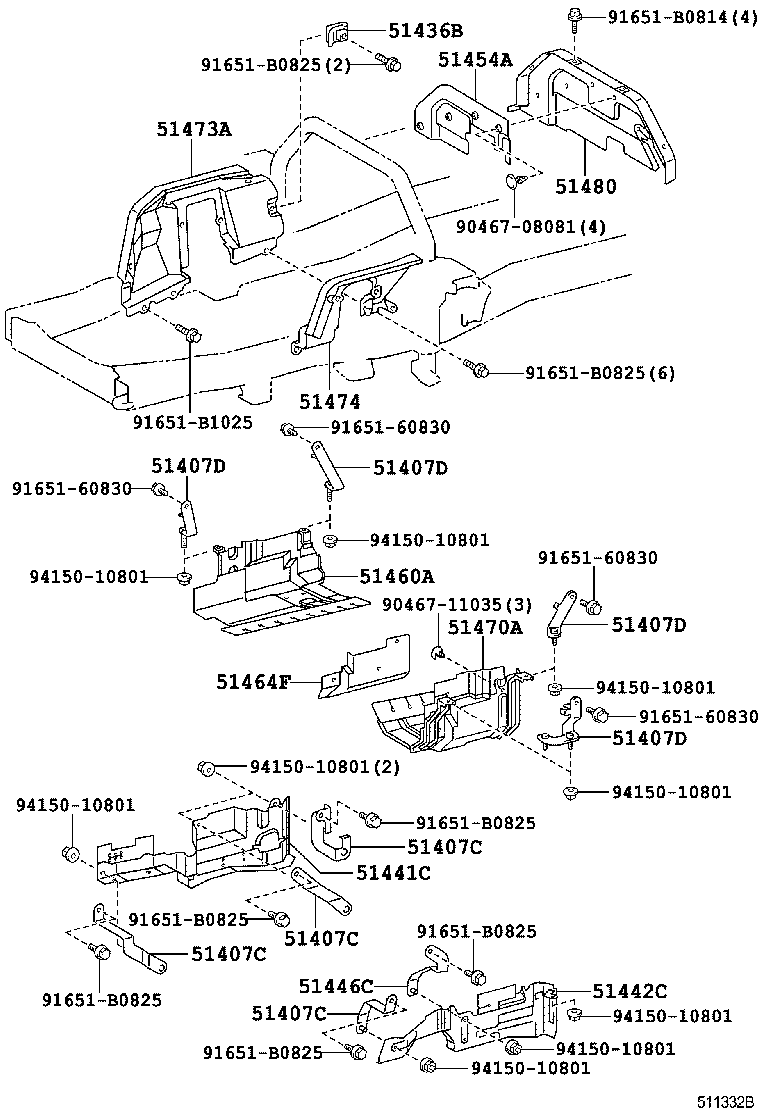

ILLUST NO. 1 OF 2(0506-0610)XZU320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
XZU300,320,330,340 RH FRONT |
1 | ||
| 51407-37220 |
XZU300,320,330,340 LH FRONT |
1 | ||
| 51407-37300 |
XZU320 RH REAR |
1 | ||
| 51407-37200 |
XZU300,320,330,340 RH CENTER |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
XZU300,320,330,340 RH FRONT |
1 | ||
| 51407-37220 |
XZU300,320,330,340 LH FRONT |
1 | ||
| 51407-37300 |
XZU320 RH REAR |
1 | ||
| 51407-37200 |
XZU300,320,330,340 RH CENTER |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
XZU300,320,330,340 RH FRONT |
1 | ||
| 51407-37220 |
XZU300,320,330,340 LH FRONT |
1 | ||
| 51407-37300 |
XZU320 RH REAR |
1 | ||
| 51407-37200 |
XZU300,320,330,340 RH CENTER |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
XZU300,320,330,340 RH FRONT |
1 | ||
| 51407-37220 |
XZU300,320,330,340 LH FRONT |
1 | ||
| 51407-37300 |
XZU320 RH REAR |
1 | ||
| 51407-37200 |
XZU300,320,330,340 RH CENTER |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37261 |
XZU320 NO.1 |
1 | ||
| 51407-37261 |
XZU320 FR LH |
1 | ||
| 51407-37260 |
XZU320 NO.1 |
1 | ||
| 51407-37340 |
XZU320 RR LH |
1 | ||
| 51407-37340 |
XZU320 NO.2 |
1 | ||
| 51407-37420 |
XZU320 RR RH |
1 | ||
| 51407-37410 |
XZU320 FR RH |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37261 |
XZU320 NO.1 |
1 | ||
| 51407-37261 |
XZU320 FR LH |
1 | ||
| 51407-37260 |
XZU320 NO.1 |
1 | ||
| 51407-37340 |
XZU320 RR LH |
1 | ||
| 51407-37340 |
XZU320 NO.2 |
1 | ||
| 51407-37420 |
XZU320 RR RH |
1 | ||
| 51407-37410 |
XZU320 FR RH |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37261 |
XZU320 NO.1 |
1 | ||
| 51407-37261 |
XZU320 FR LH |
1 | ||
| 51407-37260 |
XZU320 NO.1 |
1 | ||
| 51407-37340 |
XZU320 RR LH |
1 | ||
| 51407-37340 |
XZU320 NO.2 |
1 | ||
| 51407-37420 |
XZU320 RR RH |
1 | ||
| 51407-37410 |
XZU320 FR RH |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37261 |
XZU320 NO.1 |
1 | ||
| 51407-37261 |
XZU320 FR LH |
1 | ||
| 51407-37260 |
XZU320 NO.1 |
1 | ||
| 51407-37340 |
XZU320 RR LH |
1 | ||
| 51407-37340 |
XZU320 NO.2 |
1 | ||
| 51407-37420 |
XZU320 RR RH |
1 | ||
| 51407-37410 |
XZU320 FR RH |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
2 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51440-37370 |
XZU300,320,330,340 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51440-37390 |
XZU300,320,330,340 |
1 | ||
| 51446C - BRACKET, ENGINE UNDER COVER, LH | ||||
| 51446-37220 |
XZU300,320,330,340 |
1 | ||
| 51454A - SILENCER, ENGINE REAR COVER | ||||
| 51454-37170 |
XZU300,320,330,340 |
1 | ||
| 51460A - COVER ASSY, TRANSMISSION UNDER, RH | ||||
| 51460-37021 |
XZU300,320,330,340 |
1 | ||
| 51464F - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37130 |
XZU320 |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37220 |
XZU320 |
1 | ||
| 51470-37280 |
XZU320 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37120 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| 51473-37121 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37131 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW |
1 | ||
| 51474-37130 |
BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW |
1 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37061 |
XZU300,320,330,340 |
1 | ||
| Common parts | ||||
| 90467-08081 | ||||
| 90467-11035 | ||||
| 91651-60830 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 91651-B1025 | ||||
| 94150-10801 | ||||
