XZU320L-TMMQWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0212)XZU300,320,330,340

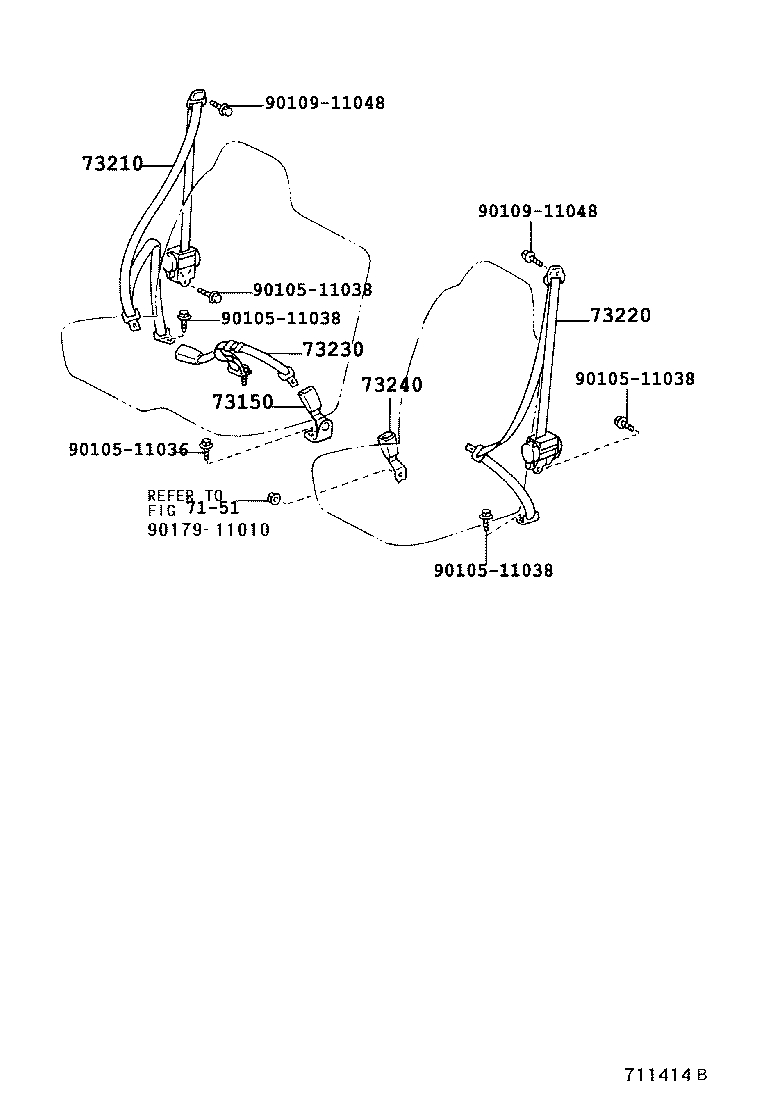

Click highlighted areas on diagram

diagram 7151 73150 73210 73220 73230 73240 9010511036 9010511038 9010511038 9010511038 9010511038 9010911048 9010911048
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37050B0

XZU300,320,330,340

DK.CHARCOAL,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37130B0

XZU300,320,330,340

GRAY,TRIM1#

 1
73210-37210B0

XZU300,320,330,340

GRAY,TRIM1#,PLANT NO. P11

 1
73210-37130B0

XZU300,320,330,340

GRAY,TRIM1#,PLANT NO. A11

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37130B0

XZU30#,320,330,34#

GRAY,TRIM1#

 1
73210-37210B0

XZU300,320,330,340

GRAY,TRIM1#,PLANT NO. P11

 1
73210-37130B0

XZU300,320,330,340

GRAY,TRIM1#,PLANT NO. A11

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37140B0

XZU300,320,330,340

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37110B0

XZU300,320,330,340

DK.CHARCOAL,TRIM1#

 1
Common parts
90105-11036
90105-11038
90109-11048
Linked diagrams
7151
