XZU307L-TKMQBR3 (2006)

Toyota Dyna

Production Oct 2006 - Jan 2009
Engine N04C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )GCC,GEN,TAIW ; (0802- )SA

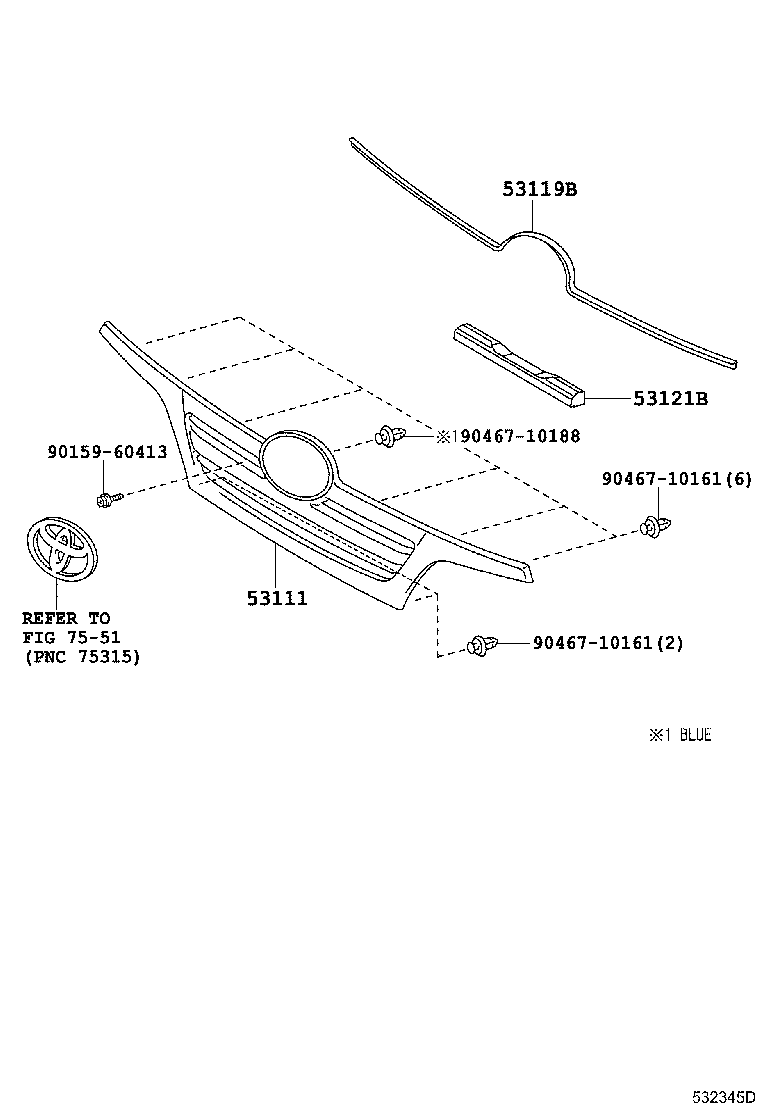

Click highlighted areas on diagram

diagram 53111 53119B 53121B 7551 9015960413 9046710161 9046710161 9046710188
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37700

XZU307,327,337,347

NO PAINT REQ.

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-37100C0

XZU307,327,337,347

BLACK,058 ,199 ,766 ,8P0

 1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-37020

XZU307,327,337,347

 1
Common parts
90159-60413
90467-10161
90467-10188
Linked diagrams
7551
