XZU302-TPMLS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

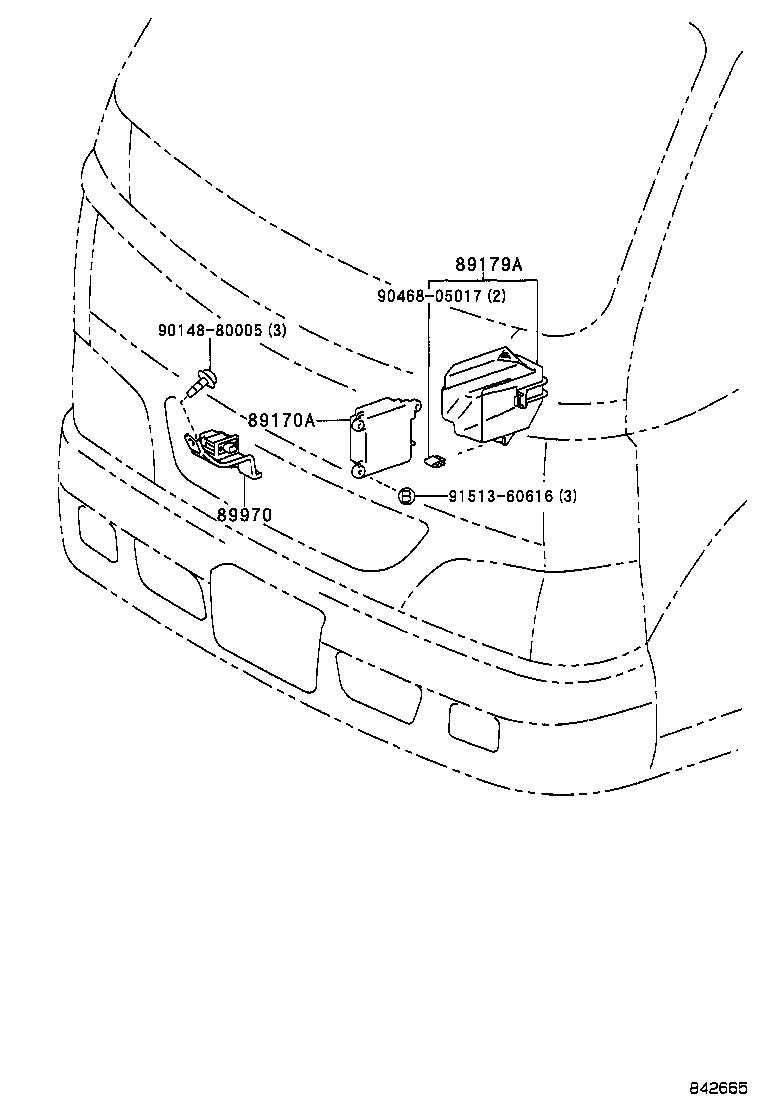

Click highlighted areas on diagram

diagram 89170A 89179A 89970 9014880005 9046805017 9151360616
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-37060

XZU302,307,342

*80,DRIVER SIDE

 1
89170-37050

XZU302,307,342

*80,DRIVER SIDE & PASSENGER SIDE

 1
89179A - COVER, AIR BAG SENSOR
89179-37030

XZU302,307,342

 1
89970 - SENSOR ASSY, AIR BAG, NO.2
89970-37010

XZU302,307,342

 1
Common parts
90148-80005
90468-05017
91513-60616
