XZU302-TPMLS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

Click highlighted areas on diagram

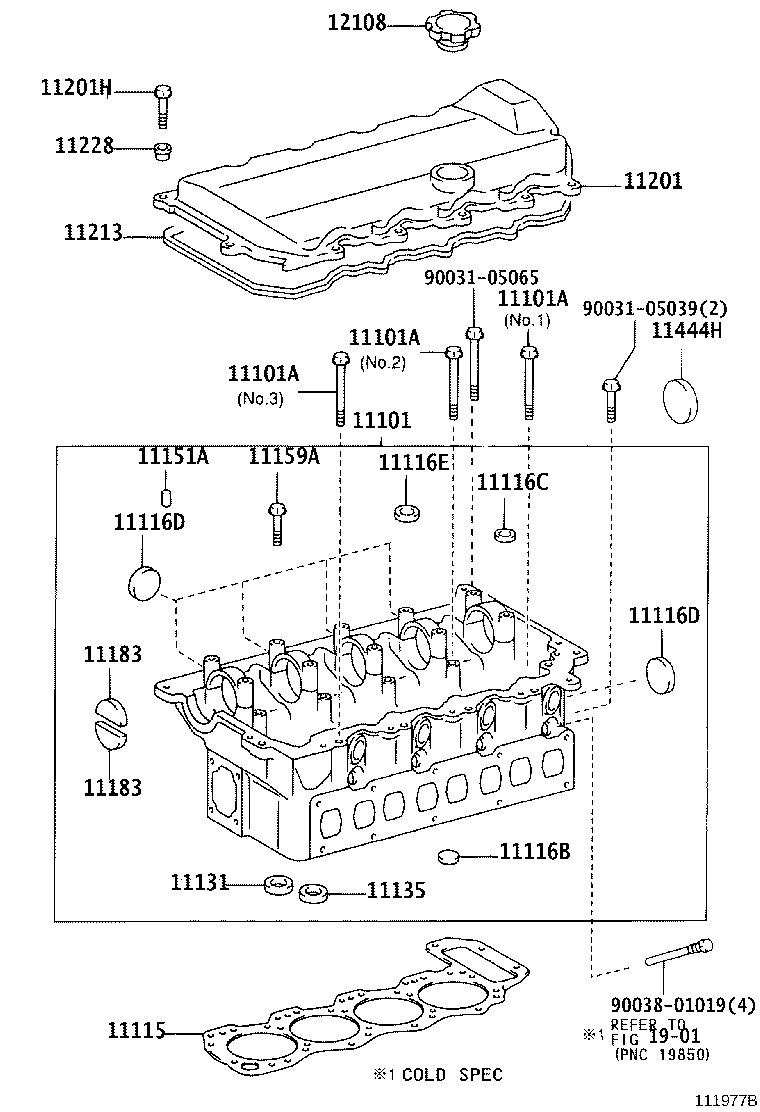

diagram 11101 11101A 11101A 11101A 11115 11116B 11116C 11116D 11116D 11116E 11131 11135 11151A 11159A 11183 11183 11201 11201H 11213 11228 11444H 12108 1901 9003105039 9003105065 9003801019
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-78061

S05C..XZU302,307,342

 1
11101-78060

S05C..XZU302,307,342

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90038-01023

S05C..XZU302,307,342

NO.2

 4
90038-01024

S05C..XZU302,307,342

NO.3

 5
90031-09051

S05C..XZU302,307,342

NO.1

 9
11101A - BOLT(FOR CYLINDER HEAD SET)
90038-01023

S05C..XZU302,307,342

NO.2

 4
90038-01024

S05C..XZU302,307,342

NO.3

 5
90031-09051

S05C..XZU302,307,342

NO.1

 9
11101A - BOLT(FOR CYLINDER HEAD SET)
90038-01023

S05C..XZU302,307,342

NO.2

 4
90038-01024

S05C..XZU302,307,342

NO.3

 5
90031-09051

S05C..XZU302,307,342

NO.1

 9
11115 - GASKET, CYLINDER HEAD
11115-78030

S05C..XZU302,307,342

 1
11115-78021

S05C..XZU302,307,342

 1
11116B - PLUG, TIGHT, NO.2
90033-31024

S05C..XZU302,307,342

 4
11116C - PLUG, TIGHT, NO.3
90033-31020

S05C..XZU302,307,342

 4
11116D - PLUG, TIGHT, NO.4
90033-31023

S05C..XZU302,307,342

 5
11116D - PLUG, TIGHT, NO.4
90033-31023

S05C..XZU302,307,342

 5
11116E - PLUG, TIGHT, NO.5
90033-31022

S05C..XZU302,307,342

 8
11131 - SEAT, INTAKE VALVE
11131-78030

S05C..XZU302,307,342

STD

 8
11131-78040

S05C..XZU302,307,342

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-78030

S05C..XZU302,307,342

STD

 8
11135-89101

S05C..XZU302,307,342

STD

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90032-50046

S05C..XZU302,307,342

 10
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90031-05045

S05C..XZU302,307,342

 10
11183 - PLUG, SEMICIRCULAR
11183-78012

S05C..XZU302,307,342

 2
11183 - PLUG, SEMICIRCULAR
11183-78012

S05C..XZU302,307,342

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-78020

S05C..XZU302,307,342

 1
11211-78021

S05C..XZU302,307,342

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90031-05013

S05C..XZU302,307,342

 13
11213 - GASKET, CYLINDER HEAD COVER
11213-78020

S05C..XZU302,307,342

 1
11228 - CUSHION, CYLINDER HEAD COVER
11228-78010

S05C..XZU302,307,342

 13
11444H - PLUG, HOLE(FOR CYLINDER HEAD)
11444-78010

S05C..XZU302,307,342

 1
12108 - CAP SUB-ASSY, OIL FILLER
12108-78010

S05C..XZU302,307,342

 1
Common parts
90031-05039
90031-05065
90038-01019
Linked diagrams
1901

(0209-0612)S05C

Click highlighted areas on diagram

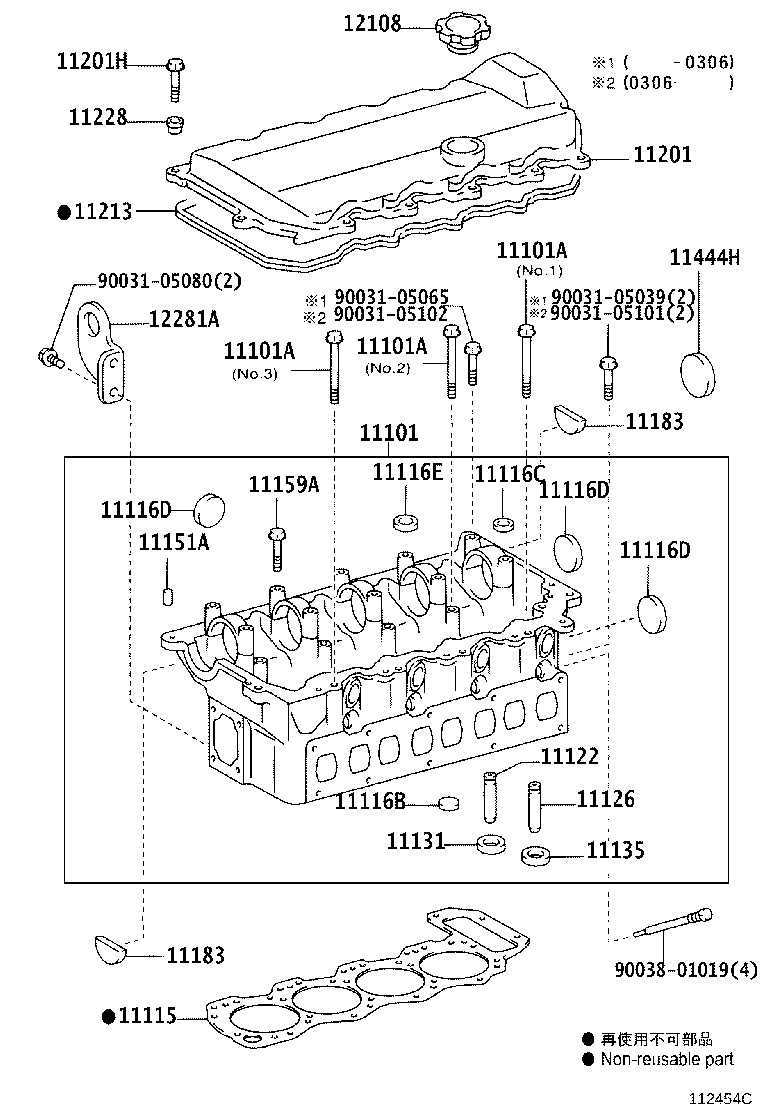

diagram 11101 11101A 11101A 11101A 11115 11116B 11116C 11116D 11116D 11116D 11116E 11122 11126 11131 11135 11151A 11159A 11183 11183 11201 11201H 11213 11228 11444H 12108 12281A 9003105039 9003105065 9003105080 9003105101 9003105102 9003801019
Part # Description Qty Price
Common parts
90031-05039
90031-05065
90031-05080
90031-05101
90031-05102
90038-01019
