WU95R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

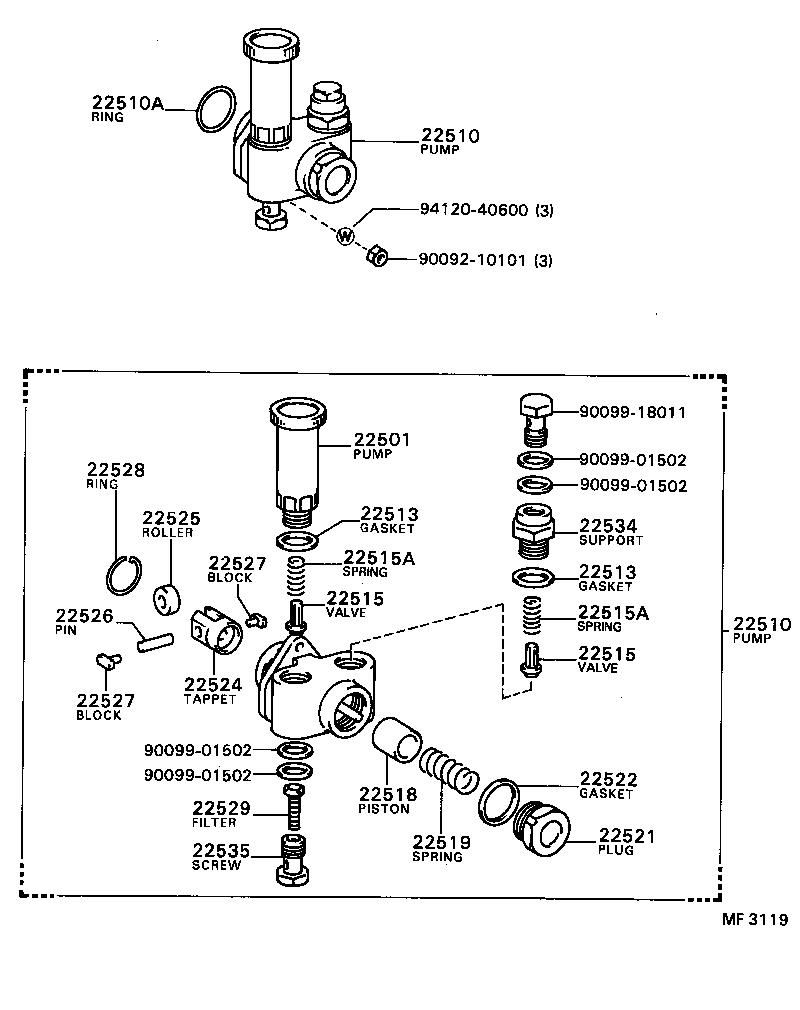

Click highlighted areas on diagram

diagram 22501 22510 22510 22510A 22513 22513 22515 22515 22515A 22515A 22518 22519 22521 22522 22524 22525 22526 22527 22527 22528 22529 22534 22535 9009210101 9009901502 9009901502 9009901502 9009901502 9009918011 9412040600
Part # Description Qty Price
22501 - PUMP SUB-ASSY, PRIMING
22501-78030

1W..WU9#

 1
22510 - PUMP ASSY, FUEL FEED
22510-78030

1W..WU9#

 1
22510 - PUMP ASSY, FUEL FEED
22510-78030

1W..WU9#

 1
22510A - RING, O(FOR FUEL FEED PUMP)
90099-14050

1W..WU9#

 1
22513 - GASKET, CHECK VALVE CHAMBER PLUG
22513-77020

1W..WU9#

 2
22513 - GASKET, CHECK VALVE CHAMBER PLUG
22513-77020

1W..WU9#

 2
22515 - VALVE, FEED PUMP CHECK
22515-77021

1W..WU9#

 2
22515 - VALVE, FEED PUMP CHECK
22515-77021

1W..WU9#

 2
22515A - SPRING, FEED PUMP CHECK VALVE
22514-77020

1W..WU9#

 2
22515A - SPRING, FEED PUMP CHECK VALVE
22514-77020

1W..WU9#

 2
22518 - PISTON, FEED PUMP
22518-56011

1W..WU9#

YELLOW,YELLOW

 1
22518-77020

1W..WU9#

BLUE,BLUE

 1
22518-56012

1W..WU9#

GREEN,GREEN

 1
22518-56013

1W..WU9#

WHITE,WHITE

 1
22518-56010

1W..WU9#

RED,RED

 1
22519 - SPRING, FEED PUMP PISTON
22519-78030

1W..WU9#

 1
22521 - PLUG, FEED PUMP PISTON CHAMBER
22521-77021

1W..WU9#

 1
22522 - GASKET, FEED PUMP PISTON PLUG
90099-01432

1W..WU9#

 1
22524 - TAPPET, FEED PUMP
22524-77021

1W..WU9#

 1
22525 - ROLLER, FEED PUMP TAPPET
22525-77020

1W..WU9#

 1
22526 - PIN, FEED PUMP TAPPET ROLLER
22526-77020

1W..WU9#

 1
22527 - BLOCK, FEED PUMP TAPPET SLIDING
22527-56010

1W..WU9#

 2
22527 - BLOCK, FEED PUMP TAPPET SLIDING
22527-56010

1W..WU9#

 2
22528 - RING, FEED PUMP TAPPET SNAP
90099-01501

1W..WU9#

 1
22529 - FILTER, FUEL PUMP
22529-67010

1W..WU9#

 1
22534 - SUPPORT, VALVE
22534-77121

1W..WU9#

 1
22535 - SCREW, FUEL PIPE FOLLOW
22535-46010

1W..WU9#

 1
Common parts
90092-10101
90099-01502
90099-18011
94120-40600
