WU95L-MDDT (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409-8508)WU9# ; (8508- )WU9#..SA

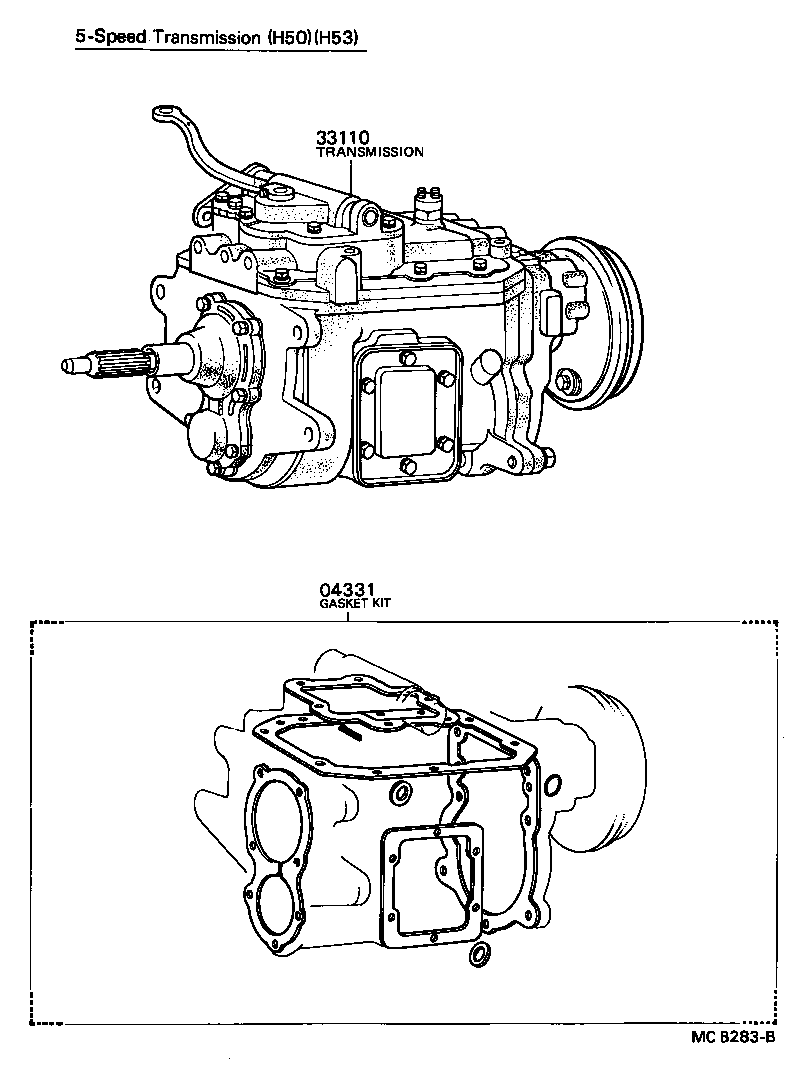

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-36024 |
WU9# |
1 | ||
| 04331-36070 |
WU9#..GEN |
1 | ||
| 33110 - TRANSMISSION ASSY, MANUAL | ||||
| 33110-3C770 |
WU9#..GEN *AXC=Q264 |
1 | ||
| 33110-3C760 |
WU9#..ARL,GEN |
1 | ||
| 33110-3E420 |
WU9#..GEN |
1 | ||
(8508- )WU9#..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-36024 |
WU9# |
1 | ||
| 04331-36070 |
WU9#..GEN |
1 | ||
| 33110 - TRANSMISSION ASSY, MANUAL | ||||
| 33110-3C770 |
WU9#..GEN *AXC=Q264 |
1 | ||
| 33110-3C760 |
WU9#..ARL,GEN |
1 | ||
| 33110-3E420 |
WU9#..GEN |
1 | ||
