WU90R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )RU75,85,WU9#

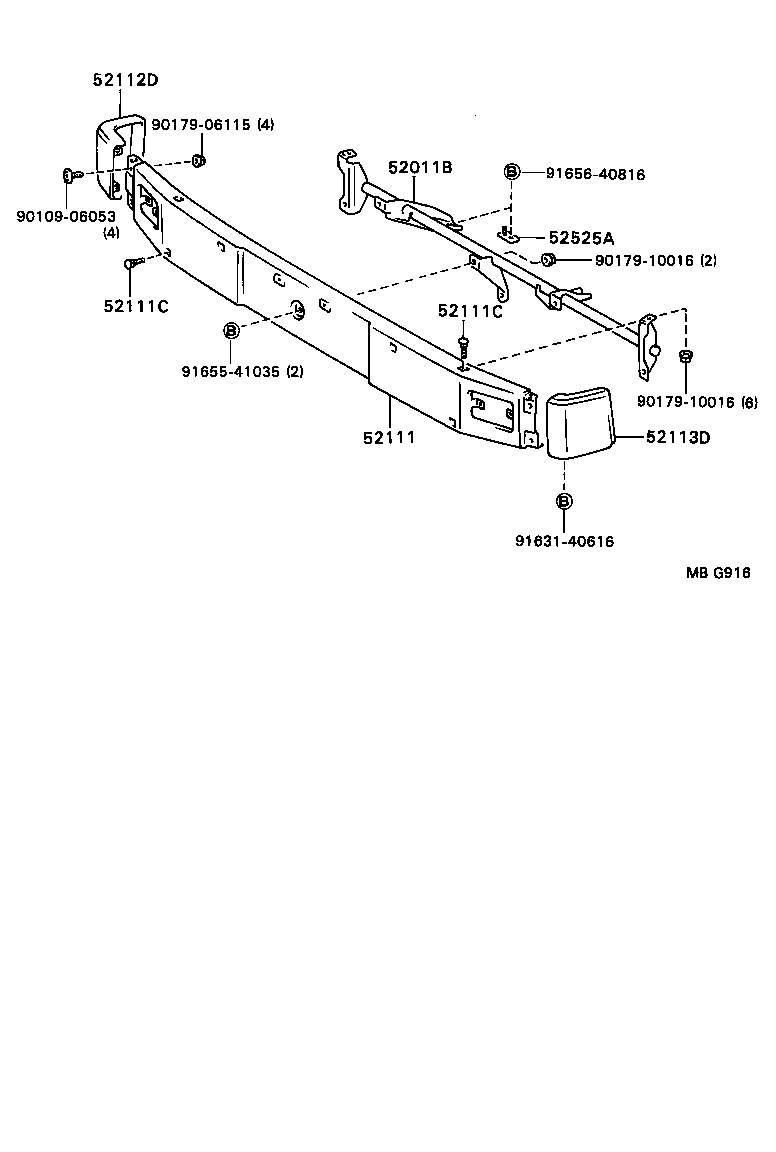

Click highlighted areas on diagram

diagram 52011B 52111 52111C 52111C 52112D 52113D 52525A 9010906053 9017906115 9017910016 9017910016 9163140616 9165541035 9165640816
Part # Description Qty Price
52011B - ARM SUB-ASSY, FRONT BUMPER
52011-95401

RU75,85,WU9#

 1
52111 - BUMPER ASSY, FRONT
52111-95419

RU75,85,WU9#

W/FOG LAMP

 1
52111-95421

RU75,85,WU9#

 1
52111-95431

RU75,85,WU9#..GEN,SA

W/FOG LAMP

 1
52111-95432

RU75,85,WU9#

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10008

RU75,85,WU9#

 6
90112-10019

RU75,85,WU9#

 6
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10008

RU75,85,WU9#

 6
90112-10019

RU75,85,WU9#

 6
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

RU75,85,WU9#,YU6#,7#,8#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

RU75,85,WU9#,YU6#,7#,8#

 1
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

RU75,85,WU9#

 2
Common parts
90109-06053
90179-06115
90179-10016
91631-40616
91655-41035
91656-40816
