WU90R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

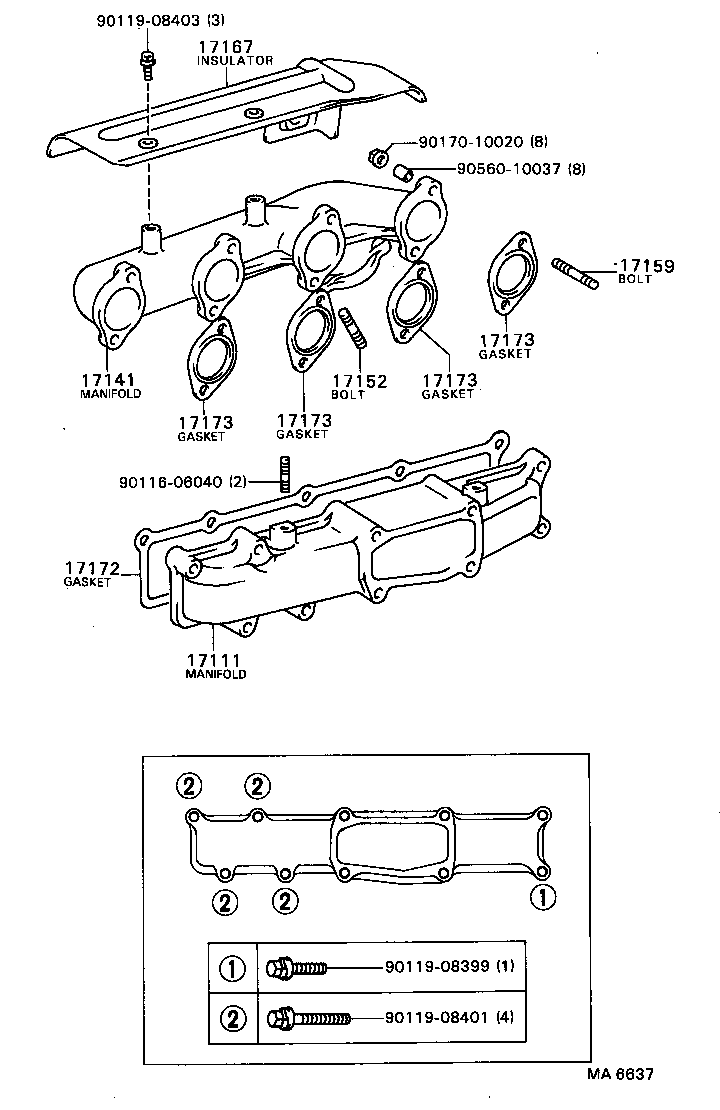

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17167 17172 17173 17173 17173 17173 9011606040 9011908399 9011908401 9011908403 9017010020 9056010037
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-78010

1W..WU9#

 1
17141 - MANIFOLD, EXHAUST
17141-78010

1W..WU9#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10110

1W..WU9#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10077

1W..WU9#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56020

1W..WU9#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-78010

1W..WU9#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU9#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU9#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU9#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU9#

 4
Common parts
90116-06040
90119-08399
90119-08401
90119-08403
90170-10020
90560-10037
