WU90R-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

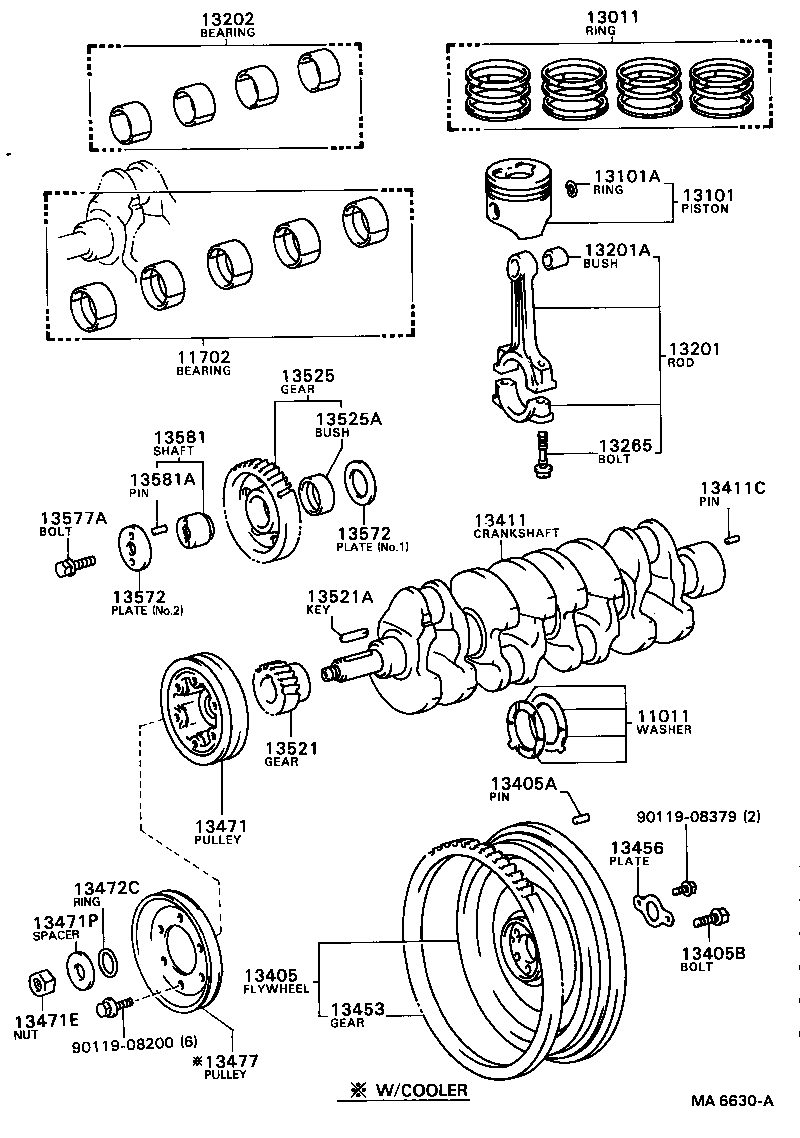

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13411C 13453 13456 13471 13471E 13471P 13472C 13477 13521 13521A 13525 13525A 13572 13572 13577A 13581 13581A 9011908200 9011908379
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11013-78010

1W..WU9#

O/S 0.250,O/S 0.250

 1
11011-78010

1W..WU9#

STD,STD

 1
11702 - BEARING SET, CRANKSHAFT
11705-78010

1W..WU9#

U/S 0.50,U/S 0.50

 1
11704-78010

1W..WU9#

U/S 0.25,U/S 0.25

 1
11701-78010

1W..WU9#

STD,STD

 1
11707-78010

1W..WU9#

U/S 1.00,U/S 1.00

 1
11706-78010

1W..WU9#

U/S 0.75,U/S 0.75

 1
13011 - RING SET, PISTON
13011-78010

1W..WU9#

STD,STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-78020

1W..WU9#

STD,STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-38003

1W..WU9#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-78010

1W..WU9#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73110

1W..WU9#

 4
90999-73095

1W..WU9#

 4
13202 - BEARING SET, CONNECTING ROD
13041-78010

1W..WU9#

STD,STD

 1
13207-78010

1W..WU9#

U/S 1.00,U/S 1.00

 1
13205-78010

1W..WU9#

U/S 0.50,U/S 0.50

 1
13204-78010

1W..WU9#

U/S 0.25,U/S 0.25

 1
13206-78010

1W..WU9#

U/S 0.75,U/S 0.75

 1
13265 - BOLT, CONNECTING ROD
13265-78010

1W..WU9#

 8
13405 - FLYWHEEL SUB-ASSY
13405-78011

1W..WU9#

 1
13405-78010

1W..WU9#

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-10008

1W..WU9#

L=24,OD=10,L=24,OD=10

 3
13405B - BOLT, FLYWHEEL SETTING
90105-14021

1W..WU9#

 6
13411 - CRANKSHAFT
13411-78010

1W..WU9#

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90387-14013

1W..WU9#

 1
13453 - GEAR, FLYWHEEL RING
13453-78010

1W..WU9#

N=121

 1
13456 - PLATE, FLYWHEEL BOLT LOCK, NO.2
13456-78010

1W..WU9#

 1
13471 - PULLEY, CRANKSHAFT
13470-78010

1W..WU9#

 1
13471E - NUT(FOR CRANKSHAFT PULLEY)
90170-27001

1W..WU9#

 1
13471P - SPACER(FOR CRANKSHAFT PULLEY)
90560-27006

1W..WU9#

 1
13472C - RING, O(FOR CRANKSHAFT PULLEY HUB)
90301-41003

1W..WU9#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-36070

1W..WU9#..ARL,GEN

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-78010

1W..WU9#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90281-06001

1W..WU9#

 1
13525 - GEAR, IDLE, NO.1
13508-78010

1W..WU9#

 1
13525A - BUSH, IDLE GEAR
90999-73096

1W..WU9#

 1
13572 - PLATE, IDLE GEAR THRUST
13572-78010

1W..WU9#

NO.1

 1
13573-78010

1W..WU9#

NO.2

 1
13572 - PLATE, IDLE GEAR THRUST
13572-78010

1W..WU9#

NO.1

 1
13573-78010

1W..WU9#

NO.2

 1
13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
90105-14022

1W..WU9#

 1
13581 - SHAFT, IDLE GEAR, NO.1
13504-78010

1W..WU9#

 1
13581A - PIN, STRAIGHT(FOR IDLE GEAR SHAFT)
90250-06011

1W..WU9#

 2
Common parts
90119-08200
90119-08379
