WU720L-TKMRL3 (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- ) ; (1911- )XZU710,720..GEN

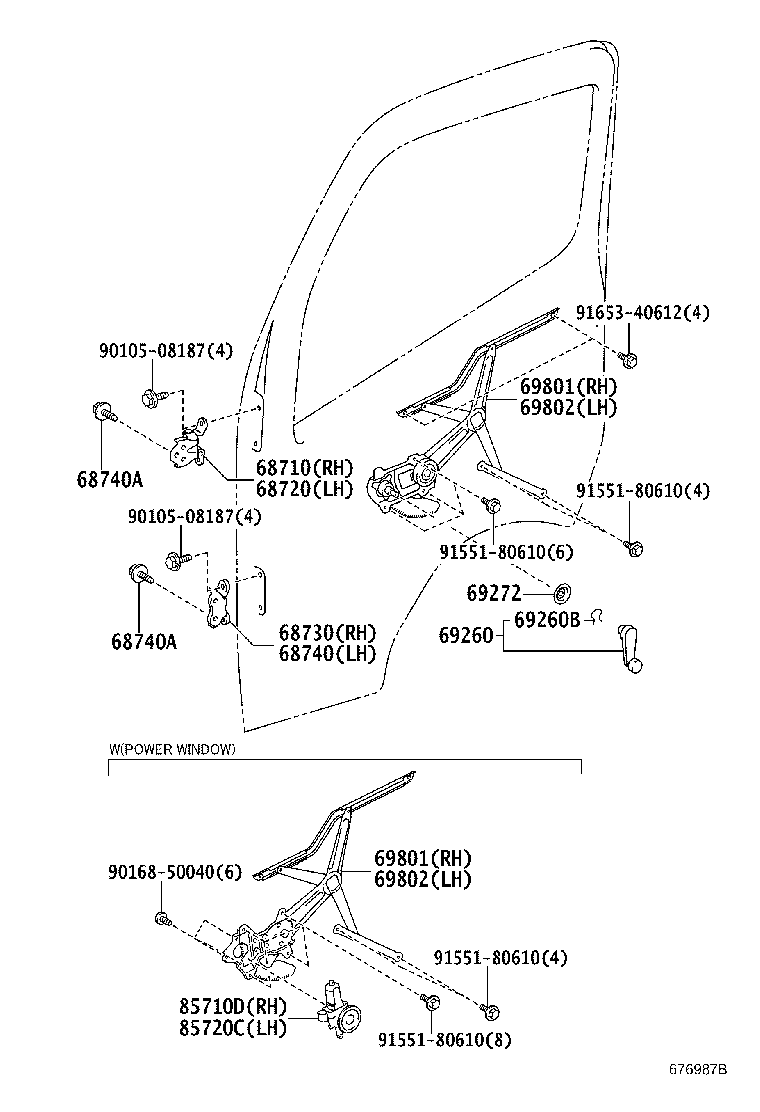

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 68740A 68740A 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 9010508187 9010508187 9016850040 9155180610 9155180610 9155180610 9155180610 9165340612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-26022

XZU710,720..GEN

 1
68710-26022

WU700,710,720;XZU710,720..SCB..MTM..GCC

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-26012

WU700,710,720;XZU710,720..SCB..MTM..GCC

 1
68730-26012

XZU710,720..GEN

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-37060

XZU710,720..GEN

 1
68730-37060

WU700,710,720;XZU710,720..SCB..MTM..GCC

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-37030

WU700,710,720;XZU710,720..SCB..MTM..GCC

 1
68740-37030

XZU710,720..GEN

 1
68740A - BOLT(FOR FRONT DOOR HINGE)
91553-80820

WU710,720;XZU710,720..MTM..GCC

 10
90119-08892

WU700,710,720,XZU710,720..MTM..(GCC,GEN)

 10
91553-80820

XZU710,720..GEN

 10
68740A - BOLT(FOR FRONT DOOR HINGE)
91553-80820

WU710,720;XZU710,720..MTM..GCC

 10
90119-08892

WU700,710,720,XZU710,720..MTM..(GCC,GEN)

 10
91553-80820

XZU710,720..GEN

 10
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-89104B5

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#

 2
69260-89104B5

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 2
69260-89104B5

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#

 2
69260-89104B5

XZU710,720..GEN

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

WU700,710,720;XZU710,720..MTM..GCC

 2
90520-01274

XZU710,720..GEN

 2
90520-01274

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 2
90520-01274

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-22010

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 2
69285-22010

XZU710,720..GEN

 2
69285-22010

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 2
69285-22010

WU700,710,720;XZU710,720..MTM..GCC

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37080

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 1
69801-37070

WU700,710,720;XZU710,720..MTM..GCC

 1
69801-37080

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 1
69801-37070

XZU710,720..GEN

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37080

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 1
69801-37070

WU700,710,720;XZU710,720..MTM..GCC

 1
69801-37080

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 1
69801-37070

XZU710,720..GEN

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37070

WU700,710,720;XZU710,720..MTM..GCC

 1
69802-37080

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 1
69802-37080

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 1
69802-37070

XZU710,720..GEN

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37070

WU700,710,720;XZU710,720..MTM..GCC

 1
69802-37080

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 1
69802-37080

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 1
69802-37070

XZU710,720..GEN

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-37080

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 1
85710-37080

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-37110

XZU710,720..GEN

POWER WINDOW-WITH(FRONT ONLY)

 1
85720-37110

WU700,710,720;XZU710,720..MTM..GCC

POWER WINDOW-WITH(FRONT ONLY)

 1
Common parts
90105-08187
90168-50040
91551-80610
91653-40612
