WU720L-TKMRL3 (2011)
Toyota Dyna
(1107- )SCB

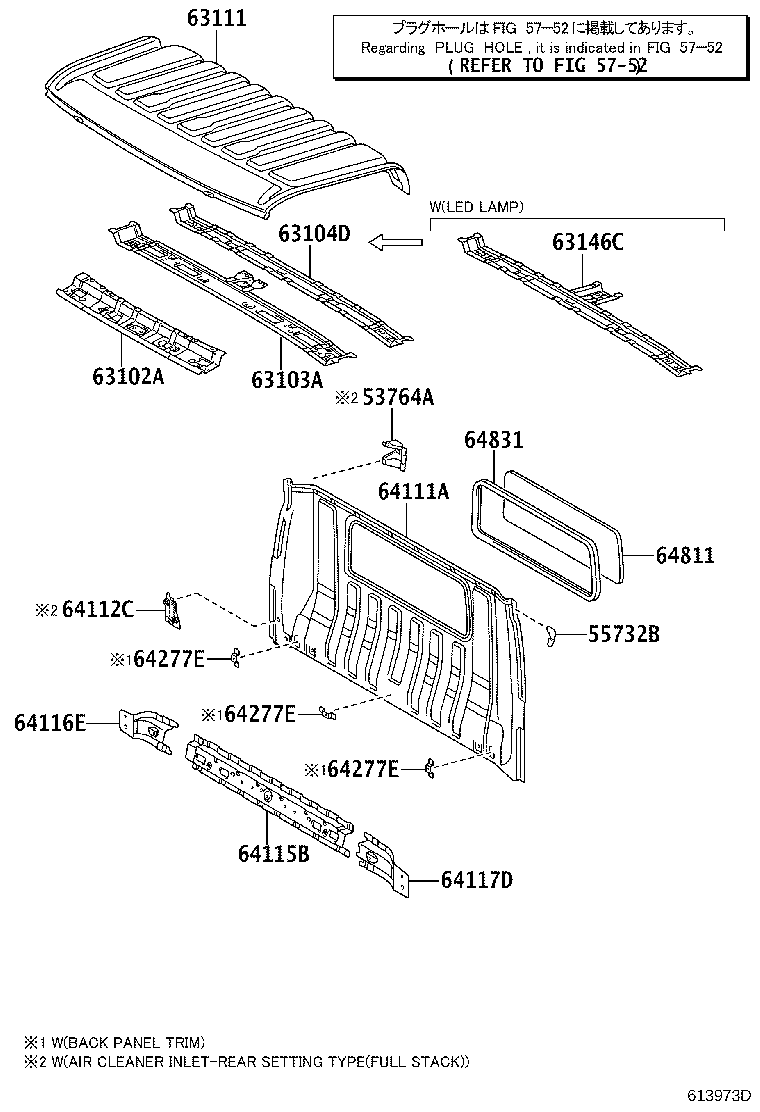

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53764A - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53764-37120 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
1 | ||
| 53764-37120 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK) |
1 | ||
| 53764-37120 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
1 | ||
| 53764-37120 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK) |
1 | ||
| 55732B - BRACKET, FRONT PANEL, NO.2 | ||||
| 55732-37060 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 55732-37060 |
XZU710,720..GEN |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-37080 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 63102-37080 |
XZU710,720..GEN |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-37070 |
XZU710,720..GEN |
1 | ||
| 63103-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-37060 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 63104-37060 |
XZU710,720..GEN |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37260 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 63111-37260 |
XZU710,720..GEN |
1 | ||
| 63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63108-37010 |
WU700,710,720;XZU710,720..SCB..MTM..GCC ROOM LAMP-WITH(LED LAMP) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37570 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 64111-37570 |
XZU710,720..GEN |
1 | ||
| 64112C - PANEL, UPPER BACK, INNER | ||||
| 64112-37040 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK) |
1 | ||
| 64112-37040 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
1 | ||
| 64112-37040 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
1 | ||
| 64112-37040 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK) |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37210 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 64115-37210 |
XZU710,720..GEN |
1 | ||
| 64116E - REINFORCEMENT, UPPER BACK, RH | ||||
| 64116-37040 |
XZU710,720..GEN |
1 | ||
| 64116-37040 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 64117D - REINFORCEMENT, UPPER BACK, LH | ||||
| 64117-37070 |
XZU710,720..GEN |
1 | ||
| 64117-37070 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
WU700,710,720;XZU710,720..SCB..MTM..GCC BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
XZU710,720..GEN BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
WU700,710,720;XZU710,720..SCB..MTM..GCC BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
XZU710,720..GEN BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
WU700,710,720;XZU710,720..SCB..MTM..GCC BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
XZU710,720..GEN BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
WU710,720..LHD..(75T,85T);XZU710,720..SCB..MTM..GCC AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64277-37010 |
XZU710,720..GEN AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY) |
3 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37180 |
WU700,710,720;XZU710,720..SCB..MTM..GCC *TEM,T=3.5,GREEN |
1 | ||
| 64811-37180 |
XZU710,720..GEN |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37070 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
1 | ||
| 64831-37070 |
XZU710,720..GEN |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||
