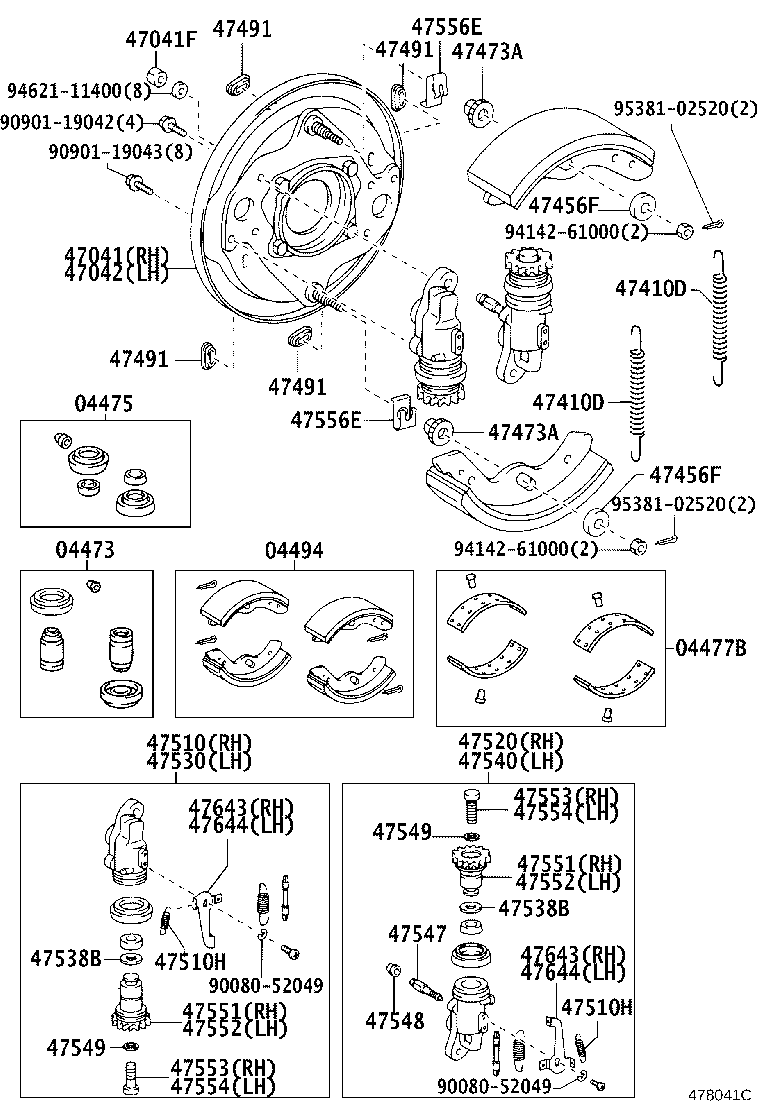

WU720L-TKMRL3 (2011)
Toyota Dyna
(1911- )XZU710,720..GEN
320(100), WITH AUTO ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-37240 |
WU720..5F;WU710..GEN;WU710..85T..CBU RH |
1 | ||
| 04469-37170 |
WU720..5F;WU710..GEN;WU710..85T..CBU LH |
1 | ||
| 04469-37171 |
WU720;WU710..GEN;WU710..85T LH |
1 | ||
| 04473-37241 |
WU720;WU710..GEN;WU710..85T RH |
1 | ||
| 04469-37172 |
WU720;WU710..GEN;WU710..85T LH |
1 | ||
| 04473-37242 |
WU720;WU710..GEN;WU710..85T RH |
1 | ||
| 04469-37180 |
WU720;WU710..GEN;WU710..85T LH |
1 | ||
| 04473-37260 |
WU720;WU710..GEN;WU710..85T RH |
1 | ||
| 04473-37260 |
XZU710,720..GEN RH |
1 | ||
| 04473-37280 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE),RH |
1 | ||
| 04469-37180 |
XZU710,720..GEN LH |
1 | ||
| 04469-37200 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE),LH |
1 | ||
| 04475 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04475-37050 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
2 | ||
| 04475-37051 |
WU720;WU710..GEN;WU710..85T |
2 | ||
| 04475-37051 |
XZU710,720..GEN |
2 | ||
| 04475-37070 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-37021 |
XZU710,720..GEN MARK NBK D2167 |
1 | ||
| 04494-37021 |
WU720..5F;WU710..GEN;WU710..85T..CBU MARK NBK D2167 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37180 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
1 | ||
| 47041-37220 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47041-37210 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
1 | ||
| 47041-37220 |
XZU710,720..GEN |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
WU700,710,720 |
8 | ||
| 94130-01441 |
XZU710,720..GEN |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37180 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
1 | ||
| 47042-37220 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47042-37220 |
XZU710,720..GEN |
1 | ||
| 47042-37210 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
1 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90905-07016 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 90905-07016 |
XZU710,720..GEN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90905-07016 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 90905-07016 |
XZU710,720..GEN |
4 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47456-37010 |
XZU710,720..GEN |
4 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47456-37010 |
XZU710,720..GEN |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47473-37020 |
XZU710,720..GEN |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47473-37020 |
XZU710,720..GEN |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
8 | ||
| 47491-37090 |
XZU710,720..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
8 | ||
| 47491-37090 |
XZU710,720..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
8 | ||
| 47491-37090 |
XZU710,720..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
8 | ||
| 47491-37090 |
XZU710,720..GEN |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-37081 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47510-37120 |
WU710,720..GEN |
1 | ||
| 47510-37121 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47510-37150 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47510-37150 |
XZU710,720..GEN |
1 | ||
| 47510-37170 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
1 | ||
| 47510H - SPRING(FOR FRONT WHEEL CYLINDER PISTON SUB SPRING) | ||||
| 90506-12085 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
4 | ||
| 47510H - SPRING(FOR FRONT WHEEL CYLINDER PISTON SUB SPRING) | ||||
| 90506-12085 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-37101 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
1 | ||
| 47520-37102 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47520-37140 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47520-37140 |
XZU710,720..GEN |
1 | ||
| 47520-37160 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-37081 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47530-37120 |
WU710,720..GEN |
1 | ||
| 47530-37121 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47530-37150 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47530-37170 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
1 | ||
| 47530-37150 |
XZU710,720..GEN |
1 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47538-37040 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
4 | ||
| 47538-37030 |
XZU710,720..GEN |
4 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47538-37040 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
4 | ||
| 47538-37030 |
XZU710,720..GEN |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-37101 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
1 | ||
| 47540-37102 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47540-37140 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47540-37140 |
XZU710,720..GEN |
1 | ||
| 47540-37160 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37130 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
2 | ||
| 47547-37130 |
XZU710,720..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU |
2 | ||
| 31478-30010 |
XZU710,720..GEN |
2 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
4 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
2 | ||
| 47553-37050 |
XZU710,720..GEN |
2 | ||
| 47553-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
2 | ||
| 47553-37050 |
XZU710,720..GEN |
2 | ||
| 47553-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
2 | ||
| 47554-37050 |
XZU710,720..GEN |
2 | ||
| 47554-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
2 | ||
| 47554-37050 |
XZU710,720..GEN |
2 | ||
| 47554-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47556-37010 |
XZU710,720..GEN |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU720..5F;WU710..GEN;WU710..85T..CBU |
4 | ||
| 47556-37010 |
XZU710,720..GEN |
4 | ||
| 47643 - LEVER, AUTOMATIC ADJUST, RH(FOR FRONT BRAKE) | ||||
| 47545-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47643 - LEVER, AUTOMATIC ADJUST, RH(FOR FRONT BRAKE) | ||||
| 47545-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47644 - LEVER, AUTOMATIC ADJUST, LH(FOR FRONT BRAKE) | ||||
| 47546-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| 47644 - LEVER, AUTOMATIC ADJUST, LH(FOR FRONT BRAKE) | ||||
| 47546-37110 |
XZU710,720..GEN ABS-WITH(POWER ASSIST BRAKE) |
2 | ||
| Common parts | ||||
| 90080-52049 | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
