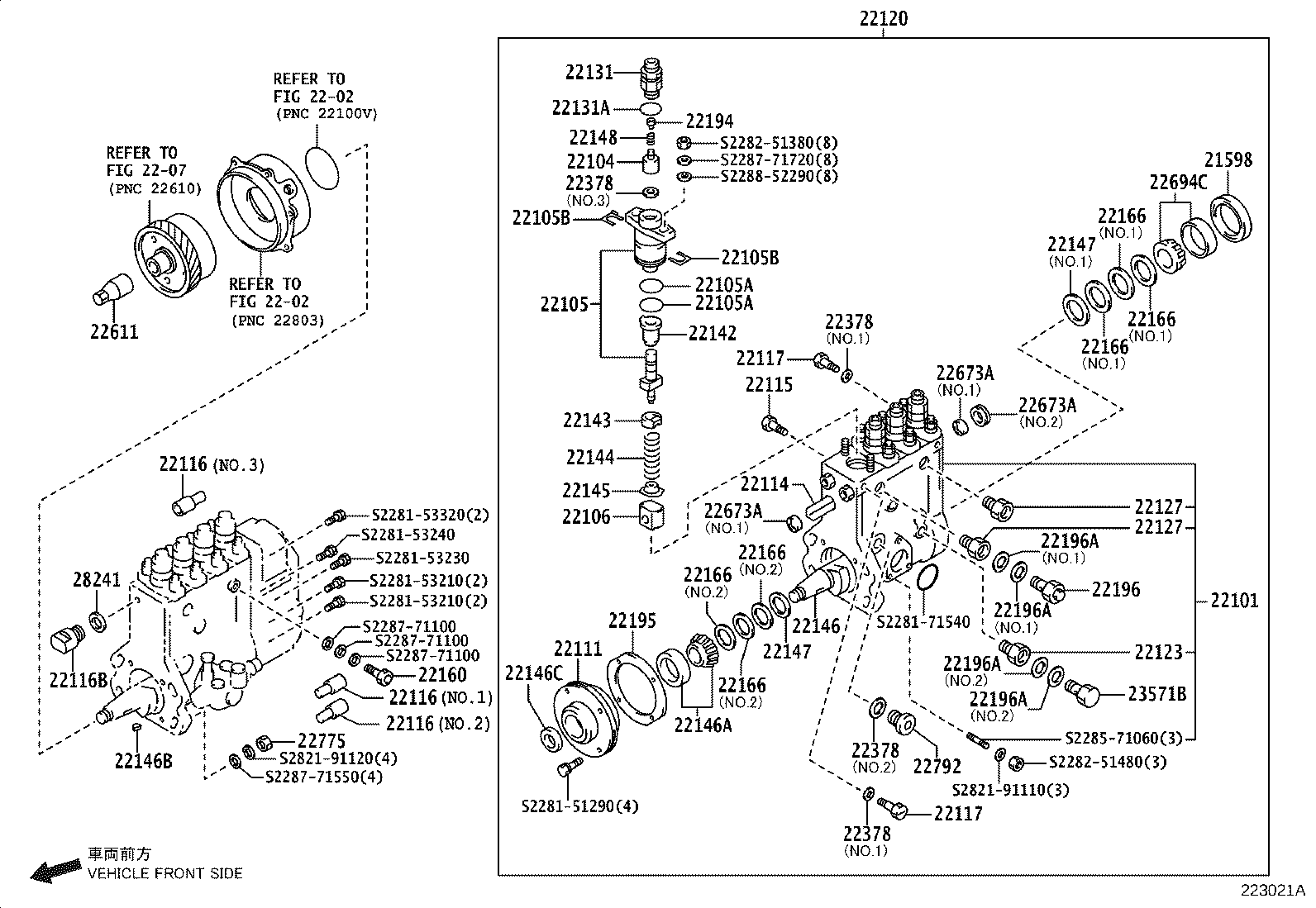

WU720L-TKMRL3 (2011)
Toyota Dyna
(1107- )W04D..WU710,720..LHD..75T,85T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21598 - RETAINER(FOR INJECTION PUMP BALL BEARING) | ||||
| S2211-11310 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| S2210-14410 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| S2210-32700 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| S2210-44550 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| S2281-72280 |
W04D..WU710,720..LHD..(75T,85T) |
8 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| S2281-72280 |
W04D..WU710,720..LHD..(75T,85T) |
8 | ||
| 22105B - SHIM(FOR INJECTION PUMP ELEMENT) | ||||
| S2288-52310 |
W04D..WU710,720..LHD..(75T,85T) T=1.80 |
8 | ||
| S2288-52300 |
W04D..WU710,720..LHD..(75T,85T) T=1.75 |
8 | ||
| S2288-55570 |
W04D..WU710,720..LHD..(75T,85T) T=2.05 |
8 | ||
| S2288-52390 |
W04D..WU710,720..LHD..(75T,85T) T=1.55 |
8 | ||
| S2288-52360 |
W04D..WU710,720..LHD..(75T,85T) T=1.50 |
8 | ||
| S2288-52320 |
W04D..WU710,720..LHD..(75T,85T) T=1.85 |
8 | ||
| S2288-55560 |
W04D..WU710,720..LHD..(75T,85T) T=2.0 |
8 | ||
| S2288-52341 |
W04D..WU710,720..LHD..(75T,85T) T=1.95 |
8 | ||
| S2288-52400 |
W04D..WU710,720..LHD..(75T,85T) T=1.60 |
8 | ||
| S2288-52331 |
W04D..WU710,720..LHD..(75T,85T) T=1.90 |
8 | ||
| S2288-57900 |
W04D..WU710,720..LHD..(75T,85T) T=1.45 |
8 | ||
| S2288-55581 |
W04D..WU710,720..LHD..(75T,85T) T=2.1 |
8 | ||
| S2288-52420 |
W04D..WU710,720..LHD..(75T,85T) T=1.70 |
8 | ||
| 22105B - SHIM(FOR INJECTION PUMP ELEMENT) | ||||
| S2288-52310 |
W04D..WU710,720..LHD..(75T,85T) T=1.80 |
8 | ||
| S2288-52300 |
W04D..WU710,720..LHD..(75T,85T) T=1.75 |
8 | ||
| S2288-55570 |
W04D..WU710,720..LHD..(75T,85T) T=2.05 |
8 | ||
| S2288-52390 |
W04D..WU710,720..LHD..(75T,85T) T=1.55 |
8 | ||
| S2288-52360 |
W04D..WU710,720..LHD..(75T,85T) T=1.50 |
8 | ||
| S2288-52320 |
W04D..WU710,720..LHD..(75T,85T) T=1.85 |
8 | ||
| S2288-55560 |
W04D..WU710,720..LHD..(75T,85T) T=2.0 |
8 | ||
| S2288-52341 |
W04D..WU710,720..LHD..(75T,85T) T=1.95 |
8 | ||
| S2288-52400 |
W04D..WU710,720..LHD..(75T,85T) T=1.60 |
8 | ||
| S2288-52331 |
W04D..WU710,720..LHD..(75T,85T) T=1.90 |
8 | ||
| S2288-57900 |
W04D..WU710,720..LHD..(75T,85T) T=1.45 |
8 | ||
| S2288-55581 |
W04D..WU710,720..LHD..(75T,85T) T=2.1 |
8 | ||
| S2288-52420 |
W04D..WU710,720..LHD..(75T,85T) T=1.70 |
8 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| S2210-51480 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| S2211-11670 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22114 - RACK, CONTROL | ||||
| S2211-31870 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| S2281-14850 |
W04D..WU700,710,720 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| S2232-31550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| S2232-31550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| S2232-31550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
1 | ||
| 22116B - COVER, CONTROL RACK | ||||
| S2211-41420 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22117 - SCREW, AIR BLEEDER | ||||
| S2283-51450 |
W04D..WU710,720..LHD..(75T,85T) |
2 | ||
| 22117 - SCREW, AIR BLEEDER | ||||
| S2283-51450 |
W04D..WU710,720..LHD..(75T,85T) |
2 | ||
| 22120 - BODY ASSY,INJECTION | ||||
| S2211-03860 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22123 - NIPPLE, DRAIN PLUG | ||||
| S2213-11590 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22127 - UNION, INJECTION PUMP FUEL INLET | ||||
| S2213-11580 |
W04D..WU710,720..LHD..(75T,85T) |
2 | ||
| 22127 - UNION, INJECTION PUMP FUEL INLET | ||||
| S2213-11580 |
W04D..WU710,720..LHD..(75T,85T) |
2 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| S2211-61230 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22131A - RING, O(FOR DELIVERY VALVE HOLDER) | ||||
| S2281-71260 |
W04D..WU700,710,720 |
4 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| S2211-81320 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| S2211-91090 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| S2212-11110 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| S2212-21280 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| S2212-32430 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| S2283-71050 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22146B - KEY(FOR INJECTION PUMP CAMSHAFT) | ||||
| S2289-11070 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22146C - SEAL, OIL, INJECTION PUMP CAMSHAFT | ||||
| S2282-71750 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| S2212-41100 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| S2212-41090 |
W04D..WU700,710,720 NO.1 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| S2212-41100 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| S2212-41090 |
W04D..WU700,710,720 NO.1 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| S2212-51430 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| S2210-71750 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| S2210-71750 |
W04D..WU710,720..LHD..75T..GEN HIGH ALTITUDE COMPENSATOR-WITH |
1 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
W04D..WU700,710,720 T=0.10,NO.1 |
3 | ||
| S2212-91240 |
W04D..WU710,720..LHD..(75T,85T) T=0.50,NO.2 |
3 | ||
| S2212-91220 |
W04D..WU710,720..LHD..(75T,85T) T=0.16,NO.2 |
3 | ||
| S2288-55700 |
W04D..WU700,710,720 T=0.18,NO.1 |
3 | ||
| S2212-91230 |
W04D..WU710,720..LHD..(75T,85T) T=0.30,NO.2 |
3 | ||
| S2288-51560 |
W04D..WU700,710,720 T=0.16,NO.1 |
3 | ||
| S2288-51570 |
W04D..WU700,710,720 T=0.30,NO.1 |
3 | ||
| S2212-91210 |
W04D..WU710,720..LHD..(75T,85T) T=0.10,NO.2 |
3 | ||
| S2288-56700 |
W04D..WU710,720..LHD..(75T,85T) T=0.14,NO.2 |
3 | ||
| S2288-51580 |
W04D..WU700,710,720 T=0.50,NO.1 |
3 | ||
| S2288-56690 |
W04D..WU710,720..LHD..(75T,85T) T=0.12,NO.2 |
3 | ||
| S2288-56670 |
W04D..WU700,710,720 T=0.03,NO.1 |
3 | ||
| S2288-56730 |
W04D..WU710,720..LHD..(75T,85T) T=0.03,NO.2 |
3 | ||
| S2288-55690 |
W04D..WU700,710,720 T=0.14,NO.1 |
3 | ||
| S2288-55680 |
W04D..WU700,710,720 T=0.12,NO.1 |
3 | ||
| S2288-56710 |
W04D..WU710,720..LHD..(75T,85T) T=0.18,NO.2 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
W04D..WU700,710,720 T=0.10,NO.1 |
3 | ||
| S2212-91240 |
W04D..WU710,720..LHD..(75T,85T) T=0.50,NO.2 |
3 | ||
| S2212-91220 |
W04D..WU710,720..LHD..(75T,85T) T=0.16,NO.2 |
3 | ||
| S2288-55700 |
W04D..WU700,710,720 T=0.18,NO.1 |
3 | ||
| S2212-91230 |
W04D..WU710,720..LHD..(75T,85T) T=0.30,NO.2 |
3 | ||
| S2288-51560 |
W04D..WU700,710,720 T=0.16,NO.1 |
3 | ||
| S2288-51570 |
W04D..WU700,710,720 T=0.30,NO.1 |
3 | ||
| S2212-91210 |
W04D..WU710,720..LHD..(75T,85T) T=0.10,NO.2 |
3 | ||
| S2288-56700 |
W04D..WU710,720..LHD..(75T,85T) T=0.14,NO.2 |
3 | ||
| S2288-51580 |
W04D..WU700,710,720 T=0.50,NO.1 |
3 | ||
| S2288-56690 |
W04D..WU710,720..LHD..(75T,85T) T=0.12,NO.2 |
3 | ||
| S2288-56670 |
W04D..WU700,710,720 T=0.03,NO.1 |
3 | ||
| S2288-56730 |
W04D..WU710,720..LHD..(75T,85T) T=0.03,NO.2 |
3 | ||
| S2288-55690 |
W04D..WU700,710,720 T=0.14,NO.1 |
3 | ||
| S2288-55680 |
W04D..WU700,710,720 T=0.12,NO.1 |
3 | ||
| S2288-56710 |
W04D..WU710,720..LHD..(75T,85T) T=0.18,NO.2 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
W04D..WU700,710,720 T=0.10,NO.1 |
3 | ||
| S2212-91240 |
W04D..WU710,720..LHD..(75T,85T) T=0.50,NO.2 |
3 | ||
| S2212-91220 |
W04D..WU710,720..LHD..(75T,85T) T=0.16,NO.2 |
3 | ||
| S2288-55700 |
W04D..WU700,710,720 T=0.18,NO.1 |
3 | ||
| S2212-91230 |
W04D..WU710,720..LHD..(75T,85T) T=0.30,NO.2 |
3 | ||
| S2288-51560 |
W04D..WU700,710,720 T=0.16,NO.1 |
3 | ||
| S2288-51570 |
W04D..WU700,710,720 T=0.30,NO.1 |
3 | ||
| S2212-91210 |
W04D..WU710,720..LHD..(75T,85T) T=0.10,NO.2 |
3 | ||
| S2288-56700 |
W04D..WU710,720..LHD..(75T,85T) T=0.14,NO.2 |
3 | ||
| S2288-51580 |
W04D..WU700,710,720 T=0.50,NO.1 |
3 | ||
| S2288-56690 |
W04D..WU710,720..LHD..(75T,85T) T=0.12,NO.2 |
3 | ||
| S2288-56670 |
W04D..WU700,710,720 T=0.03,NO.1 |
3 | ||
| S2288-56730 |
W04D..WU710,720..LHD..(75T,85T) T=0.03,NO.2 |
3 | ||
| S2288-55690 |
W04D..WU700,710,720 T=0.14,NO.1 |
3 | ||
| S2288-55680 |
W04D..WU700,710,720 T=0.12,NO.1 |
3 | ||
| S2288-56710 |
W04D..WU710,720..LHD..(75T,85T) T=0.18,NO.2 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
W04D..WU700,710,720 T=0.10,NO.1 |
3 | ||
| S2212-91240 |
W04D..WU710,720..LHD..(75T,85T) T=0.50,NO.2 |
3 | ||
| S2212-91220 |
W04D..WU710,720..LHD..(75T,85T) T=0.16,NO.2 |
3 | ||
| S2288-55700 |
W04D..WU700,710,720 T=0.18,NO.1 |
3 | ||
| S2212-91230 |
W04D..WU710,720..LHD..(75T,85T) T=0.30,NO.2 |
3 | ||
| S2288-51560 |
W04D..WU700,710,720 T=0.16,NO.1 |
3 | ||
| S2288-51570 |
W04D..WU700,710,720 T=0.30,NO.1 |
3 | ||
| S2212-91210 |
W04D..WU710,720..LHD..(75T,85T) T=0.10,NO.2 |
3 | ||
| S2288-56700 |
W04D..WU710,720..LHD..(75T,85T) T=0.14,NO.2 |
3 | ||
| S2288-51580 |
W04D..WU700,710,720 T=0.50,NO.1 |
3 | ||
| S2288-56690 |
W04D..WU710,720..LHD..(75T,85T) T=0.12,NO.2 |
3 | ||
| S2288-56670 |
W04D..WU700,710,720 T=0.03,NO.1 |
3 | ||
| S2288-56730 |
W04D..WU710,720..LHD..(75T,85T) T=0.03,NO.2 |
3 | ||
| S2288-55690 |
W04D..WU700,710,720 T=0.14,NO.1 |
3 | ||
| S2288-55680 |
W04D..WU700,710,720 T=0.12,NO.1 |
3 | ||
| S2288-56710 |
W04D..WU710,720..LHD..(75T,85T) T=0.18,NO.2 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
W04D..WU700,710,720 T=0.10,NO.1 |
3 | ||
| S2212-91240 |
W04D..WU710,720..LHD..(75T,85T) T=0.50,NO.2 |
3 | ||
| S2212-91220 |
W04D..WU710,720..LHD..(75T,85T) T=0.16,NO.2 |
3 | ||
| S2288-55700 |
W04D..WU700,710,720 T=0.18,NO.1 |
3 | ||
| S2212-91230 |
W04D..WU710,720..LHD..(75T,85T) T=0.30,NO.2 |
3 | ||
| S2288-51560 |
W04D..WU700,710,720 T=0.16,NO.1 |
3 | ||
| S2288-51570 |
W04D..WU700,710,720 T=0.30,NO.1 |
3 | ||
| S2212-91210 |
W04D..WU710,720..LHD..(75T,85T) T=0.10,NO.2 |
3 | ||
| S2288-56700 |
W04D..WU710,720..LHD..(75T,85T) T=0.14,NO.2 |
3 | ||
| S2288-51580 |
W04D..WU700,710,720 T=0.50,NO.1 |
3 | ||
| S2288-56690 |
W04D..WU710,720..LHD..(75T,85T) T=0.12,NO.2 |
3 | ||
| S2288-56670 |
W04D..WU700,710,720 T=0.03,NO.1 |
3 | ||
| S2288-56730 |
W04D..WU710,720..LHD..(75T,85T) T=0.03,NO.2 |
3 | ||
| S2288-55690 |
W04D..WU700,710,720 T=0.14,NO.1 |
3 | ||
| S2288-55680 |
W04D..WU700,710,720 T=0.12,NO.1 |
3 | ||
| S2288-56710 |
W04D..WU710,720..LHD..(75T,85T) T=0.18,NO.2 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
W04D..WU700,710,720 T=0.10,NO.1 |
3 | ||
| S2212-91240 |
W04D..WU710,720..LHD..(75T,85T) T=0.50,NO.2 |
3 | ||
| S2212-91220 |
W04D..WU710,720..LHD..(75T,85T) T=0.16,NO.2 |
3 | ||
| S2288-55700 |
W04D..WU700,710,720 T=0.18,NO.1 |
3 | ||
| S2212-91230 |
W04D..WU710,720..LHD..(75T,85T) T=0.30,NO.2 |
3 | ||
| S2288-51560 |
W04D..WU700,710,720 T=0.16,NO.1 |
3 | ||
| S2288-51570 |
W04D..WU700,710,720 T=0.30,NO.1 |
3 | ||
| S2212-91210 |
W04D..WU710,720..LHD..(75T,85T) T=0.10,NO.2 |
3 | ||
| S2288-56700 |
W04D..WU710,720..LHD..(75T,85T) T=0.14,NO.2 |
3 | ||
| S2288-51580 |
W04D..WU700,710,720 T=0.50,NO.1 |
3 | ||
| S2288-56690 |
W04D..WU710,720..LHD..(75T,85T) T=0.12,NO.2 |
3 | ||
| S2288-56670 |
W04D..WU700,710,720 T=0.03,NO.1 |
3 | ||
| S2288-56730 |
W04D..WU710,720..LHD..(75T,85T) T=0.03,NO.2 |
3 | ||
| S2288-55690 |
W04D..WU700,710,720 T=0.14,NO.1 |
3 | ||
| S2288-55680 |
W04D..WU700,710,720 T=0.12,NO.1 |
3 | ||
| S2288-56710 |
W04D..WU710,720..LHD..(75T,85T) T=0.18,NO.2 |
3 | ||
| 22194 - STOPPER, DELIVERY VALVE | ||||
| S2211-71310 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22195 - GASKET, BEARING COVER | ||||
| S2284-72750 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22196 - SCREW, FUEL INLET FOLLOW | ||||
| S2283-51310 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| S2287-71100 |
W04D..WU700,710,720 NO.1 |
2 | ||
| S2284-71900 |
W04D..WU700,710,720 NO.2 |
2 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| S2287-71100 |
W04D..WU700,710,720 NO.1 |
2 | ||
| S2284-71900 |
W04D..WU700,710,720 NO.2 |
2 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| S2287-71100 |
W04D..WU700,710,720 NO.1 |
2 | ||
| S2284-71900 |
W04D..WU700,710,720 NO.2 |
2 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| S2287-71100 |
W04D..WU700,710,720 NO.1 |
2 | ||
| S2284-71900 |
W04D..WU700,710,720 NO.2 |
2 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| S2284-71550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
4 | ||
| S2284-71730 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| S2284-71950 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| S2284-71550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
4 | ||
| S2284-71730 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| S2284-71950 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| S2284-71550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
4 | ||
| S2284-71730 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| S2284-71950 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| S2284-71550 |
W04D..WU710,720..LHD..(75T,85T) NO.3 |
4 | ||
| S2284-71730 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| S2284-71950 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| S2282-52240 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22673A - BUSHING, CONTROL RACK | ||||
| S2213-11190 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| S2213-11200 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| 22673A - BUSHING, CONTROL RACK | ||||
| S2213-11190 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| S2213-11200 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| 22673A - BUSHING, CONTROL RACK | ||||
| S2213-11190 |
W04D..WU710,720..LHD..(75T,85T) NO.2 |
1 | ||
| S2213-11200 |
W04D..WU710,720..LHD..(75T,85T) NO.1 |
2 | ||
| 22694C - BEARING, INJECTION PUMP BALL | ||||
| S2283-71180 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| S2282-52070 |
W04D..WU710,720..LHD..(75T,85T) |
4 | ||
| 22792 - PLUG, INJECTION OIL SCREW | ||||
| S2284-51280 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 23571B - SCREW, FUEL INLET HOLLOW | ||||
| S2283-51110 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| 28241 - WASHER, CONTACT PLATE LOCK | ||||
| SL722-02215 |
W04D..WU710,720..LHD..(75T,85T) |
1 | ||
| Common parts | ||||
| S2281-51290 | ||||
| S2281-53210 | ||||
| S2281-53230 | ||||
| S2281-53240 | ||||
| S2281-53320 | ||||
| S2281-71540 | ||||
| S2282-51380 | ||||
| S2282-51480 | ||||
| S2285-71060 | ||||
| S2287-71100 | ||||
| S2287-71550 | ||||
| S2287-71720 | ||||
| S2288-52290 | ||||
| S2821-91110 | ||||
| S2821-91120 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2207 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
