Toyota Dyna WU720 HEADLAMP - JDM Part Detective

WU720L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730

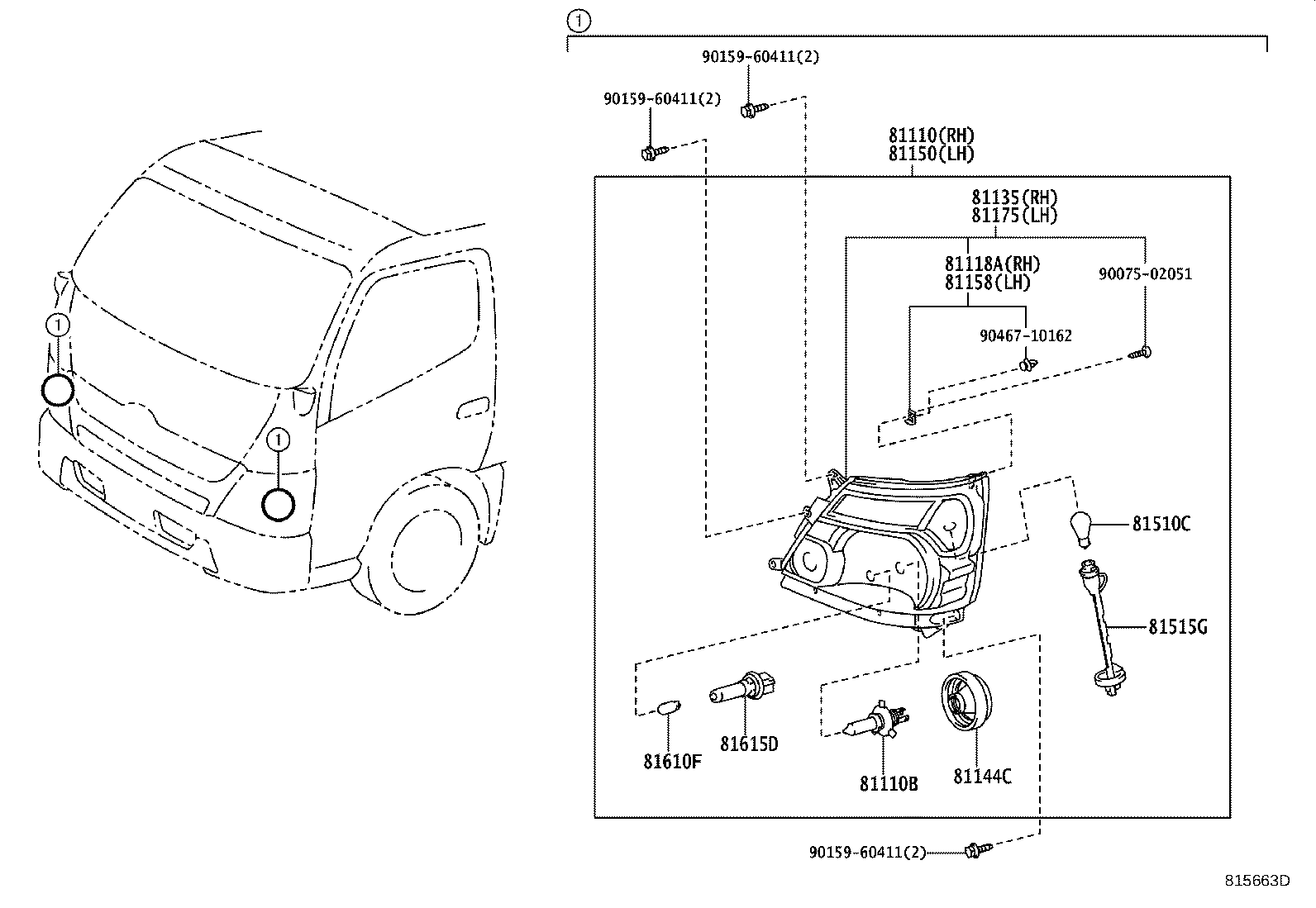

Click highlighted areas on diagram

HALOGEN---W/O(HEADLAMP LEVELING)

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 05/2019	1
81110-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 05/2019	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019	WU700,710,720;XZU710,720..MTM..GCC 24V 75/70W,HAL WH	07/2011 - 05/2020	2
81118A - BRACKET, HEADLAMP, RH
81118-37410	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 06/2019	1
81130-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 06/2019	1
81144C - COVER, HEADLAMP SOCKET
90075-65002	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
81150 - HEADLAMP ASSY, LH
81150-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 05/2019	1
81150-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 05/2019	1
81158 - BRACKET, HEADLAMP, LH
81158-37410	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 06/2019	1
81170-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 06/2019	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15023	WU700,710,720;XZU710,720..MTM..GCC 24V 21W	07/2011 - 05/2020	2
81515G - SOCKET & WIRE, FRONT TURN SIGNAL LAMP
81125-37410	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-12015	WU700,710,720;XZU710,720..MTM..GCC 24V 5W	07/2011 - 05/2020	2
81615D - SOCKET, CLEARANCE LAMP
90075-60077	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
Common parts
90075-02051
90159-60411
90467-10162

(1107- )XZU710,720 ; (1107- )WU700,710,720,XZU730..EUR,GCC

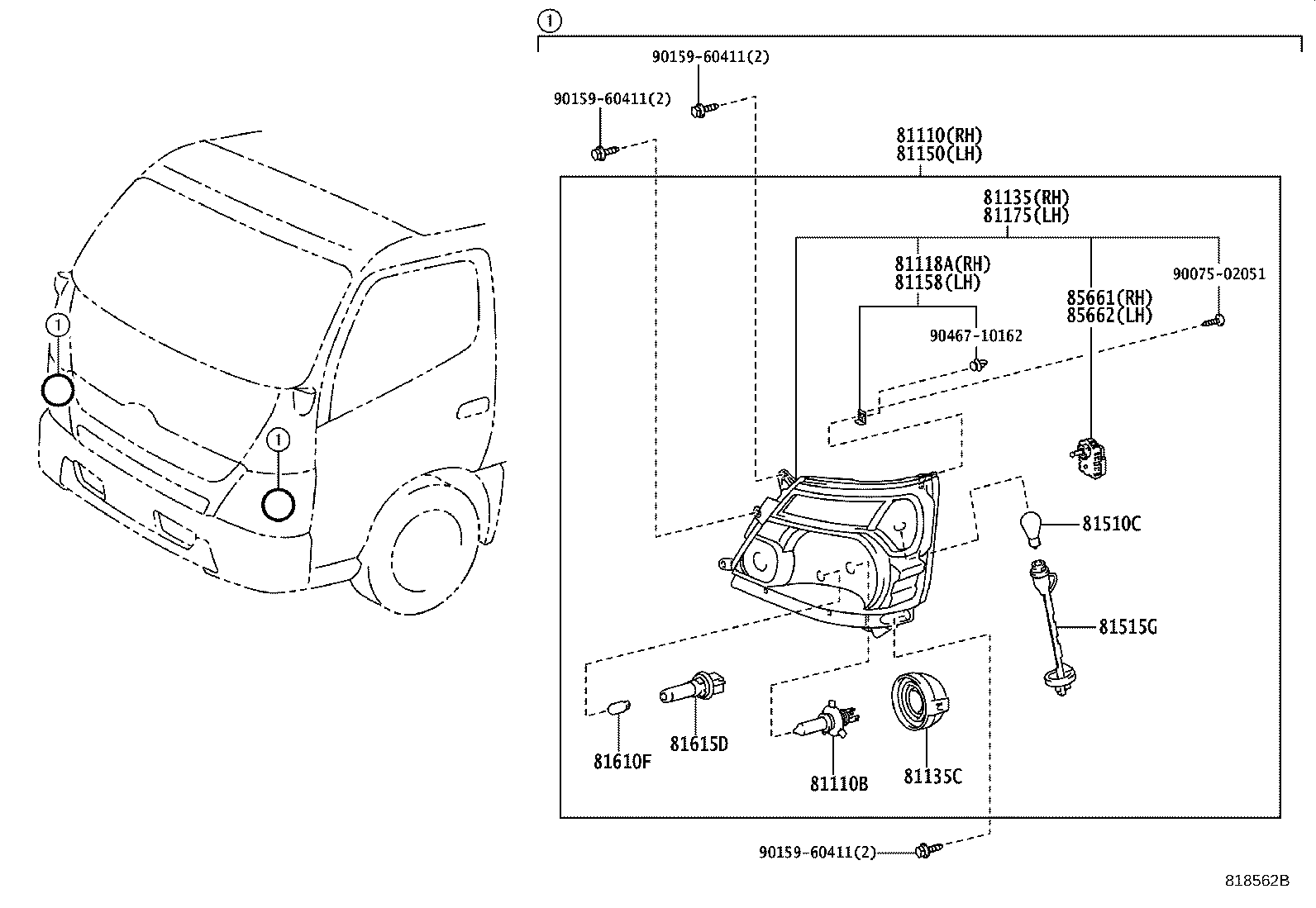

Click highlighted areas on diagram

HALOGEN---W(HEADLAMP LEVELING)

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 05/2019	1
81110-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 05/2019	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019	WU700,710,720;XZU710,720..MTM..GCC 24V 75/70W,HAL WH	07/2011 - 05/2020	2
81118A - BRACKET, HEADLAMP, RH
81118-37410	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 06/2019	1
81130-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 06/2019	1
81135C - COVER, HEADLAMP BACK, NO.1
81135-37410	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 05/2020	2
81150 - HEADLAMP ASSY, LH
81150-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 05/2019	1
81150-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 05/2019	1
81158 - BRACKET, HEADLAMP, LH
81158-37410	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37440	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 06/2019	1
81170-37430	WU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)	07/2011 - 06/2019	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15023	WU700,710,720;XZU710,720..MTM..GCC 24V 21W	07/2011 - 05/2020	2
81515G - SOCKET & WIRE, FRONT TURN SIGNAL LAMP
81125-37410	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-12015	WU700,710,720;XZU710,720..MTM..GCC 24V 5W	07/2011 - 05/2020	2
81615D - SOCKET, CLEARANCE LAMP
90075-60077	WU700,710,720;XZU710,720..MTM..GCC	07/2011 - 05/2020	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-B2010	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 10/2018	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-B2010	WU700,710,720,XZU710,720..MTM..GCC HEADLAMP LEVELING DEVICE-WITH	07/2011 - 10/2018	1
Common parts
90075-02051
90159-60411
90467-10162
