WU720L-TKMQJV3 (2011)
Toyota Dyna
Production
Jul 2011
-
May 2015
Engine
W04D
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

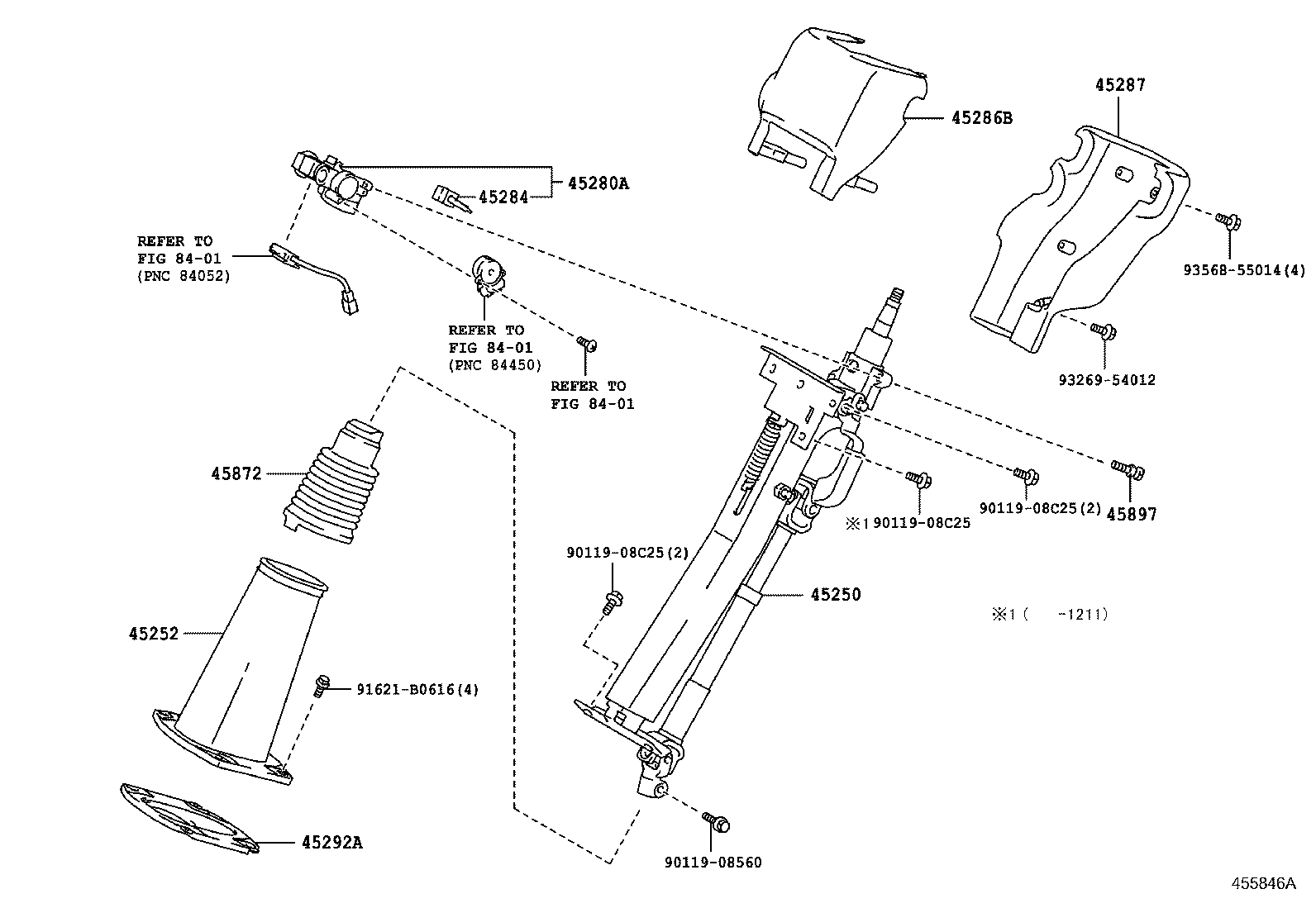

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-37E60C0 |
WU700,710,720,XZU710 BLACK,TRIM1# |
1 | ||
| 45250-37E61C0 |
WU700,710,720,XZU710,720,730 BLACK,TRIM1# |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37060C0 |
WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-37140 |
WU700,720..65T;WU710..85T..CBU;XZU710,720,730..EUR |
1 | ||
| 45284 - SHAFT, STEERING LOCK CAM | ||||
| 45284-37020 |
WU700,720..65T;WU710..85T..CBU;XZU710,720,730..EUR |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-37130C0 |
WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-37120C0 |
WU700,710,720;XZU710,720..MTM..GCC BLACK,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37080 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37020 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-E0020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08C25 | ||||
| 91621-B0616 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
