WU720L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..65T ; (1107- )W04D..WU710..RHD..75T

Click highlighted areas on diagram

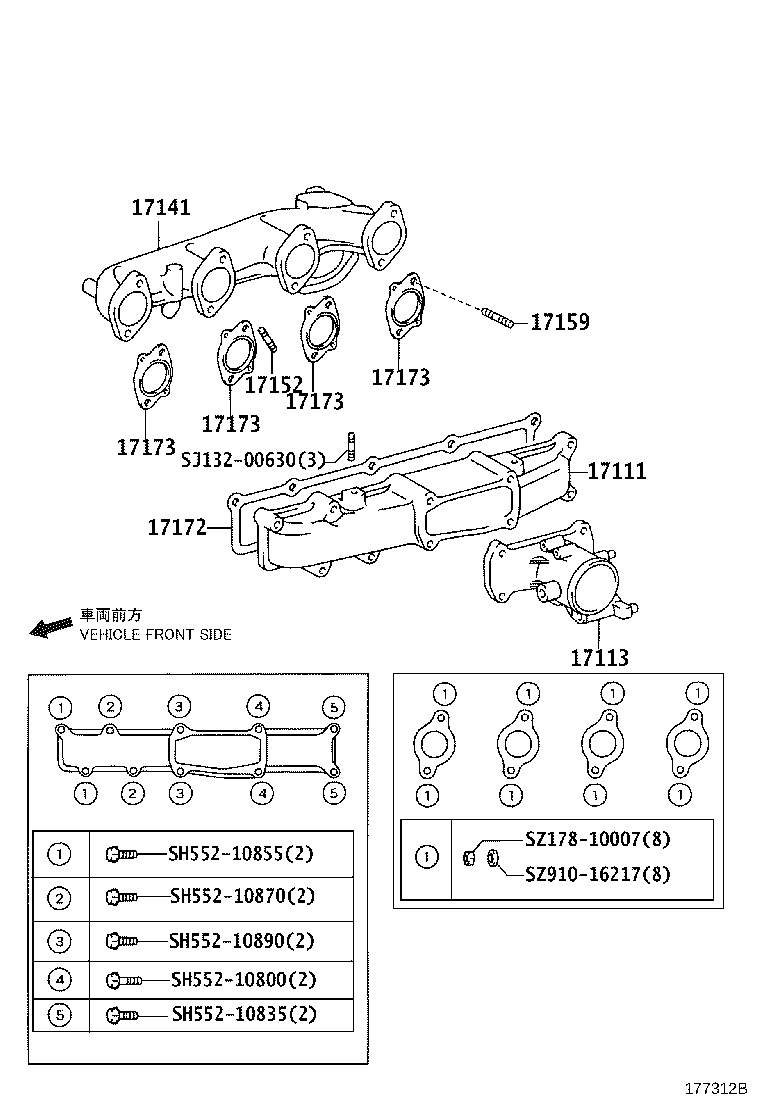

diagram 17111 17113 17141 17152 17159 17172 17173 17173 17173 17173 SH55210800 SH55210835 SH55210855 SH55210870 SH55210890 SJ13200630 SZ17810007 SZ91016217
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-E0270

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

 1
17113 - PIPE, INTAKE
S1711-38240

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

 1
17141 - MANIFOLD, EXHAUST
S1714-16312

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
SZ126-10015

W04D..WU700,710,720

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10012

W04D..WU700,710,720

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
S1717-12220

W04D..WU710..RHD..75T;W04D..WU700,710,720..65T

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

W04D..WU700,710,720

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

W04D..WU700,710,720

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

W04D..WU700,710,720

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
S1710-41880

W04D..WU700,710,720

 4
Common parts
SH552-10800
SH552-10835
SH552-10855
SH552-10870
SH552-10890
SJ132-00630
SZ178-10007
SZ910-16217
