WU720L-TKMQJV (2011)
Toyota Dyna

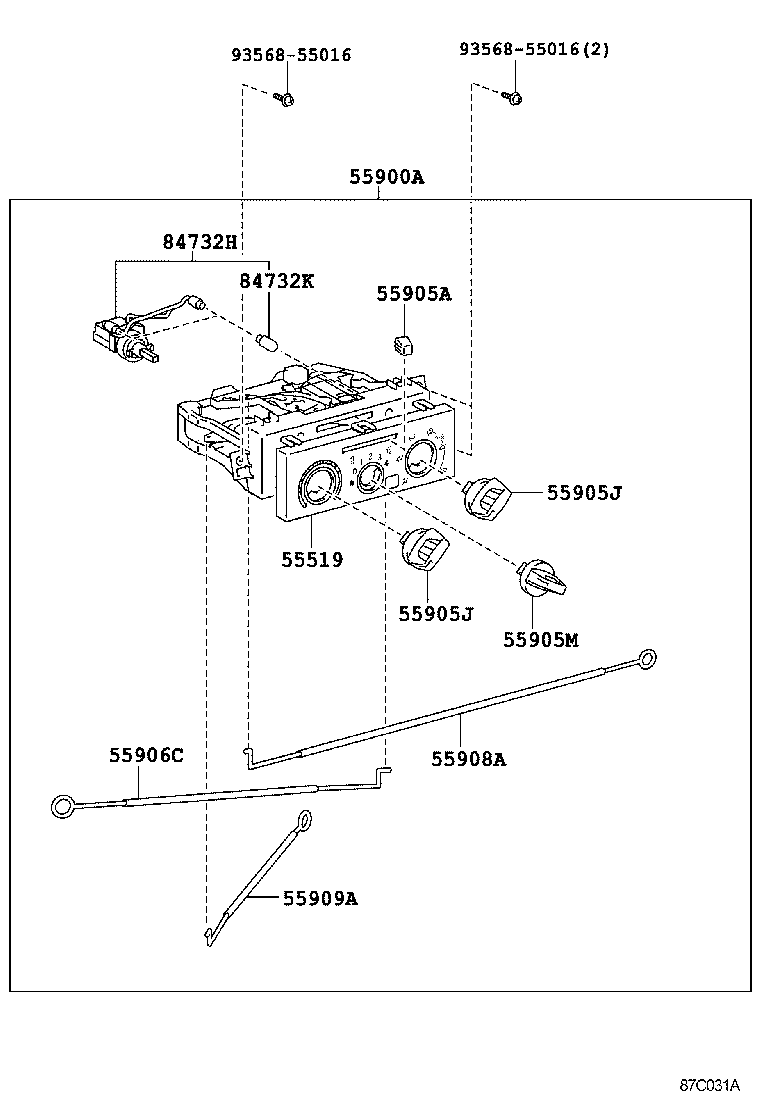

ILLUST NO. 1 OF 3(1107- )WU700,710,720..LHD ; (1107- )XZU710,720..SCB..GCC ; (1911- )XZU710
CONTROL PANEL---BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37210 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55519-37210 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55519-37220 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 55519-37210 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55519-37230 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-37520 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55900-37520 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55900-37540 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 55900-37530 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 55900-37520 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55925-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37030 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU |
1 | ||
| 55905-37030 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 55905M - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37040 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55906C - CABLE SUB-ASSY, HEATER CONTROL, NO.1 | ||||
| 55906-37120 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37120 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 84732-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 84732K - BULB, HEATER BLOWER SWITCH | ||||
| 90010-11014 |
WU700,710,720;XZU710,720..MTM..GCC 24V |
2 | ||
| Common parts | ||||
| 93568-55016 | ||||

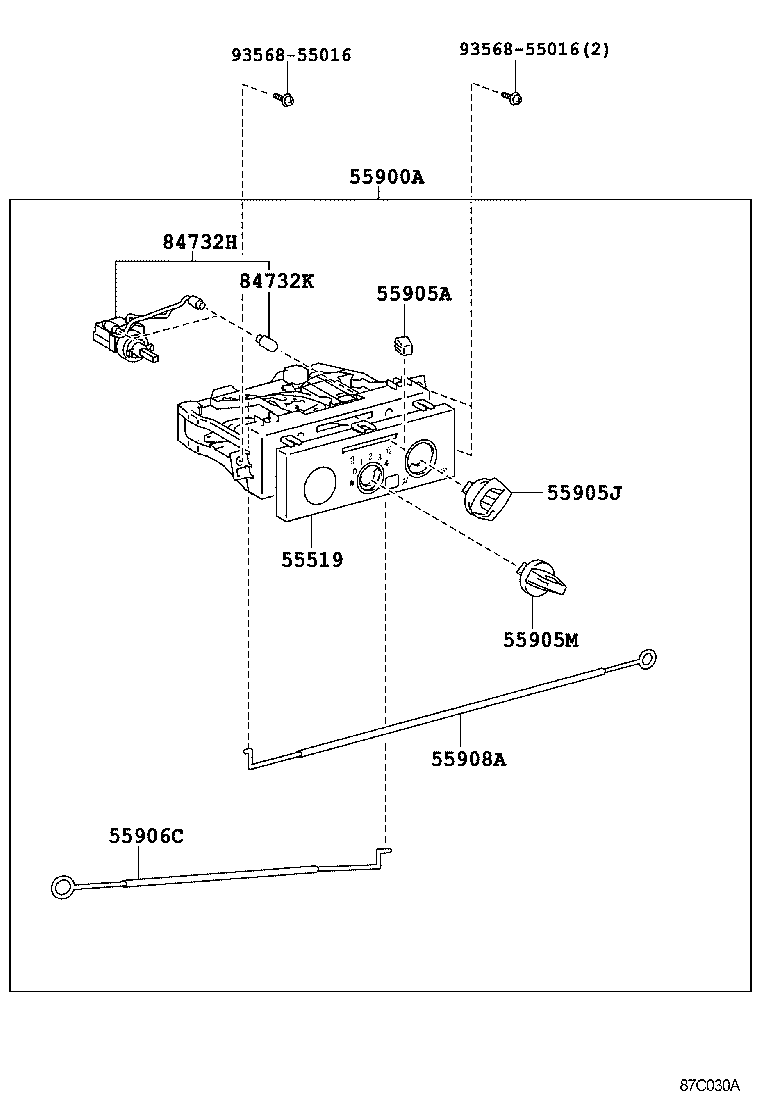

ILLUST NO. 1 OF 3(1107- )XZU710,720..GCC ; (1107- )WU700,710,720..LHD ; (1911- )XZU710,720.
CONTROL PANEL---HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37210 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55519-37210 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55519-37220 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 55519-37210 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55519-37230 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-37520 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55900-37520 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55900-37540 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 55900-37530 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 55900-37520 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55925-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37030 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU |
1 | ||
| 55905-37030 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37030 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU |
1 | ||
| 55905-37030 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 55905M - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37040 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55906C - CABLE SUB-ASSY, HEATER CONTROL, NO.1 | ||||
| 55906-37120 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37120 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-37130 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55909-37130 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55909-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55909-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 84732-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 84732K - BULB, HEATER BLOWER SWITCH | ||||
| 90010-11014 |
WU700,710,720;XZU710,720..MTM..GCC 24V |
2 | ||
| Common parts | ||||
| 93568-55016 | ||||

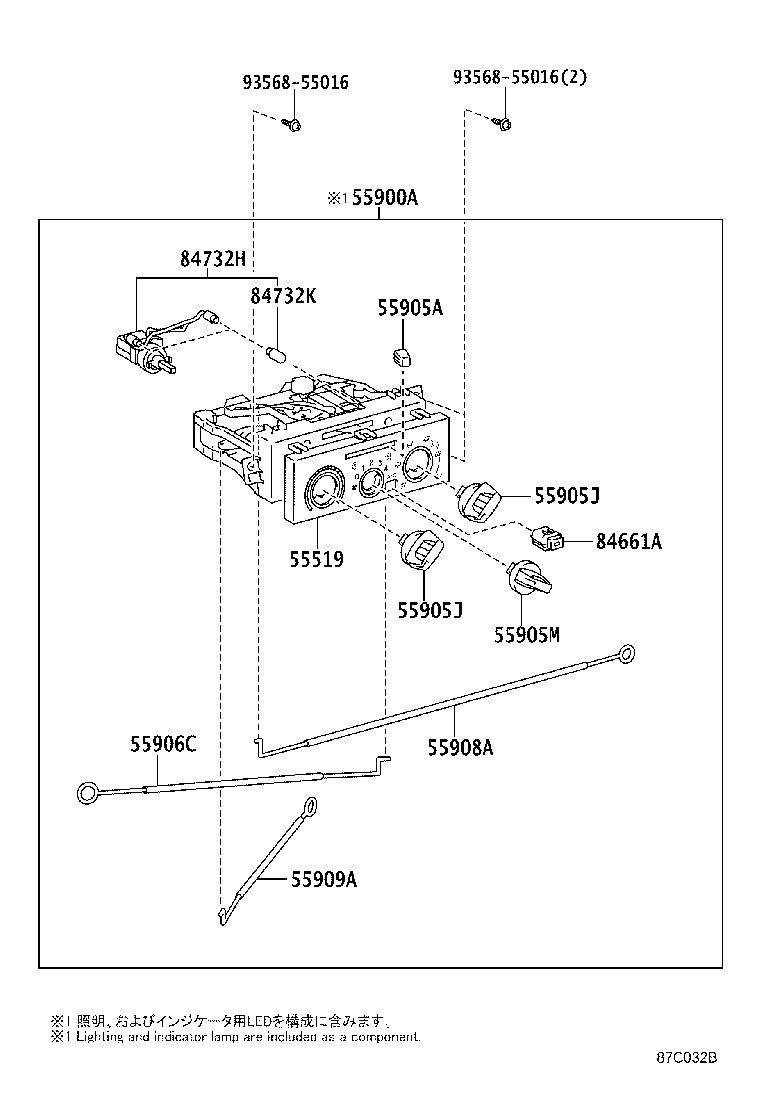

ILLUST NO. 1 OF 3(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730..LHD ; (1911- )
CONTROL PANEL---AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-37210 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55519-37210 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55519-37220 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 55519-37210 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55519-37230 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-37520 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55900-37520 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55900-37540 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 55900-37530 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 55900-37520 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55925-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37030 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU |
1 | ||
| 55905-37030 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37030 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU |
1 | ||
| 55905-37030 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
2 | ||
| 55905-37030 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 55905M - KNOB SUB-ASSY, CONTROL | ||||
| 55905-37040 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55906C - CABLE SUB-ASSY, HEATER CONTROL, NO.1 | ||||
| 55906-37120 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-37120 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-37130 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 55909-37130 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 55909-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 55909-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 84661A - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-37010 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 84661-37010 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 84661-37010 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 84732-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 84732K - BULB, HEATER BLOWER SWITCH | ||||
| 90010-11014 |
WU700,710,720;XZU710,720..MTM..GCC 24V |
2 | ||
| Common parts | ||||
| 93568-55016 | ||||

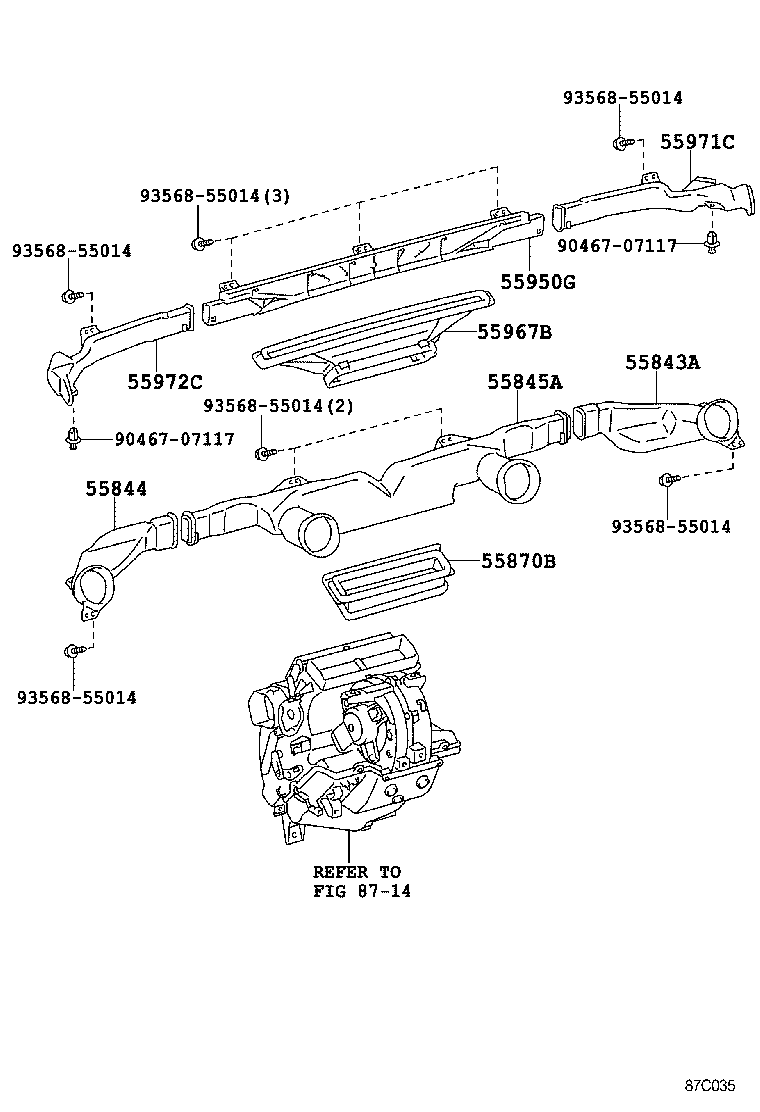

ILLUST NO. 2 OF 3(1107- )WU700,710,720..LHD ; (1107- )XZU710,720..SCB..GCC ; (1911- )XZU710
FRONT AIR DUCT---BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-37150 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37070 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55967B - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-37090 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-37100 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-37090 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 90467-07117 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

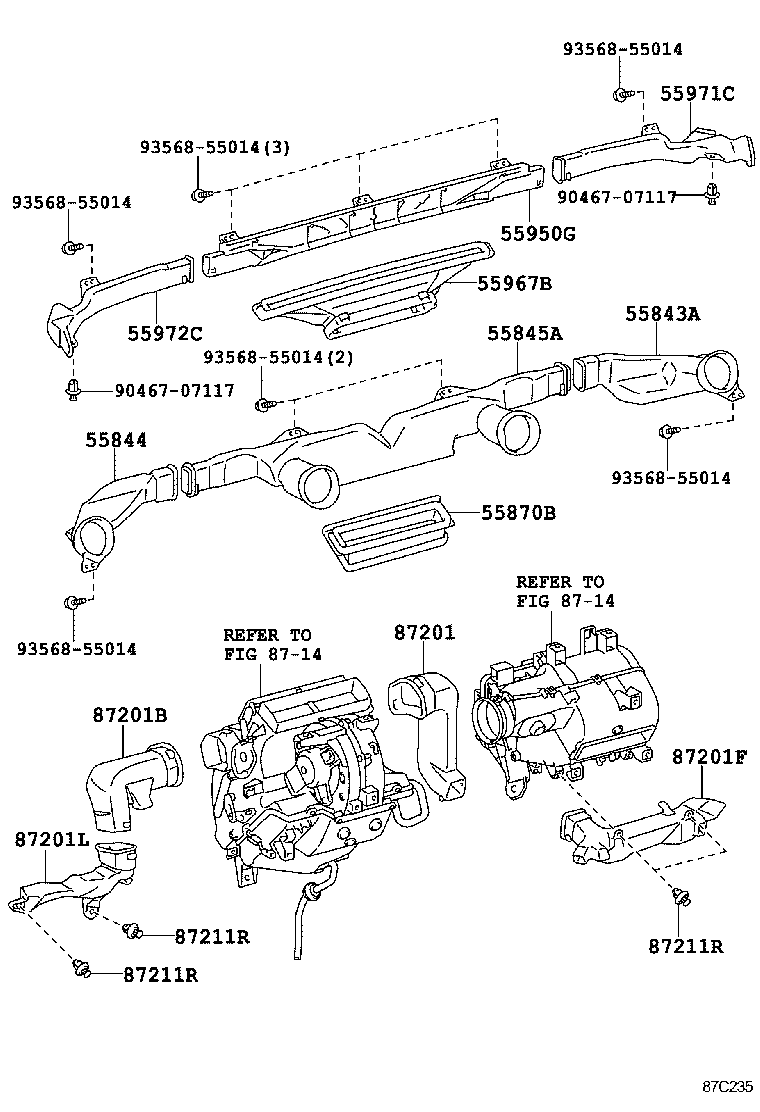

ILLUST NO. 2 OF 3(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730..LHD ; (1911- )
FRONT AIR DUCT---AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-37150 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37070 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55967B - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-37090 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-37100 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-37090 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87214-37110 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37110 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37110 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87214-37110 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87213-37060 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87213-37060 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87213-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87213-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87214-37080 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37080 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37080 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87214-37080 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87212-37060 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87212-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87212-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87212-37060 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07041P5 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER),GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW),GRAY,TRIM1# |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07041P5 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER),GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW),GRAY,TRIM1# |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07041P5 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER),GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW),GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90467-07117 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 3(1107- )XZU710,720..GCC ; (1107- )WU700,710,720..LHD ; (1911- )XZU710,720.
FRONT AIR DUCT---HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-37150 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-37070 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-37070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55967B - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-37090 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-37100 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-37090 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87214-37110 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37110 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37110 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87214-37110 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87213-37060 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87213-37060 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87213-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87213-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87214-37080 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37080 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87214-37080 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87214-37080 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87212-37060 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87212-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87212-37060 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87212-37060 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07041P5 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER),GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW),GRAY,TRIM1# |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07041P5 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER),GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW),GRAY,TRIM1# |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07041P5 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER),GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL,GRAY,TRIM1# |
4 | ||
| 90467-07041P5 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW),GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90467-07117 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
