WU720L-TKMQJV (2011)
Toyota Dyna
ILLUST NO. 3 OF 3(1107- )DCB ; (1107- )XZU720..EUR ; (1107-)WU700,710,720,XZU730 ; (1107-
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

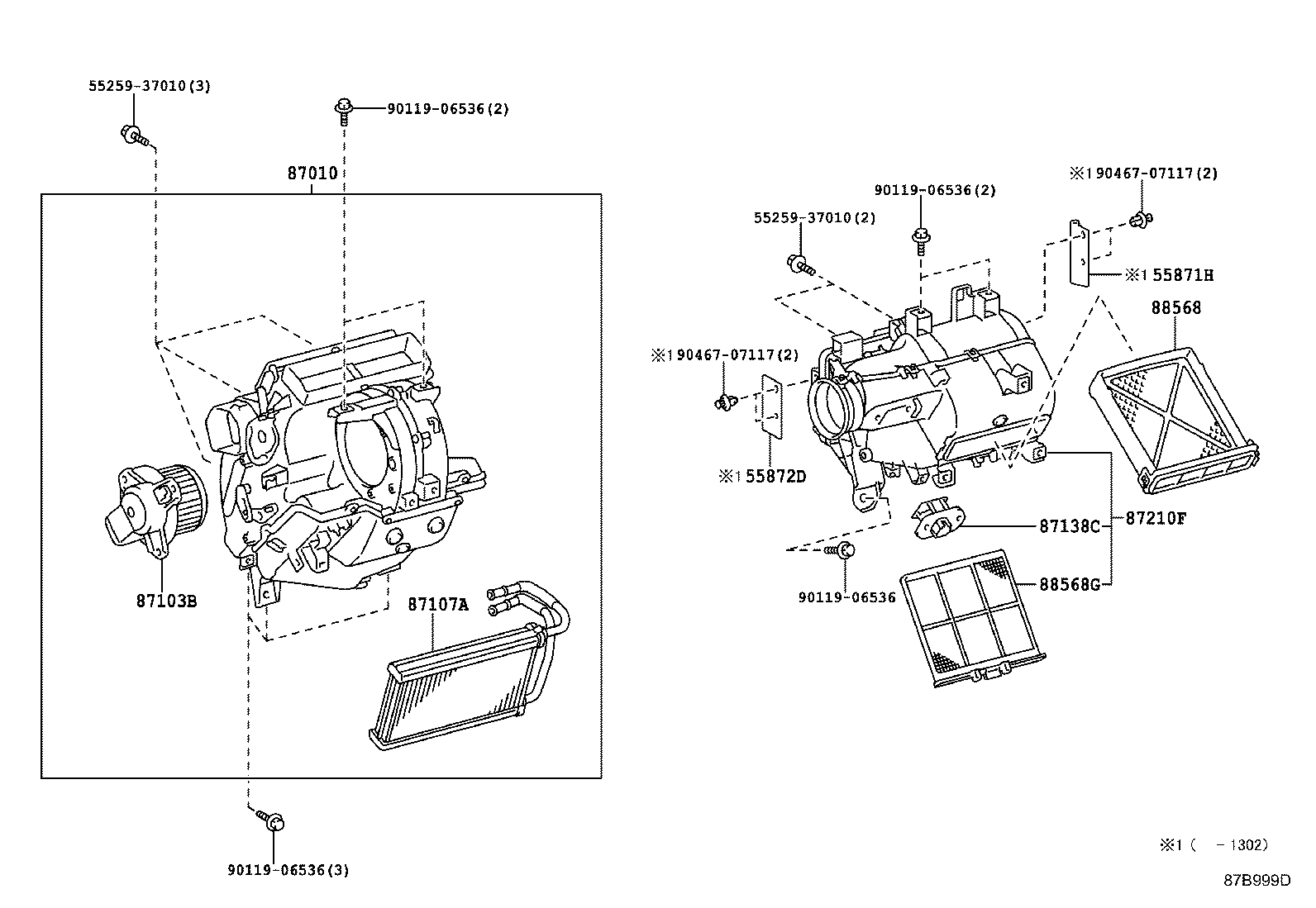

ILLUST NO. 1 OF 3(1107- )XZU710,720..GCC ; (1107- )WU700,710,720..LHD ; (1911- )XZU710,720.
FRONT---HEATER(W/O COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871H - SEAL, AIR DUCT, NO.1 | ||||
| 55871-37180 |
WU700,710,720,XZU710,720 |
1 | ||
| 55872D - SEAL, AIR DUCT, NO.2 | ||||
| 55872-37010 |
WU700,710,720,XZU710,720 |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-37120 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87010-37120 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87010-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87010-37120 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87010-37140 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37100 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87107-37100 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87107-37100 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87107-37100 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37230 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37070 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 88568 - FILTER, COOLER UNIT COVER | ||||
| 88568-37010 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU STANDARD |
1 | ||
| 88568G - FILTER, AIR | ||||
| 88568-37030 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 55259-37010 | ||||
| 90119-06536 | ||||
| 90467-07117 | ||||

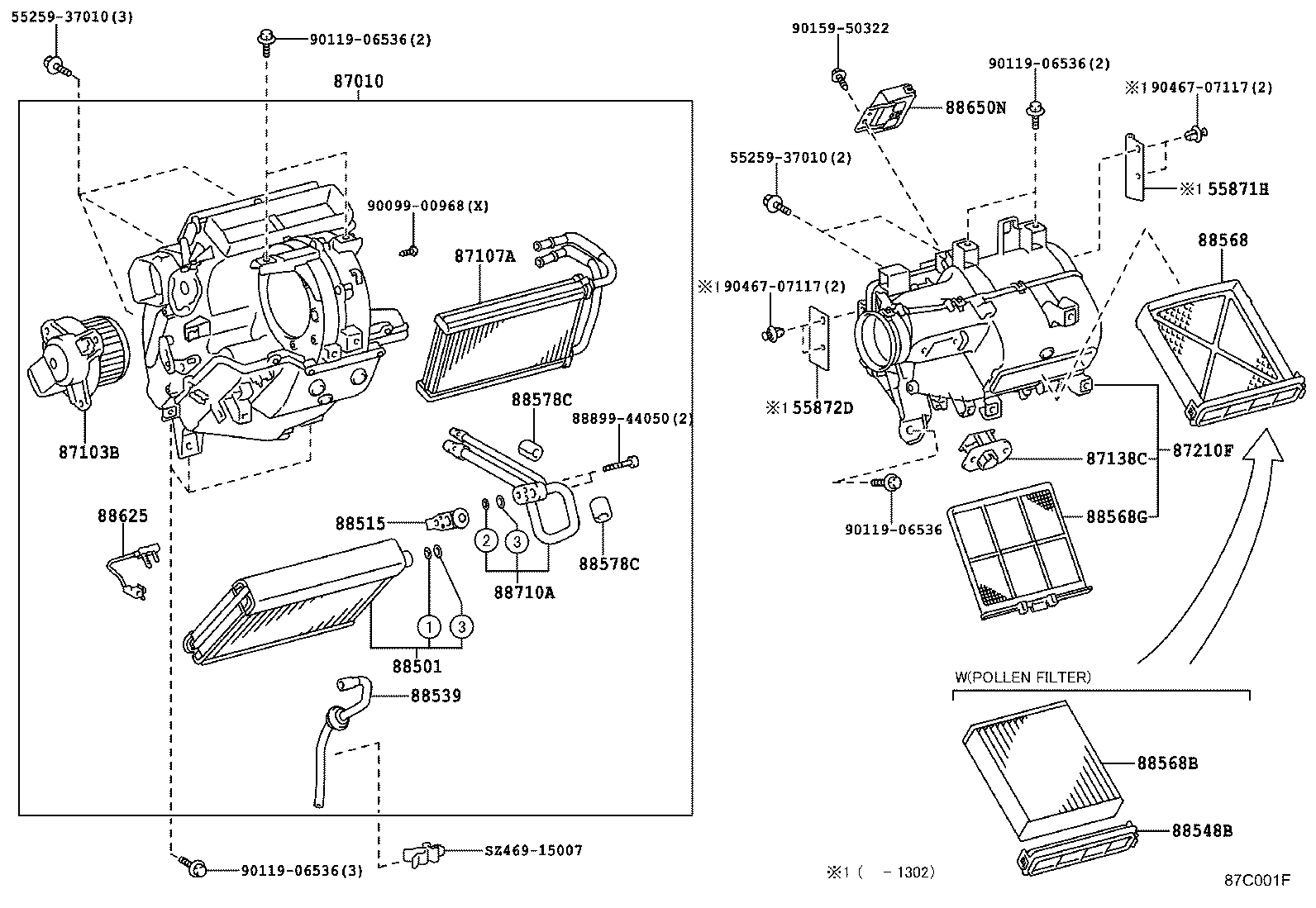

ILLUST NO. 1 OF 3(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730..LHD ; (1911- )
FRONT---AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871H - SEAL, AIR DUCT, NO.1 | ||||
| 55871-37180 |
WU700,710,720,XZU710,720 |
1 | ||
| 55872D - SEAL, AIR DUCT, NO.2 | ||||
| 55872-37010 |
WU700,710,720,XZU710,720 |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-37120 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87010-37120 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87010-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87010-37120 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87010-37140 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37100 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87107-37100 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87107-37100 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87107-37100 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37230 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37070 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37120 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 88501-37120 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 88501-37120 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12130 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 88515-12130 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88515-12130 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-37120 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 88539-37120 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 88539-37120 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-37010 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88568 - FILTER, COOLER UNIT COVER | ||||
| 88568-37010 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU STANDARD |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37020 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88568G - FILTER, AIR | ||||
| 88568-37030 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-37180 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 88578-37180 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 88578-37180 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-37180 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
2 | ||
| 88578-37180 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
2 | ||
| 88578-37180 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 88625-26090 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88625-26090 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-37300 |
WU700,710,720,XZU710,720..GCC AIR CONDITIONER-MANUAL |
1 | ||
| 88650-37300 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37720 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 88710-37720 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 88710-37720 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| Common parts | ||||
| 55259-37010 | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90119-06536 | ||||
| 90159-50322 | ||||
| 90467-07117 | ||||
| SZ469-15007 | ||||

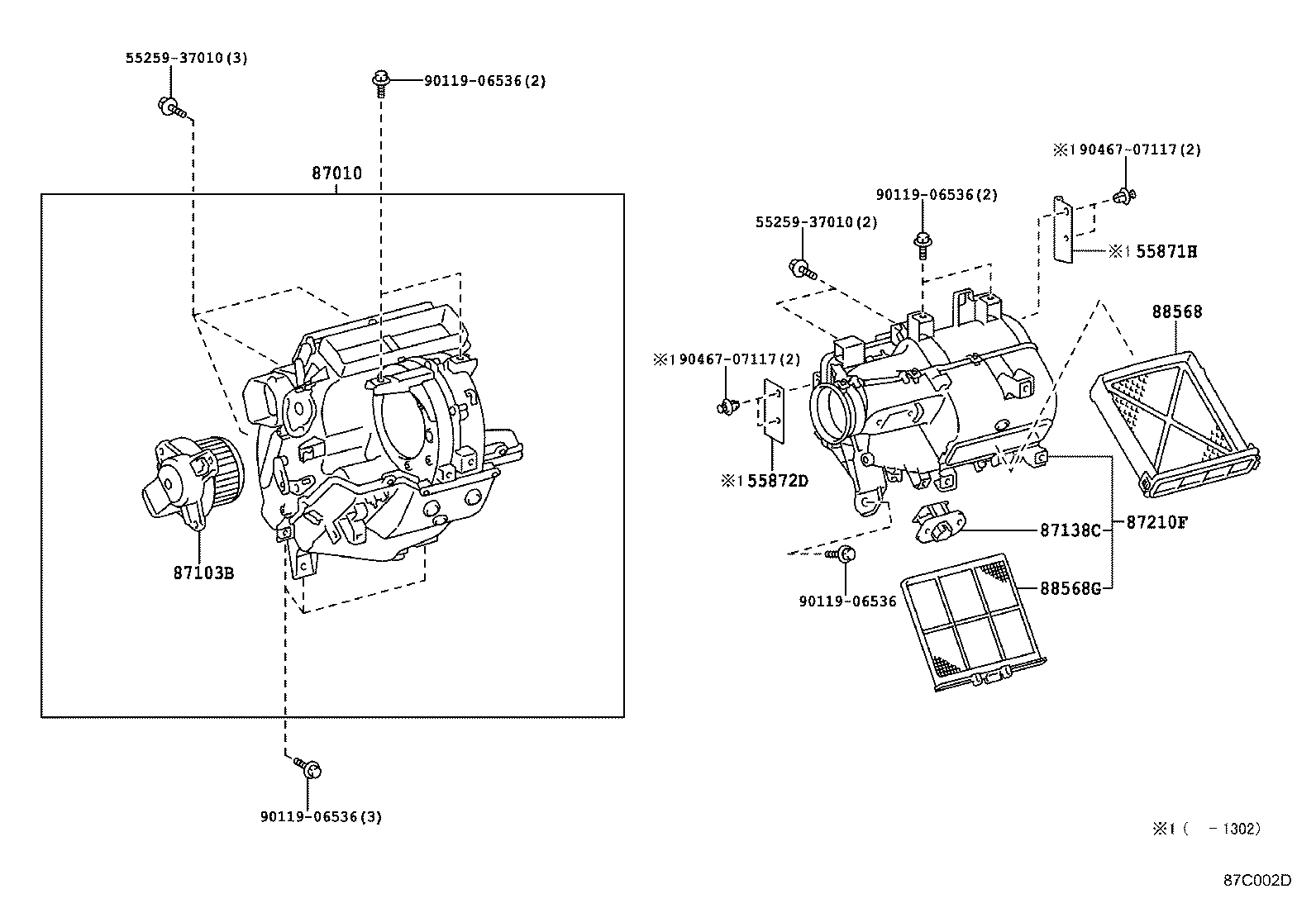

ILLUST NO. 1 OF 3(1107- )WU700,710,720..LHD ; (1107- )XZU710,720..SCB..GCC ; (1911- )XZU710
FRONT---BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871H - SEAL, AIR DUCT, NO.1 | ||||
| 55871-37180 |
WU700,710,720,XZU710,720 |
1 | ||
| 55872D - SEAL, AIR DUCT, NO.2 | ||||
| 55872-37010 |
WU700,710,720,XZU710,720 |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-37120 |
WU700,710,720..GCC FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL |
1 | ||
| 87010-37120 |
XZU710,720..SCB..GCC FRONT HEATER-WITH(WITH REV UP LEVER)&AIR CONDITIONER-MANUAL |
1 | ||
| 87010-37130 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW) |
1 | ||
| 87010-37120 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU FRONT HEATER-WITH(W/O IDLE UP SW)&AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER) |
1 | ||
| 87010-37140 |
WU700,720..5F;WU710..LHD..GEN;WU710..85T..CBU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37230 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37070 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 88568 - FILTER, COOLER UNIT COVER | ||||
| 88568-37010 |
WU710..GEN;WU700,720..5F;WU710..85T..CBU STANDARD |
1 | ||
| 88568G - FILTER, AIR | ||||
| 88568-37030 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 55259-37010 | ||||
| 90119-06536 | ||||
| 90467-07117 | ||||
