WU720L-TKMQJV (2011)
Toyota Dyna

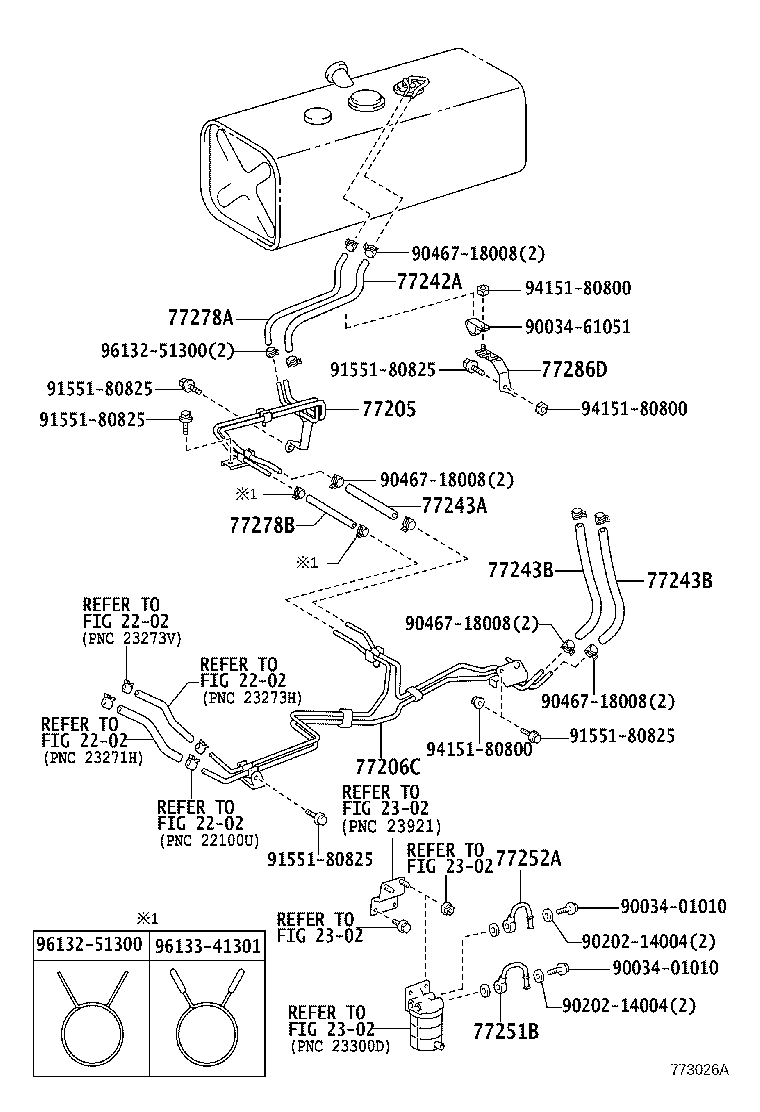

ILLUST NO. 3 OF 3(1107- )WU700,710,720
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37E50 |
WU700,710,720,XZU710,720,730..SCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37J70 |
XZU710,720,730..SCB |
1 | ||
| 77206-37K50 |
WU700,710,720 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12028 |
WU700,710,720;XZU710,720..SCB..MTM..GCC L=280 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12016 |
WU700,710,720;XZU710,720..MTM..GCC L=160 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12024 |
WU700,710,720 L=240 |
2 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12024 |
WU700,710,720 L=240 |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77252-37650 |
WU700,710,720 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-37660 |
WU700,710,720 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
WU700,710,720;XZU710,720..SCB..MTM..GCC L=300 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
WU700,710,720;XZU710,720..MTM..GCC L=160 |
1 | ||
| Common parts | ||||
| 90034-01010 | ||||
| 90034-61051 | ||||
| 90202-14004 | ||||
| 90467-18008 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96132-51300 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

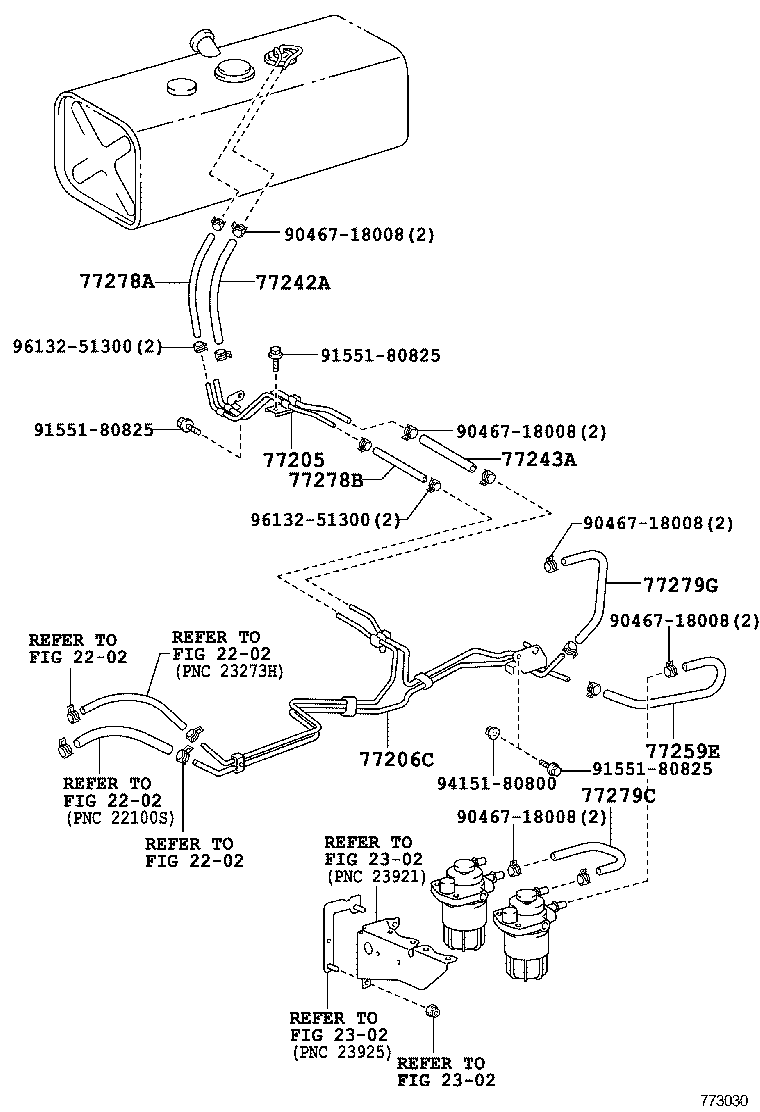

ILLUST NO. 3 OF 3(1107- )XZU710,720..SCB..GCC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37E50 |
WU700,710,720,XZU710,720,730..SCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37J70 |
XZU710,720,730..SCB |
1 | ||
| 77206-37K50 |
WU700,710,720 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12028 |
WU700,710,720;XZU710,720..SCB..MTM..GCC L=280 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12016 |
WU700,710,720;XZU710,720..MTM..GCC L=160 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77279-37490 |
XZU710,720..SCB..MTM..GCC |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
WU700,710,720;XZU710,720..SCB..MTM..GCC L=300 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
WU700,710,720;XZU710,720..MTM..GCC L=160 |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 77279-37370 |
XZU710,720..SCB..MTM..GCC |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-37500 |
XZU710,720..SCB..MTM..GCC |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

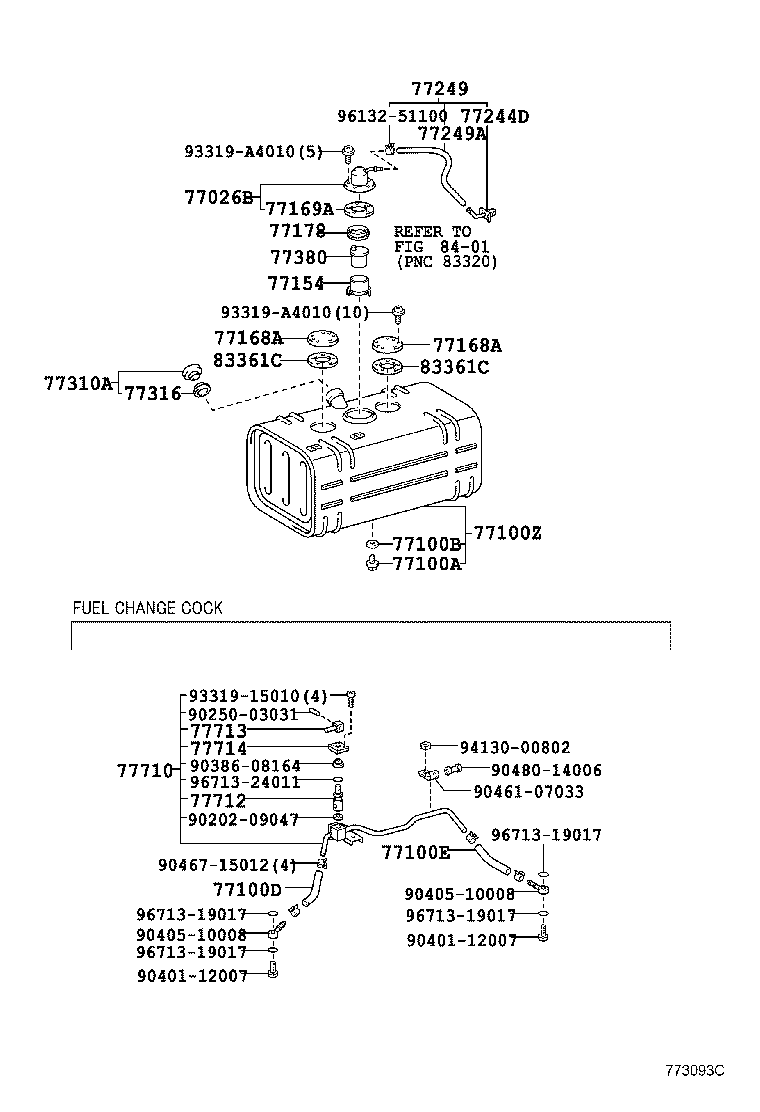

ILLUST NO. 1 OF 3(1107- )WU700,710,720 ; (1107- )XZU710,720..GCC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37090 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77026-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-37650 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 90105-12116 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 90430-12245 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77154-25010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77169-14020 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
3 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77169-14020 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
3 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77178-44010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77244-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77249-37190 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 95333-06040 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 95333-06040 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77310-60100 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77316-12050 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77380-26010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

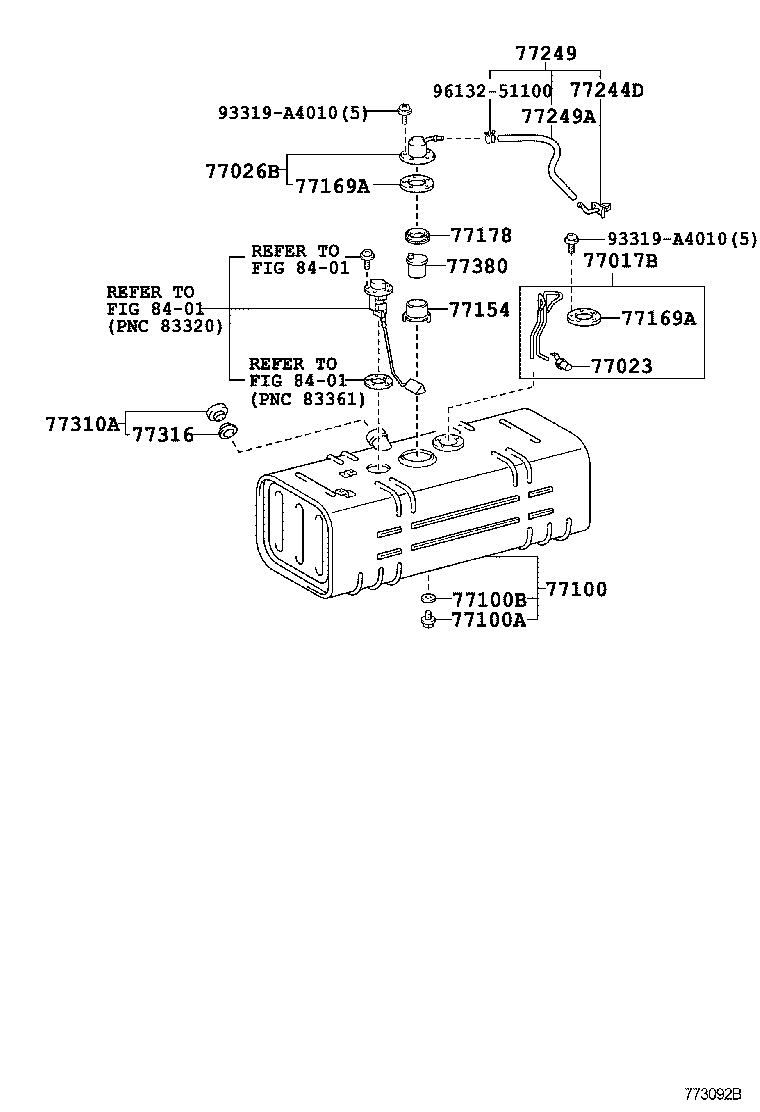

ILLUST NO. 1 OF 3(1107- )WU700,710,720 ; (1107- )XZU710,720..GCC
FUEL TANK(SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77026-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 90105-12116 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 90430-12245 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| SM331-10014 |
WU710,720,XZU720..GCC,GEN L=140,FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| SM331-10014 |
WU710,720,XZU710,720..SCB..(GCC,GEN) L=140,FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-37510 |
WU710,720;XZU710,720..SCB..MTM..GCC 690X310X385,FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77154-25010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-36050 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-36050 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77169-14020 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
3 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77178-44010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77244-37010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77249-37190 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 95333-06040 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 95333-06040 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77310-60100 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77316-12050 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 77380-26010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 77710 - COCK ASSY, FUEL CHANGE | ||||
| 77710-37020 |
WU710,720,XZU710,720..SCB..(GCC,GEN) FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77710-37070 |
WU710,720,XZU710,720..SCB..(GCC,GEN) FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77712 - VALVE, FUEL CHANGE COCK | ||||
| 77712-36011 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77713 - LEVER, FUEL CHANGE COCK | ||||
| 77713-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 77714 - CAP, FUEL CHANGE COCK | ||||
| 77714-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
1 | ||
| 83361C - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| 83361C - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
2 | ||
| Common parts | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90405-10008 | ||||
| 90461-07033 | ||||
| 90467-15012 | ||||
| 90480-14006 | ||||
| 93319-15010 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96713-19017 | ||||
| 96713-24011 | ||||
| Linked diagrams | ||||
| 8401 | ||||

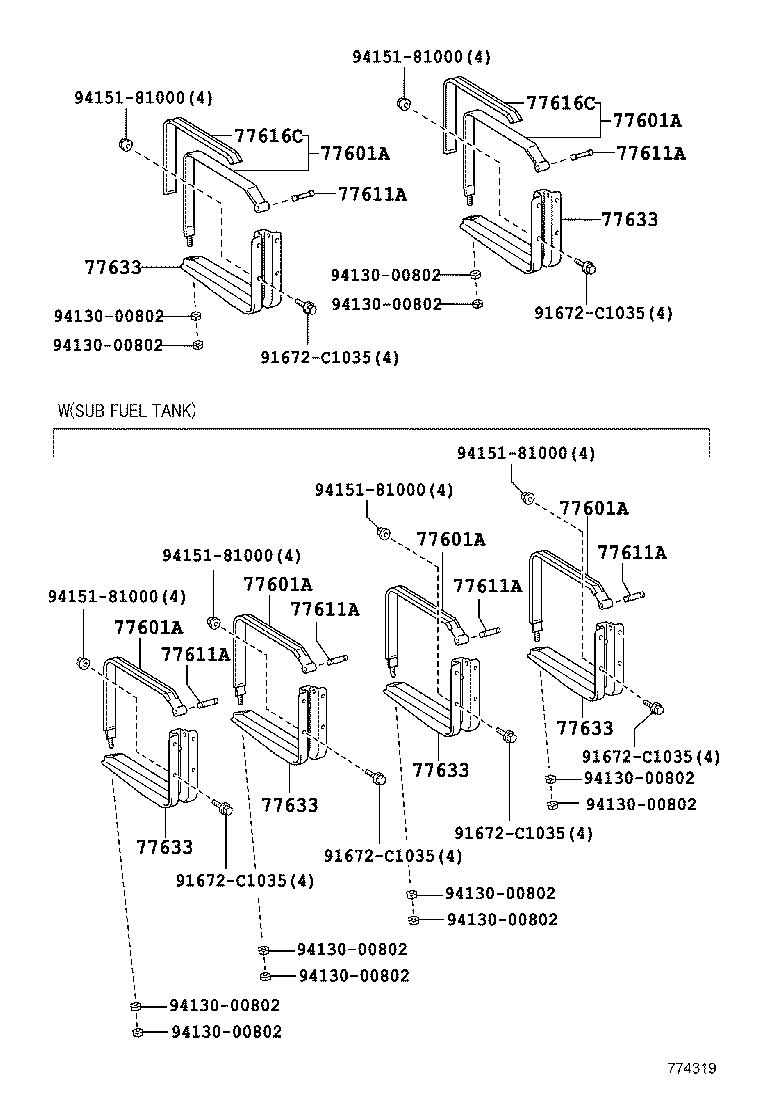

ILLUST NO. 2 OF 3(1107- )XZU710,720..EUR,GCC ; (1107- )WU700,710,720,XZU730
FUEL TANK STAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77601-37030 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77629-36010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77629-36010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77629-36010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77629-36010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77629-36010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77629-36010 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77633-37100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77633-37100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77633-37100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77633-37100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77633-37100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU700,710,720;XZU710,720..SCB..MTM..GCC |
2 | ||
| 77633-37100 |
WU710,720;XZU710,720..SCB..MTM..GCC FUEL TANK-100L & W(SUB TANK) |
4 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
