WU720L-TKMQJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

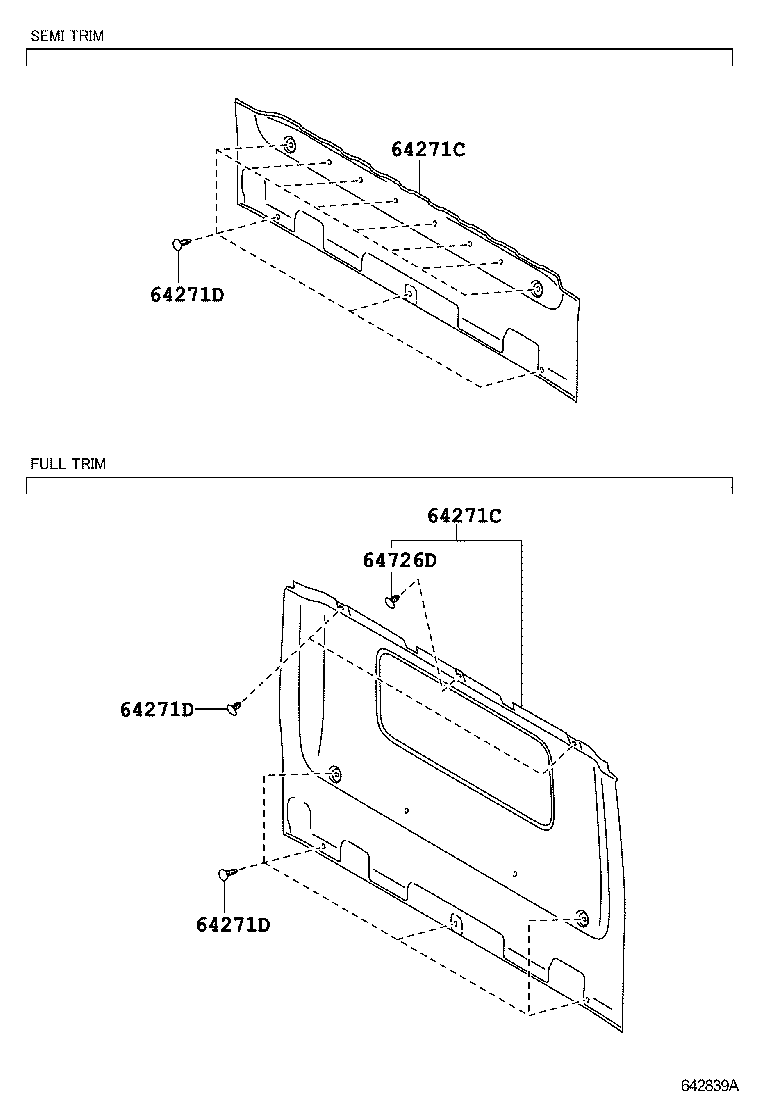

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

BACK PANEL TRIM

diagram 64271C 64271C 64271D 64271D 64271D 64726D
Part # Description Qty Price
64271C - TRIM, BACK PANEL
64271-37780B0

WU700,710,720;XZU710,720..SCB..MTM..GCC

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 1
64271C - TRIM, BACK PANEL
64271-37780B0

WU700,710,720;XZU710,720..SCB..MTM..GCC

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 1
64271D - CLIP(FOR BACK PANEL TRIM)
90467-06048P3

WU700,710,720;XZU710,720..SCB..MTM..GCC

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 11
64271D - CLIP(FOR BACK PANEL TRIM)
90467-06048P3

WU700,710,720;XZU710,720..SCB..MTM..GCC

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 11
64271D - CLIP(FOR BACK PANEL TRIM)
90467-06048P3

WU700,710,720;XZU710,720..SCB..MTM..GCC

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 11

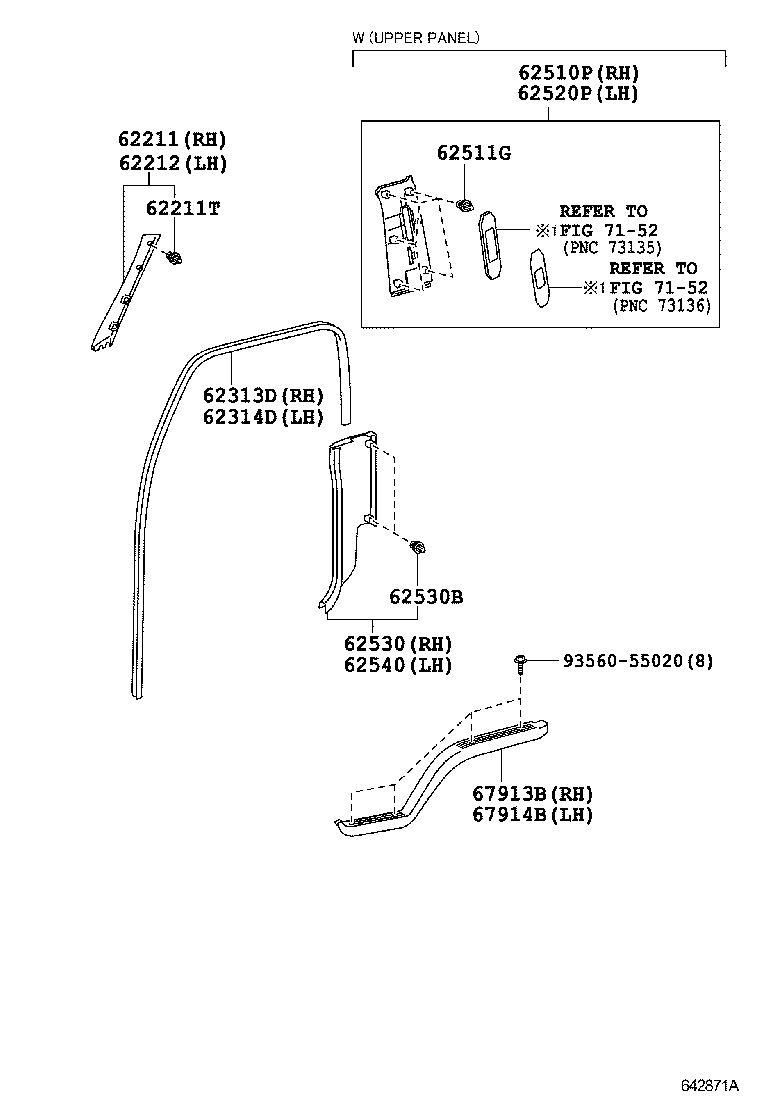

ILLUST NO. 1 OF 2(1107- )SCB

Click highlighted areas on diagram

diagram 62211 62211T 62212 62313D 62314D 62510P 62511G 62520P 62530 62530B 62540 67913B 67914B 7152 7152 9356055020
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-37030B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-13010

WU700,710,720;XZU710,720..MTM..GCC

 4
62212 - GARNISH, FRONT PILLAR, LH
62220-37030B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37070B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-37030B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
62530 - PANEL ASSY, QUARTER TRIM, LOWER RH
62530-37010B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
62530B - CLIP, QUARTER TRIM NO.1
90467-10161

WU700,710,720;XZU710,720..MTM..GCC

 4
62540 - PANEL ASSY, QUARTER TRIM, LOWER LH
62540-37010B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-37030B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-37040B0

WU700,710,720;XZU710,720..MTM..GCC

GRAY,TRIM1#

 1
Common parts
93560-55020
Linked diagrams
7152
