WU720L-TKMQJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )WU720 ; (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )XZU71

Click highlighted areas on diagram

320(115) W/O(AUTO ADJUSTER)

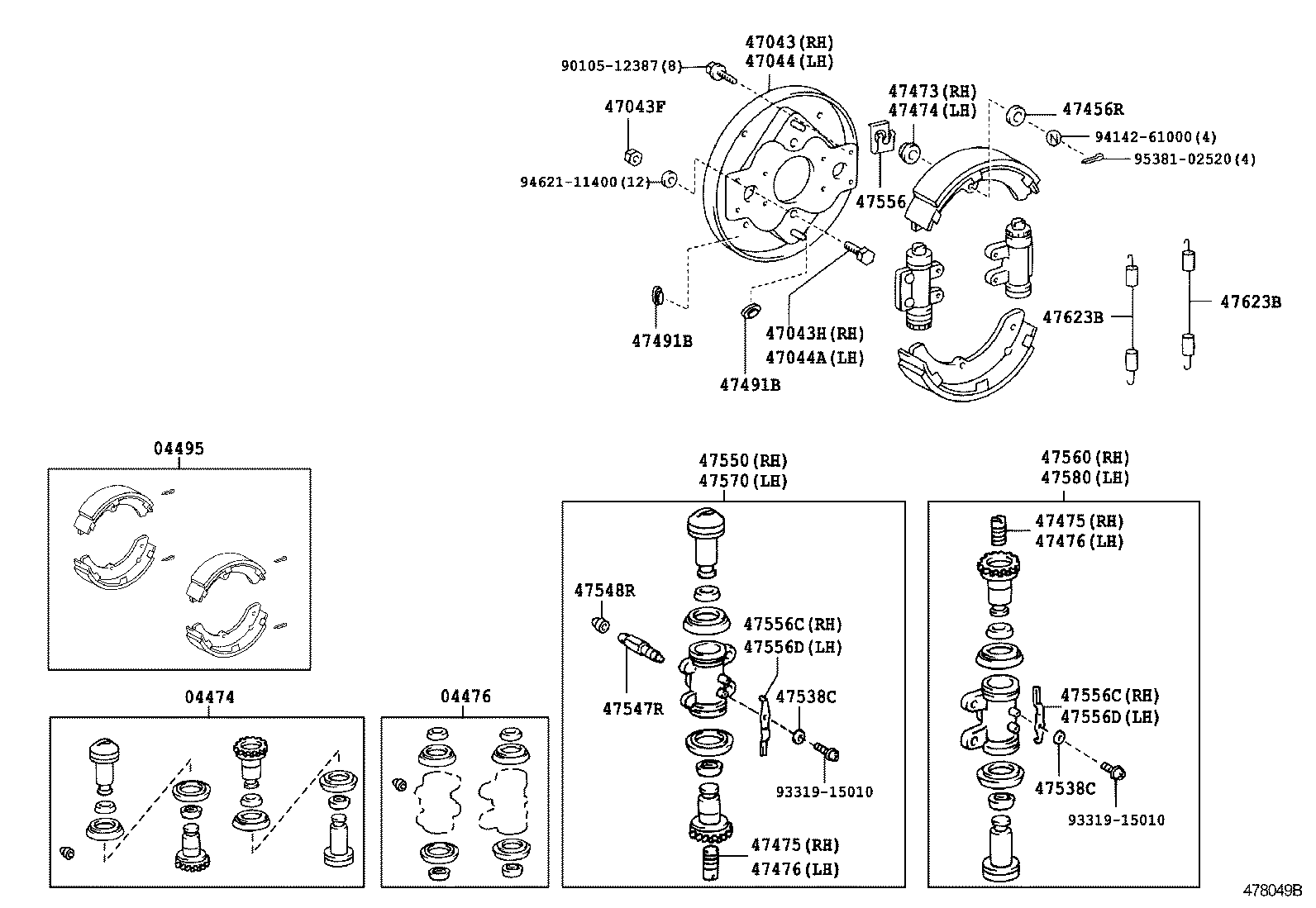

diagram 04474 04476 04495 47043 47043F 47043H 47044 47044A 47456R 47473 47474 47475 47475 47476 47476 47491B 47491B 47538C 47538C 47547R 47548R 47550 47556 47556C 47556C 47556D 47556D 47560 47570 47580 47623B 47623B 9010512387 9331915010 9331915010 9414261000 9462111400 9538102520
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04468-37400

WU720;WU710..GEN;WU710..85T

LH

 1
04474-37540

WU720;WU710..GEN;WU710..85T

RH

 1
04476 - CUP KIT, REAR WHEEL CYLINDER
04476-37080

WU720;WU710..GEN;WU710..85T

 2
04495 - SHOE KIT, REAR BRAKE
04495-37032

WU720;WU710..GEN;WU710..85T

MARK NBK D2177

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-37101

WU720;WU710..GEN;WU710..85T

 1
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94130-01441

WU720;WU710..GEN;WU710..85T

 4
47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
90101-14032

WU720;WU710..GEN;WU710..85T

 4
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-37101

WU720;WU710..GEN;WU710..85T

 1
47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
90101-14032

WU720;WU710..GEN;WU710..85T

 4
47456R - PLATE, REAR BRAKE SHOE GUIDE
47456-37010

WU720;WU710..GEN;WU710..85T

 4
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47473-37020

WU720;WU710..GEN;WU710..85T

 2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47473-37020

WU720;WU710..GEN;WU710..85T

 2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47553-37050

WU720;WU710..GEN;WU710..85T

 2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47553-37050

WU720;WU710..GEN;WU710..85T

 2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47554-37050

WU720;WU710..GEN;WU710..85T

 2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47554-37050

WU720;WU710..GEN;WU710..85T

 2
47491B - PLUG, HOLE(FOR REAR BRAKE)
47491-37090

WU720;WU710..GEN;WU710..85T

 8
47491B - PLUG, HOLE(FOR REAR BRAKE)
47491-37090

WU720;WU710..GEN;WU710..85T

 8
47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR
47538-37030

WU720;WU710..GEN;WU710..85T

 4
47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR
47538-37030

WU720;WU710..GEN;WU710..85T

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-37130

WU720;WU710..GEN;WU710..85T

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

XZU710,720..GCC

 2
31478-30010

WU700,710,720

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-37141

WU720;WU710..GEN;WU710..85T

 1
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47556-37010

WU720;WU710..GEN;WU710..85T

 4
47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)
47555-37070

WU720;WU710..GEN;WU710..85T

 2
47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)
47555-37070

WU720;WU710..GEN;WU710..85T

 2
47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)
47555-37070

WU720;WU710..GEN;WU710..85T

 2
47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)
47555-37070

WU720;WU710..GEN;WU710..85T

 2
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-37041

WU720;WU710..GEN;WU710..85T

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-37101

WU720;WU710..GEN;WU710..85T

 1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-37031

WU720;WU710..GEN;WU710..85T

 1
47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
90905-07017

WU720;WU710..GEN;WU710..85T

 4
47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
90905-07017

WU720;WU710..GEN;WU710..85T

 4
Common parts
90105-12387
93319-15010
94142-61000
94621-11400
95381-02520
