WU720L-TKMQJV (2011)
Toyota Dyna
Production
Jul 2011
-
May 2015
Engine
W04D
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )LHD..MTM..GCC,GEN

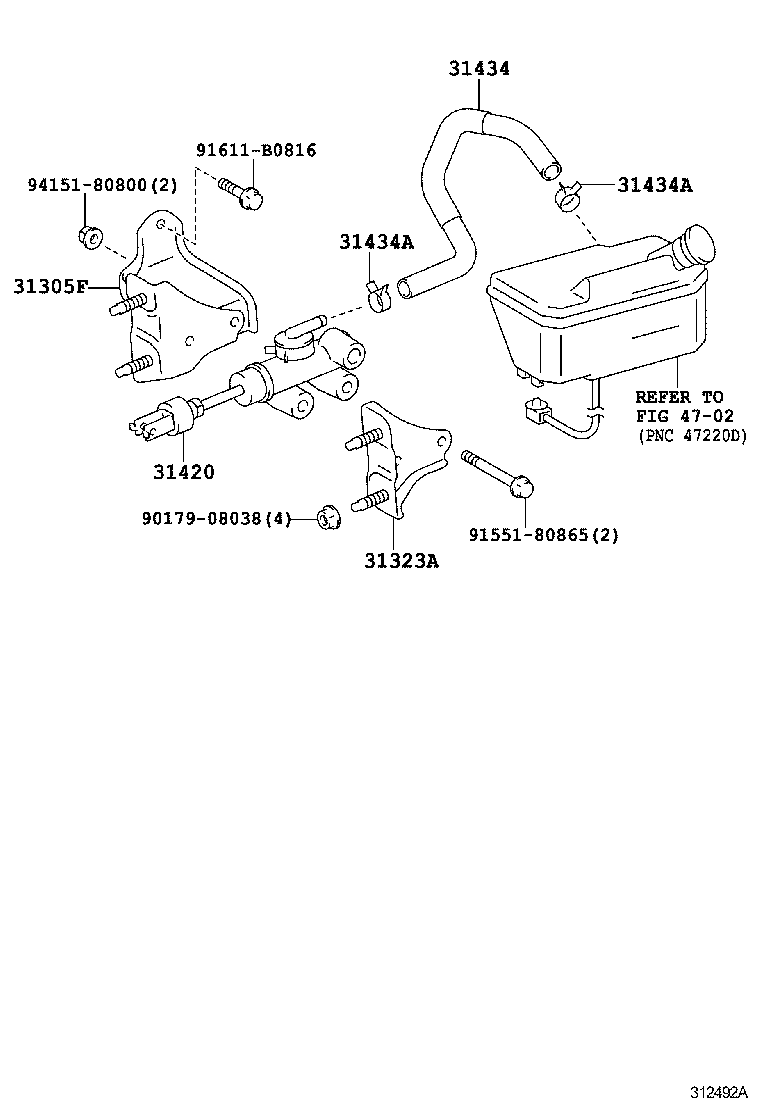

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31305F - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 31305-37060 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 31323A - BRACKET, CLUTCH PEDAL | ||||
| 31323-37120 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 31420 - CYLINDER ASSY, MASTER W/O RESERVOIR | ||||
| 31420-37141 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-37280 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91551-80865 | ||||
| 91611-B0816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
