WU720L-TKMQJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

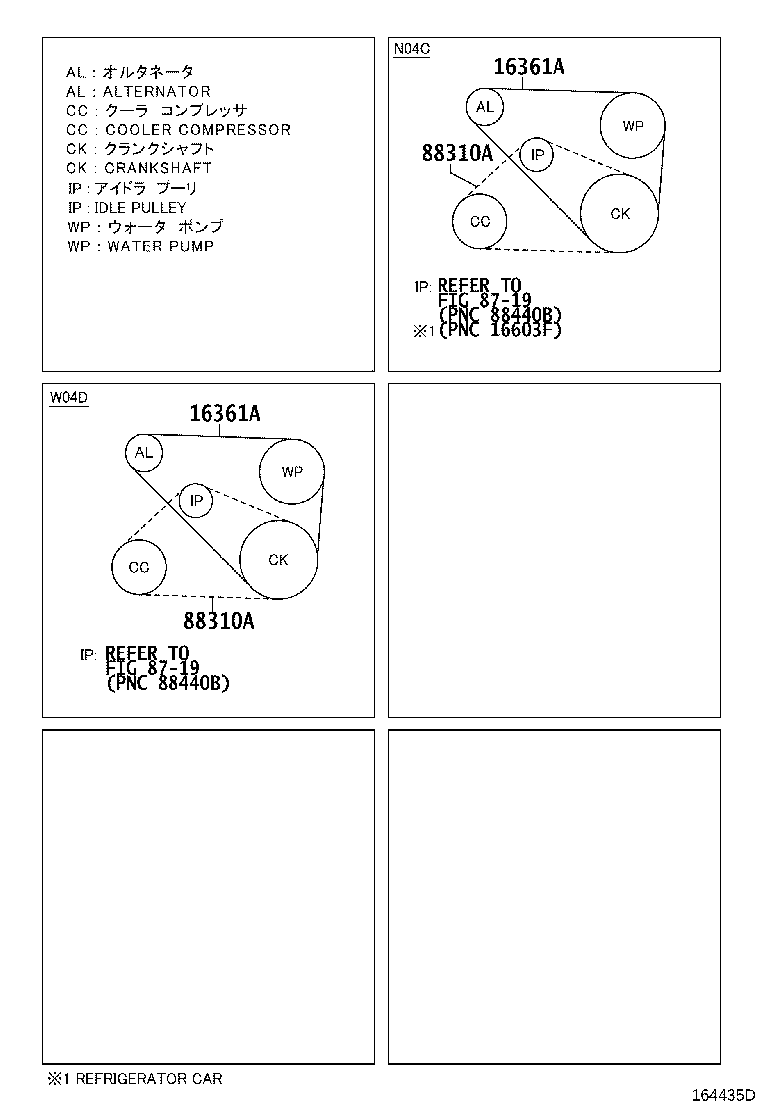

Click highlighted areas on diagram

diagram 16361A 16361A 8719 8719 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
SZ910-45322

W04D..WU700,710,720

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
SZ910-45322

W04D..WU700,710,720

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02594

WU700,710,720..GCC

L=975,AIR CONDITIONER-MANUAL

 1
S8838-11440

XZU710,720..GCC

L=1010,AIR CONDITIONER-MANUAL

 1
90916-02594

WU710..GEN;WU700,720..5F;WU710..85T..CBU

L=975,AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02594

WU700,710,720..GCC

L=975,AIR CONDITIONER-MANUAL

 1
S8838-11440

XZU710,720..GCC

L=1010,AIR CONDITIONER-MANUAL

 1
90916-02594

WU710..GEN;WU700,720..5F;WU710..85T..CBU

L=975,AIR CONDITIONER-MANUAL & WITH(POLLEN FILTER)

 1
Linked diagrams
8719
