WU720L-TKFTLV3 (2011)
Toyota Dyna

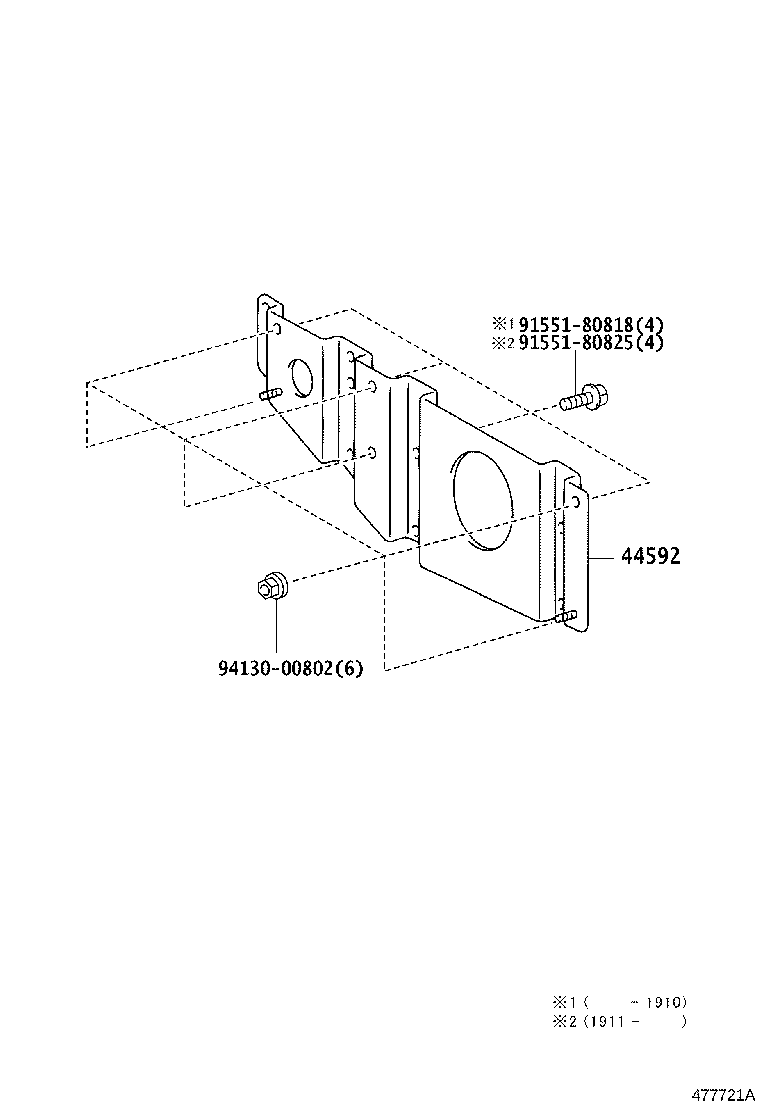

ILLUST NO. 3 OF 4(1107- )WU700,710,720 ; (1107- )XZU710,720..GCC
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-37142 |
WU700,710,720 |
1 | ||
| 44591-37142 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| Common parts | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 94130-00802 | ||||

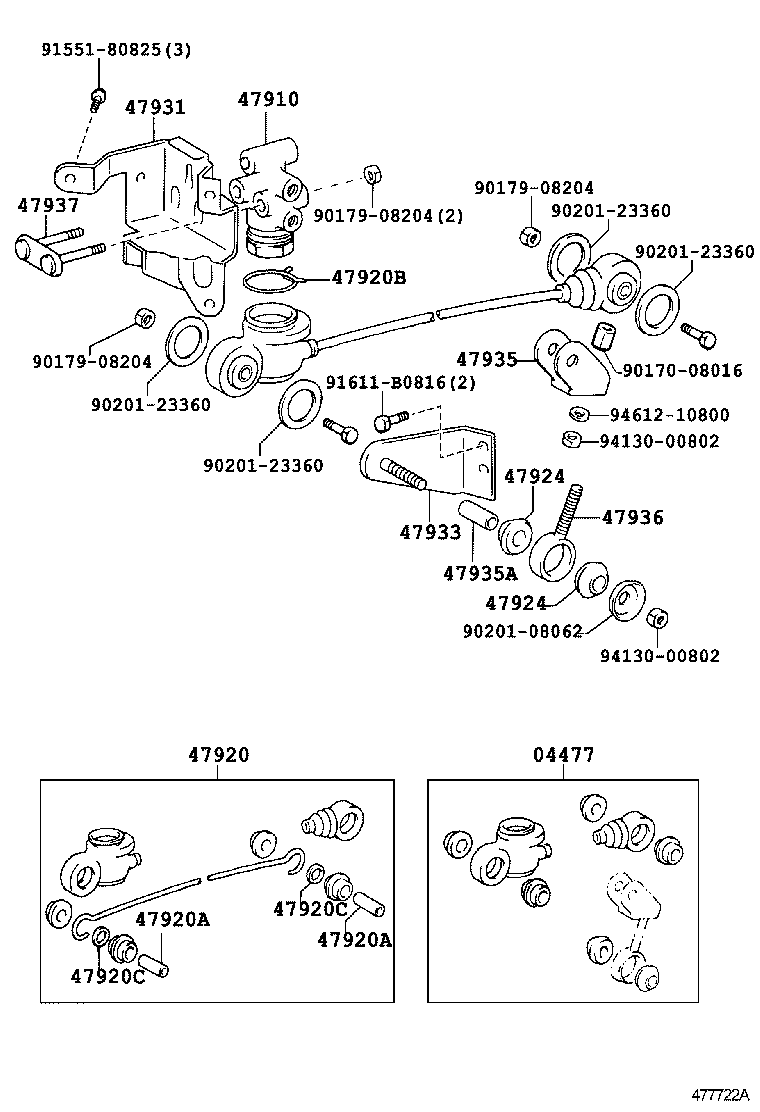

ILLUST NO. 4 OF 4(1107- )WU700,710,720 ; (1107- )XZU710,720..GCC ; (1911- )XZU710,720..GEN
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-37010 |
WU700,710,720 |
1 | ||
| 04477-37010 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37090 |
WU700,710,720 |
1 | ||
| 47910-37090 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-37060 |
WU710,720..85T |
1 | ||
| 47920-37060 |
XZU710,720..85T ABS-WITHOUT |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
XZU710,720..6F..GCC ABS-WITHOUT |
2 | ||
| 90387-08099 |
WU700,710,720 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
XZU710,720..6F..GCC ABS-WITHOUT |
2 | ||
| 90387-08099 |
WU700,710,720 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
WU700,710,720 |
1 | ||
| 90467-31110 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU710,720..6F..GCC ABS-WITHOUT |
2 | ||
| 90202-10103 |
WU700,710,720 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU710,720..6F..GCC ABS-WITHOUT |
2 | ||
| 90202-10103 |
WU700,710,720 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
WU700,710,720 |
2 | ||
| 47924-35010 |
XZU710,720..6F..GCC ABS-WITHOUT |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
WU700,710,720 |
2 | ||
| 47924-35010 |
XZU710,720..6F..GCC ABS-WITHOUT |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47931-37020 |
WU700,710,720 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-37050 |
WU700,710,720 |
1 | ||
| 47933-37050 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47933-37070 |
WU710,720 |
1 | ||
| 47933-37070 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
WU700,710,720 |
1 | ||
| 47935-35030 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90387-08099 |
WU700,710,720 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47936-26020 |
WU700,710,720 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47937-60010 |
WU700,710,720 |
1 | ||
| Common parts | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
ILLUST NO. 3 OF 4(1107- )XZU710,720,730..EUR,GCC ; (1911- )XZU710,720..GEN
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-37162 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 44050-37162 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 44050-37152 |
XZU710,720..6F..GCC TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 44050-37162 |
XZU710,720..6F..GCC |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
3 | ||
| 44547-60100 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
3 | ||
| 44547-60100 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37060 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91551-80820 | ||||

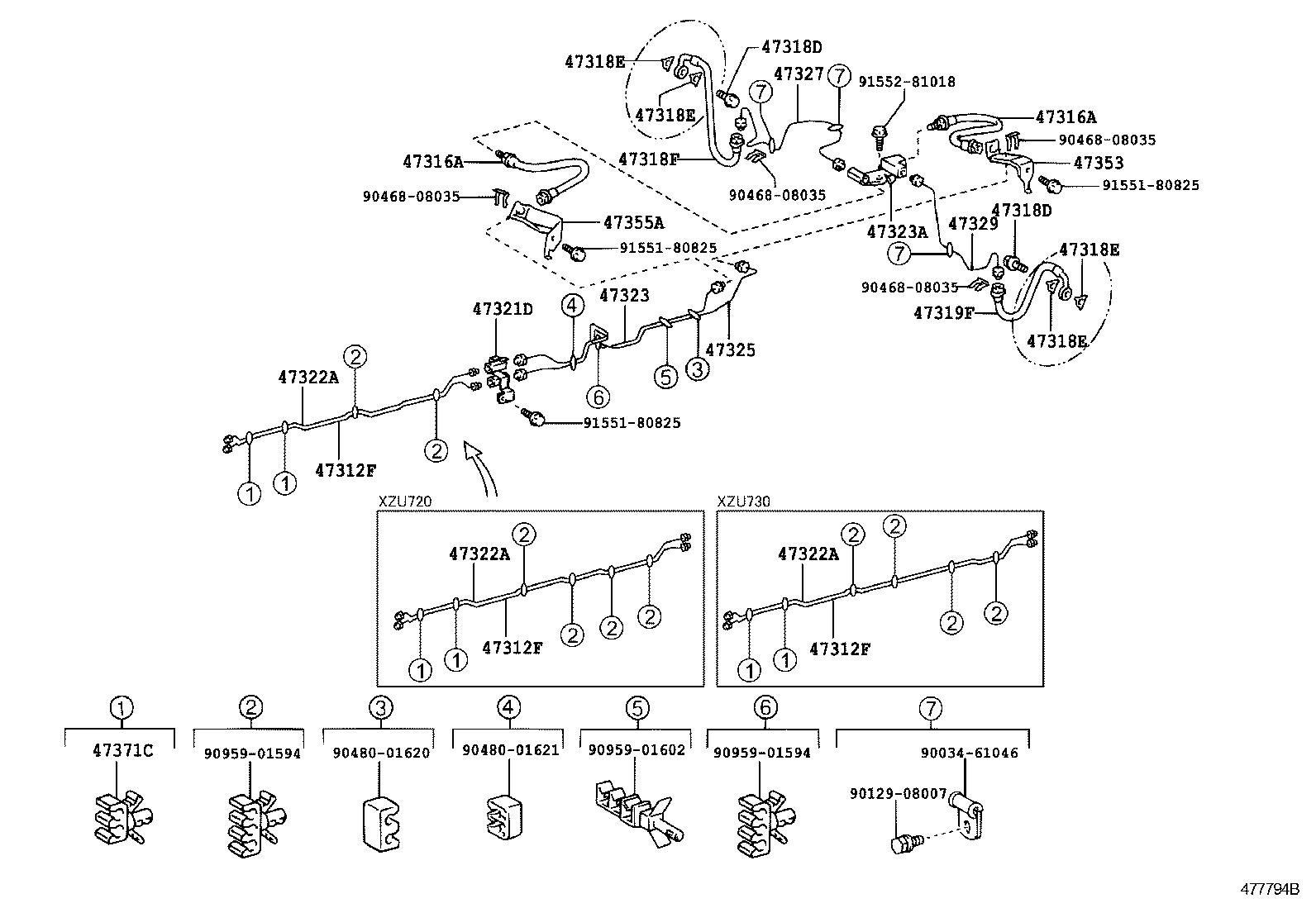

ILLUST NO. 2 OF 4(1107- )XZU710,720,730..EUR,GCC
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 90947-02B78 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02B78 |
XZU710,720..SCB..GCC |
1 | ||
| 90947-02B78 |
WU700,710,720 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 90947-02B78 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02B78 |
XZU710,720..SCB..GCC |
1 | ||
| 90947-02B78 |
WU700,710,720 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E74 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D85 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37720 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47323-37781 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47323-37780 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47323-37780 |
WU700,710,720 |
1 | ||
| 47323-37781 |
WU710,720 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47391-37150 |
XZU710,720..SCB..GCC |
1 | ||
| 47391-37150 |
WU700,710,720 |
1 | ||
| 47391-37150 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37570 |
WU700,710,720 |
1 | ||
| 47325-37571 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47325-37571 |
WU710,720 |
1 | ||
| 47325-37570 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47325-37450 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37620 |
WU710,720..85T |
1 | ||
| 47327-37620 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47327-37621 |
WU710,720..85T |
1 | ||
| 47327-37770 |
XZU710,720..85T |
1 | ||
| 47327-37621 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47327-37771 |
XZU710,720..85T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37260 |
WU710,720..85T |
1 | ||
| 47329-37260 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47329-37720 |
XZU710,720..85T |
1 | ||
| 47329-37261 |
WU710,720..85T |
1 | ||
| 47329-37721 |
XZU710,720..85T |
1 | ||
| 47329-37261 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47354-37230 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-37100 |
WU710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||

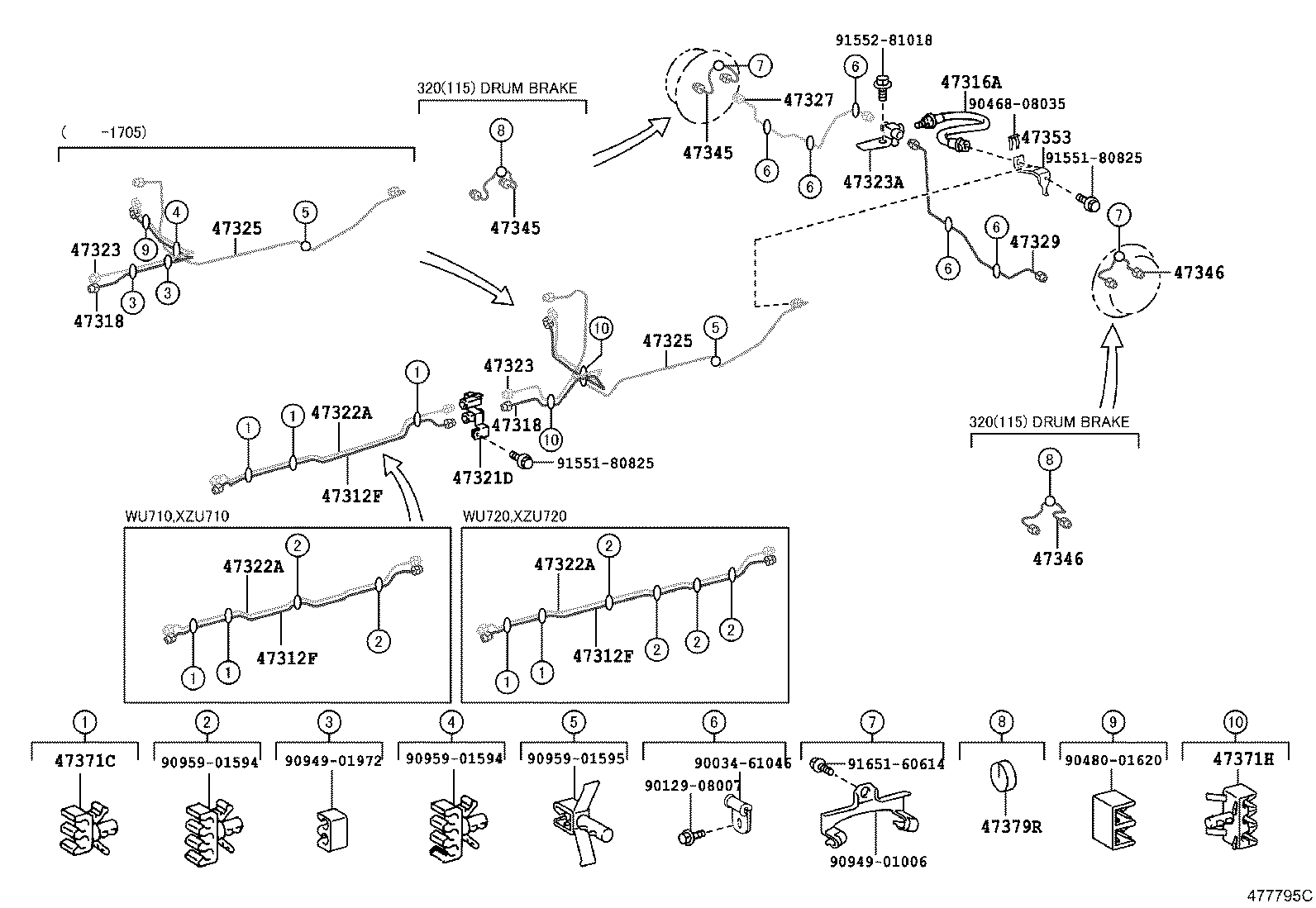

ILLUST NO. 2 OF 4(1107- )WU700,710,720 ; (1107- )XZU710,720..GCC
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 90947-02B78 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02B78 |
XZU710,720..SCB..GCC |
1 | ||
| 90947-02B78 |
WU700,710,720 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37481 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47318-37480 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47318-37480 |
WU700,710,720 |
1 | ||
| 47318-37481 |
WU710,720 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37481 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47318-37480 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47318-37480 |
WU700,710,720 |
1 | ||
| 47318-37481 |
WU710,720 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
WU720;XZU720..85T;XZU720..75T..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37720 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47323-37781 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47323-37780 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47323-37780 |
WU700,710,720 |
1 | ||
| 47323-37781 |
WU710,720 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37720 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47323-37781 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47323-37780 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47323-37780 |
WU700,710,720 |
1 | ||
| 47323-37781 |
WU710,720 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47391-37150 |
XZU710,720..SCB..GCC |
1 | ||
| 47391-37150 |
WU700,710,720 |
1 | ||
| 47391-37150 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37570 |
WU700,710,720 |
1 | ||
| 47325-37571 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47325-37571 |
WU710,720 |
1 | ||
| 47325-37570 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47325-37450 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37570 |
WU700,710,720 |
1 | ||
| 47325-37571 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47325-37571 |
WU710,720 |
1 | ||
| 47325-37570 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47325-37450 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37620 |
WU710,720..85T |
1 | ||
| 47327-37620 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47327-37621 |
WU710,720..85T |
1 | ||
| 47327-37770 |
XZU710,720..85T |
1 | ||
| 47327-37621 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47327-37771 |
XZU710,720..85T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37260 |
WU710,720..85T |
1 | ||
| 47329-37260 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47329-37720 |
XZU710,720..85T |
1 | ||
| 47329-37261 |
WU710,720..85T |
1 | ||
| 47329-37721 |
XZU710,720..85T |
1 | ||
| 47329-37261 |
XZU710,720..85T FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU710,720..6F..GCC UAE SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345-37060 |
XZU710,720..6F..GCC BAHRAIN SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345-37060 |
XZU710,720..6F..GCC..IV3 SAUDI ARABIA SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345-37060 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47345-37060 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU710,720..6F..GCC UAE SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345-37060 |
XZU710,720..6F..GCC BAHRAIN SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345-37060 |
XZU710,720..6F..GCC..IV3 SAUDI ARABIA SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47345-37060 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47345-37060 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU710,720..6F..GCC UAE SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
XZU710,720..6F..GCC BAHRAIN SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
XZU710,720..6F..GCC..IV3 SAUDI ARABIA SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU710,720..6F..GCC UAE SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
XZU710,720..6F..GCC BAHRAIN SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
XZU710,720..6F..GCC..IV3 SAUDI ARABIA SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47346-37020 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-37100 |
WU710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 47371-37240 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 47371-37240 |
WU710,720 |
2 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU710,720..6F..GCC UAE SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
2 | ||
| 47379-37010 |
XZU710,720..6F..GCC BAHRAIN SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
2 | ||
| 47379-37010 |
XZU710,720..6F..GCC..IV3 SAUDI ARABIA SPEC&FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
2 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
2 | ||
| 47379-37010 |
WU720;WU710..GEN;WU710..85T |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90949-01006 | ||||
| 90949-01972 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
| 91651-60614 | ||||

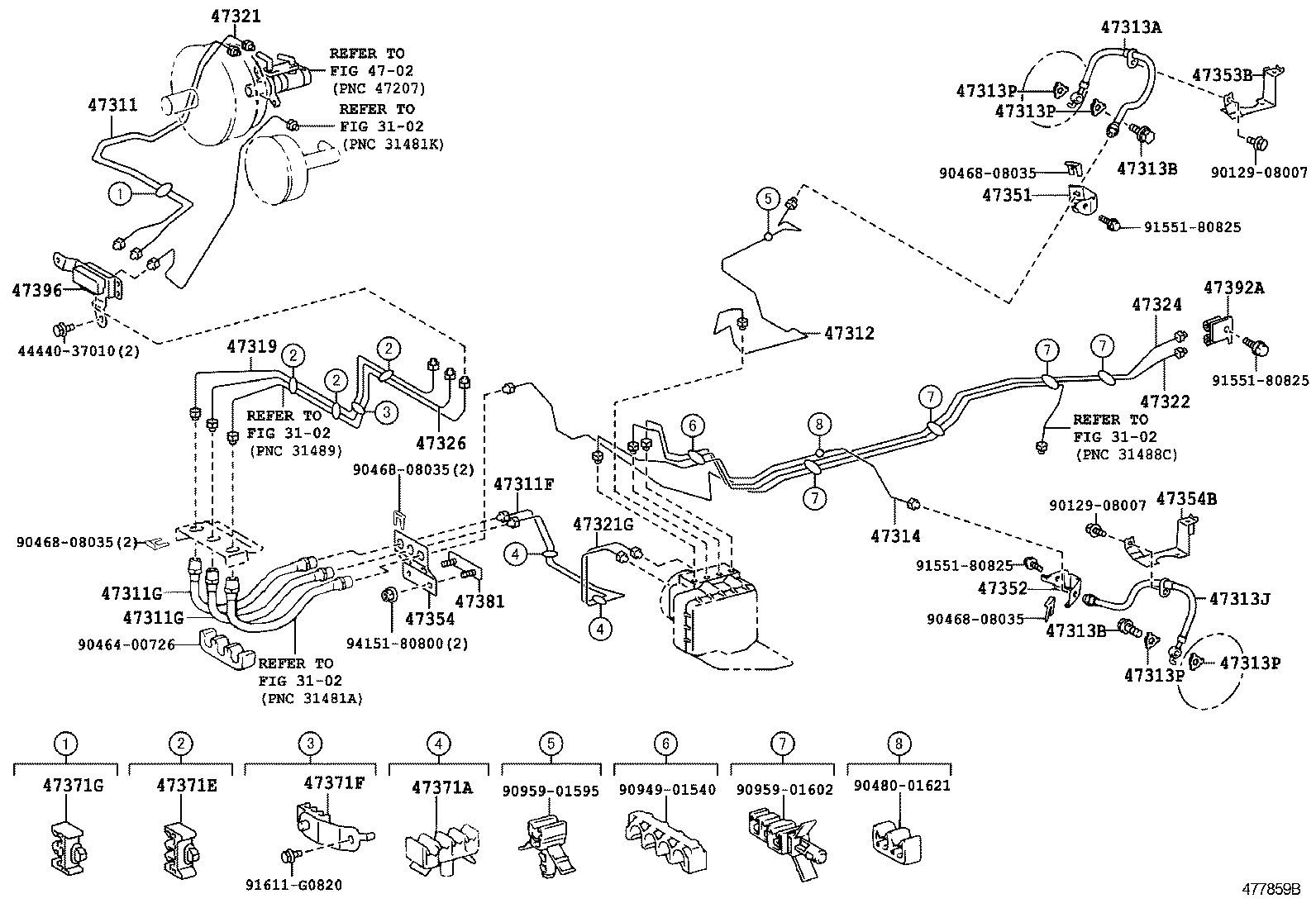

ILLUST NO. 1 OF 4(1108- )XZU710,720,730..MTM..EUR,GCC
DISC BRAKE-W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37630 |
WU700,710,720,XZU710 |
1 | ||
| 47311-37632 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) |
1 | ||
| 47311-37631 |
WU700,710,720,XZU710 |
1 | ||
| 47311-37770 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37700 |
WU700,710,720 |
1 | ||
| 47311-37700 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47311-37620 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G02 |
XZU710,720..SCB..GCC |
2 | ||
| 90947-02G01 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02G02 |
WU700,710,720 |
2 | ||
| 90947-02J55 |
WU710,720 |
2 | ||
| 90947-02J55 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 90947-02G02 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
2 | ||
| 90947-02J58 |
XZU710,720..MTM..GCC |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G02 |
XZU710,720..SCB..GCC |
2 | ||
| 90947-02G01 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02G02 |
WU700,710,720 |
2 | ||
| 90947-02J55 |
WU710,720 |
2 | ||
| 90947-02J55 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 90947-02G02 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
2 | ||
| 90947-02J58 |
XZU710,720..MTM..GCC |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37C50 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90947-02D86 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90947-02H85 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90947-02H85 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
2 | ||
| 90401-10015 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
2 | ||
| 90401-10015 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02B28 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90947-02D87 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90947-02H85 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90947-02H85 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37830 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37E51 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47312-37E51 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47312-37E50 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47312-37D51 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37601 |
WU700,710,720,XZU710 |
1 | ||
| 47321-37602 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47321-37600 |
WU700,710,720,XZU710 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37670 |
WU700,710,720 |
1 | ||
| 47321-37670 |
XZU710,720..SCB..GCC |
1 | ||
| 47321-37590 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47321-37670 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B40 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37390 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47322-37E90 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47322-37E91 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47322-37E91 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47322-37C81 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37330 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47353-37210 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47353-37261 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47353-37330 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37360 |
XZU710,720..SCB..GCC |
1 | ||
| 47354-37420 |
WU710,720 |
1 | ||
| 47354-37240 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47354-37420 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47354-37360 |
WU700,710,720 |
1 | ||
| 47354-37360 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37380 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354-37210 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354-37141 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47354-37380 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37350 |
XZU710,720..SCB..GCC |
1 | ||
| 47371-37350 |
WU700,710,720 |
1 | ||
| 47371-37350 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 47371-37350 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-37160 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47371-37210 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47371-37360 |
WU700,710,720,XZU710 |
1 | ||
| 47371-37360 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) NO.2 |
2 | ||
| 47371-37110 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47371-37110 |
WU720;WU710..GEN;WU710..85T NO.1 |
1 | ||
| 47371-37110 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT,NO.1 |
1 | ||
| 47371-37360 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT,NO.2 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47391-37470 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90949-01540 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||

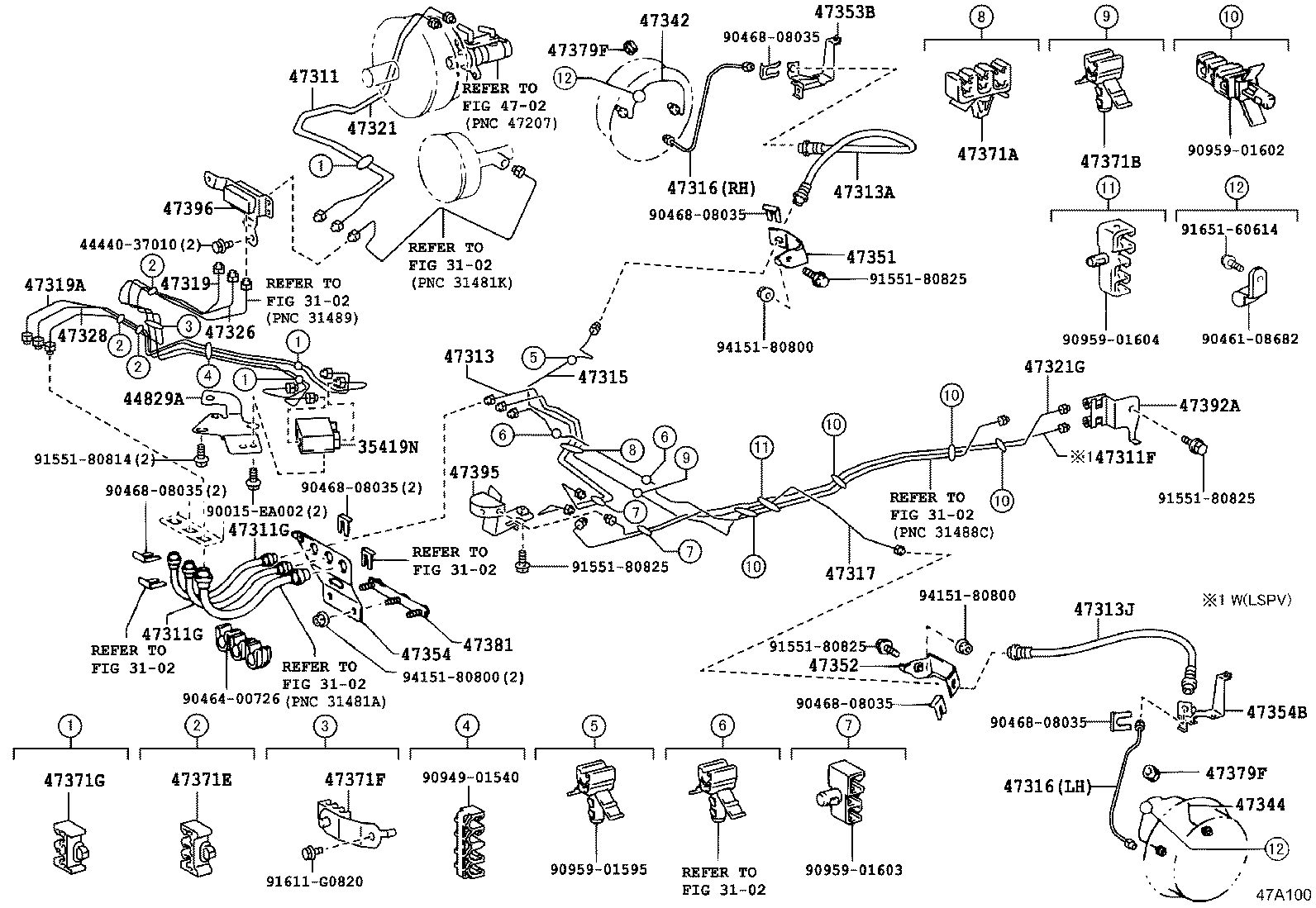

ILLUST NO. 1 OF 4(1107-1509)LHD..65T..GEN ; (1107-1509)WU710..LHD..75T,85T ; (1107-1509)WU720,XZU710
DRUM BRAKE-W/O(ABS) & W(CHECK VALVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35419N - VALVE, CHECK | ||||
| 35419-37010 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 35419-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 44829A - BRACKET, CHECK VALVE | ||||
| 44829-37010 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 44829-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37630 |
WU700,710,720,XZU710 |
1 | ||
| 47311-37632 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) |
1 | ||
| 47311-37631 |
WU700,710,720,XZU710 |
1 | ||
| 47311-37770 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37700 |
WU700,710,720 |
1 | ||
| 47311-37700 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47311-37620 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G02 |
XZU710,720..SCB..GCC |
2 | ||
| 90947-02G01 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02G02 |
WU700,710,720 |
2 | ||
| 90947-02J55 |
WU710,720 |
2 | ||
| 90947-02J55 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 90947-02G02 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
2 | ||
| 90947-02J58 |
XZU710,720..MTM..GCC |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G02 |
XZU710,720..SCB..GCC |
2 | ||
| 90947-02G01 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02G02 |
WU700,710,720 |
2 | ||
| 90947-02J55 |
WU710,720 |
2 | ||
| 90947-02J55 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 90947-02G02 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
2 | ||
| 90947-02J58 |
XZU710,720..MTM..GCC |
2 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37670 |
XZU710,720..SCB..GCC |
1 | ||
| 47313-37670 |
WU700,710,720 |
1 | ||
| 47313-37670 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90947-02D86 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90947-02H85 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90947-02H85 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
2 | ||
| 90401-10015 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
2 | ||
| 90401-10015 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02B28 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90947-02D87 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90947-02H85 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90947-02H85 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
WU710..GEN;WU720..75T,85T;WU710..85T..IV3 |
4 | ||
| 47389-30010 |
WU710..85T..CBU;XZU710,720..MTM..GCC;WU700,710,720..65T..GCC |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37630 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47315-37630 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37550 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47317-37550 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37E51 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47312-37E51 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47312-37E50 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47312-37D51 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47313-37690 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47313-37691 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47313-37691 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37601 |
WU700,710,720,XZU710 |
1 | ||
| 47321-37602 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47321-37600 |
WU700,710,720,XZU710 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37670 |
WU700,710,720 |
1 | ||
| 47321-37670 |
XZU710,720..SCB..GCC |
1 | ||
| 47321-37590 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47321-37670 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47322-37E90 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47322-37E91 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47322-37E91 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47322-37C81 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47323-37880 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47323-37881 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47323-37881 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 47342-37061 |
WU710,720..6F |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47342-37061 |
WU710,720..6F |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37330 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47353-37210 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47353-37261 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47353-37330 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37360 |
XZU710,720..SCB..GCC |
1 | ||
| 47354-37420 |
WU710,720 |
1 | ||
| 47354-37240 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47354-37420 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47354-37360 |
WU700,710,720 |
1 | ||
| 47354-37360 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37380 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354-37210 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354-37141 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47354-37380 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37350 |
XZU710,720..SCB..GCC |
1 | ||
| 47371-37350 |
WU700,710,720 |
1 | ||
| 47371-37350 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 47371-37350 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-37050 |
XZU710,720..SCB..GCC |
1 | ||
| 47371-37050 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47371-37050 |
WU700,710,720 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-37160 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47371-37210 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47371-37360 |
WU700,710,720,XZU710 |
1 | ||
| 47371-37360 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) NO.2 |
2 | ||
| 47371-37110 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47371-37110 |
WU720;WU710..GEN;WU710..85T NO.1 |
1 | ||
| 47371-37110 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT,NO.1 |
1 | ||
| 47371-37360 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT,NO.2 |
2 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU720..6F;WU710..85T..IV3 |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
WU710,720..6F |
4 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU720..6F;WU710..85T..IV3 |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
WU710,720..6F |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37390 |
WU700,710,720 |
1 | ||
| 47391-37390 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47391-37470 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 90015-EA002 | ||||
| 90129-08007 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90949-01540 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
ILLUST NO. 1 OF 4(1509- )LHD..65T..GEN ; (1509- )XZU710,720..MTM..GCC ; (1509- )WU710,720..
DRUM BRAKE-W/O(ABS) & W(CHECK VALVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35419N - VALVE, CHECK | ||||
| 35419-37010 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 35419-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 44829A - BRACKET, CHECK VALVE | ||||
| 44829-37010 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 44829-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37630 |
WU700,710,720,XZU710 |
1 | ||
| 47311-37632 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) |
1 | ||
| 47311-37631 |
WU700,710,720,XZU710 |
1 | ||
| 47311-37770 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37700 |
WU700,710,720 |
1 | ||
| 47311-37700 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47311-37620 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G02 |
XZU710,720..SCB..GCC |
2 | ||
| 90947-02G01 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02G02 |
WU700,710,720 |
2 | ||
| 90947-02J55 |
WU710,720 |
2 | ||
| 90947-02J55 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 90947-02G02 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
2 | ||
| 90947-02J58 |
XZU710,720..MTM..GCC |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G02 |
XZU710,720..SCB..GCC |
2 | ||
| 90947-02G01 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 90947-02G02 |
WU700,710,720 |
2 | ||
| 90947-02J55 |
WU710,720 |
2 | ||
| 90947-02J55 |
XZU710,720..MTM..GCC ABS-WITHOUT |
2 | ||
| 90947-02G02 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
2 | ||
| 90947-02J58 |
XZU710,720..MTM..GCC |
2 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37670 |
XZU710,720..SCB..GCC |
1 | ||
| 47313-37670 |
WU700,710,720 |
1 | ||
| 47313-37670 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90947-02D86 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90947-02H85 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90947-02H85 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02B28 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90947-02D87 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90947-02H85 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90947-02H85 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37630 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47315-37630 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47311-37740 |
WU720;WU710..GEN;WU710..85T LH |
1 | ||
| 47311-37740 |
XZU710,720..6F..GCC ABS-WITHOUT,LH |
1 | ||
| 47312-37D90 |
XZU710,720..6F..GCC ABS-WITHOUT,RH |
1 | ||
| 47312-37D90 |
WU720;WU710..GEN;WU710..85T RH |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47311-37740 |
WU720;WU710..GEN;WU710..85T LH |
1 | ||
| 47311-37740 |
XZU710,720..6F..GCC ABS-WITHOUT,LH |
1 | ||
| 47312-37D90 |
XZU710,720..6F..GCC ABS-WITHOUT,RH |
1 | ||
| 47312-37D90 |
WU720;WU710..GEN;WU710..85T RH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37550 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47317-37550 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37E51 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47312-37E51 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47312-37E50 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47312-37D51 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47313-37690 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47313-37691 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47313-37691 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37601 |
WU700,710,720,XZU710 |
1 | ||
| 47321-37602 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47321-37600 |
WU700,710,720,XZU710 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37670 |
WU700,710,720 |
1 | ||
| 47321-37670 |
XZU710,720..SCB..GCC |
1 | ||
| 47321-37590 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47321-37670 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47322-37E90 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47322-37E91 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47322-37E91 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47322-37C81 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47323-37880 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47323-37881 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47323-37881 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 47342-37061 |
WU710,720..6F |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47342-37061 |
WU710,720..6F |
1 | ||
| 47342-37061 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37330 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47353-37210 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47353-37261 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47353-37330 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37360 |
XZU710,720..SCB..GCC |
1 | ||
| 47354-37420 |
WU710,720 |
1 | ||
| 47354-37240 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
1 | ||
| 47354-37420 |
XZU710,720..MTM..GCC ABS-WITHOUT |
1 | ||
| 47354-37360 |
WU700,710,720 |
1 | ||
| 47354-37360 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37380 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354-37210 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 47354-37141 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 47354-37380 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37350 |
XZU710,720..SCB..GCC |
1 | ||
| 47371-37350 |
WU700,710,720 |
1 | ||
| 47371-37350 |
XZU720..75T..CBU;XZU710,720..SCB..MTM..(65T,85T) |
2 | ||
| 47371-37350 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-37050 |
XZU710,720..SCB..GCC |
1 | ||
| 47371-37050 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47371-37050 |
WU700,710,720 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-37160 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47371-37210 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47371-37360 |
WU700,710,720,XZU710 |
1 | ||
| 47371-37360 |
WU720;WU710..LHD..65T..GEN;WU710..LHD..(75T,85T) NO.2 |
2 | ||
| 47371-37110 |
XZU720..75T..CBU;WU700,710..65T..GCC;XZU710,720..MTM..(65T,85T) |
1 | ||
| 47371-37110 |
WU720;WU710..GEN;WU710..85T NO.1 |
1 | ||
| 47371-37110 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT,NO.1 |
1 | ||
| 47371-37360 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT,NO.2 |
2 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU720..6F;WU710..85T..IV3 |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
WU710,720..6F |
4 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
WU720..6F;WU710..85T..IV3 |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
4 | ||
| 47379-37010 |
WU710,720..6F |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37390 |
WU700,710,720 |
1 | ||
| 47391-37390 |
XZU720..75T..CBU;XZU710,720..MTM..(65T,85T) ABS-WITHOUT |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47391-37470 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 90015-EA002 | ||||
| 90461-08682 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90949-01540 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 91651-60614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
